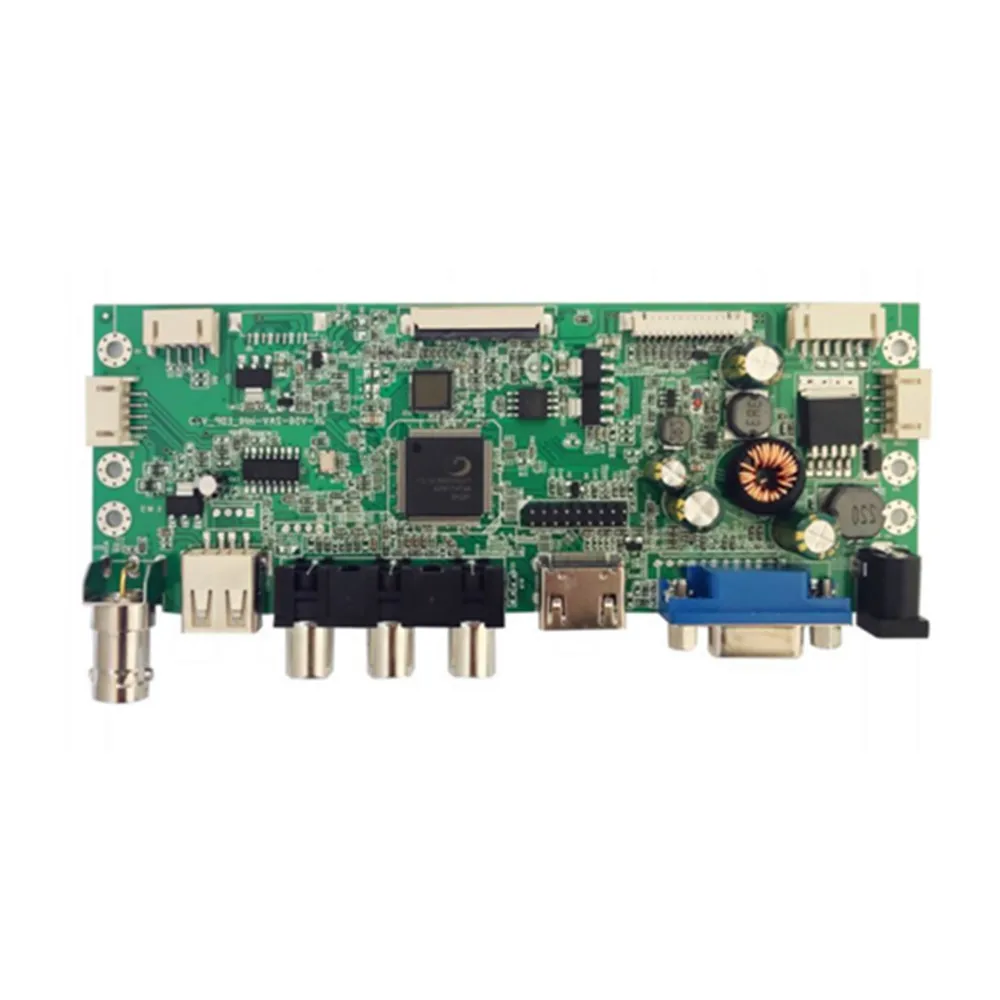

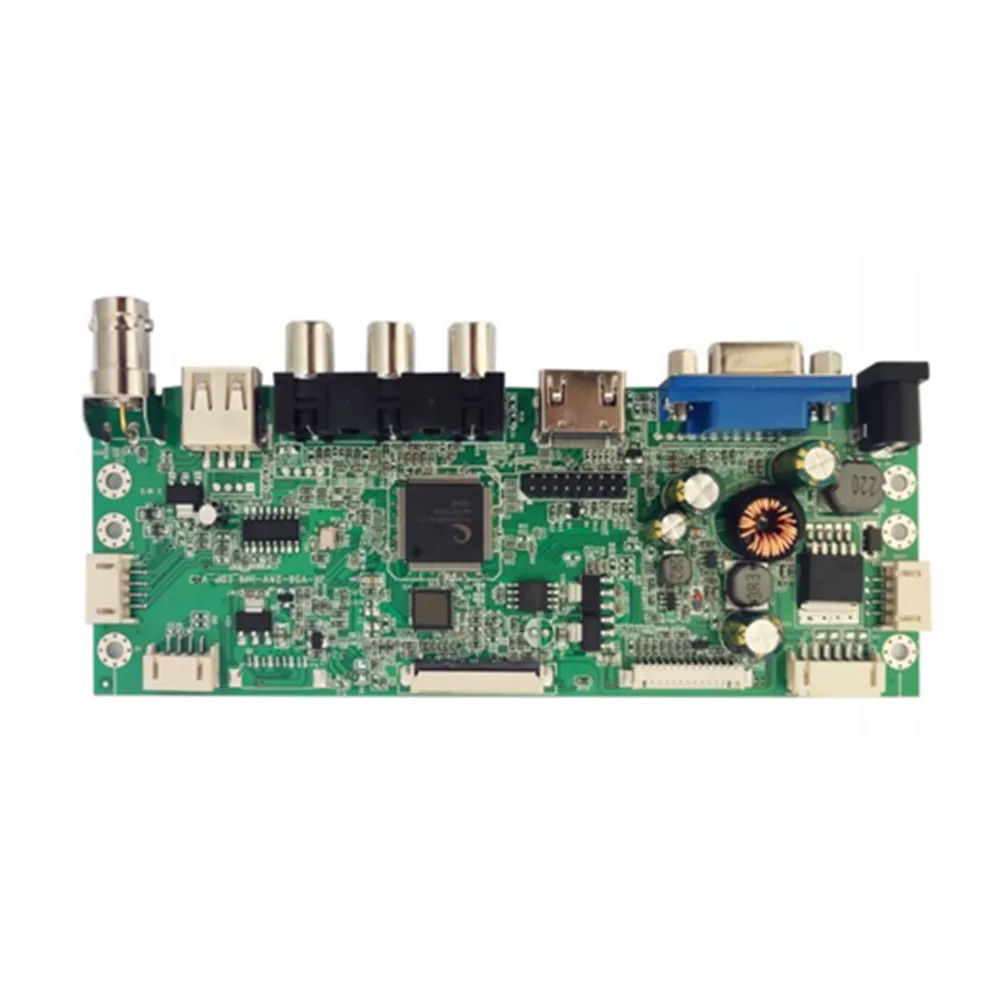

lcd edp screen monitor controller board with USB HDMI VGA AV*2*CVBS Type C wide power supply voltage 9~32V for any LCD size
- Category: >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (62351153546):
Product Overview
Description
JX-V56-2AV-EDP lcd driver board universal with USB+HDMI+VGA+BNC+TypeC function for edp display screen
Product Description
Specifications of the TypeC LCD Controller Board:
1.General description
The product positioning medium/high-end LCD AV/MONITOR solution adopts MSTAR single-chip TV processing IC, which has the characteristics of good picture quality, multi-function, rich interface and mature system. It supports full color/sound system, mainly for 17.3” and The following size EDP screen design.
Wide voltage input range 10-30Vdc.
The Type-C function can be extended. Support a variety of mobile phones and computers.
CVBS signal supports automatic recognition of PAL, NTSC and SECAM.
Full 3D Interlace video decoding, digital noise reduction, (V56 for 3D video decoding, USB function support) built-in audio processing, volume, mute, treble, bass, balance function;
Support multimedia playback.
It can expand RS232 and also has a variety of peripheral control functions. For example: automatic photometric adjustment, audio control switch machine, etc.
Analog audio amplifier: The maximum output power is 2X3W (4 ohms).
Input signal: AvinX2, VGAx1, HDMI (1.4), USB
Support screen resolution 1920*1200, 1920*1080, 1366*768 signal output.
Supports headphone output function, rich built-in interface, multi-national OSD menu language.

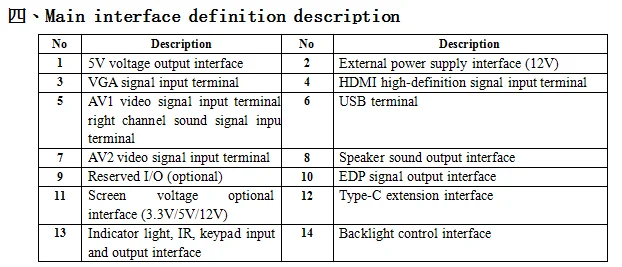

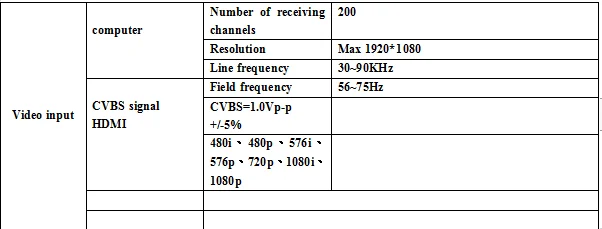

2. Main technical parameters

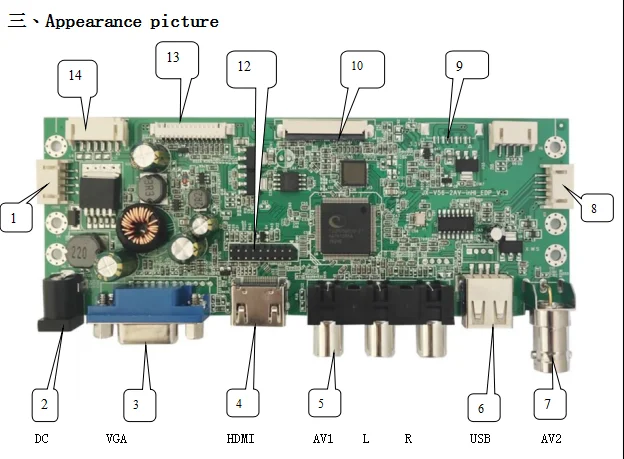

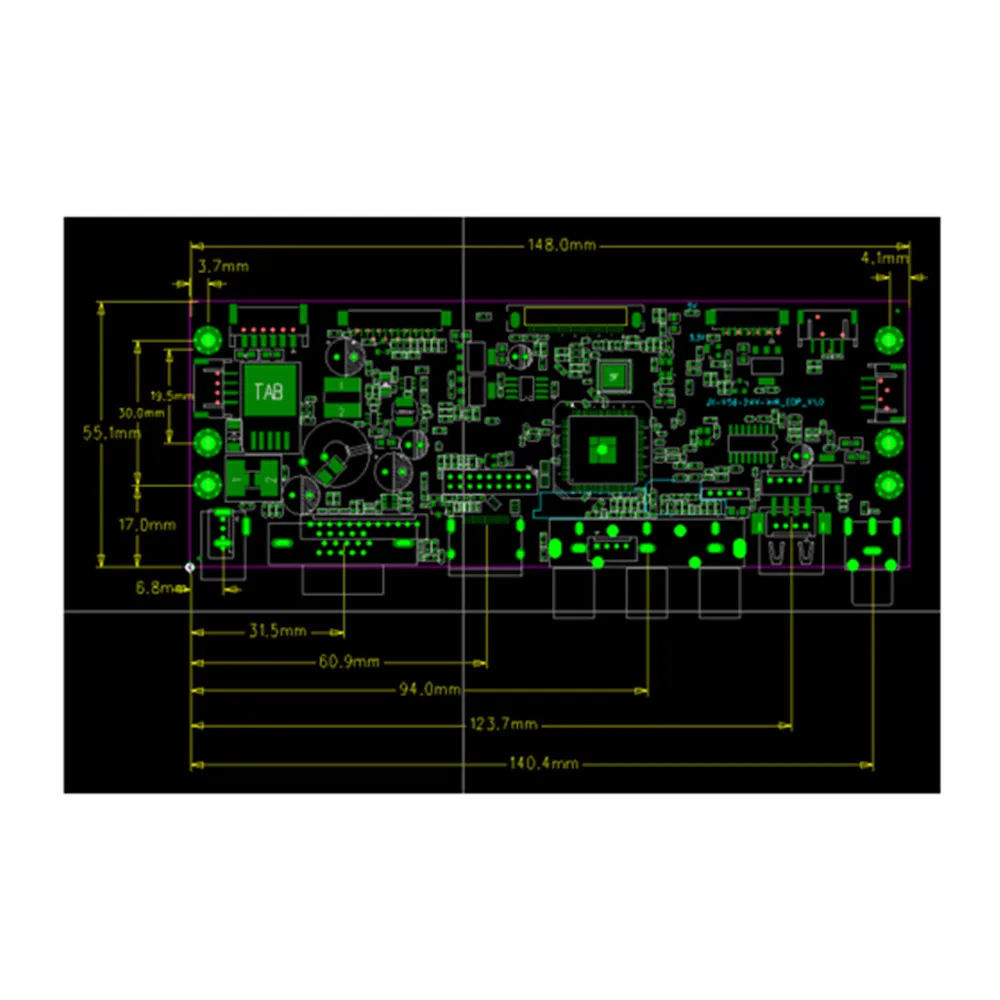

3.Appearance

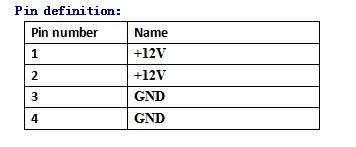

1. power supply input +12Vdc

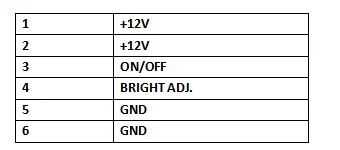

2.backlight control connector
pin definition

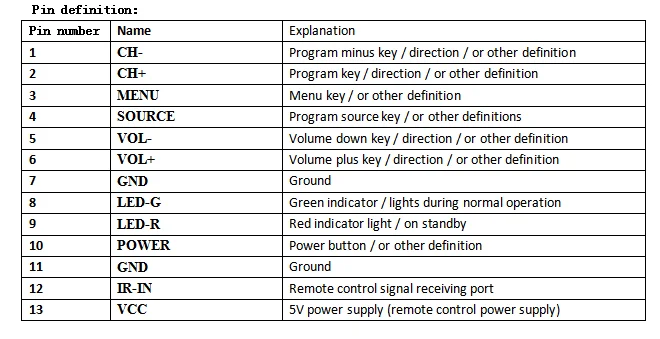

3.indicator light, IR,KEY input socket

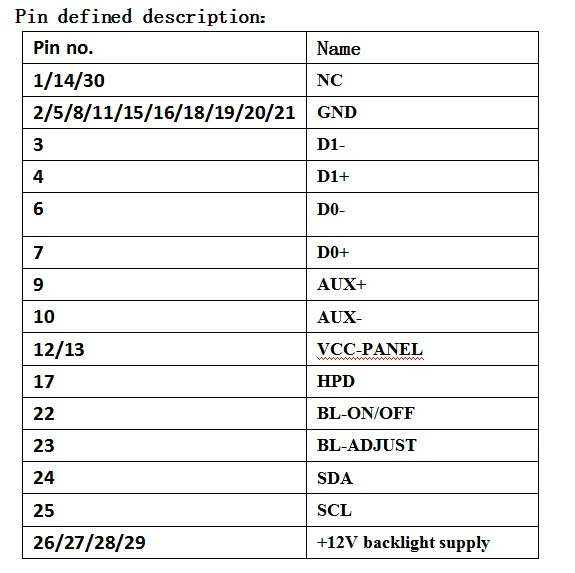

10.EDP output connector
