| Product | SONOFF 4CH R2 Smart Wifi Switch | |
| Voltage range | 90-250V AC(50/60Hz) / 5-24V DC | |
| Max current | 10A/gang | |
| Max Wattage | 2200W/gang | |
| Humidity | 5%-90%RH, Non-condensing | |
| Frequency | 2.4Ghz | |
| Operating Temperature | 0ºC-40ºC(32°F-104°F) | |
| Dimensions | 146x94x49mm(L*W*H) |

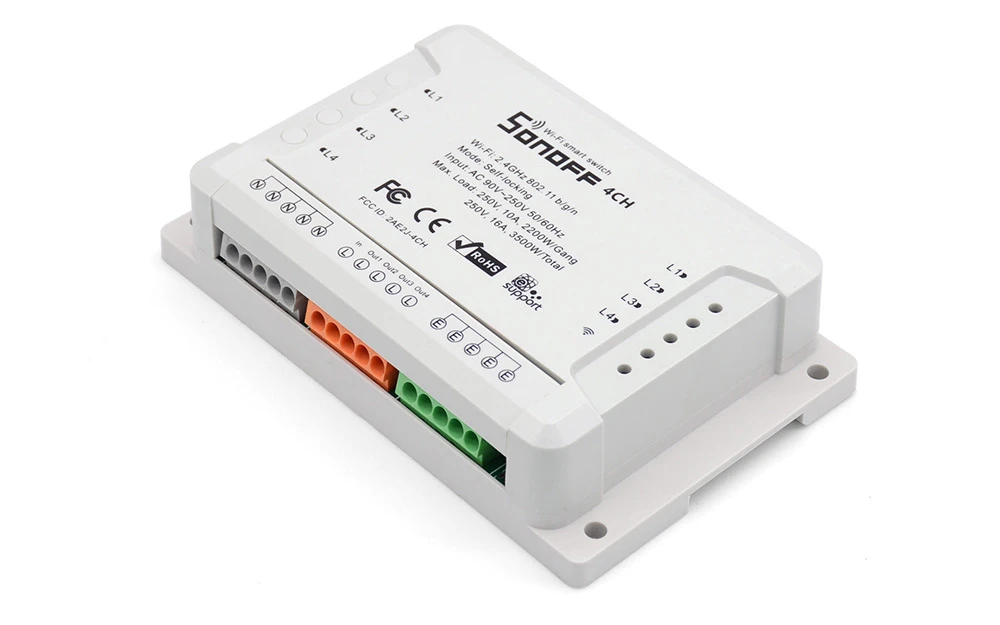

SONOFF 4CH & 4CH R2 are 4-gang switches with din rail mounting. Sonoff 4CH (R2) 4 gang light switch supports to connect and control 4 electrical appliances, which can be turned on/off separately by the buttons or iOS/Android App EweLink. Besides, with the multi gang switch, you can check real-time devices status for each device on App. Owning a Sonoff 4CH (R2) multi gang switch means you have 4 Sonoff basic WiFi switches integrate together.
The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.
Sonoff 4CH (R2) 4 gang WiFi light switch belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.
Sonoff 4CH (R2) is hacker-friendly that you can flash your firmware without difficulty. Read ESP8285 datasheet.

![]() | ![]() | ![]() | ![]() | |||
App Remote Control | Share Control of Devices | Away Mode | One APP for All | |||
The smart WiFi switch helps you check your home appliances status via mobile application eWeLink anytime & anywhere. Just simply tap on your smart phone to turn the connected appliances on/off when you are not at home | You can simply share control of your home appliances to your family via eWeLink App so that they can also turn on/off the devices remotely | Home security occupies most of your concern when you go on business or holiday. You can set a schedule to turn on/off the connected lights by SONOFF smart light switch | All SONOFF Smart devices work with eWeLink APP. Easily manage them from one app via Android & iOS smart phone | |||
![]() | ![]() | ![]() | ![]() | |||
Compatible with IFTTT | Sync Status | Affordable Choice | No.1 Producer | |||
By connecting"eWeLink Smart Home" on IFTTT App, you own unlimited possibilities to control SONOFF devices with utilization of IFTTT supported app and services | Real-time device status can be provided on eWeLink App in order that we can track status change of our devices | You don't need to take on high cost in order to replace traditional home appliances with smart ones. The cheap low-cost SONOFF wifi light switch lets more people afford smart home project to enjoy the intelligence of life | SONOFF is the first to produce universal WiFi switch module in the smart home industry. With annual quantities of investment in R&D, prodcution and test, SONOFF is always dedicated to providing customers with cost-effective, high-quality products and after-sales service |
Weight: 0.26 kg/pcs | Packing: 1pcs | |
Packing Size: 146x94x49mm | N.W:0.221kg/pcs | G.W: 0.26kg/pcs |
Q: How do you guarantee the quality?
A: We have very strict quality control procedures during production. Besides, each of our product has passed strict quality test and stability test before delivery.
Q: Is your price competitive?
A: Yes, we are manufacturer, so our price is very competitive.
Q: What certificates can you provide?
A: Customers from different countries require different certificates, so we will assist our customers in applying for the certificates they require. At the moment, our customers have applied for CE, ROHS, FCC.
