Radial insert ball bearings UC207 20 Bearing UC207 31.75x72x42.9mm
- Category: Pillow Block Bearings >>>
- Supplier: Shanghai,Shengyue,Bearing,Ltd.
Share on:
Product Overview
Description
Radial insert ball bearings UC207-20 Bearing UC207 31.75x72x42.9mm
Product Description
SYBR bearings
Stainless steel spherical ball bearing UC207-20:
Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered.
Radial insert ball bearings UC207-20 Bearing UC207 31.75x72x42.9mm
Bearing number : UC207-20
Size (mm) : 31.75x72x42.9
Bore Diameter (mm) : 31,75
Outer Diameter (mm) : 72
Width (mm) : 42,9

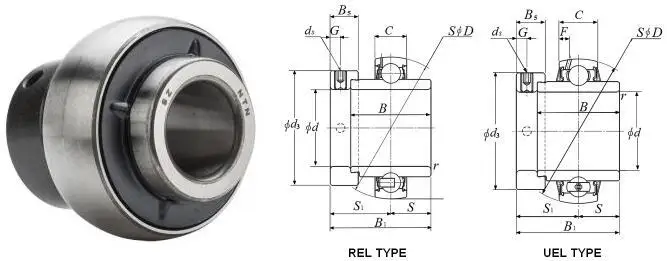

Bearing dimensions and specification in FAG catalogue:
d - 31,75 mm
d - 1 1/4 inch
DSP - 72 mm
B - 42,9 mm
A - 7 mm
C - 20 mm
C2 - 20,6 mm
Ca - 5,7 mm
d1 - 46,84 mm
S - 17,5 mm
W - 5/32 inch
m - 0,52 kg / Weight
Cr - 27500 N / Dynamic load rating (radial)
C0r - 15300 N / Static load rating (radial)
Tags :31.75x72x42.9mm
Bearing number : UC207-20
Size (mm) : 31.75x72x42.9
Bore Diameter (mm) : 31,75
Outer Diameter (mm) : 72
Width (mm) : 42,9
Bearing dimensions and specification in FAG catalogue:
d - 31,75 mm
d - 1 1/4 inch
DSP - 72 mm
B - 42,9 mm
A - 7 mm
C - 20 mm
C2 - 20,6 mm
Ca - 5,7 mm
d1 - 46,84 mm
S - 17,5 mm
W - 5/32 inch
m - 0,52 kg / Weight
Cr - 27500 N / Dynamic load rating (radial)
C0r - 15300 N / Static load rating (radial)
Tags :31.75x72x42.9mm
All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use.
Other types of pillow block bearings:
| Unit No. | Shaft Dia | Dimensions(mm) | Bolt Size | Weight (kg) | |||||||
| d | H | J | A2 | A1 | A | N | L | B | (mm) | ||
| (mm) | |||||||||||
| UCFL201 | 12 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 |
| UCFL201-8 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 | |
| UCFL202 | 15 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 |
| UCFL202-9 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 | |
| UCFL202-10 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 | |
| UCFL203 | 17 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 |
| UCFL203-11 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 | |
| UCFL204 | 20 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 31 | M10 | 0.51 |

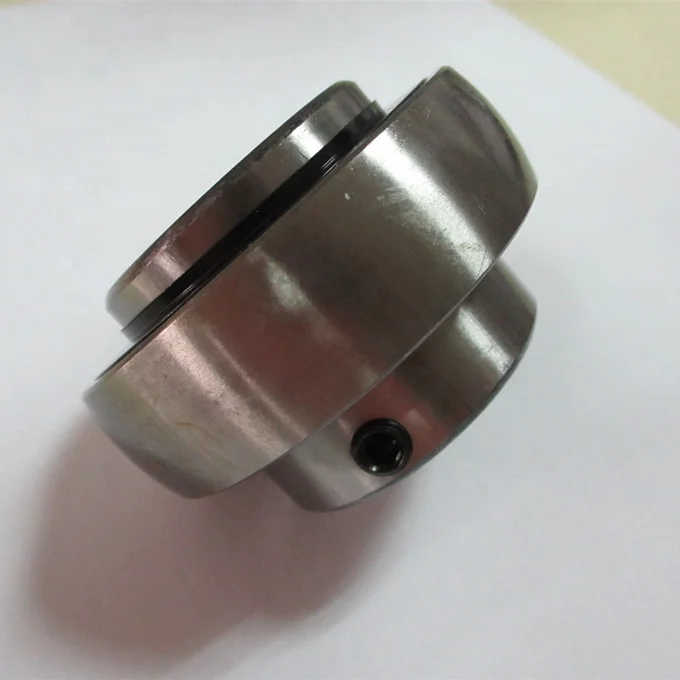

Product photos
Packing&Application
Bearing of packaging:
1)Tube package+outer carton+pallets.
2)Single box+outer carton+pallets .
3)Tube package+middle box+outer carton+pallets .
4)According to your requirement.
Application:
Products are widely used in machinery and equipment, electric power, steel, metallurgy, petroleum,chemical engineering, machine tool, spinning, car, electrical machine, precise instrument,mining machinery, construction machinery, engineering machinery, railw and so on.
Shipping
Delivery:
1).For a small order,we can send you by UPS,DHL,FEDEX,OR EMS. Thracking number will be advised after delivery.
2).If order is big,we will advise you use Air Freight or Sea Freight.
3).The balance payment should be paid before delivery to you.
4). In generally,we delivery the goods within 15 days.
Company Information
| Company name | Shanghai Shengyue Bearing Co.,Ltd |
| Business type | Manufacturer & Trading |
| Established year | 2012 |
| Business product | All kinds of bearings |
| OWN Brand | SYBR |
| Export range | 81%-90% |
| OEM service | Offer |
| Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
We provide the good quality products for each customer, carefully build a well-known brand in the bearing industry. We sincerely welcome you to discuss cooperation and common development.
