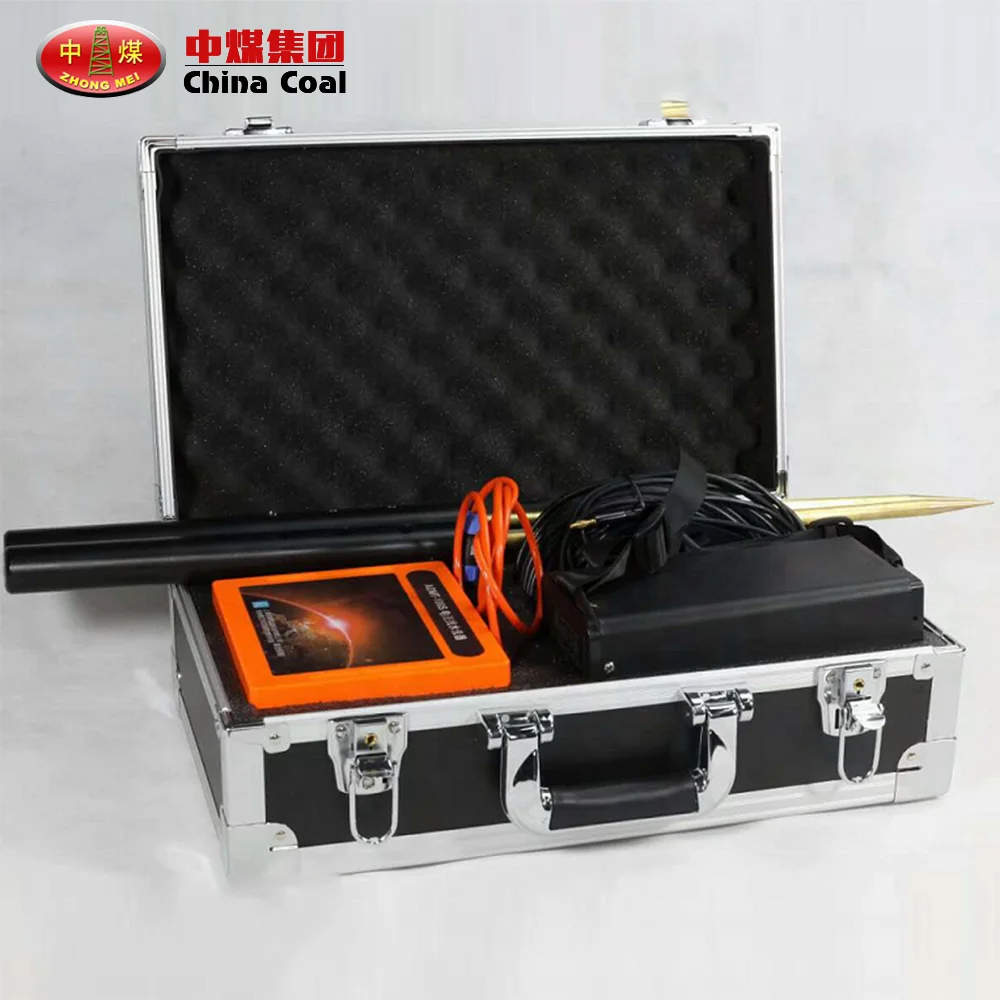

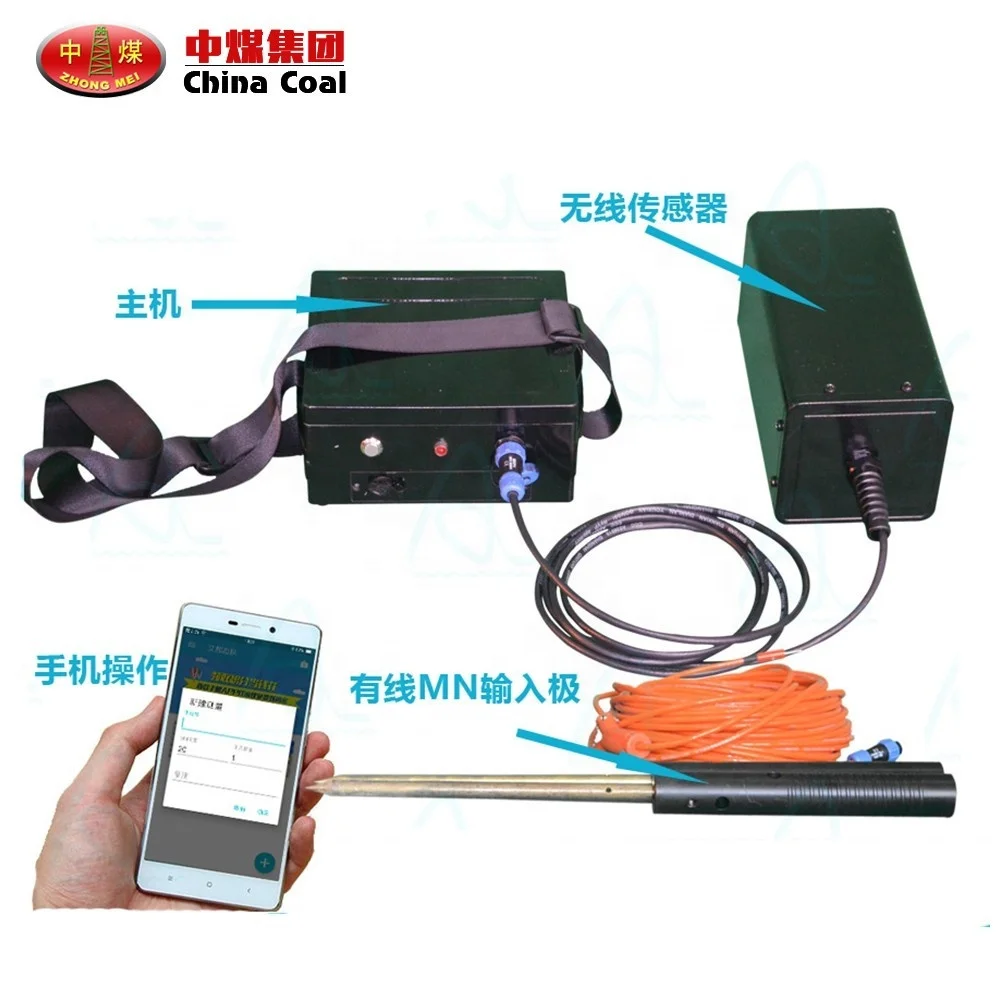

ADMT 100S Underground Water Detector For Sale

Product Overview

Description



Introduction of ADMT-100S Underground Water Detector

___________________________________________________

ADMT-100S mobile phone Water detector is measured by natural electromagnetic field strength to response the changes of resistivity, to analyse and judge the location, depth of groundwater and other related information, can be detailed survey and the exploration of groundwater j, solve drinking water, industrial water and agricultural irrigation demand, to great effect to the successful drilling Wells for water, under the general customers the consistent high praise.

ADMT-100S mobile phone Water detector is belong to the category of electrical prospecting’s M/T method prospecting. Thorough solving the problems of different and changeable source intensity of natural electric field. Now the detector is easy and convenient, with stable source measuring now, high intelligent and with direct-viewing of diagram. Obtaining the remarkable achievements in few decades field explorations.



Model	ADMT-100S	ADMT-200S	ADMT-300S	ADMT-400S		ADMT-600S	ADMT-800S
Measuring range	0-300mv
Detection depth	0-100m	0-200m	0-300m	0-400m		0-600m	0-800m
Measuring Mode (Intelligent frequency)	20 frequencies	40 frequencies	60 frequencies	80 frequencies
Resolution	2mV	1mV	0.5mV	0.2mV		0.1mV
Repetitive error	±5% ±2 Bit	±3% ±2 Bit	±2% ±2 Bit	±2% ±1 Bit		±1% ±1 Bit
A/D switch	16 Bits 1Msps			24 Bits 1Msps
Input impedance	≥10MΩ
Power frequency suppression	>80dB
Data Storage	Phone Storage space or cloud space 20G
Display	Mobile phone or tablet PC(touch LCD 5-10.1")
Connection Mode	4.0
Mainframe Power Supply	DC4.5V 6800mAh lithium battery
Mainframe Power Consumption	160mA	230mA		360mA
Operating Temperature	-10℃to +40℃		-20℃to +60℃		-40℃to +70℃
Dimension	18.6*14.8*8cm
Host Weight	2.8KG		2.9KG

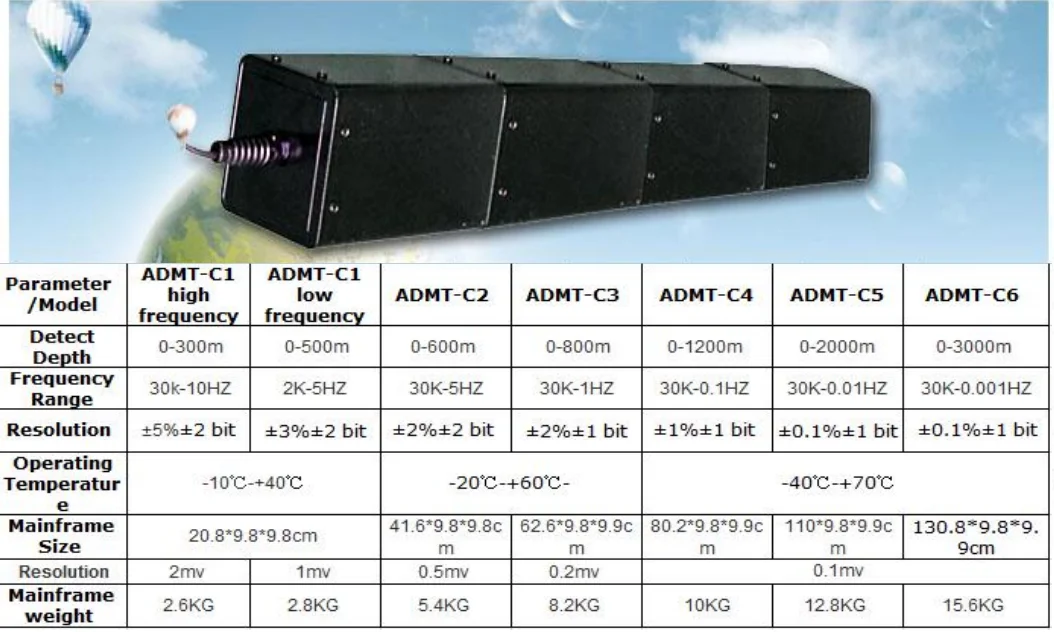

if you need wireless sensor,please contact us to purchase!

Main Features of ADMT-100S Underground Water Detector

____________________________________________________

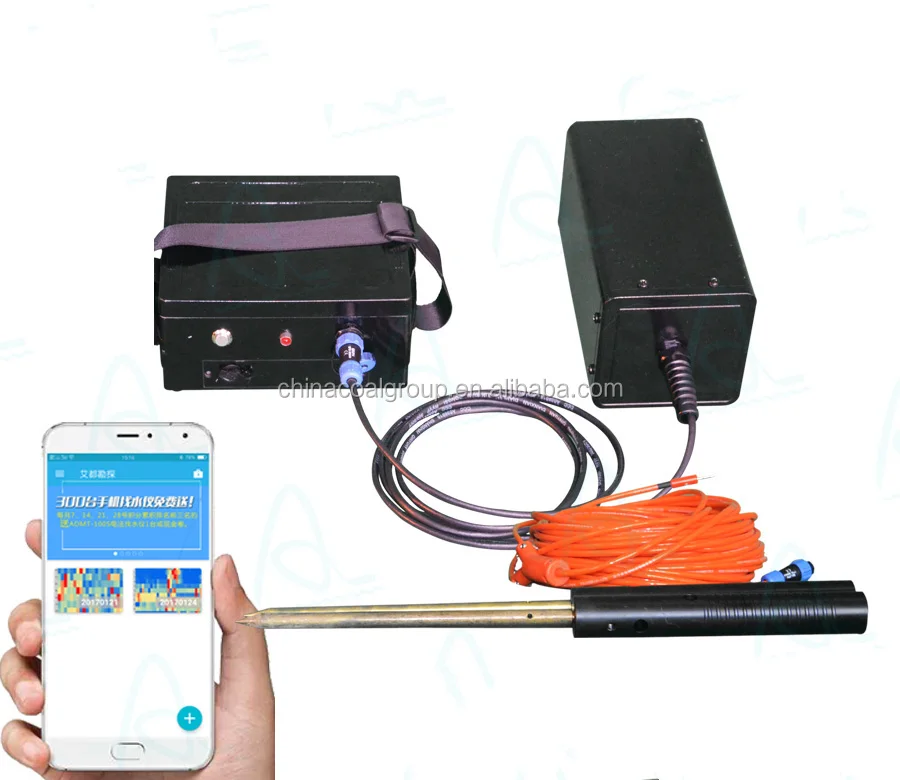

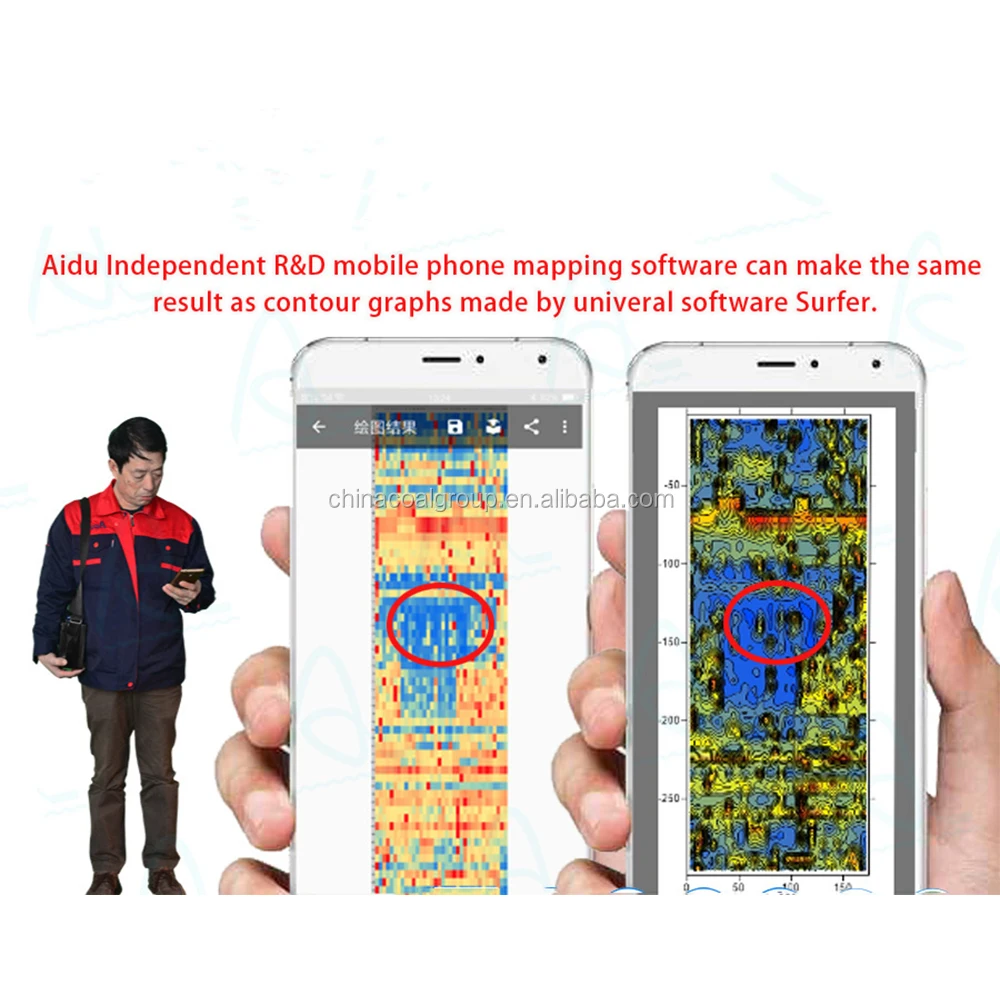

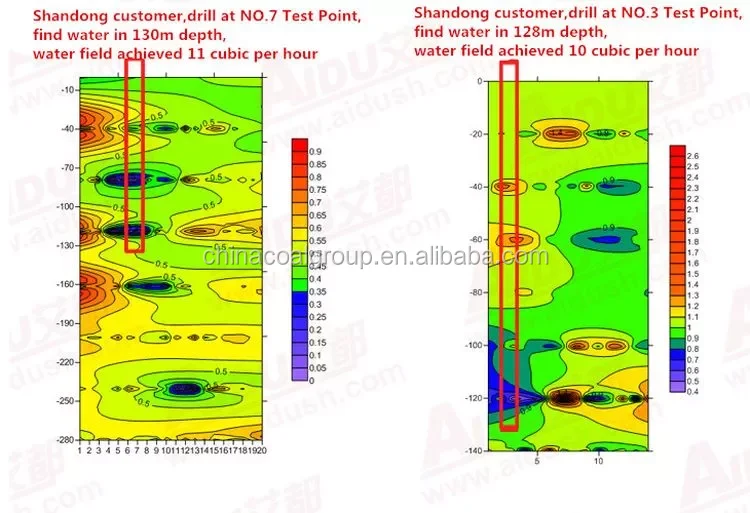

1. Automatically forming the graphs: Measuring by mobile phone and automatically forming the graphs after done.

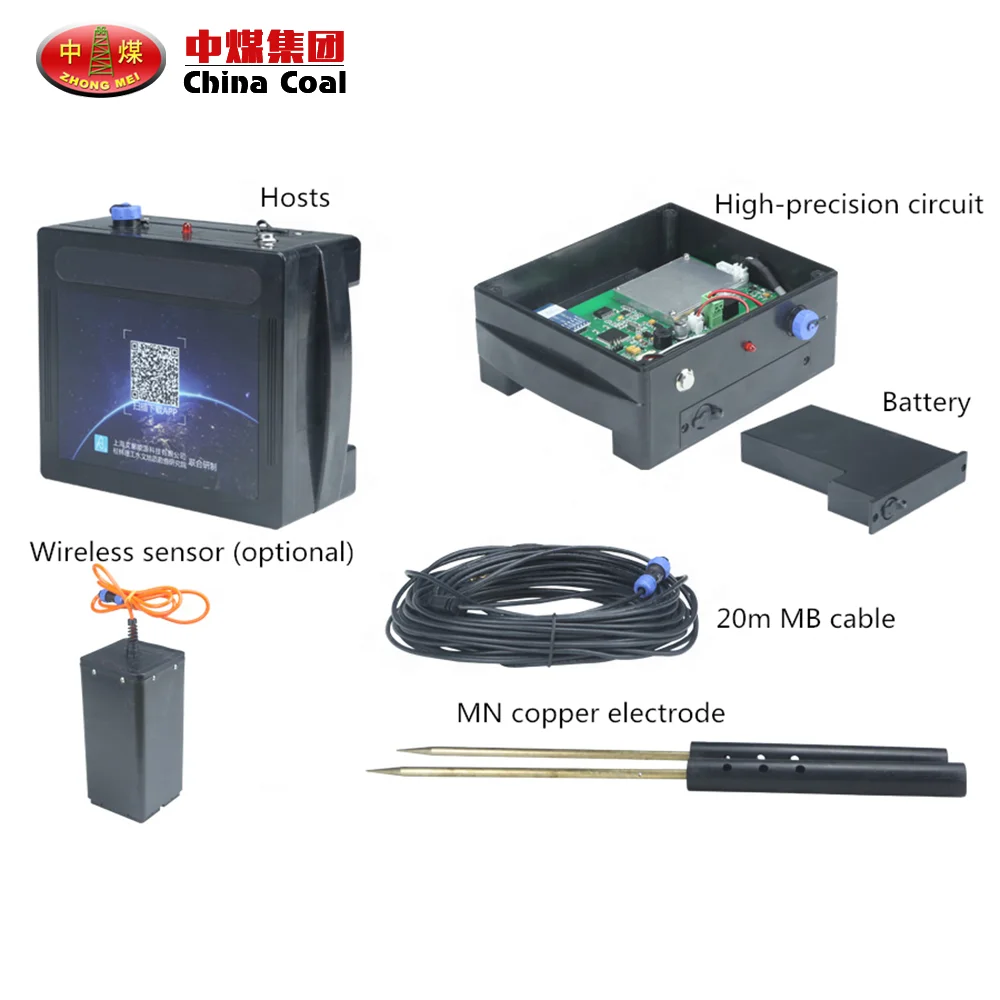

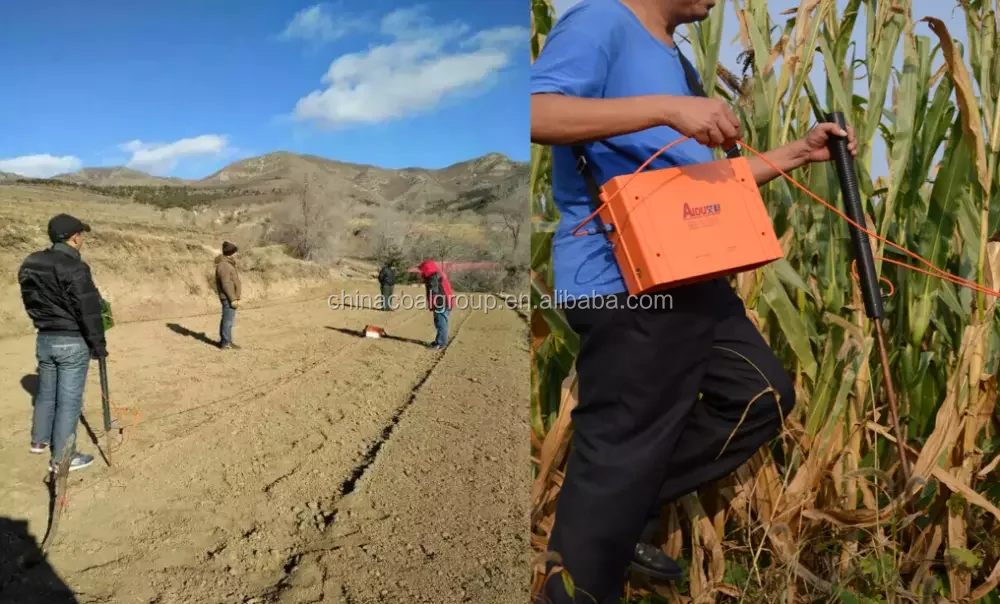

2. Free of cabling: Measuring by walk and stop , and can use wireless sensor probes to solve cabling problems.
3. Online Instant Experts communication: You can directly communicate with our online experts for advise by mobile phone APP, uploading photos in the scene, instant data, effect graphs and etc to communicate online.
4. Free of USB disk: Data is directly stored in the mobile phone
