Ophthalmic equipment auto lens edger SJG-5100 for CR and glasses lens

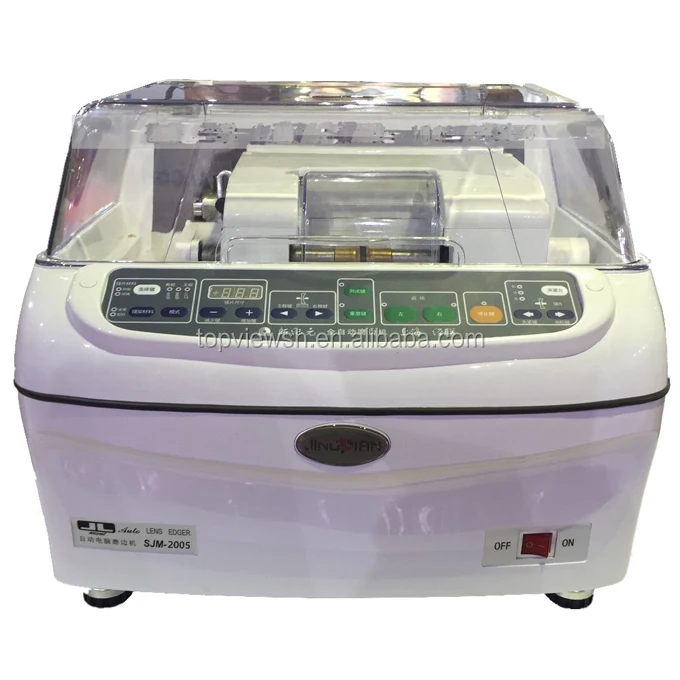

Auto Lens Edger
1. LCD digital display
2. lens clamp in gearless
3. 3F Cut-Grinding pressure
4. Best grinding wheel

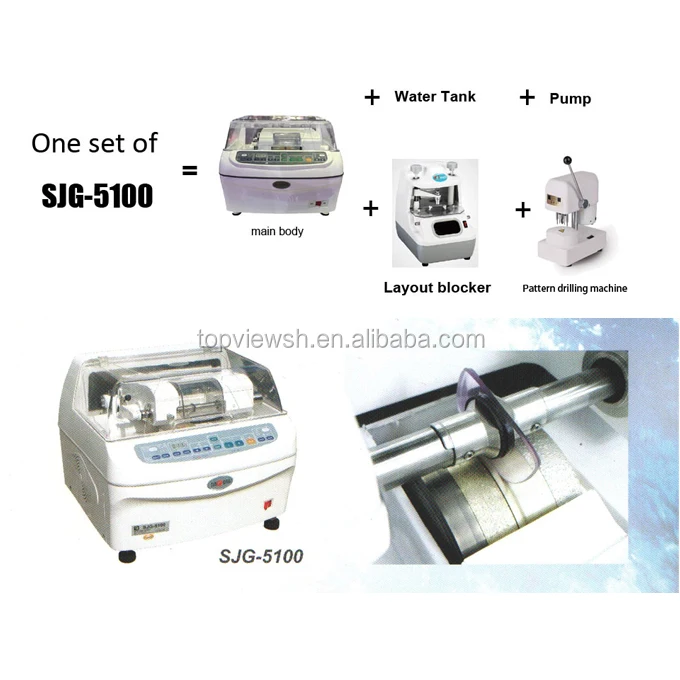

Main Machine
LCD digital display
Adjustment of 3F Cut-Grinding pressure
Adjustment of lens clamp in gearless
Cut-Grinding Time of Single Lens 3 min
Life performance of main grinding wheel 10,000 PCs (Below hardness 5# Grade)
Built-in count displayer
Special water case with multi-function of filter and eliminating alkali

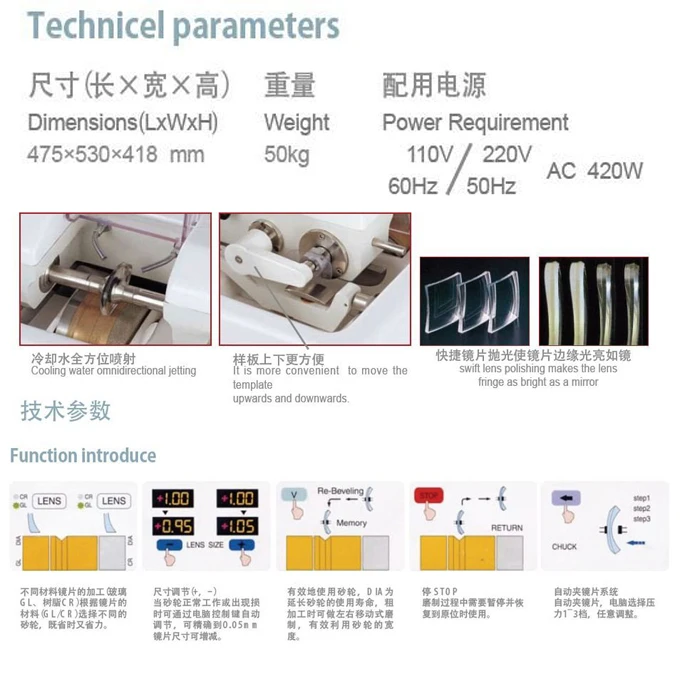

System and Main Parts
Adopted auto-shadowing cut-grinding system to ensure pressure angle, axis power and radial power in a best position.
Diamond wheels adopted abroad material and made of 5+1 new technology reached international level.
In order to ensure good quality of the grinding lens, the geometry shape of grinding lens, revision of geometry shape, adjustment of tip shape, cut-grinding power, cut-grinding speed, lens clamp and etc. Are controlled by Computer.
There is a technology space in the computer, in which the functions can be raised and expanded.
Cut-Grinding Clamp: 0.50.78MP
Workable Diameter: 2380
Glossiness: BVII
Grinding Shape: Inward(Face)96%; Outward99%
Noise: 60 dB
Grinding Wheel maximum Linear Velocity 15m/Sec. (3 Shift Gears)
Grinding Wheel Diameter: 100125
Grinding Wheel Chamber: 60100mm
Power Supply: AC 220V/50-60Hz
Main Machine Power: 350 W
Working Environment Temperature: 5o C40o C
Dimension: 488×480×410 mm
Weight: 58 Kg
| Packaging Detail | Carton |
| Delivery Detail | 3 days |




Notice:
1. Please make sure your delivery and name is correct and can be delivered.
2. In all counties, according to customs regulations all the goods needs Customs duties and brokerage fees when arrival at destination. That's buyer's responsibility.
3. Subject to the value in the invoice for your local customs, we can mark it less value if buyer insist on. we mark real value default .
4. Please also inform us the voltage and plug you need.
(Voltage for option 110V or 220v Plug: Europe plug/ USA plug/England plug/ Australia plug)
Warranty:
1. Please kindly tell us which your country's voltage is and plug type before purchase.
2. After received instrument please keep the "factory serial number" this is important for after service.
3. so far the Chinese instrument is too cheap, can not afford over sea Maintenance Center.
4. For all of our instrument warranty period: 18 months after its delivery to your door.
During this period, the machine appear problems, we'll ask our technical section cover the problems including (trouble shooting guide, photo, video) if this method can not make sense, we'll ask fast express to take it back to our factory.
5. The international freight (back to CHINA) and repair costs is by both side. But if the machine was broken, like dropping down, getting water or any wrong operation, which are out of our duty.
We promise life long service, if the instruments exceed the warranty period, we will also give advice and good service, but it will charge money for extra spare part.
