2.8mm Tungsten Carbide Rod By Carbide Rods Factory
US $2.15-$2.40
Hard Metal Tungsten Carbide Buttons
- Category: Cemented Carbide >>>
- Supplier: Zigong Xingyu Cemented Carbide Dies&Tools Co. Ltd.
Share on (62351865892):
Product Overview
Description
Product Description

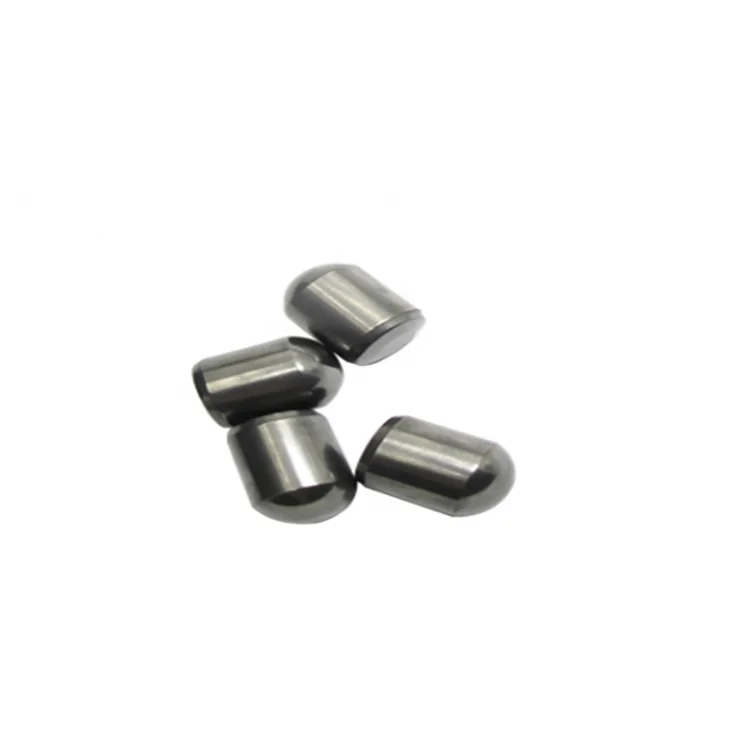

Hard Metal Tungsten Carbide Buttons
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.
| Grade | Co% | Density (g/cm2) | Hardness (HRA/HV30) | TRS (N/mm2) | Application |
| XD05 | 5.5 | 14.9-15.1 | 1380-1500 | ≥2800 | High hardness and wear resistance, suitable for making various parabolic buttons. |
| XK05 | 6.0 | 14.82-14.98 | 1370-1490 | ≥2300 | Suitable for making various sizes of buttons with fine resistance to impact and wear for drilling soft and medium hard formations at a higher speed rate. |
| XD10 | 6.2 | 14.80-15.00 | 1320-1470 | ≥2000 | High toughness, suitable for making buttons for high air pressure DTH bits drilling medium hard and hard rock formations. |
| XD10B | 6.5 | 14.75-14.95 | 1300-1460 | ≥2300 | Mainly for making buttons for low air pressure bits in mining. |
| XD20C | 7.0 | 14.7-14.9 | 1320-1450 | ≥2500 | With more cobalt content and toughness than that of grade YK05, it is a tougher alternative to grade YK05 to avoid risk of breakage of bits at high speed drilling rate. |
| XK10.5 | 7.5 | 14.7-14.85 | 89.0-90.5 | ≥2600 | Mainly for making buttons for DTH bits in various sizes of conical, parabolic and spherical buttons. |
| XK10 | 8.0 | 14.6-14.76 | 1200-1320 | ≥2340 | Mainly for making buttons of medium and small sizes for bits drilling soft and medium hard rock formations, also for making inserts for other drill bits. |
