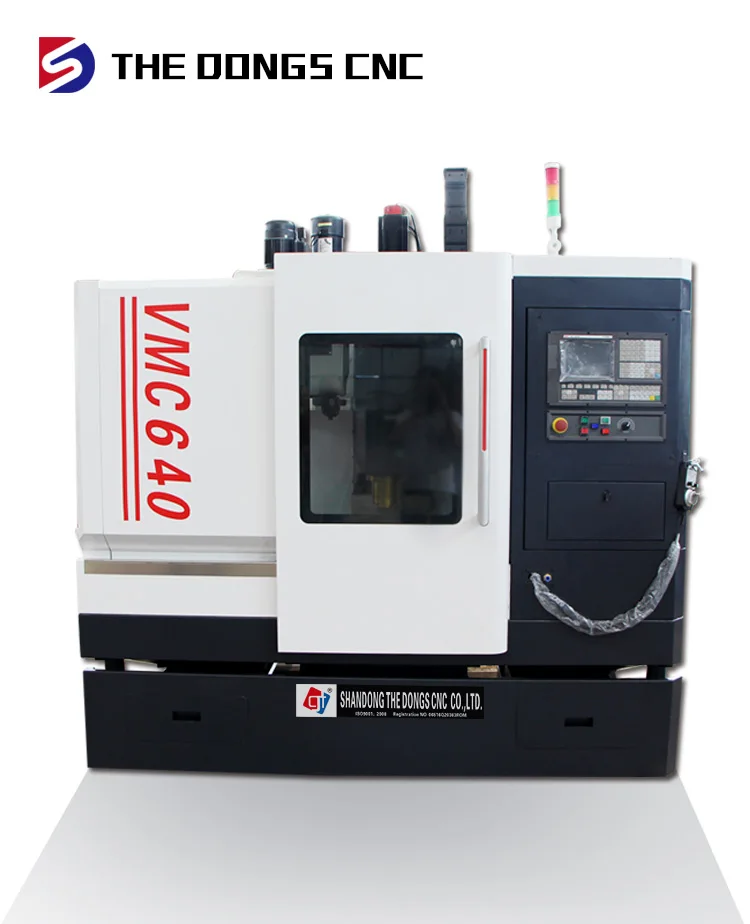

China cnc vmc milling machine 640

Technical Parameters

Unit

Specifications

Table size

mm

800*300

Table travel

mm

600*360*450

Number/width/distance of T-slot

mm

3-14-85

Distance from spindle nose to table surface

mm

100-550

Distance from spindle axis to column guideway

mm

370

Spindle taper

BT40

Spindle speed range

rpm

60-8000

Spindle motor power

kw

4/5.5

X/Y/Z rapid feed speed

mm/min

18000

X/Y/Z feed speed

mm/min

2.5-3000

Tool magazine capability

16

Max.dimension of tool

mm

150*350

Max.weight of tool

Kg

8

Positioning accuracy

mm

+-0.005/300

Repeat positioning accuracy

mm

+-0.003/300

Overall dimension

mm

2020*1970*2160
