Product Overview

Description

 Why choose  us

1. The earliest electrical engineering tools manufacturer in China, Since 1987
2. Loyal Supplier of Grainger USA,TRACON Europe, DENSAN Japan
3. More than 30 years Domestic Professional Brand, Several Nuclear power station selected brand
4. Over 50 patents have been developed in the past 20 years.

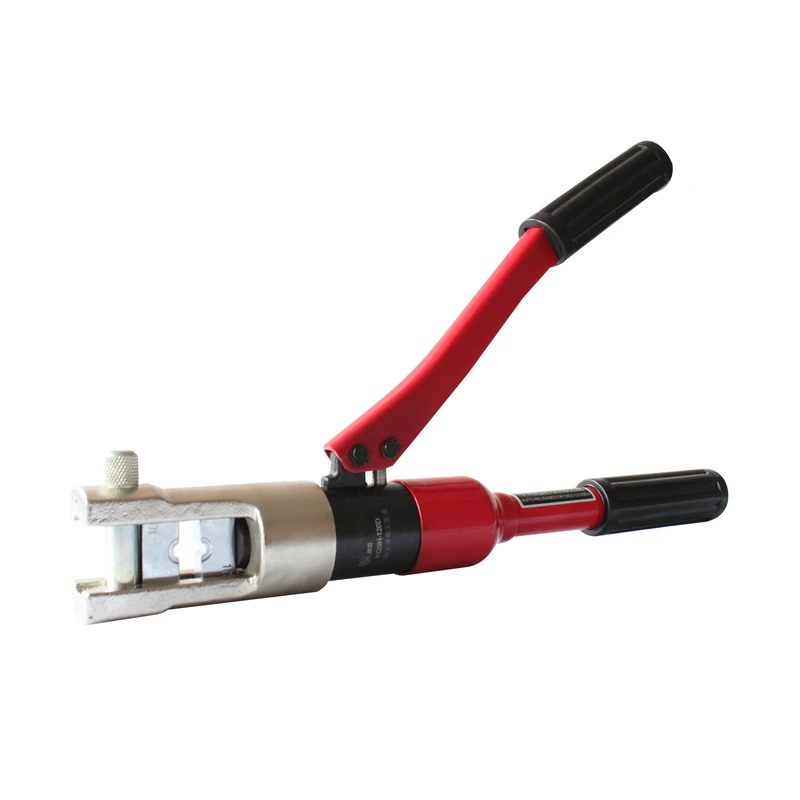

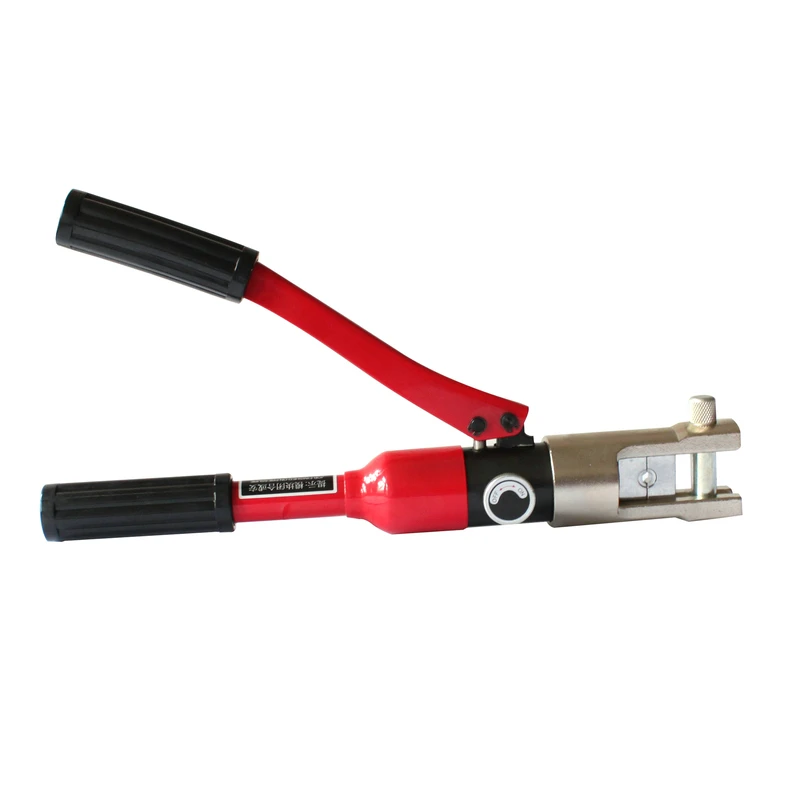

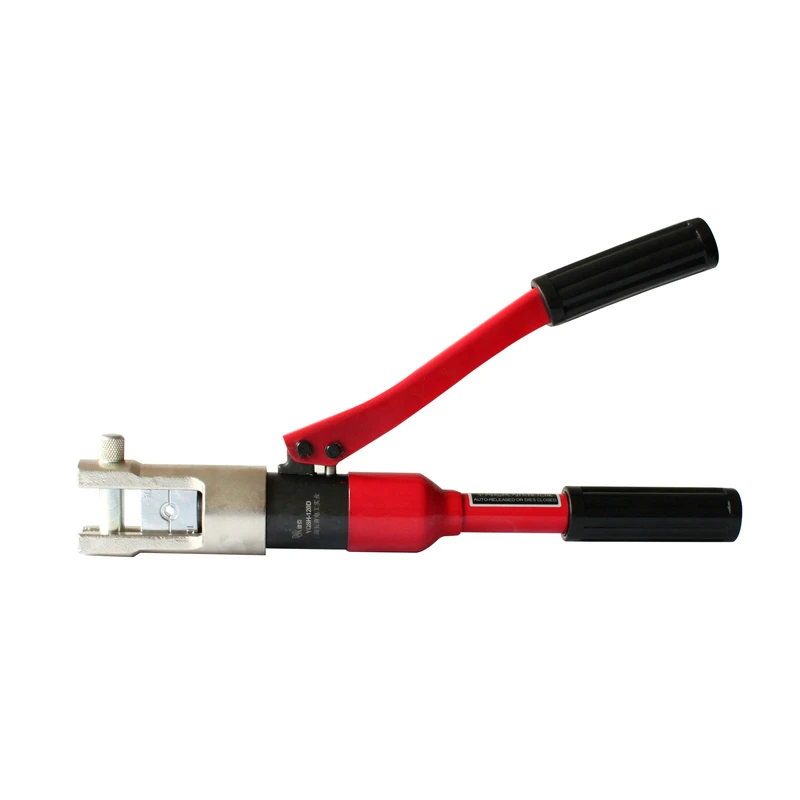

Model	YQSH-120D
Crimping range	10~120mm2
	#2~600MCM
Crimping force	8 tons
Crimping stroke	14 mm
Accessories Dies	10,16,25,50,70,95,120 mm2
Tool size	415*125*65mm
Gross Weight	3.0 kg











Key Feature:

Durability: Plunger piston rod using patented design, With nano-wear-resistant coating technology, Significantly reduce the risk of frazzle and leakage of seals
Strong: The Crimper head are forged under high pressure and can withstand pressure of more than 20 tons.
Safe: Overload relief valve protection device

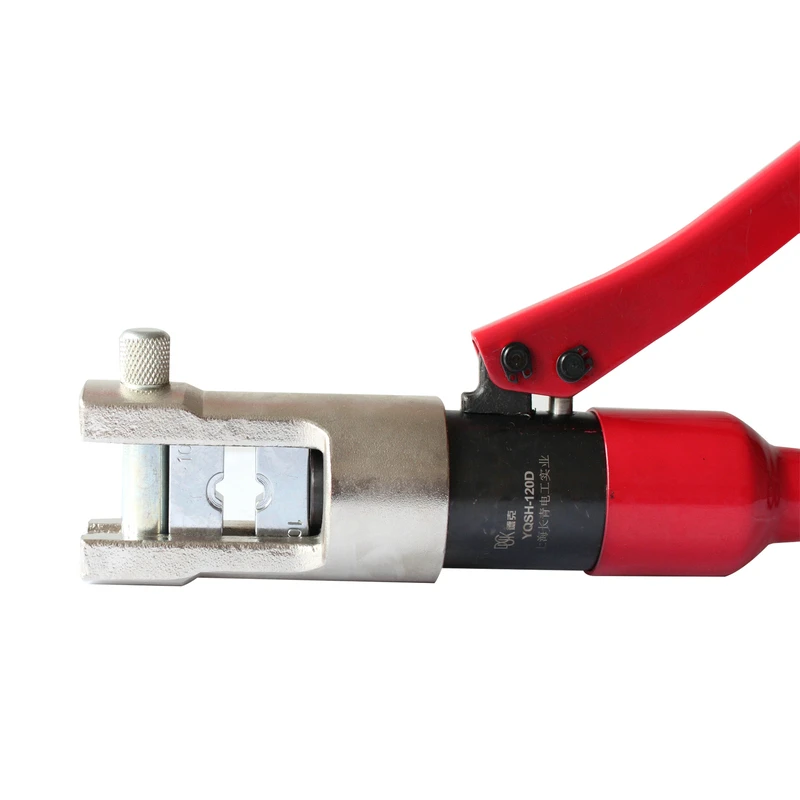

Easy operation:Rotating head can be operated in any directions for narrow workspace
High quality Mold assurance crimping quality
Easy transport
Optional Antifreeze Hydraulic Oil
For crimping Tubular cable lug and connectors



 Specification:

1. For crimping Tubular cable lug and connectors
2. Hexagon crimping
3. Head rotates 360 degree
4. With safety valve

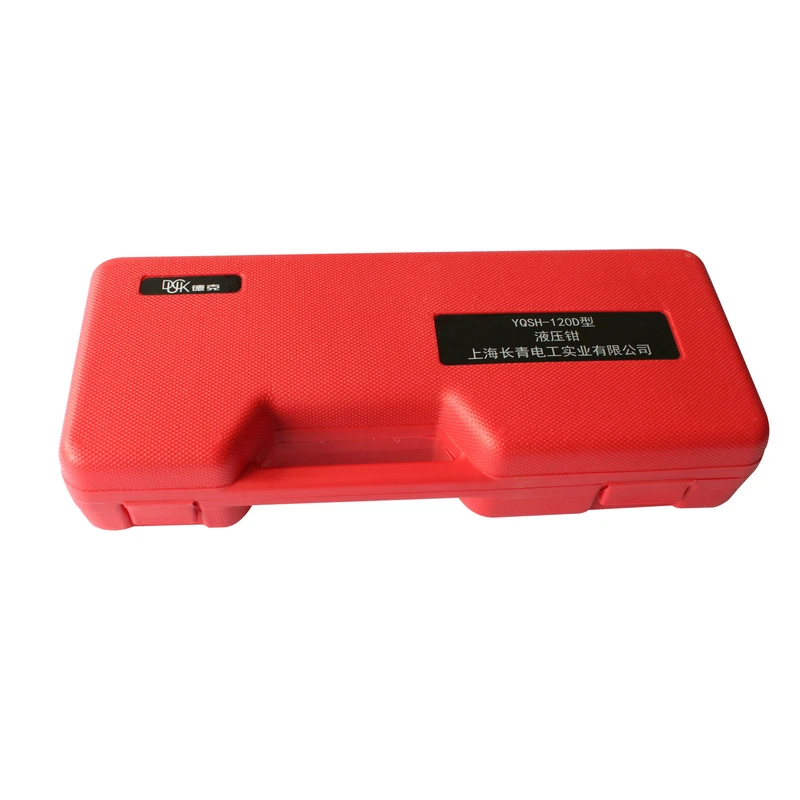

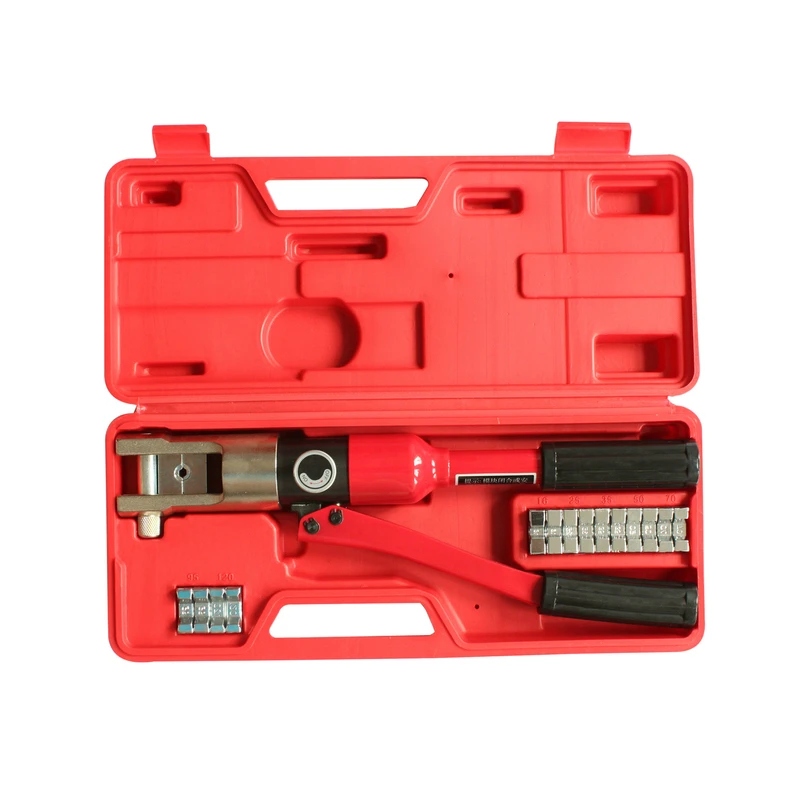

5. Product supplied with plastic box
