Multi layers Stable Exported Foreign Low Consumption Chinese Yam Mesh Belt Dryer In China

Share on (62352230733):


Price:$25,000.00 - $40,000.00

Quantity:


Product Overview

Description


Multi-layers Stable Exported Foreign Low Consumption Chinese Yam Mesh Belt Dryer In China



Product Description

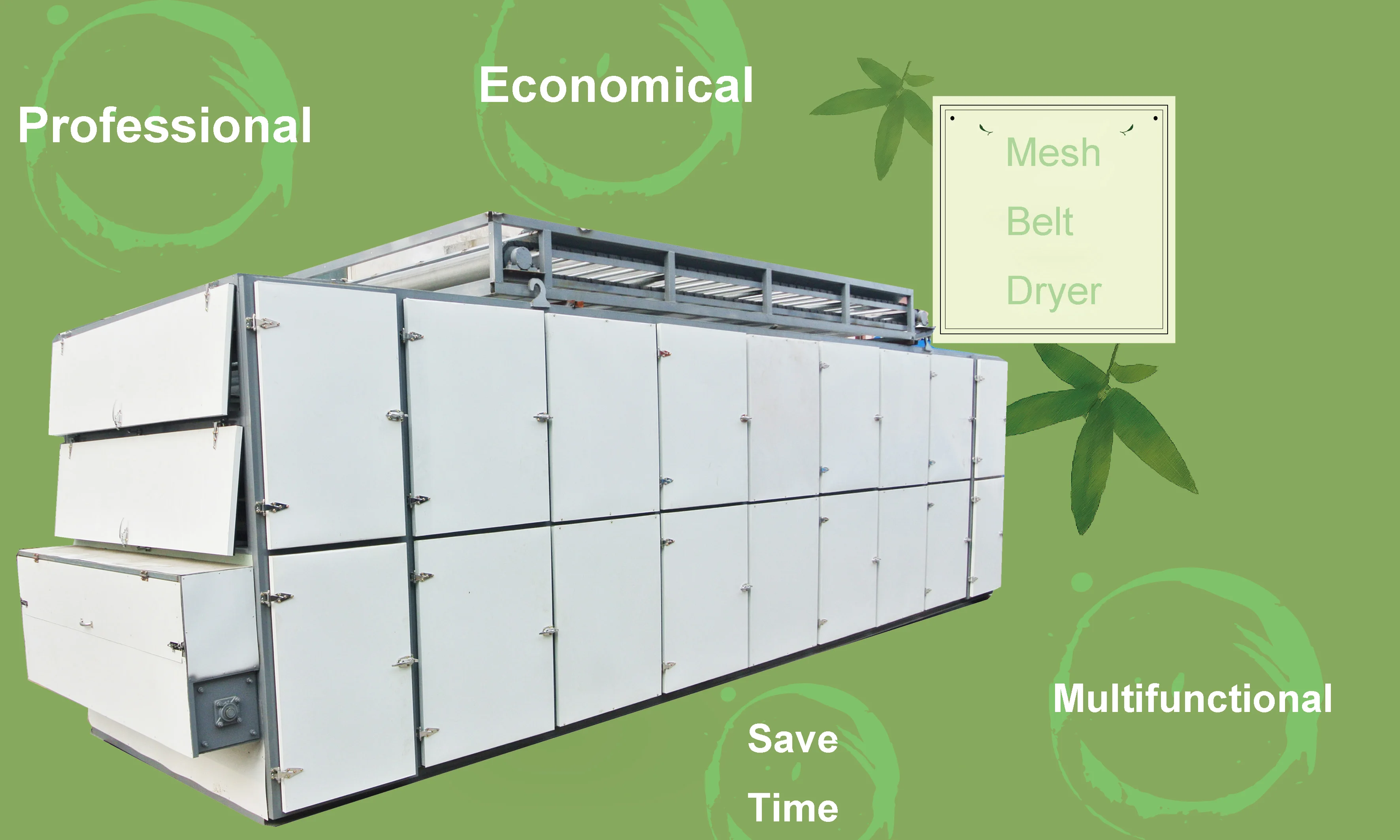

Mesh belt dryer is a kind of continuous production drying equipment,the main heating way has electric heating,steam heating,hot air heating.Its main working principle is to spread the material evenly in the network,the transmission device drive the belt move in the dryer cylinder,the hot air from the bottom of dryer machine enter into the dryer,rise step by step,the water vapor will be discharge through the dehumidify hole,so as to achieve the purpose of drying.


.jpg







Product Application


Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.


Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, ginger, garlic, etc.


Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.


Others:Lily, rose, peony seed,fennel seeds,et


_20190821105507.png1 .jpg





Technical Data

























































































Model



BX-1.5*6m



BX-2*8m



BX-2*9m



BX-2*10m



BX-2*12m



Area of dry(m2)



36



64



72



80



96



Thickness of the material



50-200mm






Operation temperature



40-120℃



Drying time



0.5-5 hours



Motor power



YCT-1.1kw



YCT-1.5kw



YCT-1.5kw



YCT-2.2kw



YCT-3kw



Evaporation capacity



300-500kg/h



300-500kg/h



300-500kg/h



300-500kg/h



300-500kg/h



The size of input furnace



3.2*1*2.7



3.9*1.26*3



3.9*1.26*3



4.7*1.5*3



4.7*1.5*3

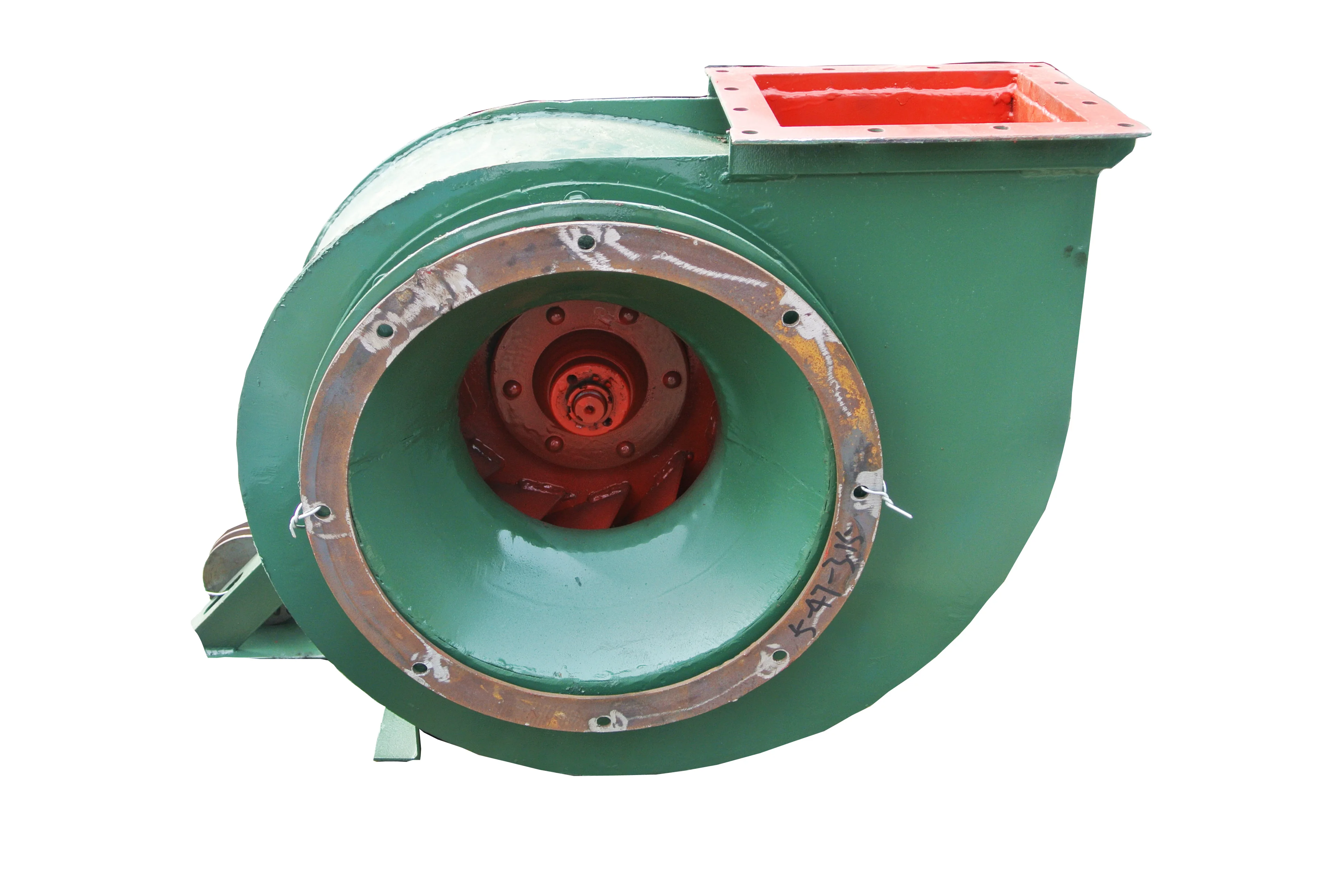

Fan



11Kw



15Kw



15Kw



22Kw



30Kw



Exhaust fan



1.5Kw



3Kw



3Kw



3Kw



4Kw

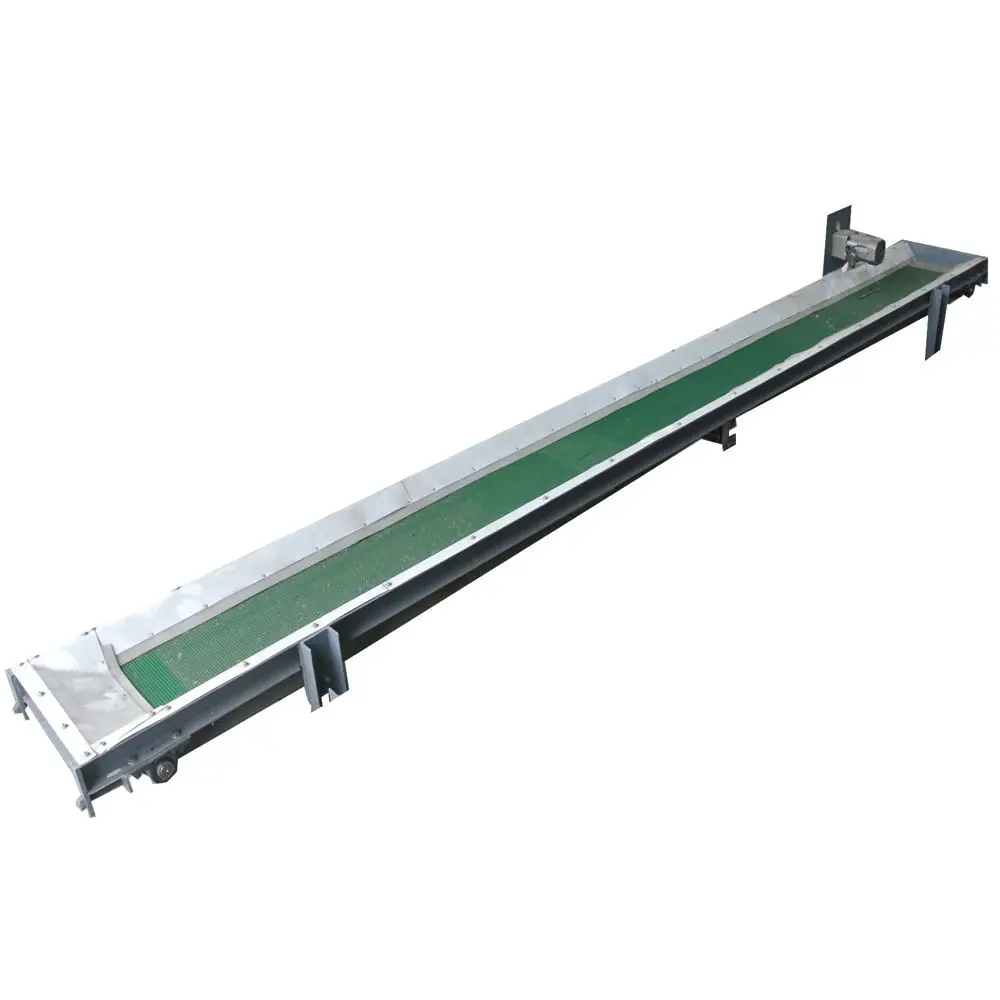

Output conveyor



0.12Kw



Total power



14.9Kw



20.7Kw



24.2Kw



28.4Kw



37.2Kw



_20190824145747 .png



Company Information







Packaging & Shipping


mesh belt dryer13 (2).jpg_20190821152512.png





Our Customers







Certifications


about mesh belt dryer.jpg





FAQ







contact us


.jpg
