MPX3500 6 Axis High Speed Compact Painting Robot with DX200 FM Controller for Yaskawa Motoman
- Category: >>>
- Supplier: Xiangjing (shanghai) Mechanical And Electrical Tech Co. Ltd.
Share on (62352319958):
Product Overview
Description
MPX3500 6-Axis High-Speed Compact Painting Robot with DX200-FM Controller for Yaskawa Motoman
Main Specifications:
Model:MPX3500
Maximum horizontal range:2700mm
Maximum vertical range:5095mm
Maximum payload:15kg
Pose repeatability:± 0.15mm
Number of axes:6
Weight:590 kg
MPX3500 Introduction:
The MPX3500 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.
Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.
Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications.
Can be floor, wall or ceiling mounted for layout flexibility.
Features of the DX200-FM paint robot controller coordinates operation of robot and painting devices, including spray gun, color changer and gear pump. It also supports gun control instructions and is compatible with standard networks for connection to paint equipment controllers and production line.
Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.
Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications.
Can be floor, wall or ceiling mounted for layout flexibility.
Features of the DX200-FM paint robot controller coordinates operation of robot and painting devices, including spray gun, color changer and gear pump. It also supports gun control instructions and is compatible with standard networks for connection to paint equipment controllers and production line.
Key Benefits
1. Large global install base backed byYaskawa's experience and reliability
High wrist/upper arm payload capacityfor mounting paint applicationequipment
2. Easy-to-use touch screenteach pendant
3. MotoSim![]()
EG simulationsoftware (optional)
2. Easy-to-use touch screenteach pendant
3. MotoSim
MPX3500 Main Features
1. High-speed, compact six-axis MXP3500 robot is ideal for automotive body and
components,as well as other industrial coatingapplications.
2. Offers superior performance and creates smooth, consistentfinish with outstanding
2. Offers superior performance and creates smooth, consistentfinish with outstanding
efficiencyfor painting and dispensingapplications.
3. Hollow wrist design with inside wrist diameter of 70 mm; well- suitedfor mounting
3. Hollow wrist design with inside wrist diameter of 70 mm; well- suitedfor mounting
spray equipmentapplicators.
4. ldeal for painting contoured parts such as interior/exterior surfaces;interference
between the hose andparts/fixtures is avoided whichensures optimum cycle time and
robot reach/access.
5. Factory Mutual approved for Class 1, Div. 1 use in hazardousenvironments.
6. Versatile design can be floor, wall or ceiling mounted for layoutflexibility.
5. Factory Mutual approved for Class 1, Div. 1 use in hazardousenvironments.
6. Versatile design can be floor, wall or ceiling mounted for layoutflexibility.

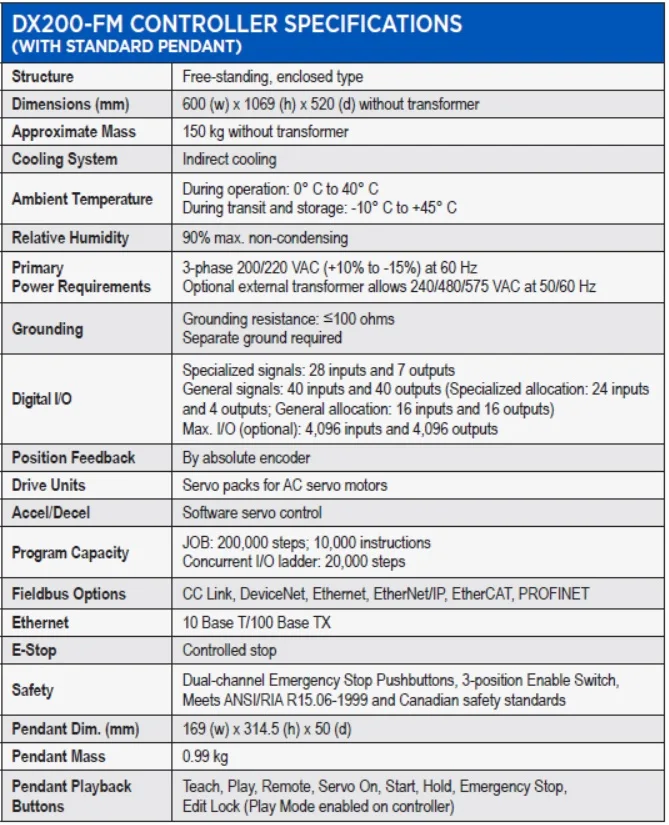

DX200-FM Controller
1. Includes application-specificsoftware for paint applications.
2. Coordinates operation of robot and painting devices, including spraygun, color
1. Includes application-specificsoftware for paint applications.
2. Coordinates operation of robot and painting devices, including spraygun, color
changer and gear pump.
3. Supports gun control instructions such as spray start/stop andpainting condition files.
4. Supports standard networks (such as EtherNet, EtherNet IP,CC-L ink, DeviceNet, EtherCAT andPROFINET), enabling connectionto paint equipment controllers and production line controllers.
5. Intrinsically safe pendant (optional).
6· The DX200-FM is available with Category 3 Performance Level d (PLd)Functional Safety Unit (FSU), whichsupports safety-rated speed control,safety-rated soft axis and spacelimiting, and safety-rated monitorstop. In addition to enabling safeoperation in shorter and narrowerspray booths with adjacent manualoperations, these safety functionscan be utilized to save costs andreduce floorspace requirements.
3. Supports gun control instructions such as spray start/stop andpainting condition files.
4. Supports standard networks (such as EtherNet, EtherNet IP,CC-L ink, DeviceNet, EtherCAT andPROFINET), enabling connectionto paint equipment controllers and production line controllers.
5. Intrinsically safe pendant (optional).
6· The DX200-FM is available with Category 3 Performance Level d (PLd)Functional Safety Unit (FSU), whichsupports safety-rated speed control,safety-rated soft axis and spacelimiting, and safety-rated monitorstop. In addition to enabling safeoperation in shorter and narrowerspray booths with adjacent manualoperations, these safety functionscan be utilized to save costs andreduce floorspace requirements.
Applications:
Dispensing, Painting, Coating
Packaging & Shipping
We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.
