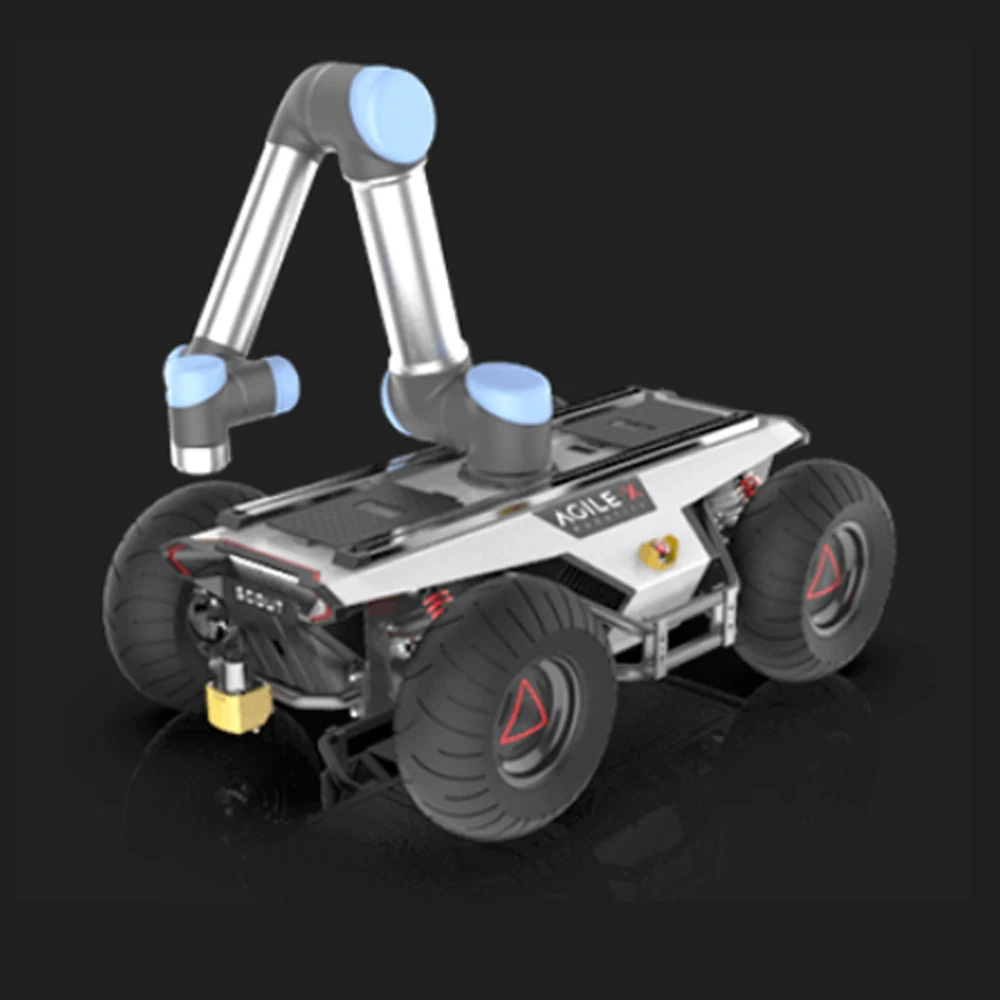

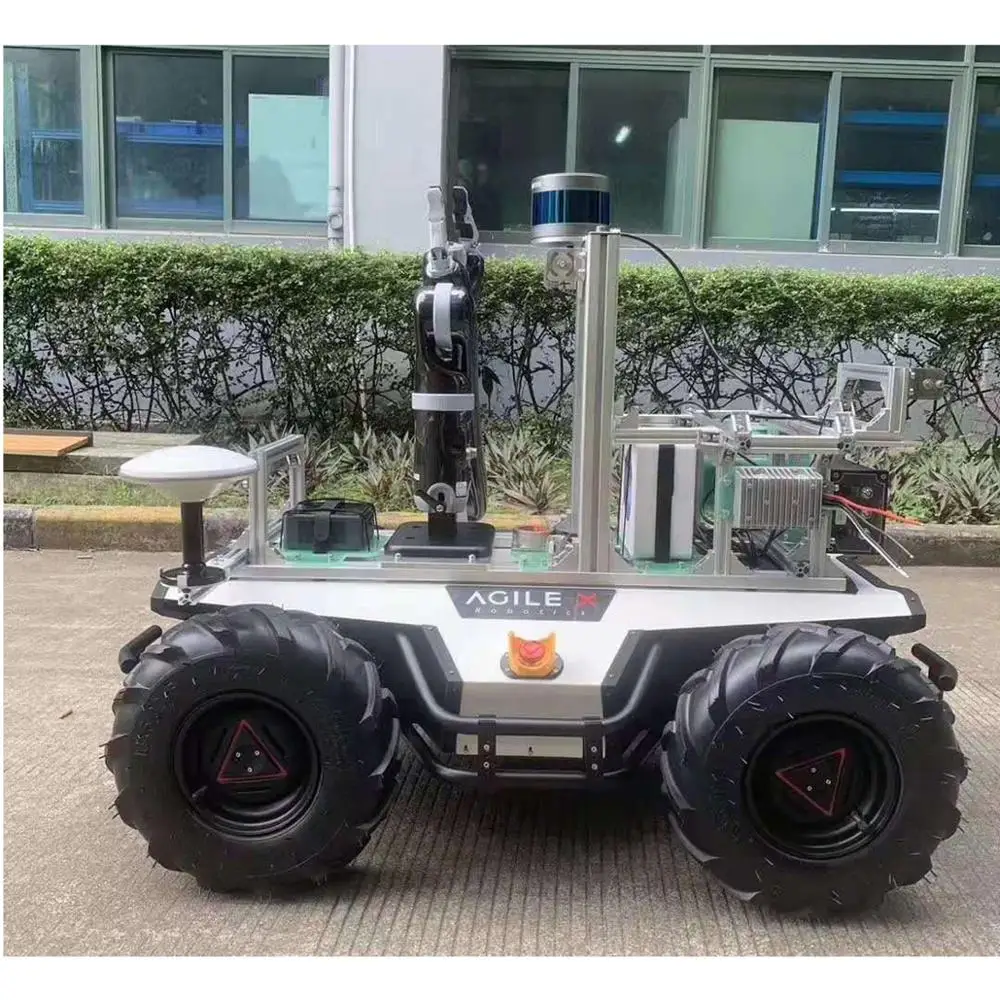

Automatic Intelligent Manipulator robot car Autopilot UGV Chassis carrier fully autonomous prototype vehicles
- Category: >>>
- Supplier: Hubei Sense Intelligence Technology Co. Ltd.
Share on (62352552491):
Product Overview
Description

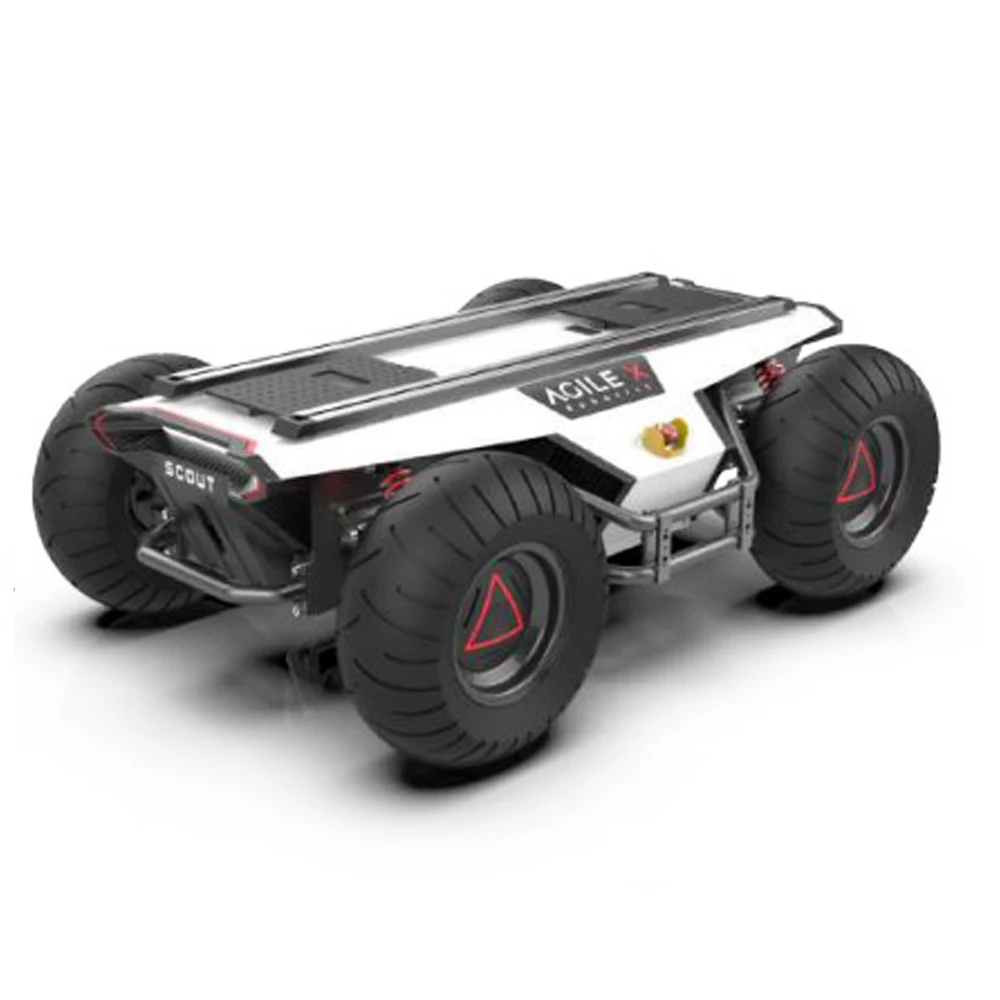

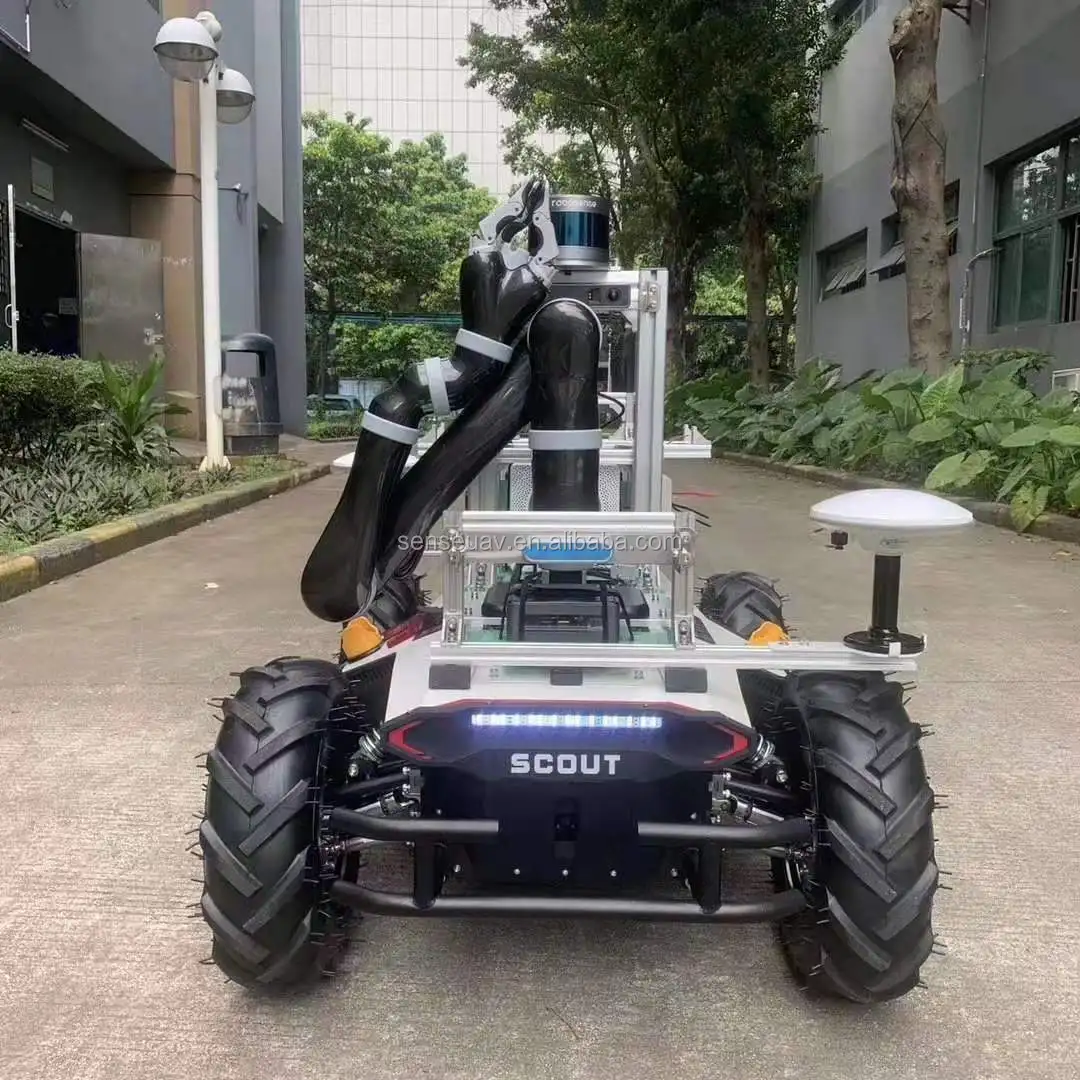

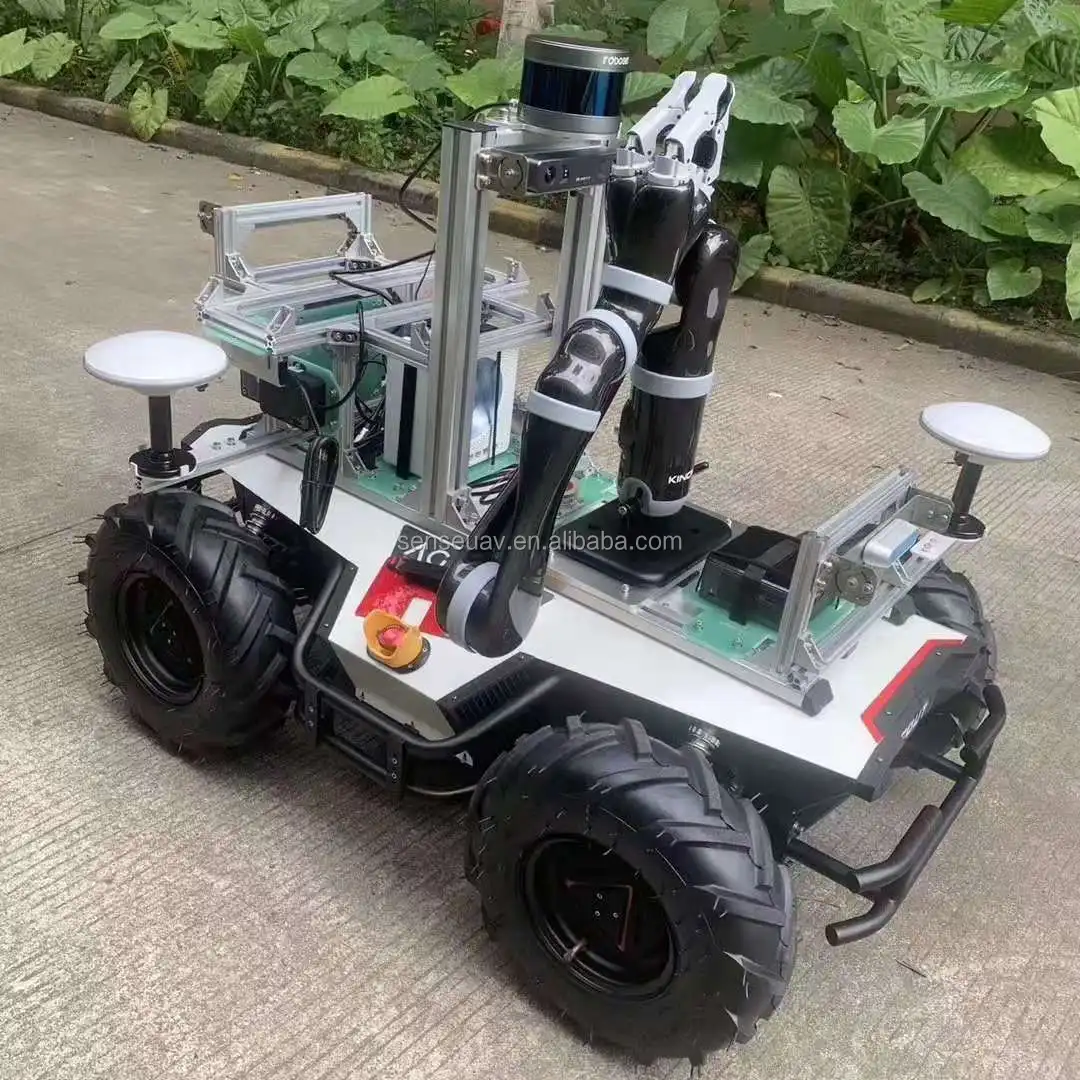

Scout UGV

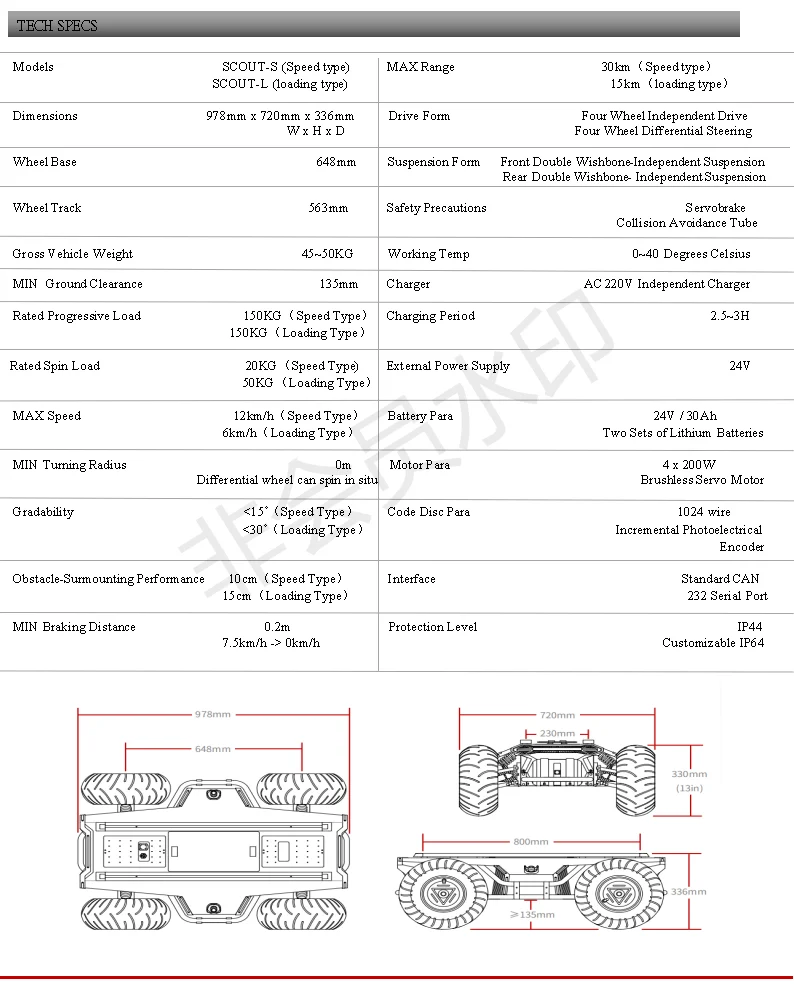

Models | SCOUT-S (Speed type) SCOUT-L (loading type) | MAX Range | 30km(Speed type) 15km(loading type) |
Dimensions | 978mm x 720mm x 336mm | Drive Form | Four Wheel Independent Drive |
Wheel Base | 648mm | Suspension Form | Double Wishbone-Independent Suspension |
Wheel Track | 563mm | Safety Precautions | Servobrake Collision Avoidance Tube |
Gross Vehicle Weight | 45~50KG | Working Temp | 0~40 Degrees Celsius |
MIN Ground Clearance | 135mm | Charger | AC 220V Independent Charger |
Rated Progressive Load | 150KG | Charging Period | 2.5~3H |
Rated Spin Load | 20KG(Speed Type) 50KG(Loading Type) | External Power Supply | 24V |
MAX Speed | 12km/h(Speed Type) 6km/h(Loading Type) | Battery Para | 24V / 30Ah Two Sets of Lithium Batteries |
MIN Turning Radius | Differential wheel can spin in situ | Motor Para | 4*200W Brushless Servo Motor |
Gradability | <15°(Speed Type) <30°(Loading Type) | Code Disc Para | 1024 wire Incremental Photoelectrical |
Obstacle-Surmounting Performance | 10cm(Speed Type) 15cm(Loading Type) | Interface | Standard CAN 232 Serial Por |
Specifications

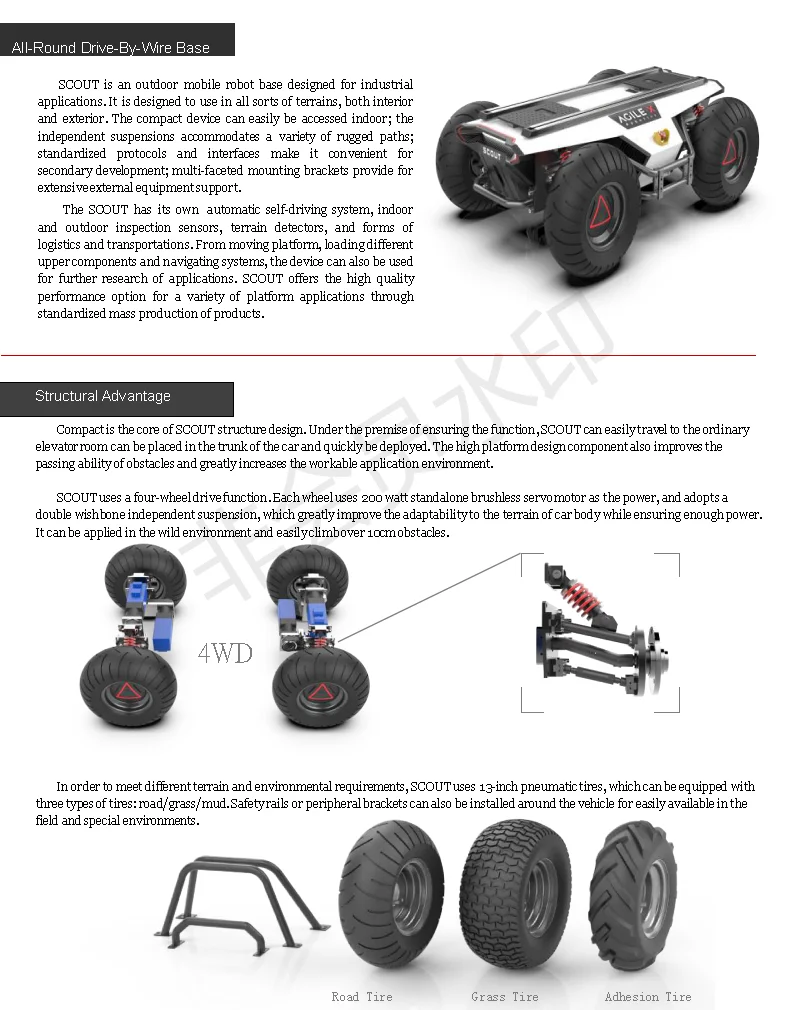

The SCOUT has its own automatic self-driving system, indoor and outdoor inspection sensors, terrain detectors, and forms of logistics and transportations. From moving platform, loading different upper components and navigating systems, the device can also be used for further research of applications. SCOUT offers the high quality performance option for a variety of platform applications through standardized mass production of products.

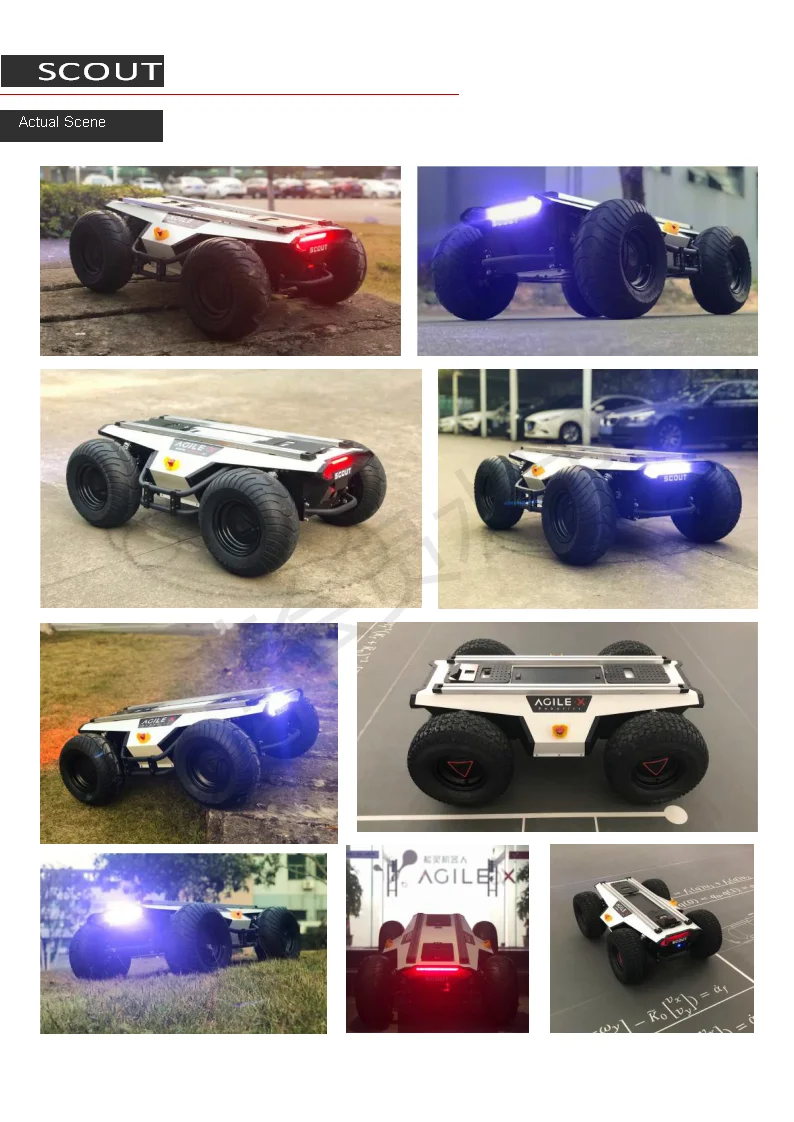

Detailed Images
