Waterproof outdoor 1080p 2mp miniature ir infrared bullet mini camera board cmos ov2710 day night vision security usb car camera
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62353085080):
Product Overview
Description
Certifications
Product Description

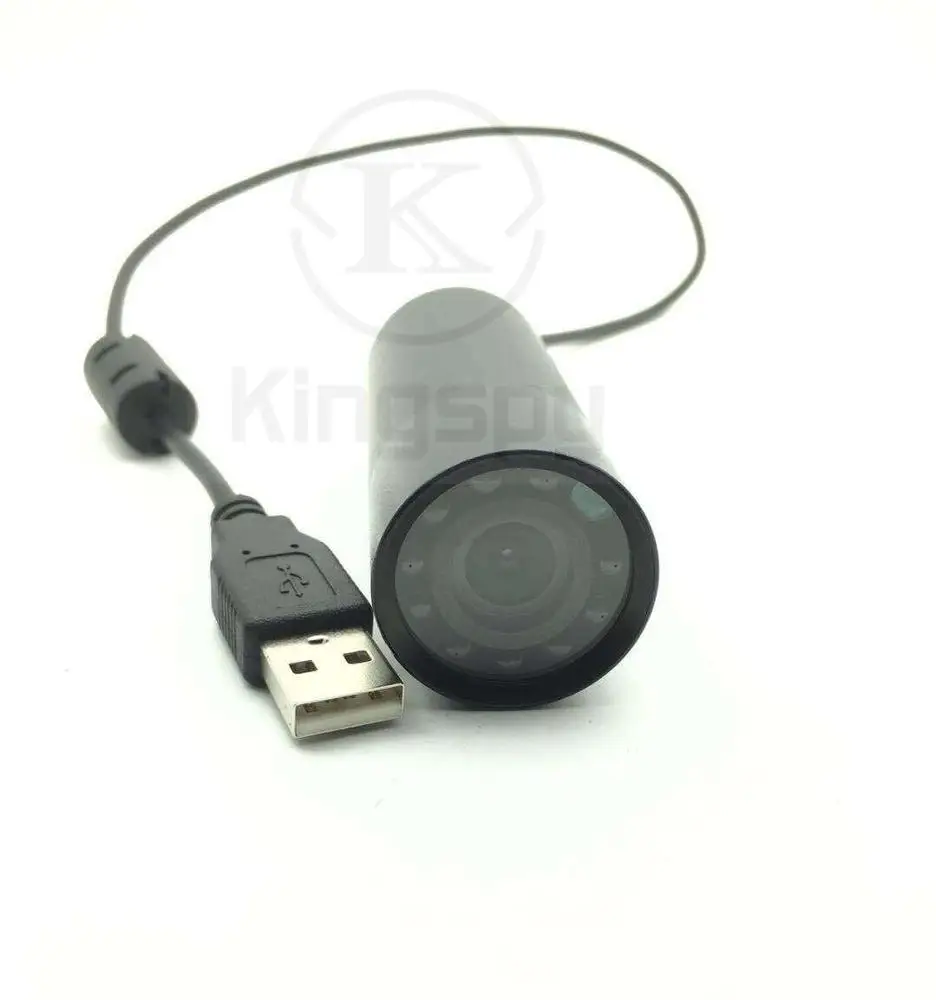

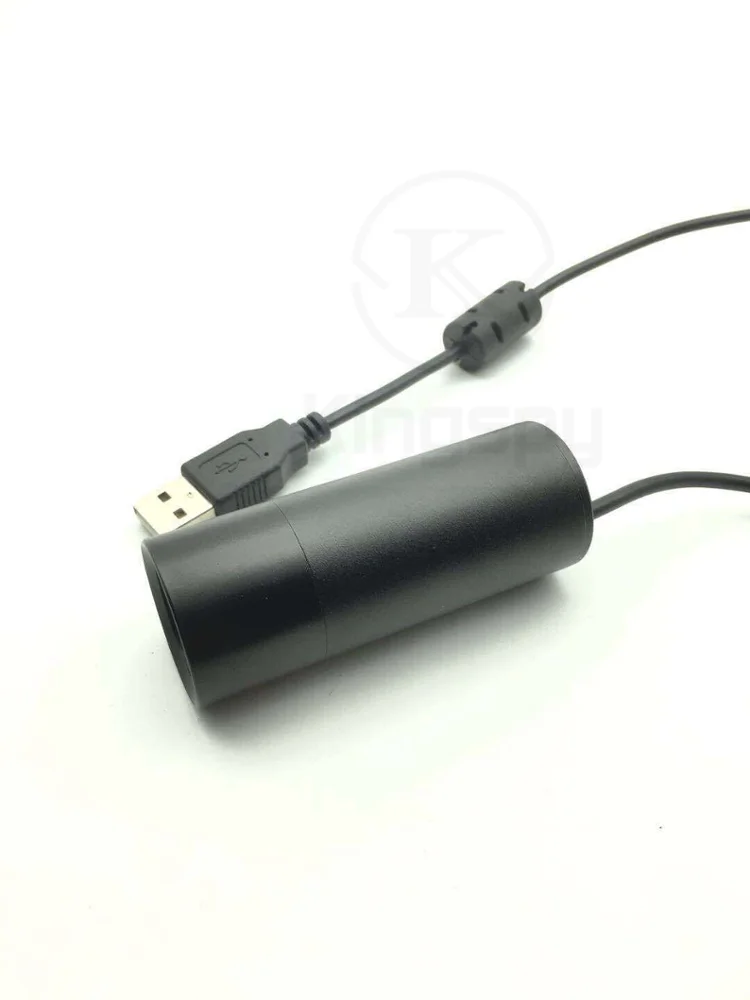

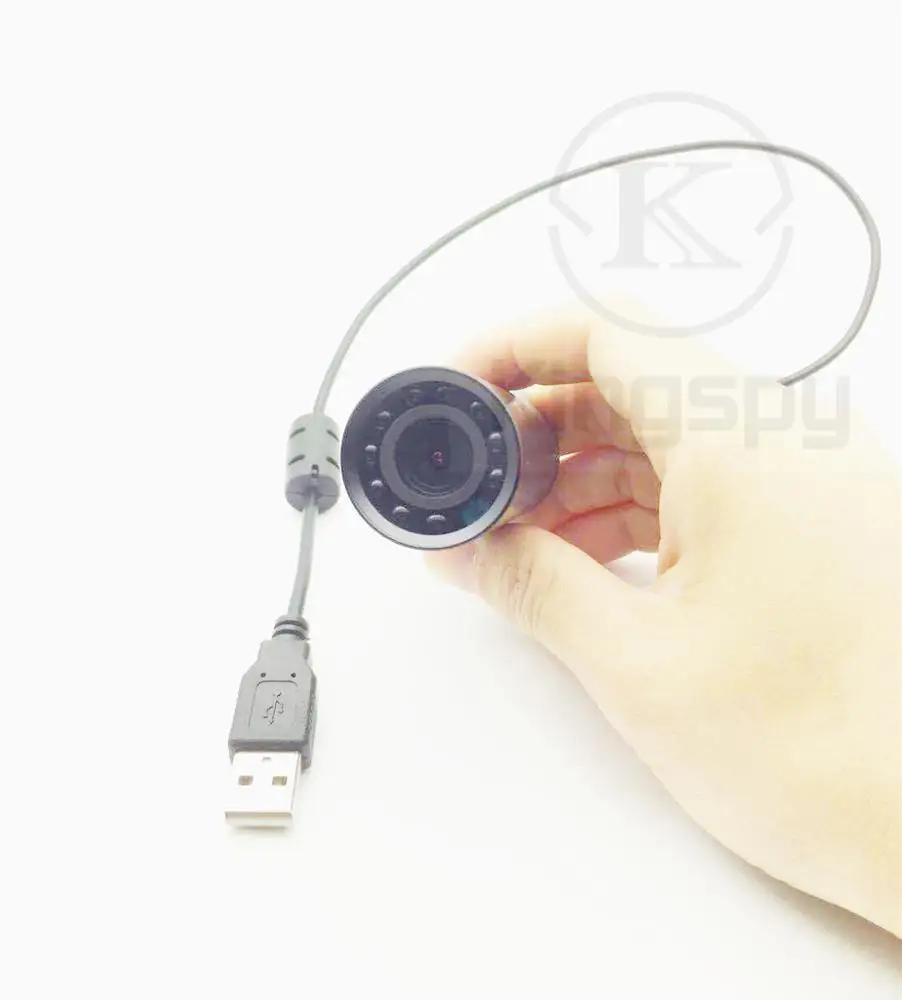

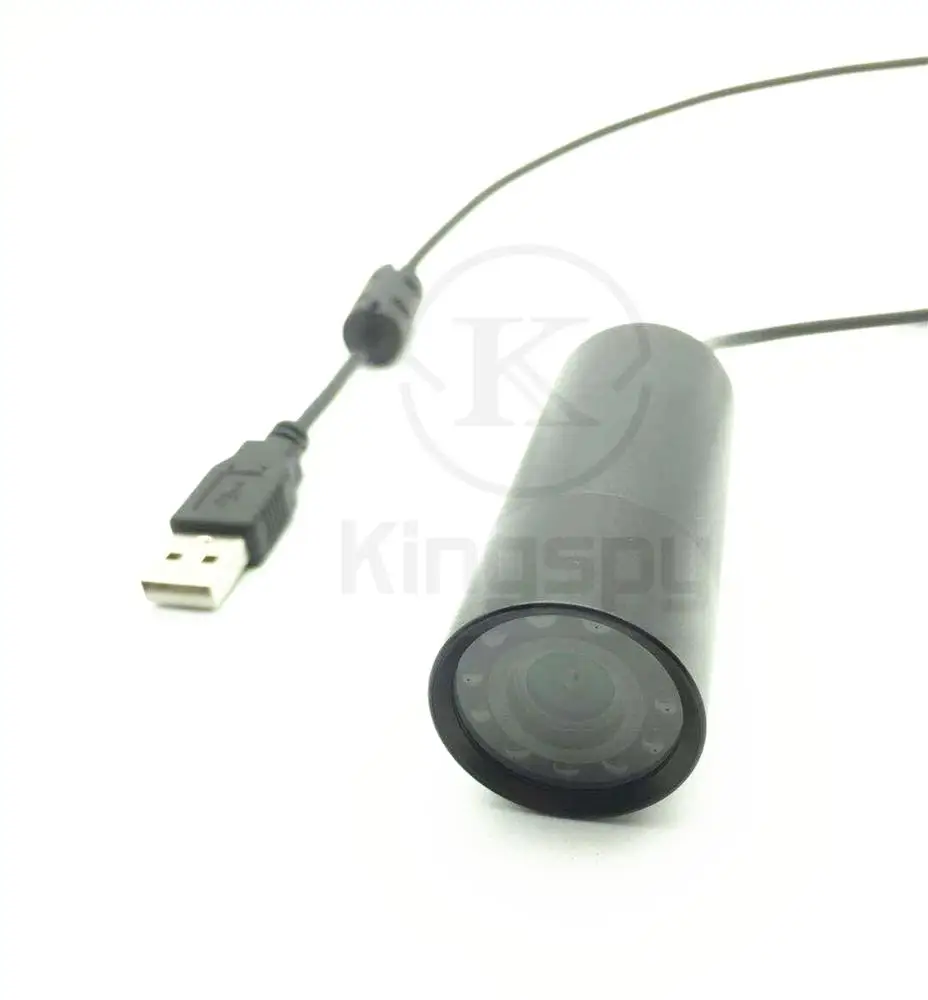

Waterproof outdoor 1080p 2mp miniature ir infrared bullet mini camera board cmos ov2710 day night vision security usb car camera
| 2.0Megapixel 1080P USB IR Bullet Mini camera |
| Introducting: |
| USB Mini colour camera |
| Color CMOS CCD sensor |
| USB Format |
| Support Linux operation system |
| Main Features: |
| Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag |
| Free Driver USB 2.0 (UVC) |
| USB2.0 HIGH SPEED, compression USB 1.1 |
| Default setting (30fps@1920*1080p) |
| Manual focus lens |
| Angle of view around 90 degrees (without any distortion) |
| Compression YUY2 & MJPEG |
| Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later; |
| Linux(In 2.6.18 above the kernel version);Mac ps3; Android system |
| Standard 1.5m cable, Can be connected through 10 meters USB cable |
| Dimension: 30mm Diamater |
| USB Power: 5V±10%DC,50mA |
| Used:intelligent machine,especially Banks'ATM |
| Can be customized by your requirements |
| Image sensor | 1/2.7" Color CMOS | |
| Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
| Synchronizing system | Internal | |
| Scanning system | Progressive Scan | |
| Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
| S/N ratio | More then 48 dB (AGC Off) | |
| Min. Illumination | 0.1 Lux @ F1.2 | |
| Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
| White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
| Gamma Characteristic | Auto r=0.45 | |
| Picture | Brightness / Contrast / Gamma / Saturation | |
| Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
| Power source | 5V DC / 400mA | |
| Operating current | 125mA / regulated 5.7VC in | |
| Lens | Standard | 3.6mm default around 92degree |
| Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
| Interface Type | USB format(Complies with USB 2.0) | |
| Measurement (mm) | 20*75mm | |
| Weight (Approx. G) | 50g | |
SIMILAR USB IR CAMERAS AS BELOW :
