Mobile Wood chipper shredderTree branch chipper Wood chipper shredder
- Category: >>>
- Supplier: Henan Zhangsheng Environmental Protection Equipment Co. Ltd.
Share on (62353142503):
Product Overview
Description

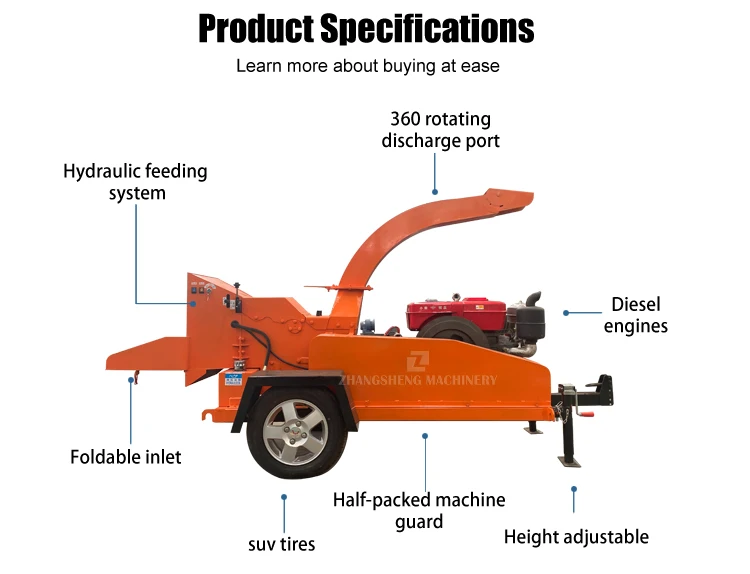

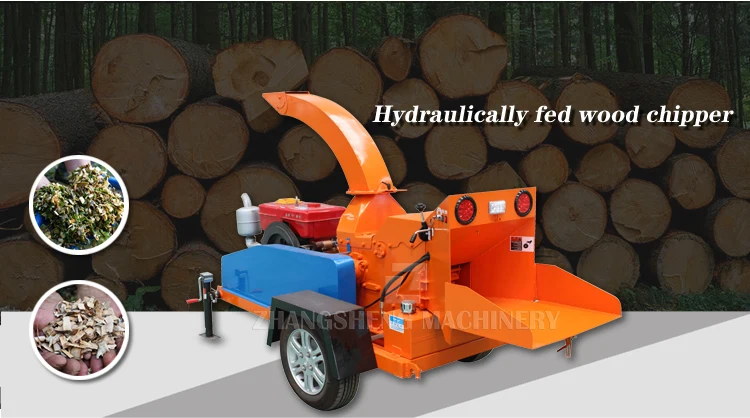

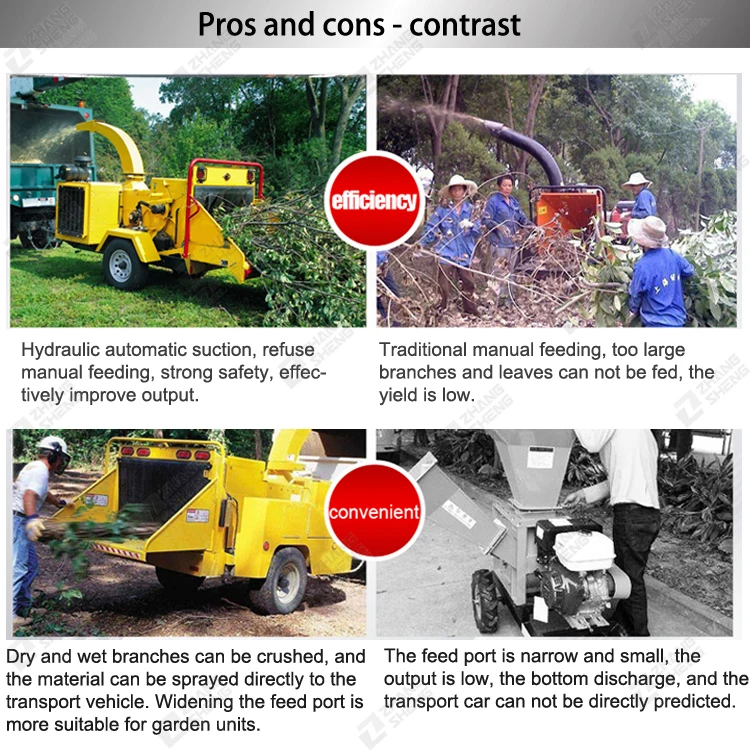

The hydraulic forced feeding system is conducive to reducing the volume of fluffy branches and feeding quickly. The front pressing roller can prevent the material from flowing back and ensure the safety of use. The drum cutter rotor structure optimizes the cutting effect and can easily crush 15 cm logs to obtain higher output. The finished product is more suitable for making organic fertilizer and ground cover.
Product Advantage

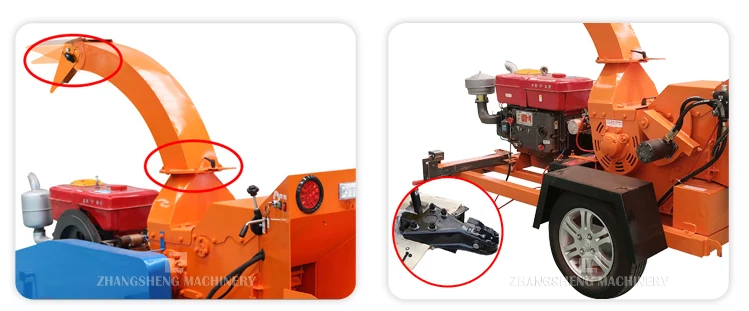

360° any place discharge material. Jet distance up to 2.5M can be directlyUnloading and loading
Aluminum alloy wheels, car tires, 2 inch traction loading more than 5000kgs.

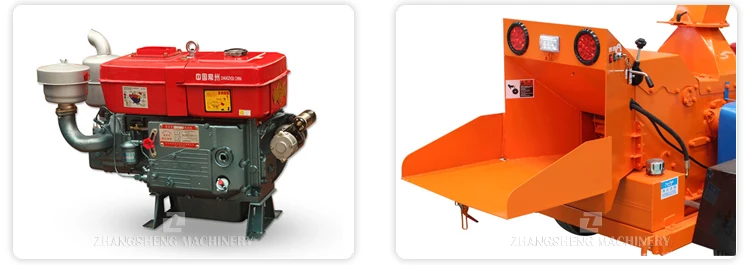

Well-known Weifang Diesel Engine in China. Single cylinder 35 hp or 54 hp four-cylinder as option.
The hydraulic feeding speed is uniform and the roller diameter is large

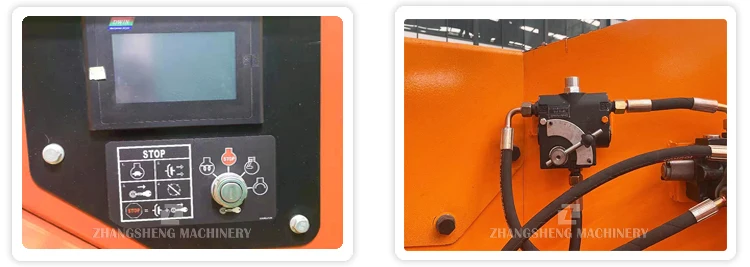

The intelligent operation panel (optional) displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance.
Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.

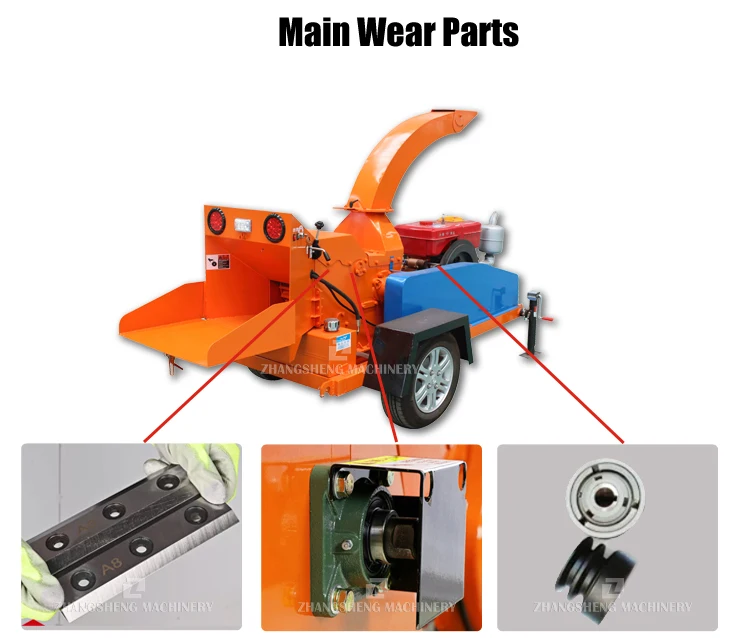

Blades, as wear parts of the wood chippers, it maintains high strength while also with high toughness, not break and curl during work.
Bearings, the rotor speed usually reaches 2000-2200 rpm. bearings from internationally renowned brands to ensure reliable bearing capacity and limit speed.
Clutch. When the transmission load exceeds the torque that can be transmitted by the friction, the clutch friction plate will automatically slip, preventing transmission overload and protecting the engine.
Model | 600 | 800 | 1000 | 1200 | 1500 | ||||
Feeding Size (mm) | 150 | 200 | 250 | 300 | 350 | ||||
Discharge Size(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | ||||
Diesel Engine Power | 35HP | 65HP | 102HP 4-cylinder | 200HP 6-cylinder | 320HP 6-cylinder | ||||
Rotor Diameter(mm) | 300*320 | 400*320 | 530*500 | 630*600 | 850*600 | ||||
Minimum Inlet Size (mm) | 300*200 | 350*250 | 450*350 | 470*400 | 600*500 | ||||

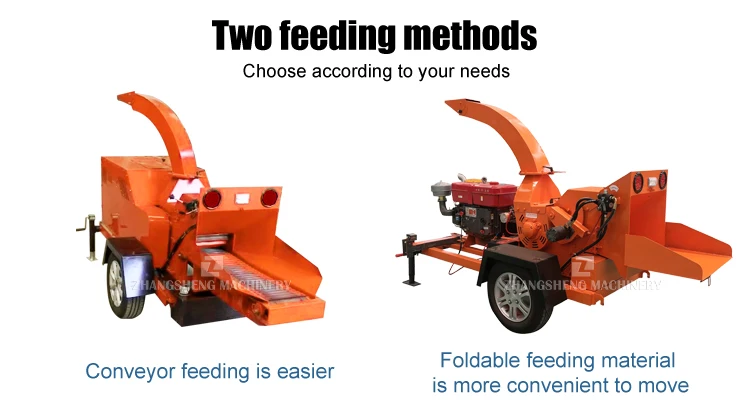

Feeding Method | Horizontal hydraulic feed | ||||||||
NO. Of Blade | 4 | 4 | 4 or 6 | 6 | 8 or 10 | ||||
NO. of Fixed Blades | 1 | 1 | 1 | 1 | 2 | ||||
Speed(r/min) | 2200 | 2200 | 2200 | 2200 | 2000 | ||||
Capacity (kg/h) | 800-1000 | 1500-2000 | 4000-5000 | 5000-6500 | 6000-8000 | ||||
Fuel Tank Volume | 25L | 25L | 80L | 80L | 120L | ||||
Hydraulic Tank Volume | 20L | 20L | 40L | 40L | 80L | ||||
Start Method | Electric start | ||||||||
Weight(kg) | 1650 | 1950 | 3520 | 4150 | 4800 | ||||
Company Profile
Established in 2005, Henan Zhangsheng Environmental ProtectionEquipment Company is headquartered in Zhengzhou City, HenanProvince.,and obtained both lSO and CE certification.The productshave been widely exported to more than 60 countries and get a lot of praise from customers. Our main product is wood recycling equipment. including wood chipper shredders, wood crushers, feed pellet machine,wood pellet machine,horizontal grinder, tub grinder etc.
3 sets of high-power laser cutting machines can meet the material preparation work of 1,000 sets per month.
5 imported CNC lathes, with fast processing speed and high precision of workpieces.Five dynamic balancing machines ensure that the rotors of each crusher are accurately calibrated.
Has an assembly workshop of 5,000 square meters Meet the monthly production task of 1,000 units.
As a professional OEM and exporter of wood chippers, Zhangsheng has exported to more than 45 countries. We have the entire series of Diesel Powered wood drum chippers. From the feeding mode, we have self-feeding wood chipper and hydraulic feeding wood chipper. All wood chippers have CE certification of TUV-SUD and TUV-Rheinland. The total number of wood chippers exported to Europe and North America each year is more than 1000 units.
FAQ
Q1:What payment methods do you accept?
We support various payment methods, we can accept 20% or 30% as deposit. If it is a return order, we can receive 100% payment by copy B/L.
Q2:How long is your delivery time?
We have more than 1500 square meters of spot inventory workshop, and it usually takes 5-10 days for goods with sufficient inventory. If you need to customize the equipment, it takes 20-30 days. We will do our best to deliver as soon as possible.
Q3:What if the machine is damaged?
One-year warranty and comprehensive after-sales service. After this period, we will charge a lower fee to maintain after-sales service.
Q4:Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. Moreover, sales have increased for three consecutive years. The product quality and new product research and development capabilities of Zhangsheng Machinery are worthy of your trust. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
