Amass Female Male Connectors XT60 XT90 XT30 MR30 MT60 XT150 XT30PW XT60PW XT90PW XT60U Plug For RC Lipo Battery

Share on:

Price:RUB 29.13 - RUB 119.65
Price in USD:Details


Product Overview


Product Description

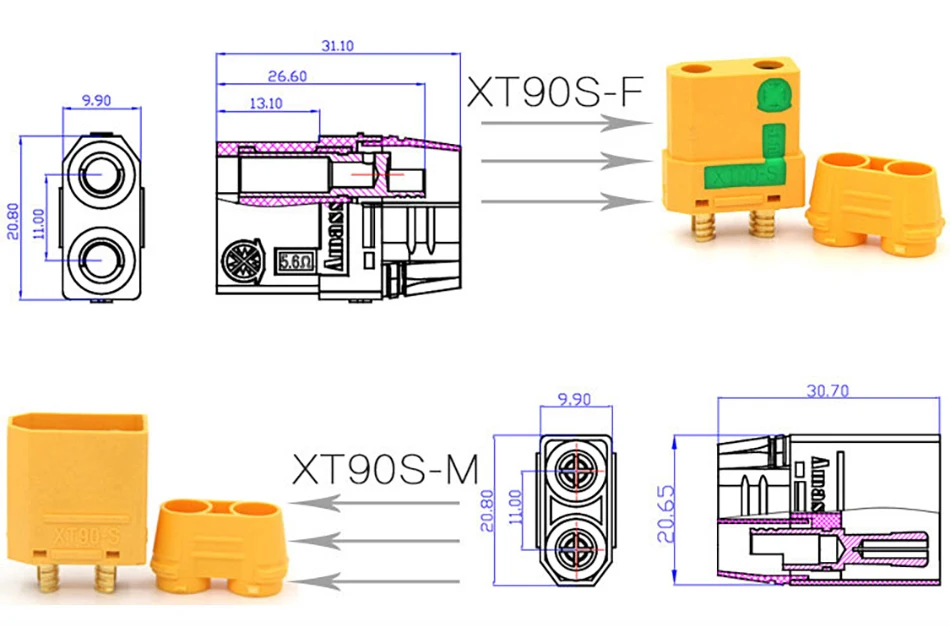

Product Name: Amass XT90 connector.

Rated voltage    DC 500V Metal material Copper gilding
Rated current      90A contact resistance 0.56mΩ
Instantaneous current      120A working temperature -20°C~+120°C
Use times     1000 times Flame retardant grade UL94 V0


Application scope:battery,electronic speed controller,charger
Product features:

1. green environmental protection, accord with ROHS standard
2. improve the welding line tail sheath, no heat shrinkable tube, easy to use.
3. high quality flame retardant material, high temperature resistance 20 degrees to 200 degrees, safe and reliable.
4. low impedance 24K gold plated layer, resistant to high current 90a-120a.

Product Name: Amass RC connectors:


Application scope:battery,electronic speed controller,charger
Product features:
1.A new generation of model plug patent product, female end for battery and male end for charger
2.The design of jacket rear concave can make the shrink tube inserted more deeply to protect joints from water vapor against and easy to solder
3.Precision molds processing, connect closely without any gaps, well leakproofness
4.Clear "+"-" sign
5.Gold plating, use the large flow-line design banana plug and have a larger contact area, although 3.5mm banana plug, can be sustained a constant current.
6.New style housing and groove slot design looks more beautiful make the connection stronger and avoid any mistake
7.Non-slip insulator, easy to connect
8.180 degree outward design of tail make wire can be easily soldered.

xt60pw (7)XT60PWXT30PW (4)XT90S6XT90S7Amass (4)Amass (11)MR30 (3)mt30 (3)XT60U (3)xt150 (2)
