Product Overview
Description
Introductions:

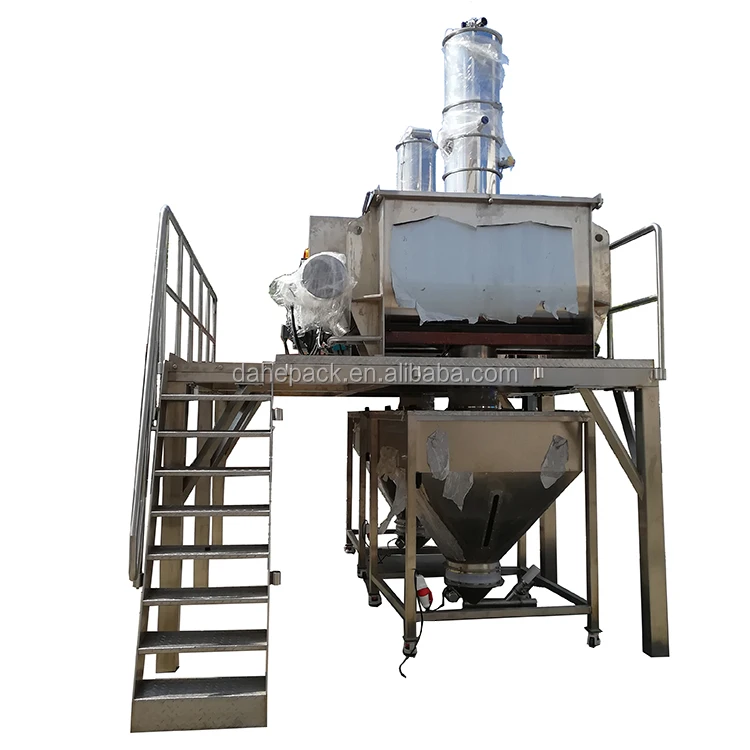

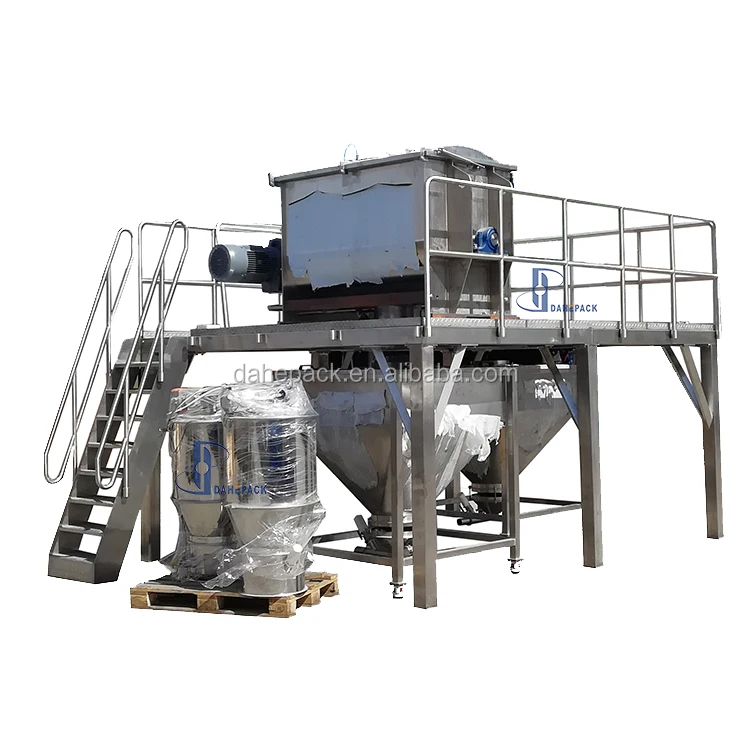

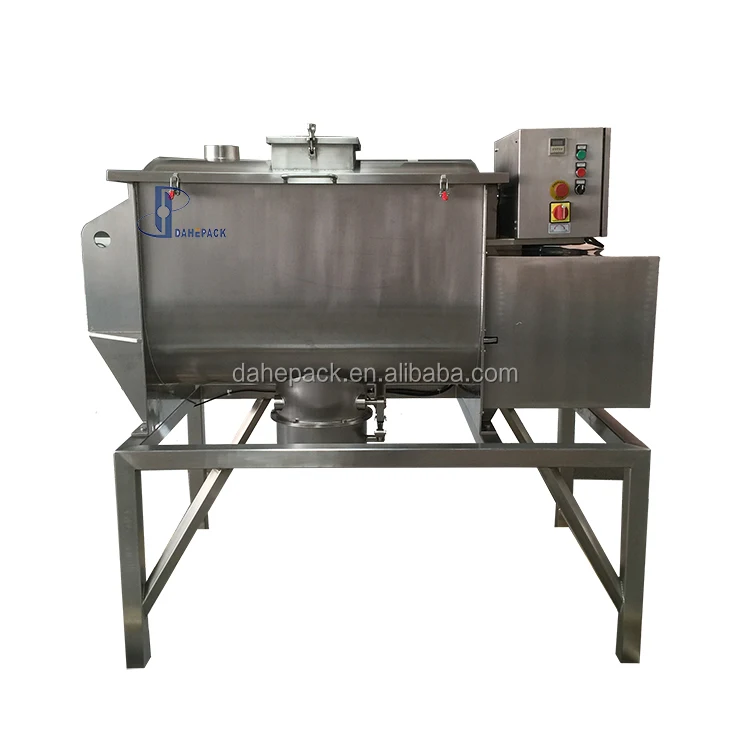

This is a horizontal Ribbon Blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank
and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder

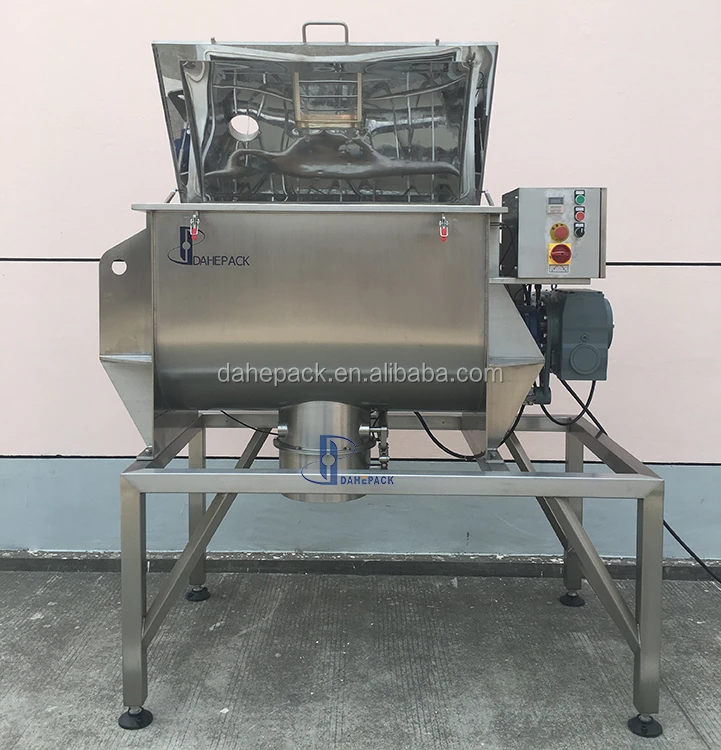

from the center to the ends .This counter-current action results in homogeneous mixing.The cover of the tank can be made as open
in order to cleaning and change parts easily.
and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder
from the center to the ends .This counter-current action results in homogeneous mixing.The cover of the tank can be made as open
in order to cleaning and change parts easily.
Products Description
Product Parameters
Model | DH-JD-100 | DH-JD-200 | DH-JD-300 | DH-JD-500 | DH-JD-1000 | DH-JD-1500 | DH-JD-2000 | ||||||
Effective Volume | 100L | 200L | 300L | 500L | 1000L | 1500L | 2000L | ||||||
Turning Speed | 35rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | ||||||
Total Weight | 180kg | 250kg | 350kg | 500kg | 700kg | 1000kg | 1300kg | ||||||
Total Power | 2.2KW | 4KW | 5.5KW | 7.5KW | 11kw | 15kw | 22kw | ||||||
Size | 1230*642*1540 | 1370*834*1647 | 1550*970*1655 | 1773*1100*1855 | 2394*1320*2187 | 2715*1397*2313 | 3080*1625*2453 | ||||||
Power Supply | 3P AC208-415V 50/60Hz | ||||||||||||
Application
