swimming pool flow cleaner

Ⅰ. Introduction:

The automatic swimming pool floor cleaner HJ1007 is a new type of highly efficient swimming pool cleaning equipment. Through its advanced computer controlled program, it can clean the pool floor automatically without draining pool water. At the same time, it filters the pool water and gets rid of suspended particles and sediments.

For safe operation, the cleaner works on DC 24V.

Ⅱ. Safety:

1, Position requirement of power supply unit:Refer to item 9 and 11 in “Important Precautions”.

2, Requirement of power: Refer to item 3 in “Important Precautions”.

Make sure the cleaner corresponds to your local voltage and frequency (hertz).

Ⅲ. Specifications:

1. Rated input voltage and frequency: 220V/50Hz, 110V/60Hz
2. Output Voltage: DC24V
3. Nominal output power: 150W
4. Working cycle: 1h/1.5h/2h
5. Cable length: 12m (39.37ft)
6. Maximum cleaning area: 60m² (for 12m cable in rectangle pool)
7. Filtering capacity: 20m³/h
8. Filter density: 180/600µm (600µm for the beginning of season)
9. Water temperature of use(for cleaner): 10°C - 35°C / 50°F - 95°F
10. Creeping speed: 20m/min
11. IP Grade:Cleaner-IPX8    Power supply unit-IPX5
12. Working environment temperature(for power unit): 10°C - 40°C / 50°F - 104°F
13. Maximum pool depth: 2m
14. Climb slope: Maximum25°

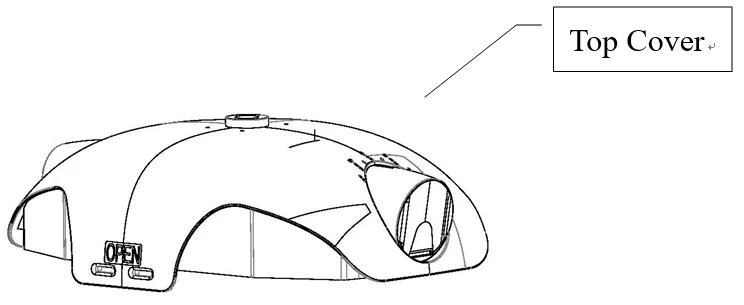

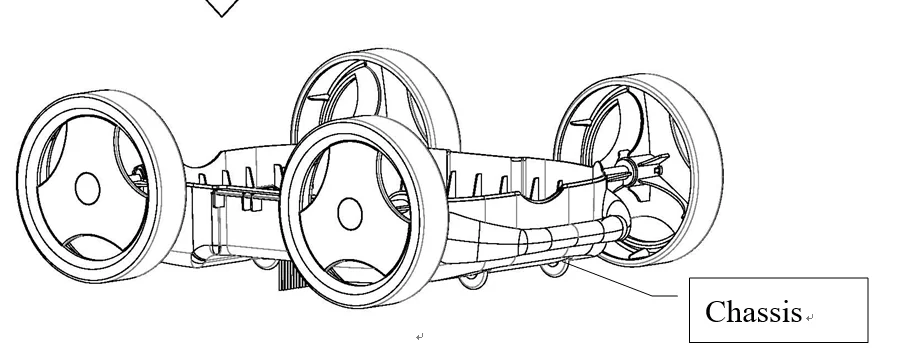

Cleaner Structure

1x40HC-119 2x40HC-115

Plastic bag + carton box

Website://www.wyindustry.com

As a manufacturer of Sino-French joint-venture, we're established in 2005, key product includes swimming pool cleaner and related accessories. We have strong technical ability, and a professional team of both Chinese and French engineers, as well as experienced technical workers and a elite management team led by general manager who has many years experience in France. We committed to research, production, selling and after sales service, the R&D centre and European marketing centre is located in France and is in charge of new product developing, design and communications with European super markets and professional shops, there is a perfect after sales service system in Europe with manufacturing base in TEDA of Tianjin, the plan of opening new branches in the USA, Australia and Middle east is also in process.
