Liquid acrylic UV curing machine for 3D printing letter
- Category: Digital Printers >>>
- Supplier: Guangzhou Z-Z Advertising Material Co. Ltd.
Share on (62353555726):
Product Overview
Description
Product Description

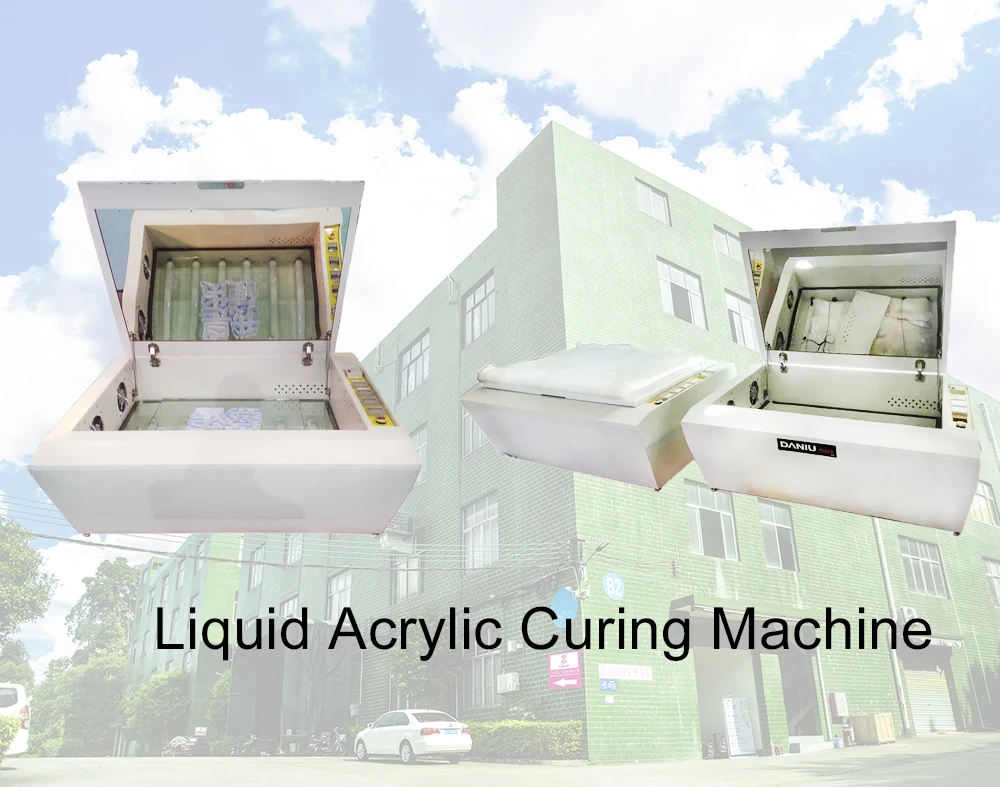

Liquid Acrylic Curing Machine!
Guangzhou Z-Z Group
In this increasingly bright era, LED products are getting more and more popular, LED 3D channel letters/signages/logos have gradually replaced the original signage, lighting in the dark night, let more people see.
NOW! After Z-Z Group launched the Automatic 3D printer for LED letter shell, the Curing Machine have been launched now, mainly for the LED 3D Letters/ Signages/ Logos acrylic face panel curing. Very smooth surface and close to the shell !!!
Specification
Item No. | 0606 | 1314 | 1410 | 2614 | ||||
Size(L*W*H) | 0.7*0.61*0.55m | 1.4*1.3*1.1m | 1.6*1.0*1.4m | 2.6*1.4* 1.35m | ||||
Working area | 60mm×60mm | 1250MM×1250mm | 1300MM×850mm | 2150MM×1350mm | ||||
Lifting way | Hydraulic strut 12KG/pc | Hydraulic strut 10KG/pc | Hydraulic strut 10KG/pc | Hydraulic strut 18KG/pc | ||||
Opening angle | 80° | 89° | 60° | 89° | ||||
Fans power | 25W/pc | 25W/pc | 15W/pc | 15W/pc | ||||
Heating tube power | 300W/pc | 1200W/pc | 1000W/pc | 1000W/pc | ||||
UV tube | Philips 40W T8 0.6m | Philips 60W T8 1.2m | Philips 60w T8 1.2m | Philips 60w T8 1.2m | ||||
Lighting Tube | - | Foshan LED 15W Tube 1.2M | - | - | ||||
Temperature Controller | - | YITAI485MODBUS ( Accuracy±0.2℃ ) | - | YITAI485MODBUS ( Accuracy±0.2℃ ) | ||||
Liquid Acrylic Letter Solidify time | White | 45-60mins | 45-50mins | 60-70mins; | 45-50mins | |||
Red Green Blue | 160mins | 160mins | 200mins; | 160mins | ||||
Yellow Orange | 240mins | 220mins | 280mins | 220mins | ||||
Gross Weight | 300KG | 400KG | 200KG | 600KG | ||||
Total power | Around 800W | Around 5000W | Around 1500w | Around 5000W | ||||
Details images

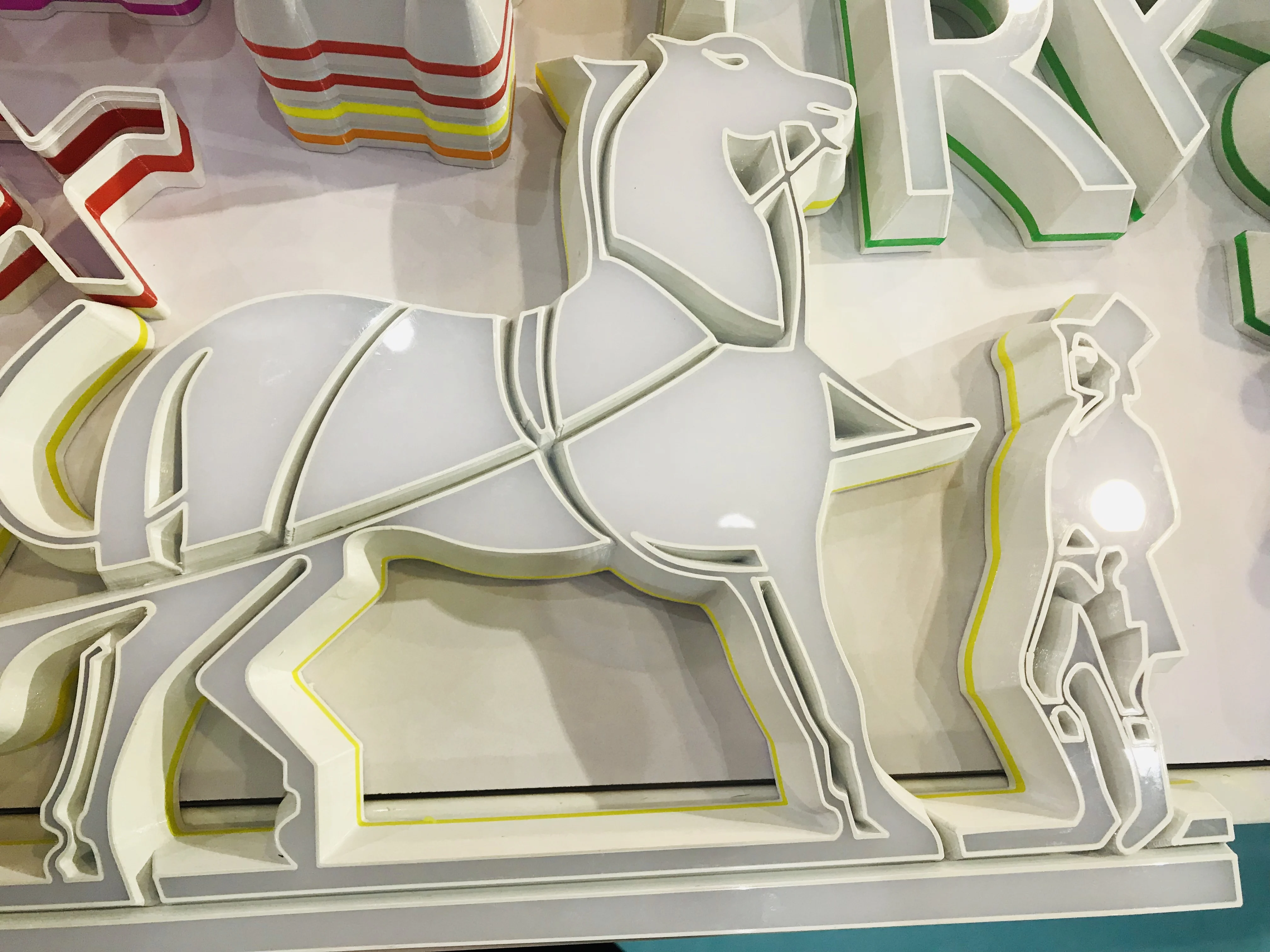

Very soomth surface.
Using glass as the bottom plate, so the surface will be flat soomth and no trace.
Software internal calculation of glue dosage
Close to the letter shell

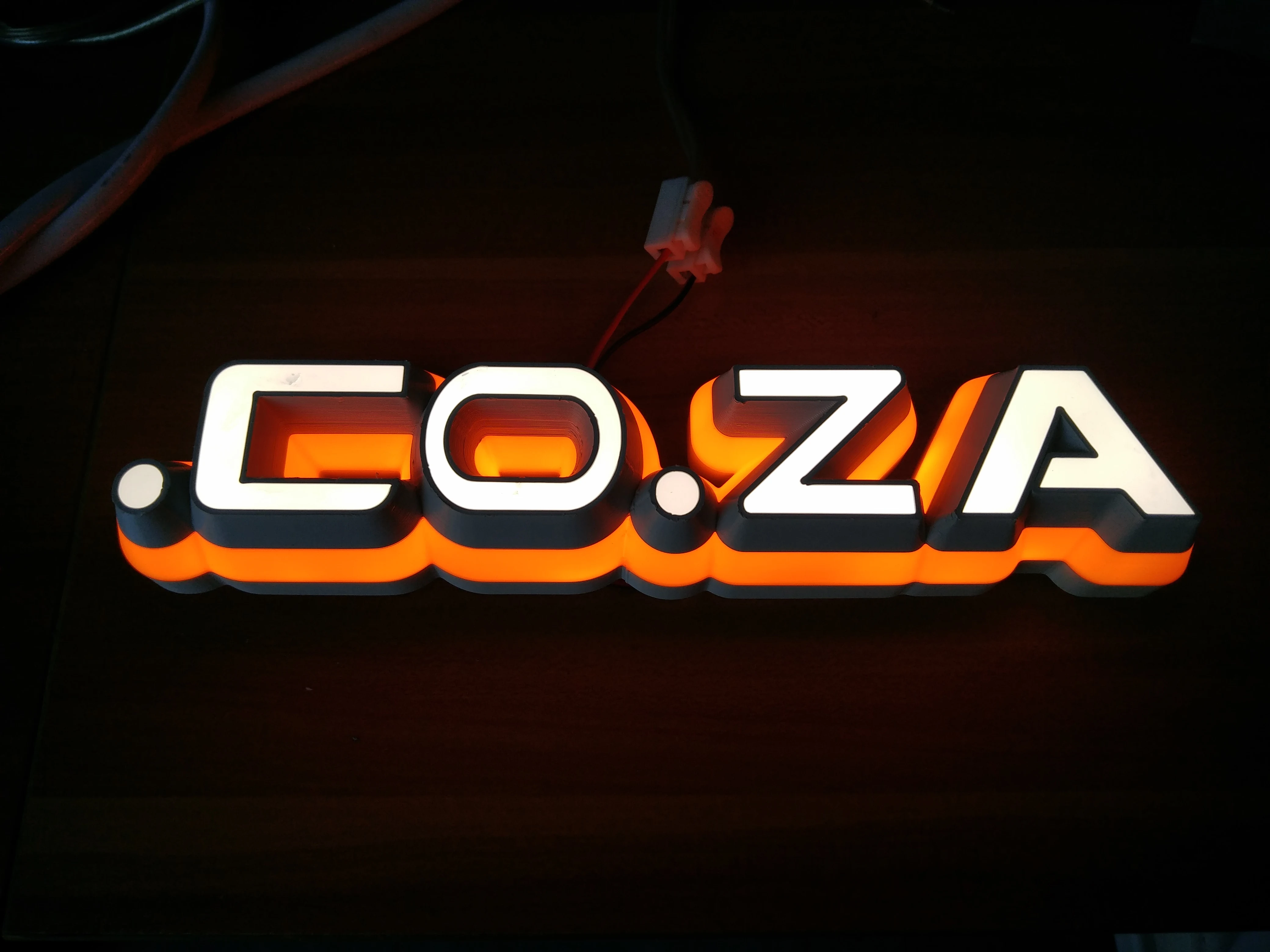

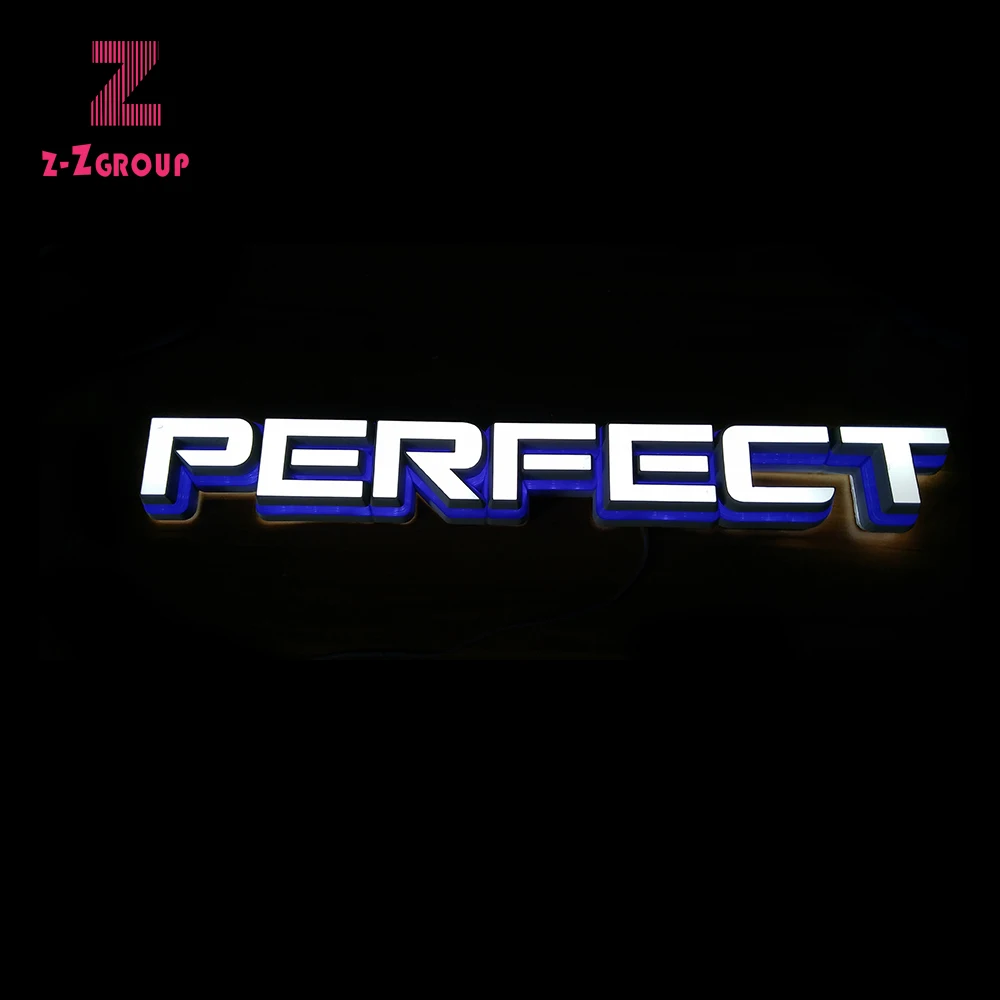

Not easy to full off, waterproof, and liquid acrylic light transmission are 95%, brighter than solid acrylic panel.
Advantages
Why choose 3D printer?
1. 3D Printer can print small size, complex details of the signage very accurately.
This is very difficult to do by hand, and manual cost expensive.
This is very difficult to do by hand, and manual cost expensive.
2. Automatic printing, means when you sleep, the machine will keep doing for you.
3. The LED 3D signage/logo/letter are cost very low if printed by 3D printer.
4. New printing material, PLMA, environmentally friendly.
Why choose Liquid Acrylic Machine?
1. Liquid acrylic brighter than solid acrylic panel, the finised letter effect are more beautiful.
2. Liquid acrylic letter face not easy fall off, and waterproof.
Product packaging
1. wrapped with anti-dust film.
2. put in wooden carton.
