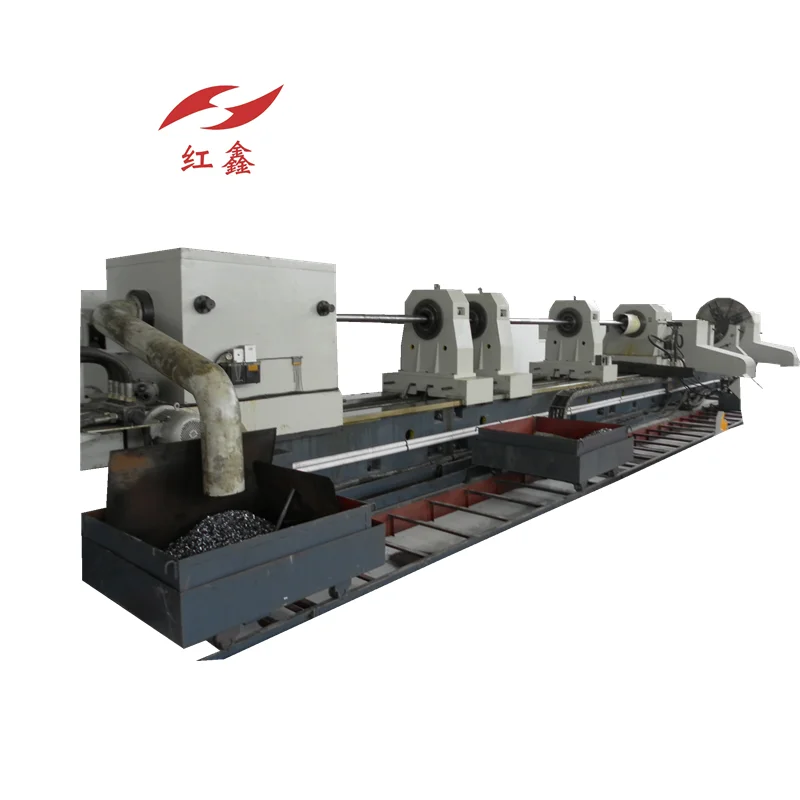

T2180X9 heavy duty deep hole drilling and boring machine deep hole trepanning machine

Product Overview

Description

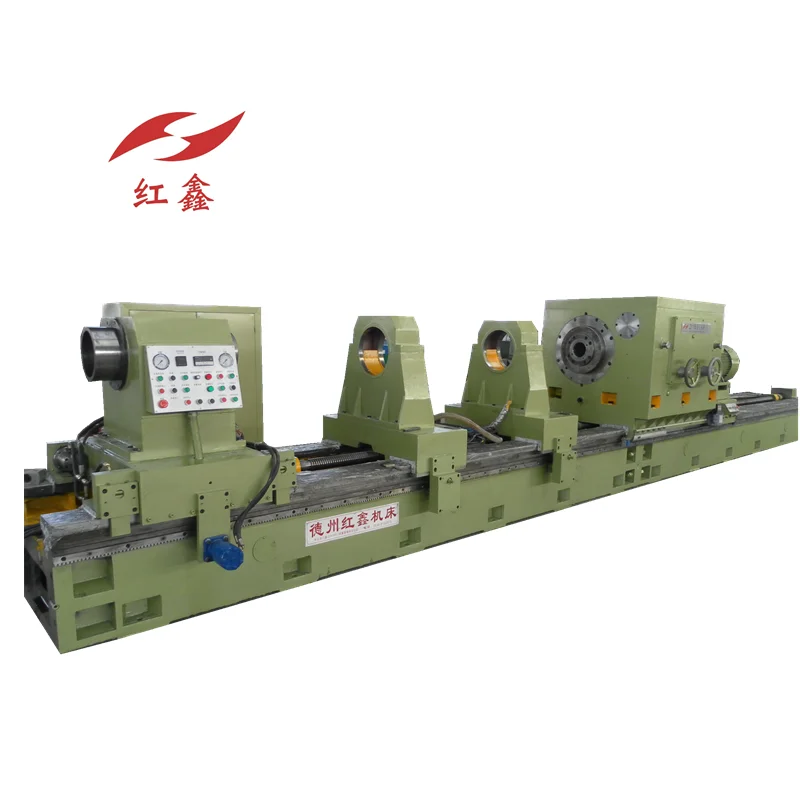

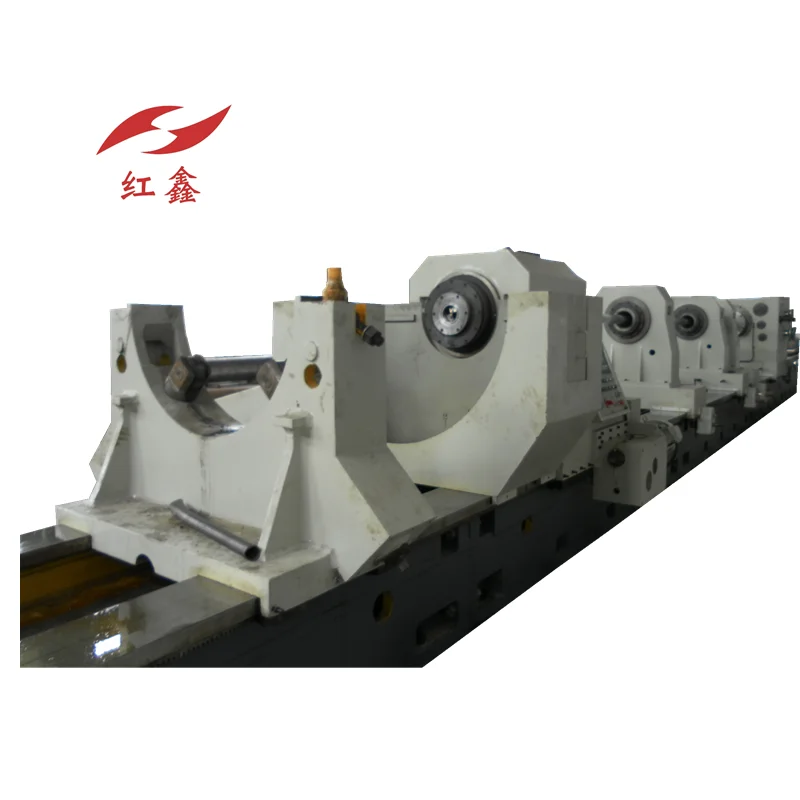

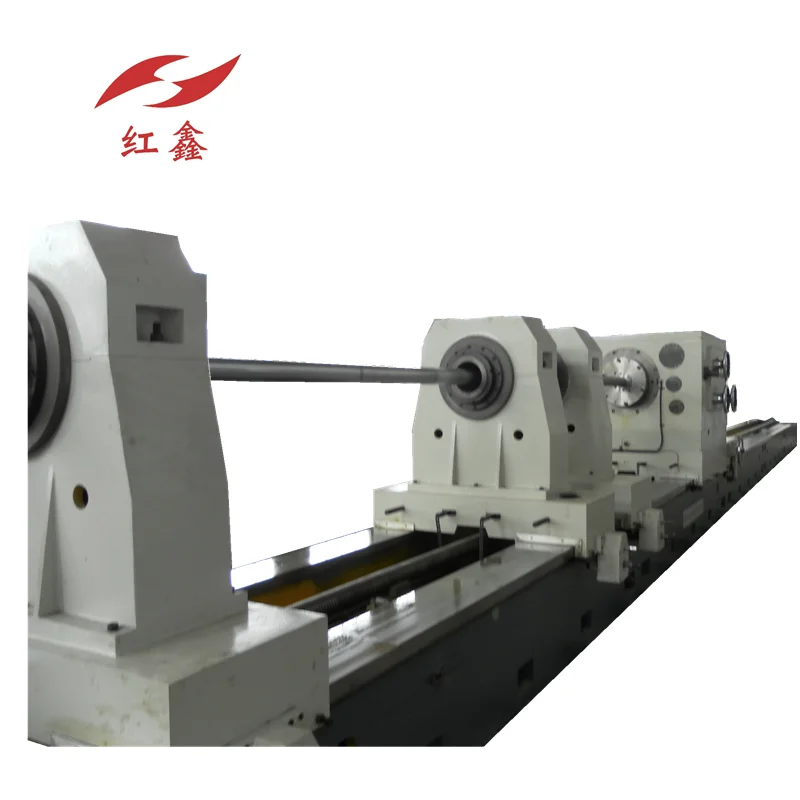

 Deep hole drilling and boring machine

T2180

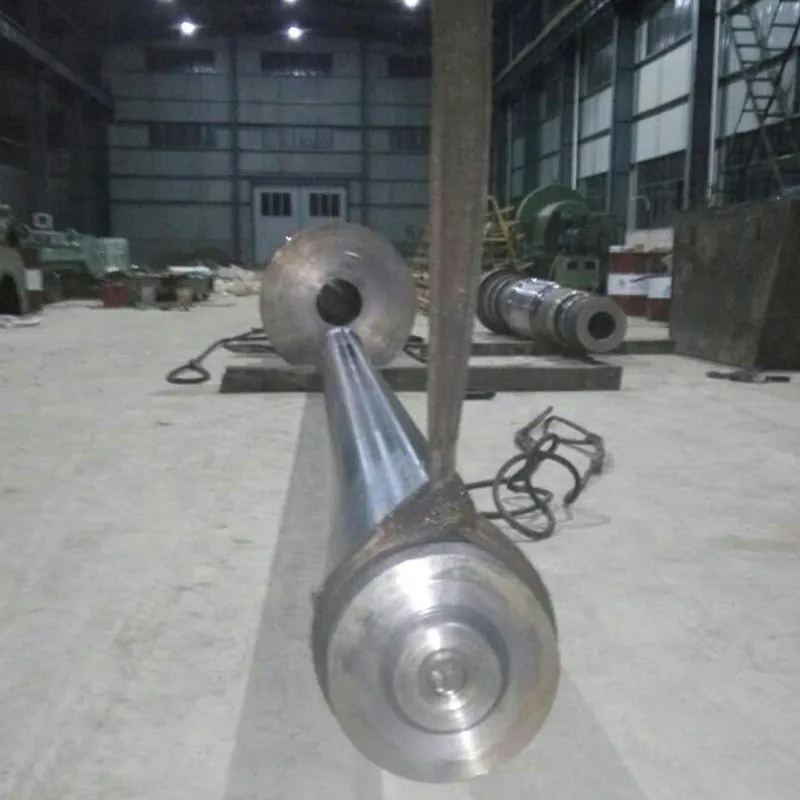

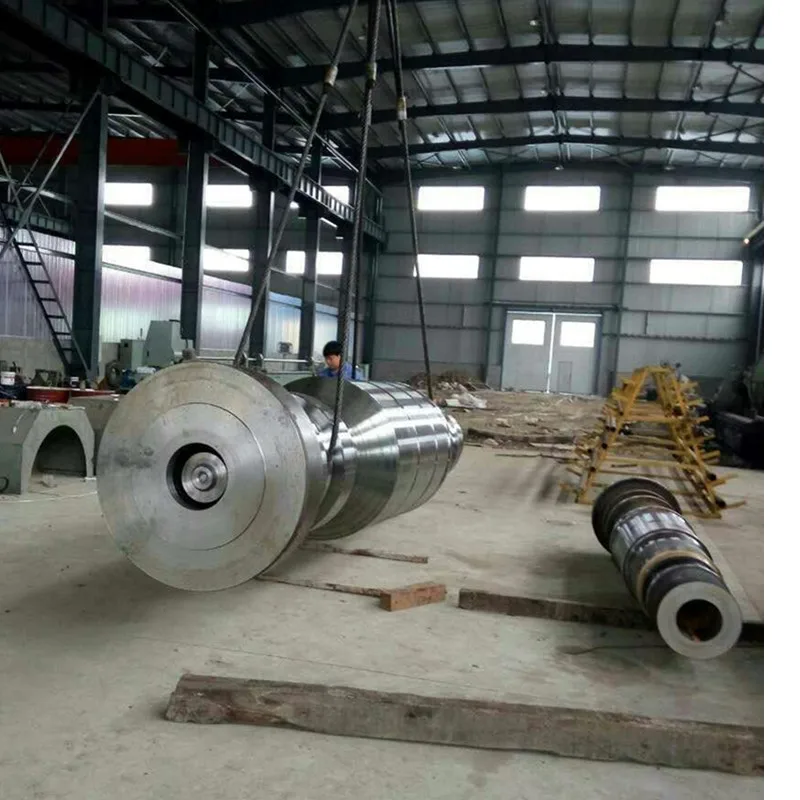

T2180  deep hole drilling and boring machine is a special machine for machining cylindrical deep holes. It is suitable for drilling and boring of cylindrical deep hole workpieces. It can also meet the functions of trepanning and burnishing, and can work stepped holes machining. The processing aperture precision can reach IT7~IT8 grade, and the surface roughness can reach Ra0.8-0.4μm. At the same time, we can take advantage of the design and manufacture of our company's tools and accessories, and match with the machine tool to meet the deep hole processing needs of various users. This machine is mainly for large-scale deep hole machining in various industries such as hydraulic cylinders, large pipe molds, offshore drilling platforms, and large motor spindle hole machining.

Basic process performance of the machine:

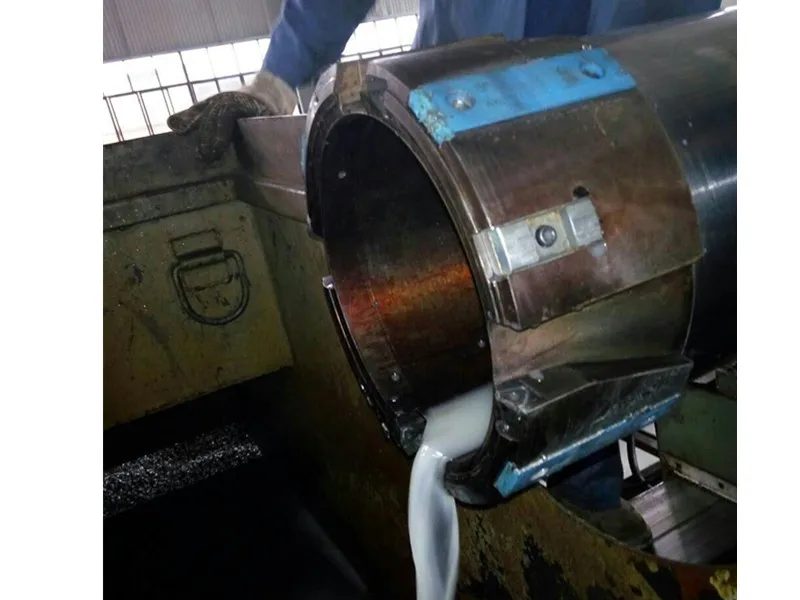

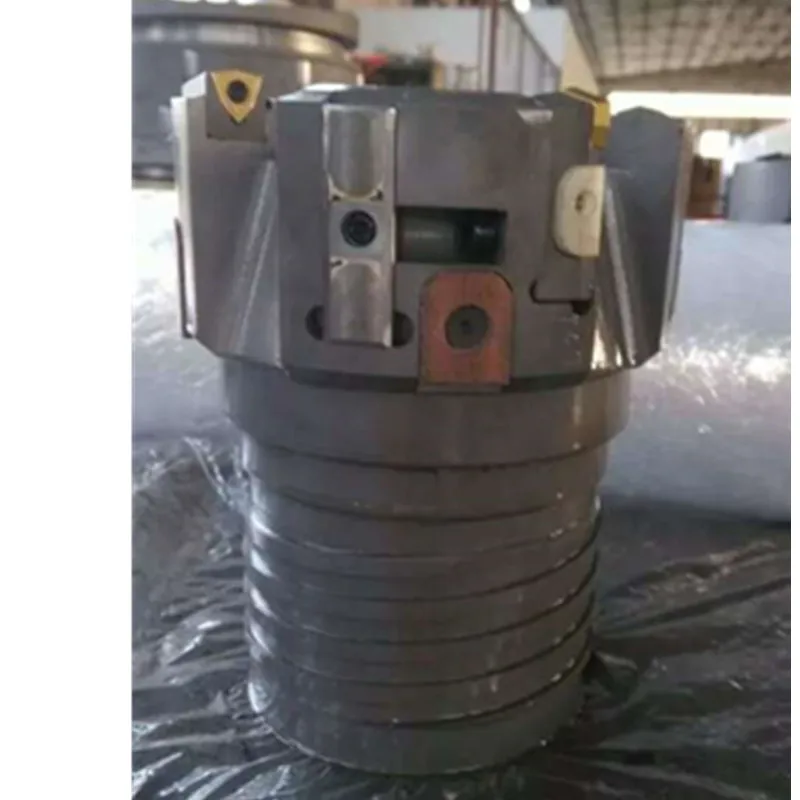

1) The machine can complete the drilling, boring, expanding, burnishsing and trepanning processing functions of the inner hole.

2) During machining, the workpiece rotates and the tool feeds. The cutting fluid enters the cutting zone through the pressure head, cooling, lubricating the cutting zone and taking away the chips.

3) The method of chip removal in BTA is used when drilling. When boring, the process of cutting fluid and discharging chips in the boring tube for cutting fluid forward (bed end) is adopted.

4) According to the user's needs, the machine can be equipped with a  boring box, the workpiece can be rotated at a low speed, and the tool rotates at a high speed to improve the processing efficiency.

5) Machining accuracy of machine tools:

When rough: The aperture accuracy is IT9-10. Surface roughness: Ra6.3.

Fine precision: aperture accuracy IT8-9. Surface roughness: Ra3.2.

When rolling: The aperture accuracy is IT8-9. Surface roughness: Ra0.2.

Straightness of the machined hole: less than 0.15/1000mm.

The exit deflection of the machined hole: less than 0.5/1000mm.

7) Machine tool processing efficiency:

Cutting speed: determined according to the tool structure, material and workpiece material, generally 50-100m/min.

Feeding speed: determined according to the condition of the workpiece and the process conditions, generally 10-100mm/min.

Maximum machining allowance at the time of boring: determined according to the tool structure, material and workpiece, generally not more than 30mm

specification	data
	T2180
Max boring diameter	φ800mm
Max drilling diameter	φ150mm
job clampping diameter	φ400-φ1200mm
spindle height	800mm
max drill depth	1000-15000mm
headstock spindle bore	φ100mm
spindle taper hole	120mm
spindle speed	3~120r/min infinite
feed speed	0.5-450mm/min
rapid speed	2m/min
main motor power	55KW(DC)
drill box speed	16~270r/min  12steps
drill box spindle bore	Φ100mm
drill box spindle taper hole	φ120mm,1:20.
drill motor	45kW
Hydraulic motor power	1.5KW  n=1440r/min
rapid motor power	7.5KW
feed motor power	7.5KW(servo)
Cooling pump motor power	7.5KW   3 group
Rated cooling pressure	0.36Mpa
Cooling volume	300,600,900l/min
Rated hydraulic pressure	6.3Mpa







Our company have more than 15 years experience in  design, manufacturing and sales of deep hole drilling machine,   have more than 4 million USD  in fixed assets. The company occupies an area of  60 acres with two plants and employs more than 200 people.



Our advantage:

1 Has two manufacture plants, covered area more than 20,000m2, each year produce more than 200 sets of machine.





2  Big quantity machine parts(beds, headstock, drill box) in stock, 2 months delivery is available, The bed will be kept for 3-6 months before machining for natural aging.

3  Big quantity standard parts such as gear, hardware parts in warehouse for fast delivery.



4 Strong parts machining capacity to keep machine accuracy. Such as : bed milling, bed grinding, headstock boring ,turning.
