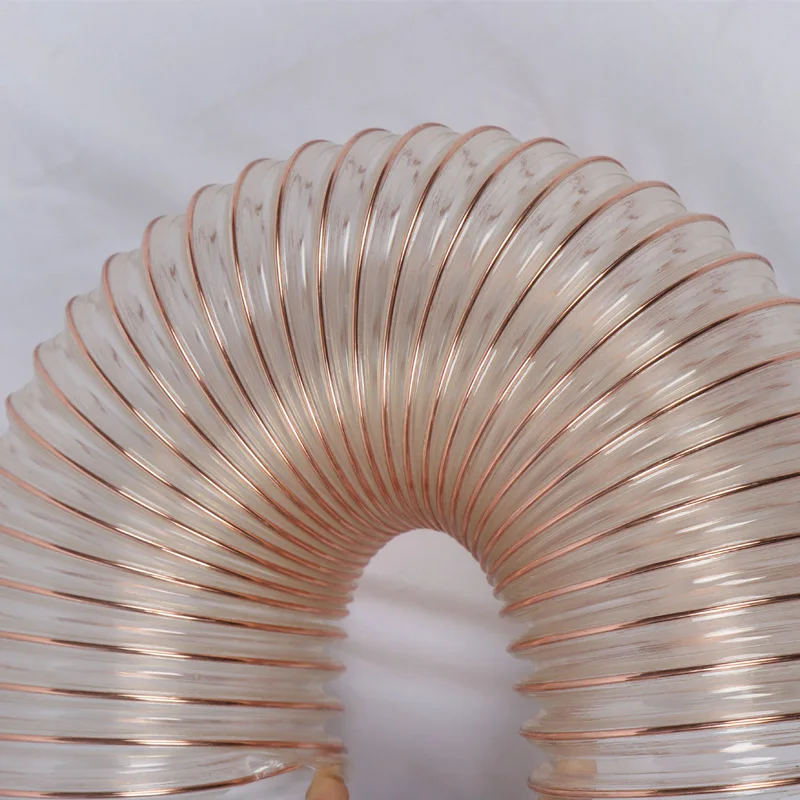

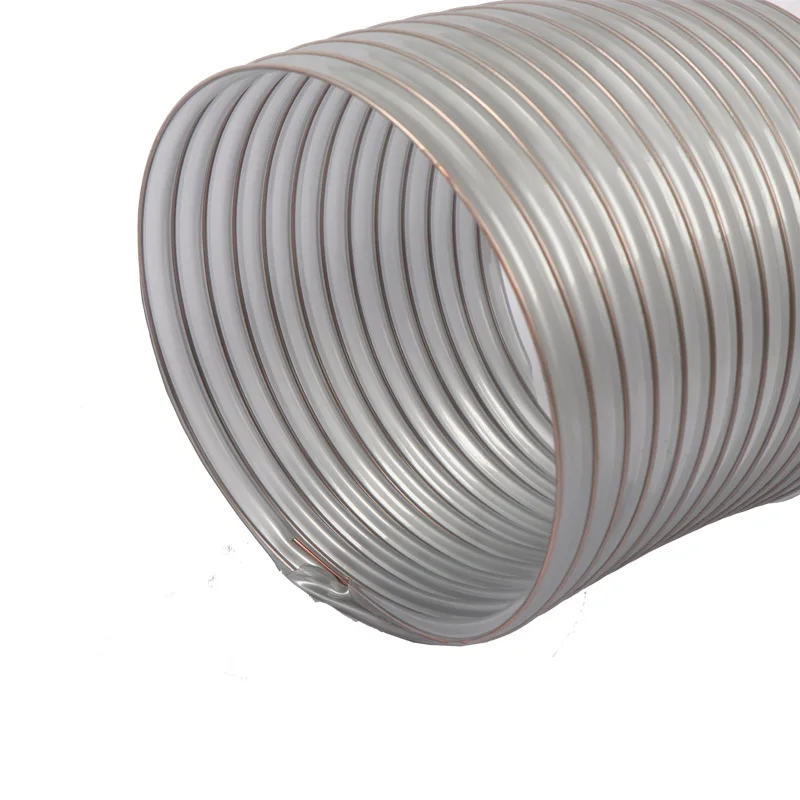

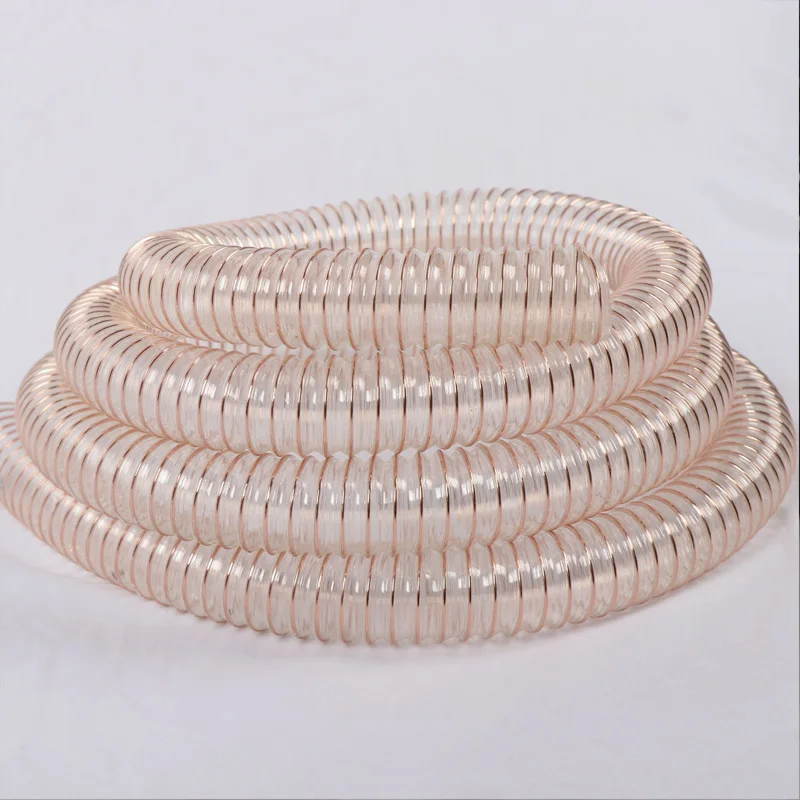

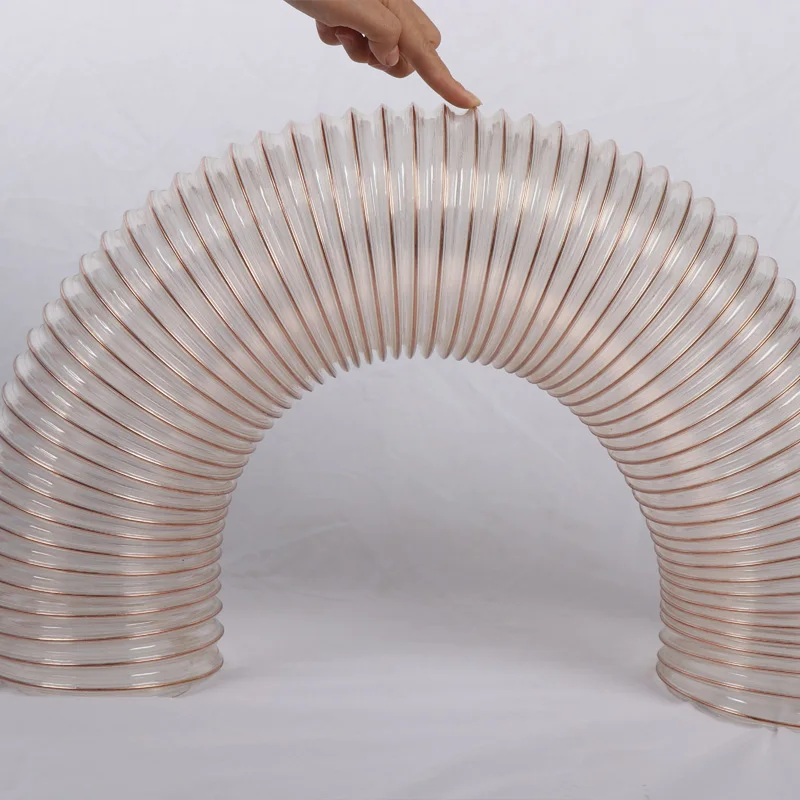

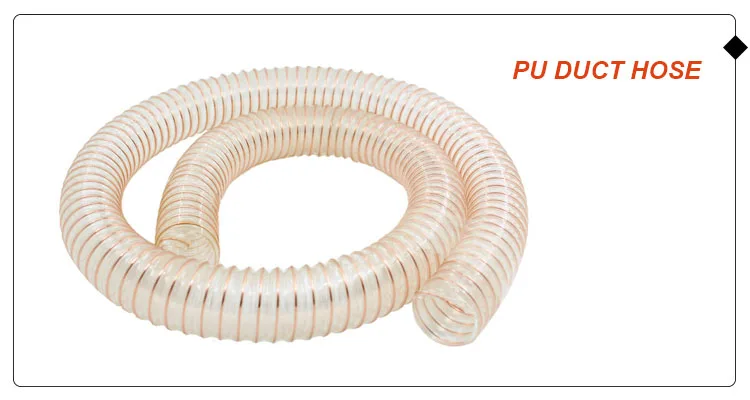

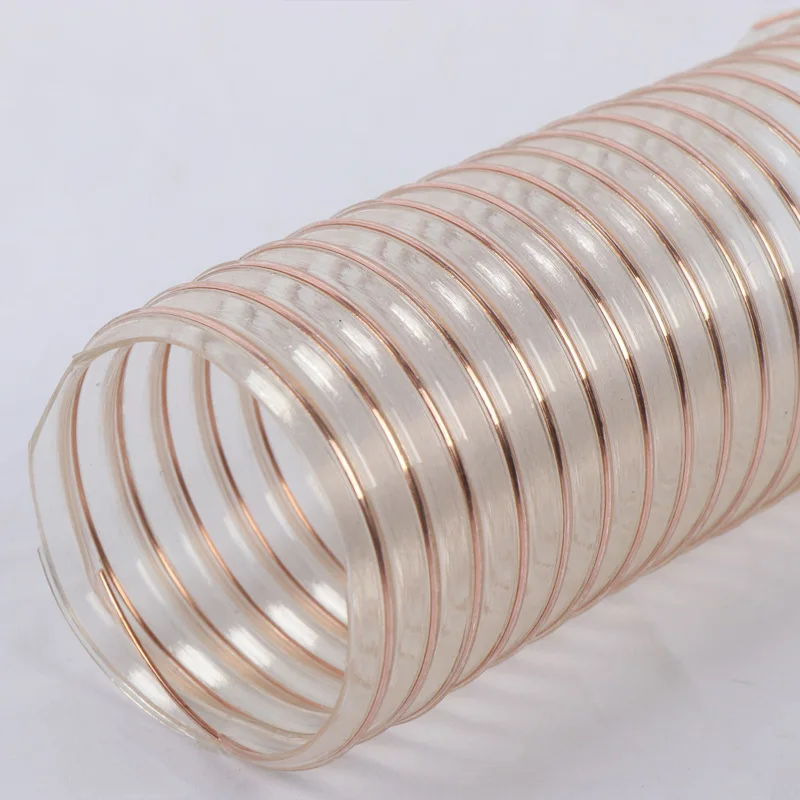

PU Copper Plated Steel Wire Hose Flexible Copper Coated Wire Hose For Transport Powder Exhaust

PU copper plated steel wire hose material: polyurethane, elastic steel wire.


Production diameter: 25mm to 500mm complete specifications.


Wall thickness: wall thickness of about 0.4-2.0 mm.


Length: 10 meters, 20 meters, 30 meters, etc.


Special requirements: it can be done without calibration.



Temperature range: about -40℃ to +120℃, about 150℃ for a short time.


Hardness: 60A-90A.


Excellent point: high strength;Can be arbitrary bending, no rigid bend, can reduce wind resistance;

Integrated molding, small air leakage;Can acid and alkali corrosive gas, pressure non-toxic tasteless not easy aging and other advantages.


Properties: PU hose steel wire with high wear-resisting protection wear-resisting performance is six times, most of the rubber material is soft PVC 5 times higher internal smooth, optimize flow characteristics, can reach high intensity and tensile strength, good resistance to mineral oil resistance and chemical resistance, good uv and ozone resistance, and low temperature scale small bending radius, kink not easily, do not contain softener and halogen, gas and liquid does not leak.


Product features: flame retardant requirements in accordance with ul94-hb standard, halogen free, in accordance with ROSH environmental directive provisions, through the screw wire grounding can be discharged electrostatic spiral elastic steel wire firmly implanted in the pipe wall, so as to optimize the external liquidity.





ID
OD
Recommended operating limit
Bending radius (middle of hose)
weight
The length of the production
overpressure
Vacuum
MM
MM
bar
bar
MM
KG/M
M
20
27
1,37
0,26
27
0,19
20
25
32
1,11
0,25
32
0,23
20
30
38
0,93
0,235
38
0,25
20
32
40
0,875
0,23
40
0,27
20
35
43
0,8
0,225
43
0,3
20
38
46
0,74
0,215
46
0,32
20
40
48
0,705
0,21
48
0,33
20
42
50
0,67
0,205
50
0,35
20
45
53
0,63
0,195
53
0,37
20
50
58
0,565
0,18
58
0,41
20
55
63
0,515
0,16
63
0,45
20
60
68
0,475
0,145
68
0,49
20
65
73
0,44
0,125
73
0,52
20
70
79
0,41
0,105
79
0,54
20
75
84
0,38
0,095
84
0,58
20
80
89
0,36
0,09
89
0,61
20
90
99
0,32
0,075
99
0,7
20
100
109
0,285
0,06
109
0,85
20
105
114
0,275
0,06
114
0,89
20
110
119
0,26
0,055
119
0,94
20
115
124
0,25
0,055
124
0,98
20
120
129
0,24
0,05
129
1,02
20
125
134
0,23
0,04
134
1,06
20
130
139
0,22
0,04
139
1,1
20
140
149
0,205
0,04
149
1,18
20
150
159
0,19
0,04
159
1,26
20
160
169
0,18
0,035
169
1,35
20
170
179
0,17
0,03
179
1,43
20
175
184
0,165
0,03
184
1,47
20
180
189
0,16
0,03
189
1,51
20
200
209
0,145
0,03
209
1,67
20
225
234
0,13
0,02
234
2,26
20
250
259
0,115
0,01
259
2,51
20
275
284
0,105
0,01
284
2,76
20
280
289
0,1
0,01
289
2,8
10
300
309
0,095
0,01
309
3
10
315
324
0,09
0,01
324
3,15
10
320
329
0,09
0,01
329
3,2
10
325
334
0,085
0,01
334
3,25
10
350
359
0,08
0,005
359
3,5
10
375
384
0,075
0,005
384
4,21
10
400
410
0,07
0,005
410
4,49
10
450
460
0,065
0,005
460
5,05
10
500
510
0,055
0,005
510
5,6
10
Woodworking wear-resisting vacuum hose applications:
woodworking machinery hose, ceramic machinery hose as wear-resistant hose
anti-wear protection tube, usually used for suction occasions, especially suitable for wear and tear "solid, such as dust fiber
powders carpentry vacuum hose, hose woodworking machinery, ceramic machinery hose, ceramics factory vacuum tube, blanking hose,
clastic and granular gas and liquid medium, industrial dust removal and suction, industrial vacuum cleaners, paper suction or
deposit fiber.

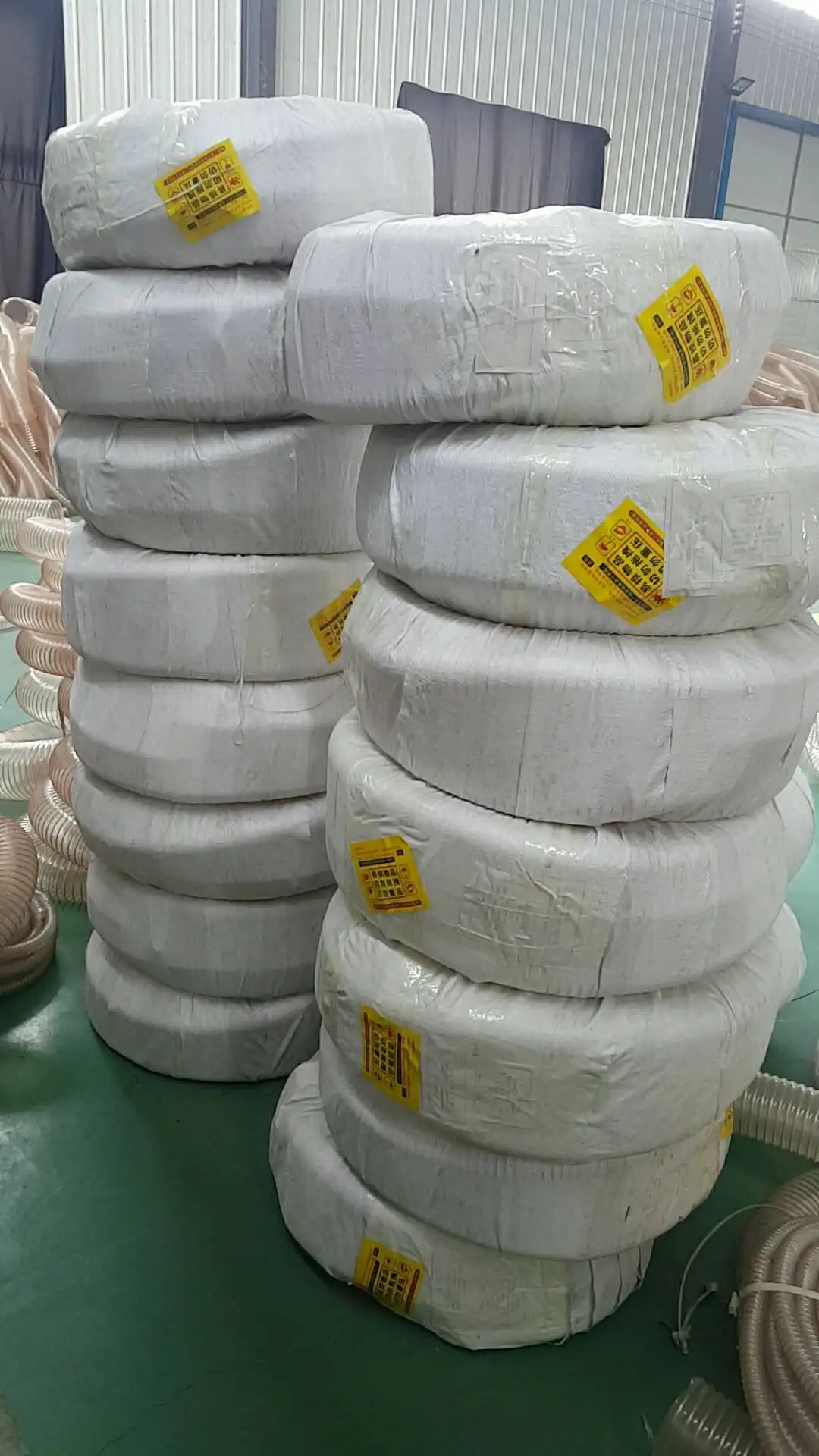

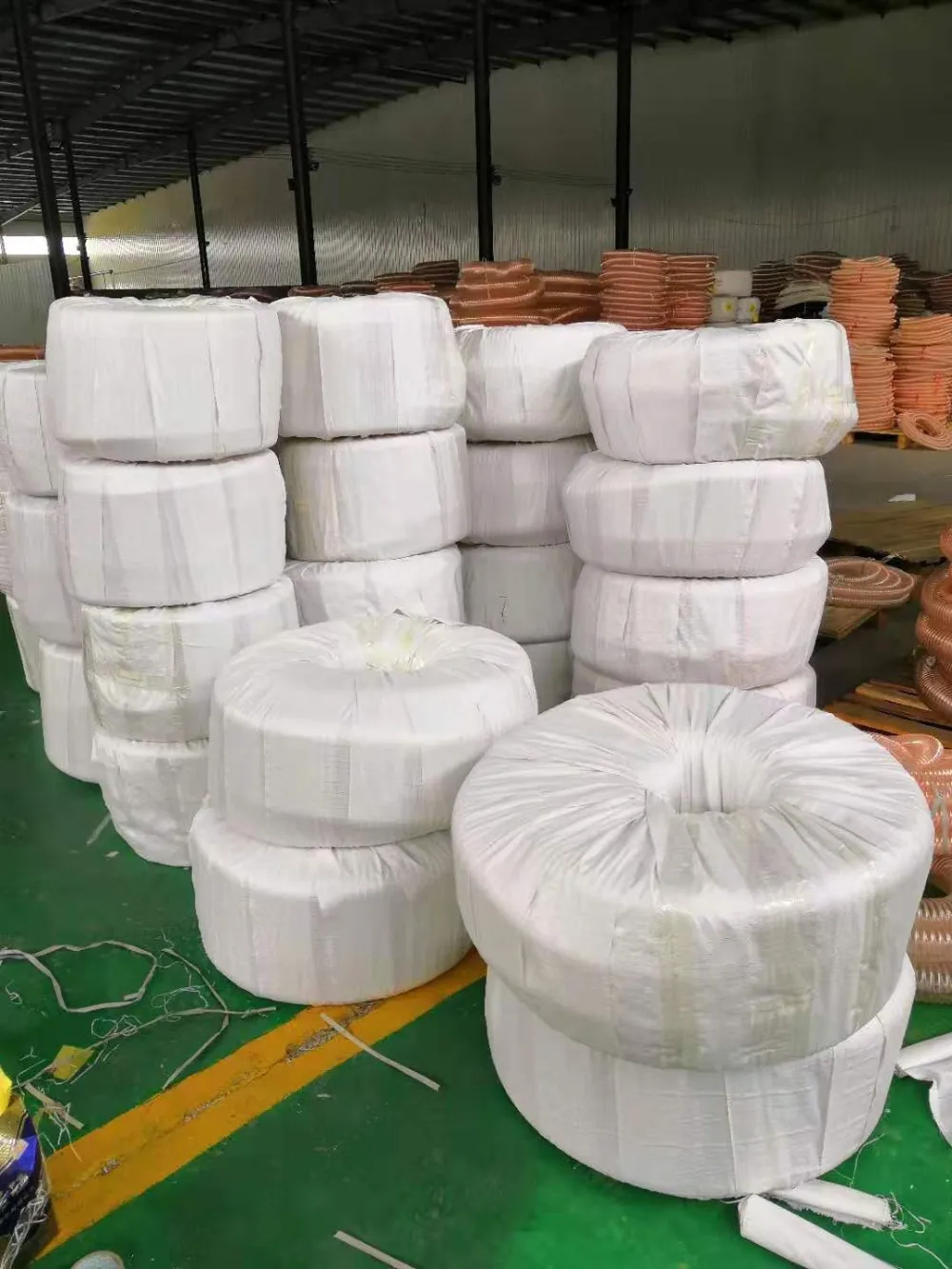

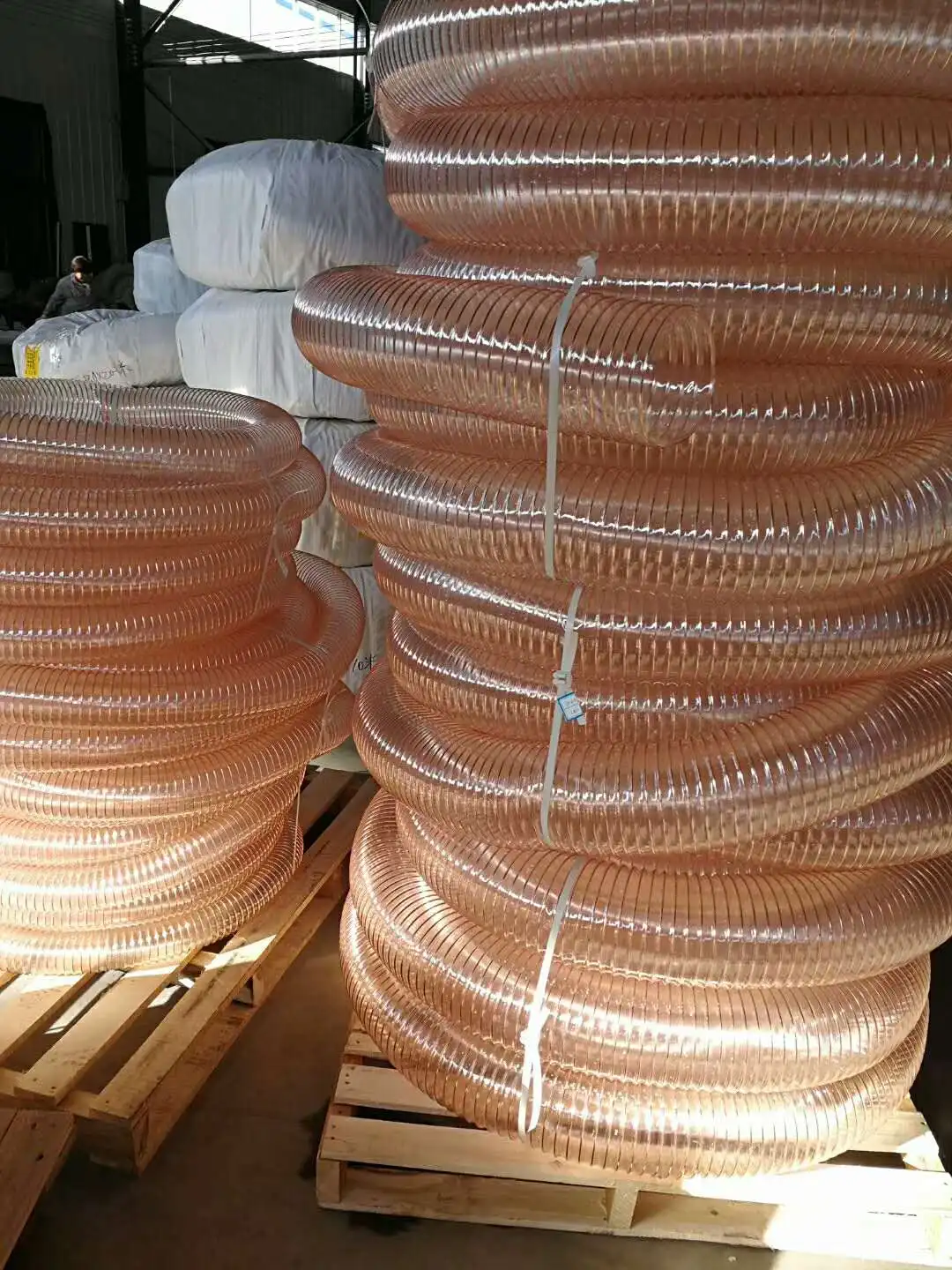

Packing & Delivery

Packing Details  :

 Colorful nylon tape wrapped and the pallets packing can be used if customer request.

Delivery Details :

1. Less than 1000 Meters will delivery within 7days;

2. Less than 5000 Meters will delivery within 10 days.

3. Less than 10000 Meters will delivery within 15 days.

4. One full container will be delivery within 30 days.
