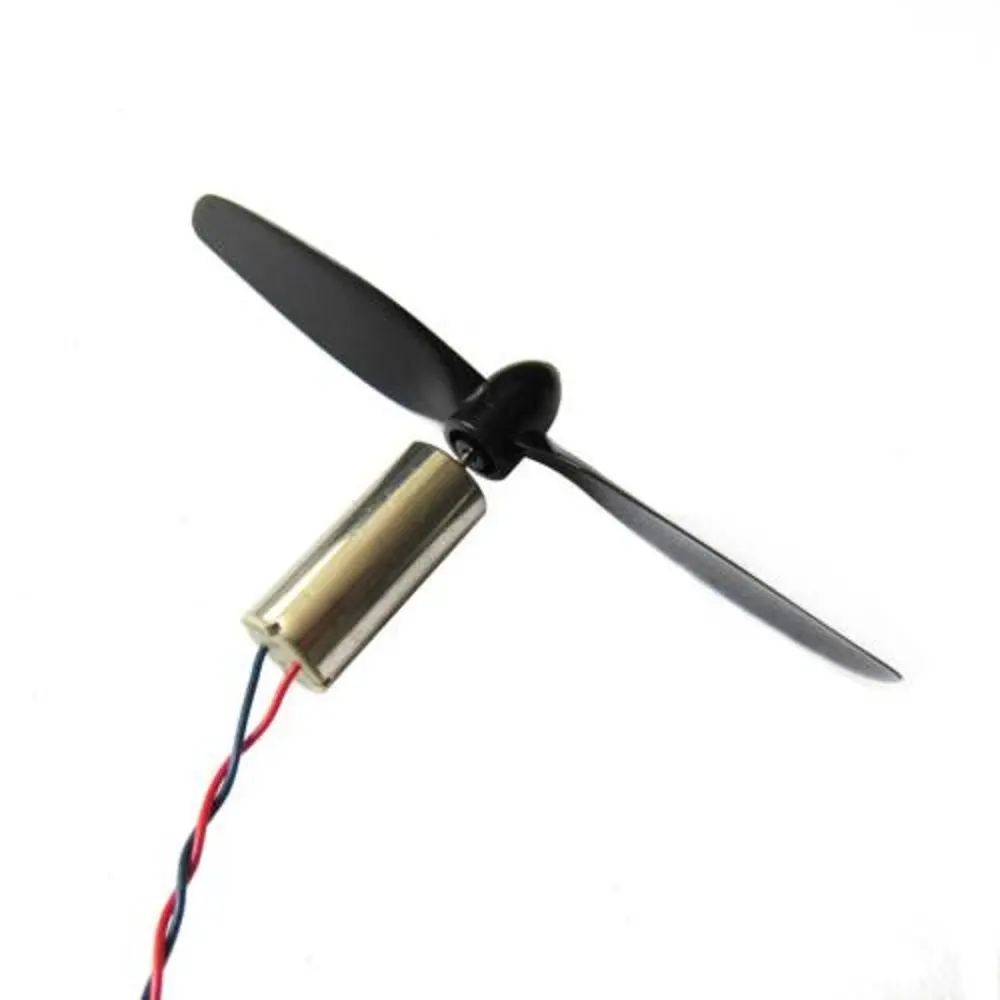

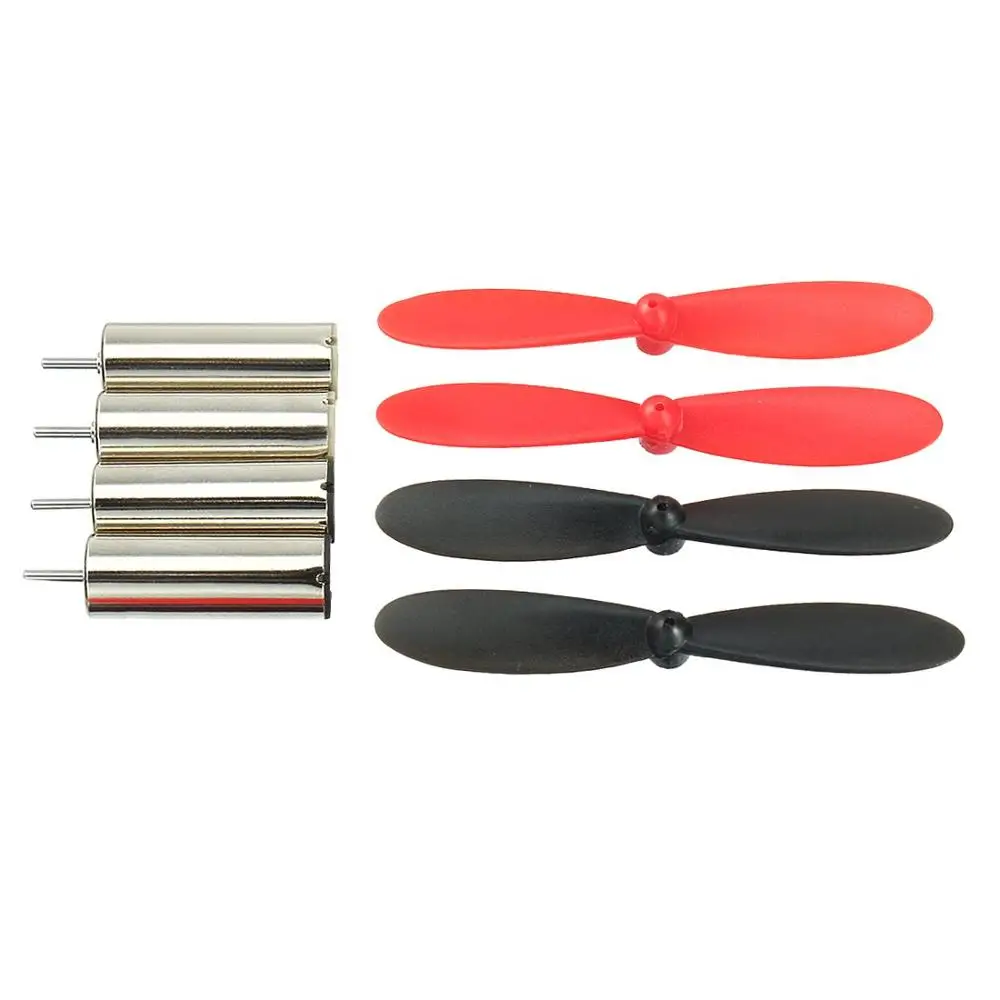

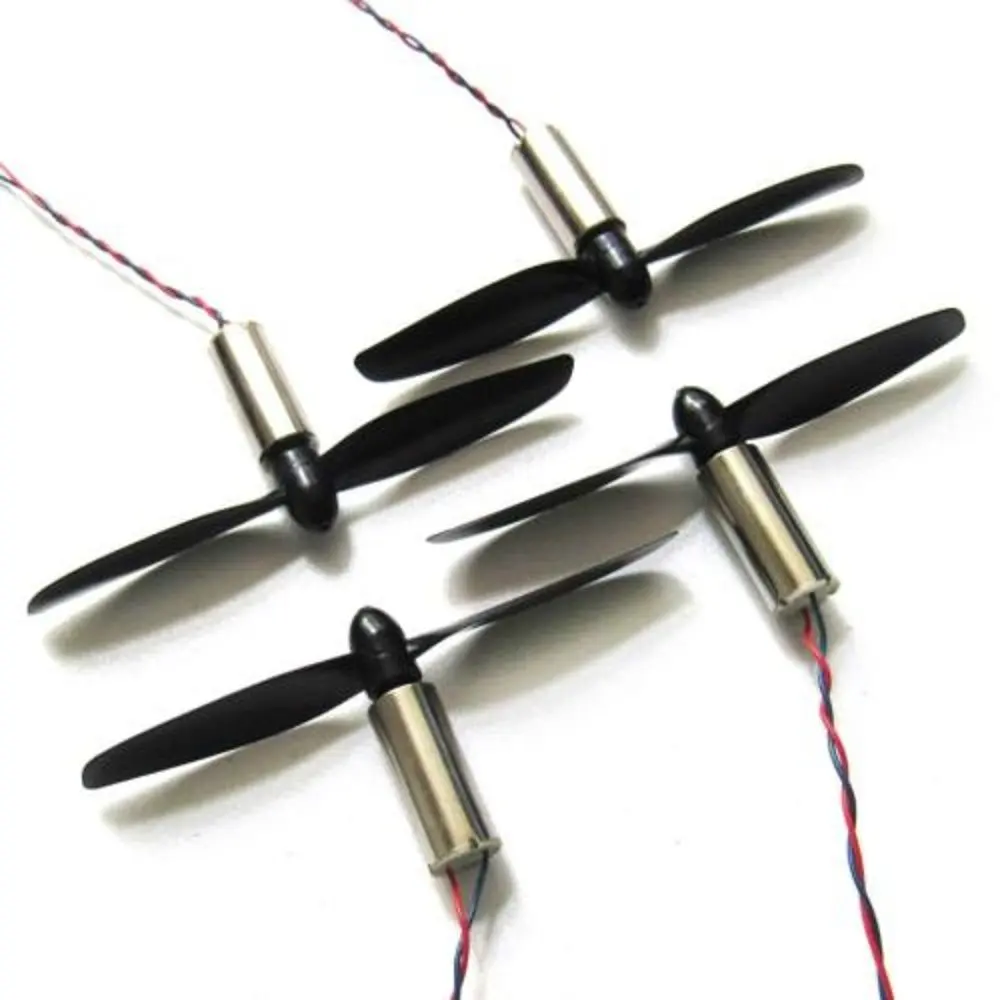

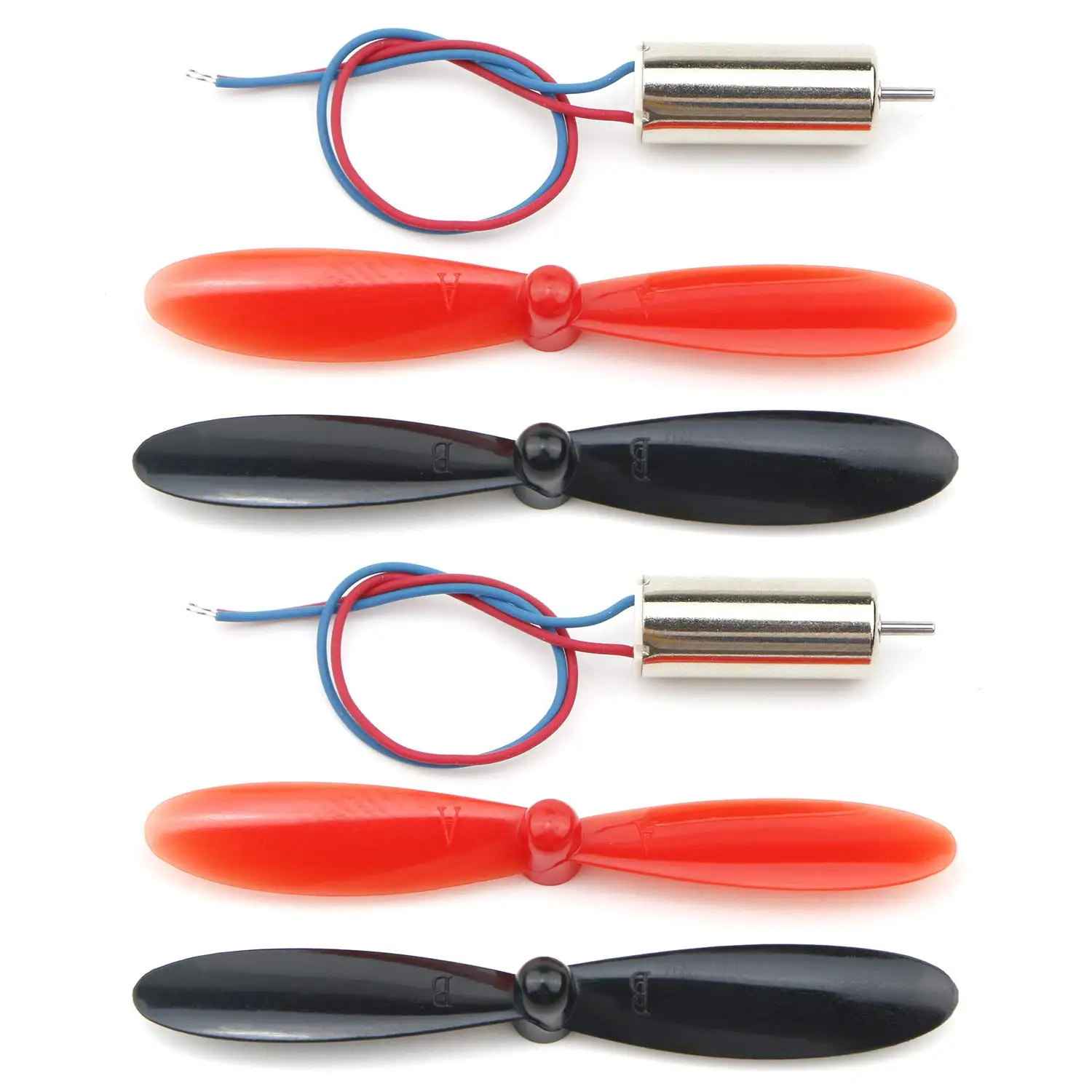

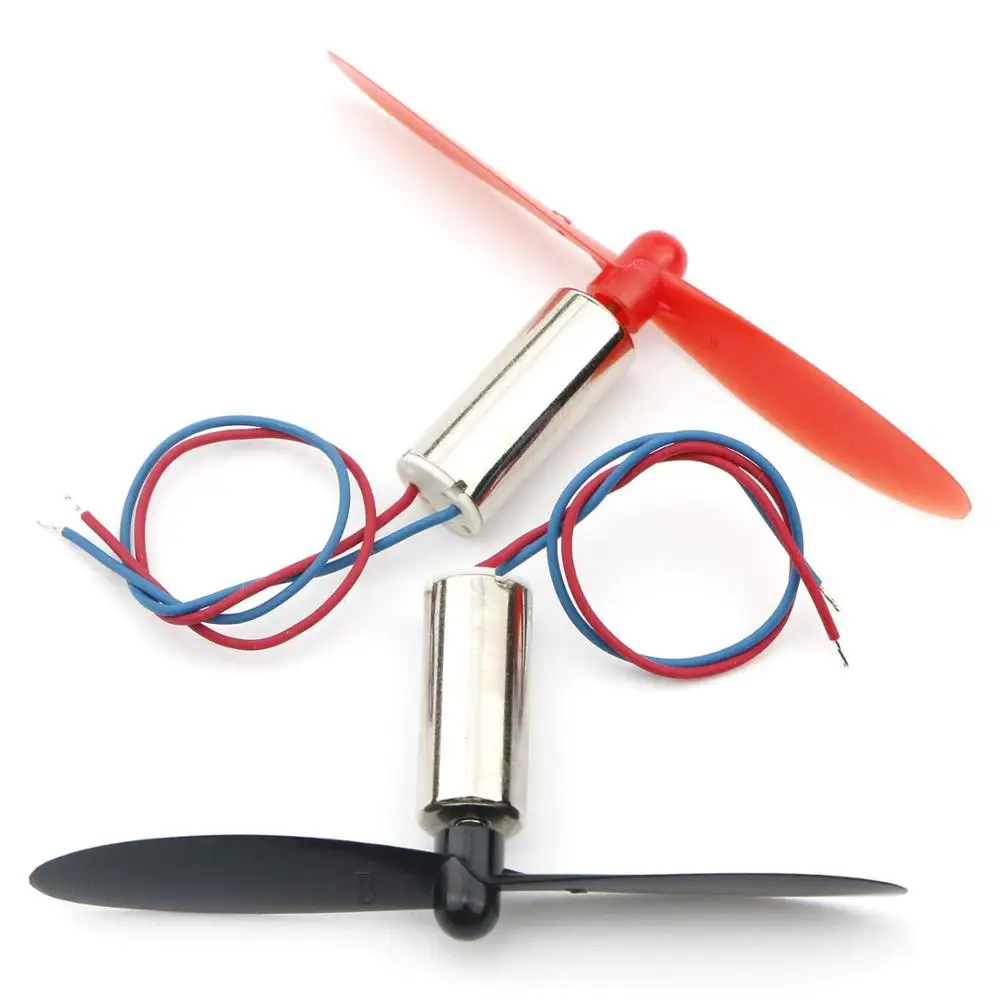

New DC 3.4V 45000RPM Micro 8520 DC Motor 2 Propellers for RC Aircraft Helicopter Toy
- Category: >>>
- Supplier: Yichang Wingfong Industry & Trade Co. Ltd.
Share on (62353879689):
Product Overview
Description
Product Description
Drive motor is mainly used in the toy car, intelligent vehicle and other children's toys and electric fans, blowers and other household appliances and industrial supplies, motor model and the species is numerous.

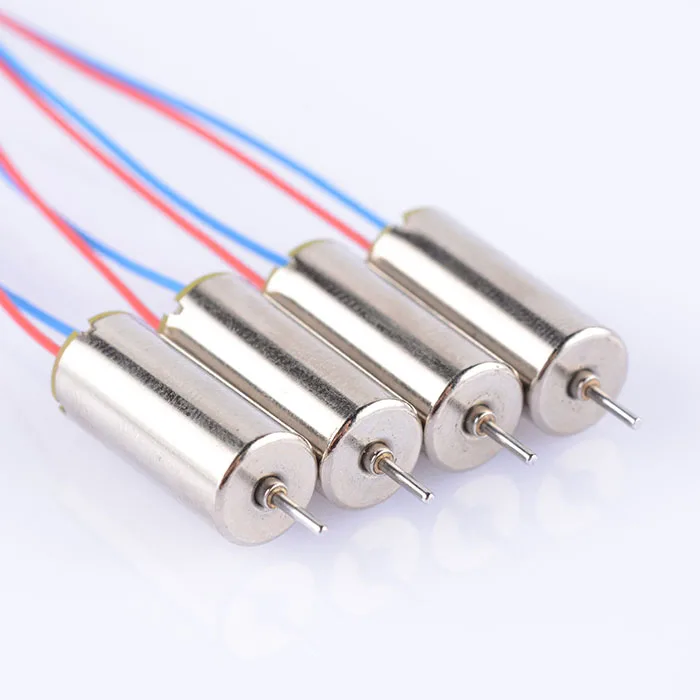

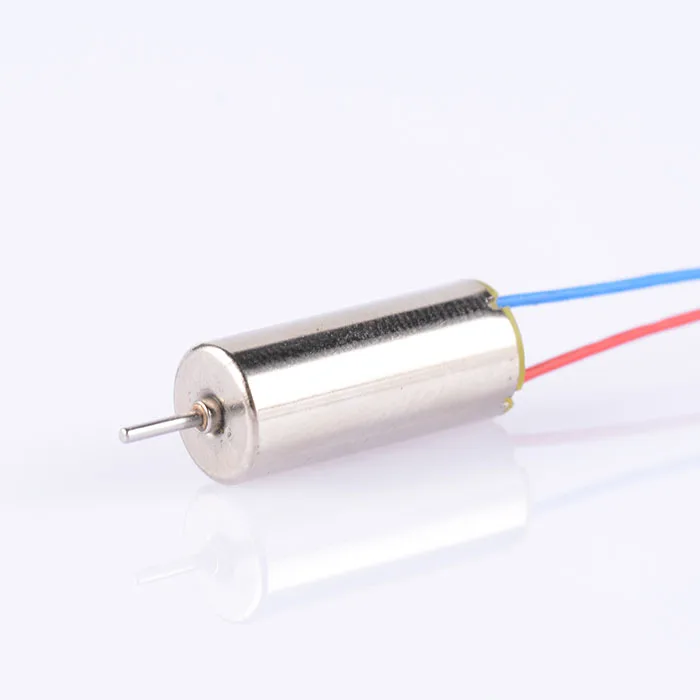

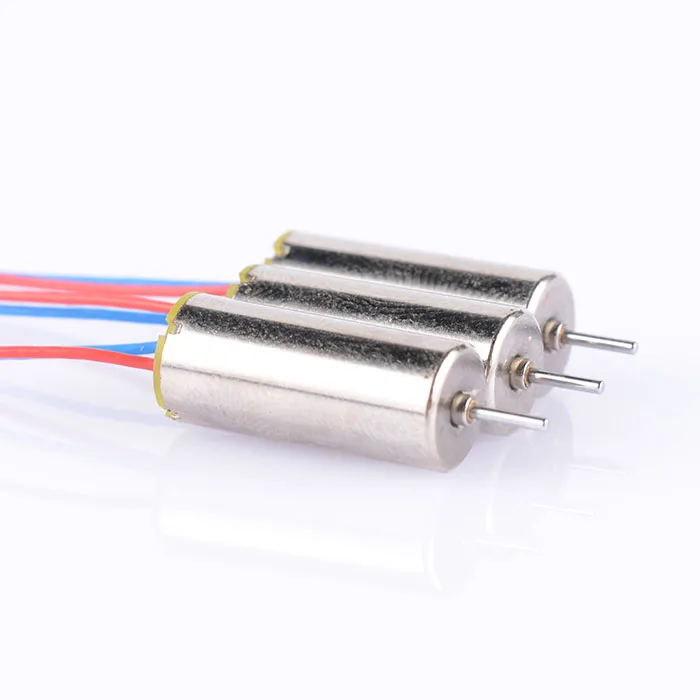

716 hollow cup drive motor
Diameter: 7mm
Body length: 16mm
Shaft length: 5mm
wire length: customized

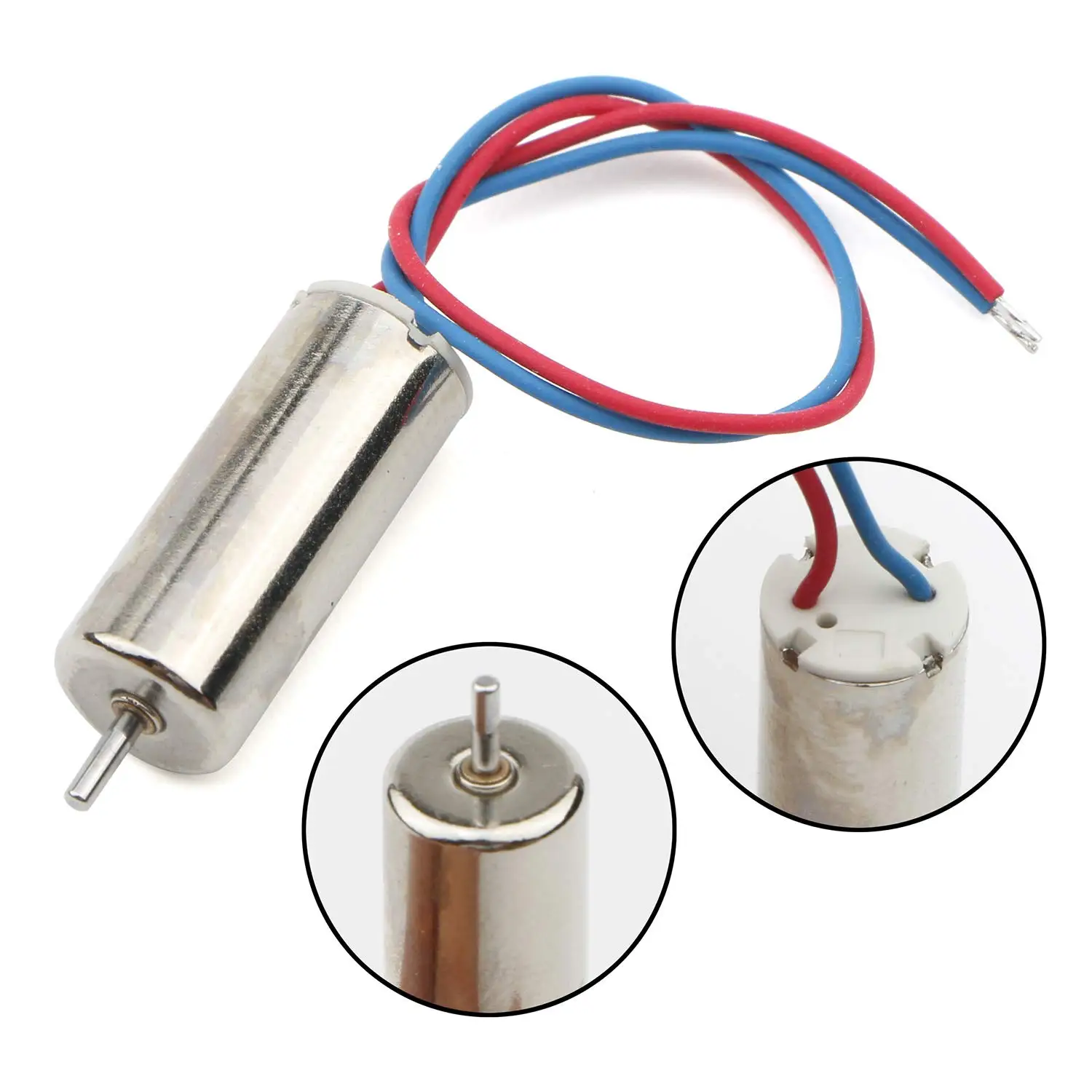

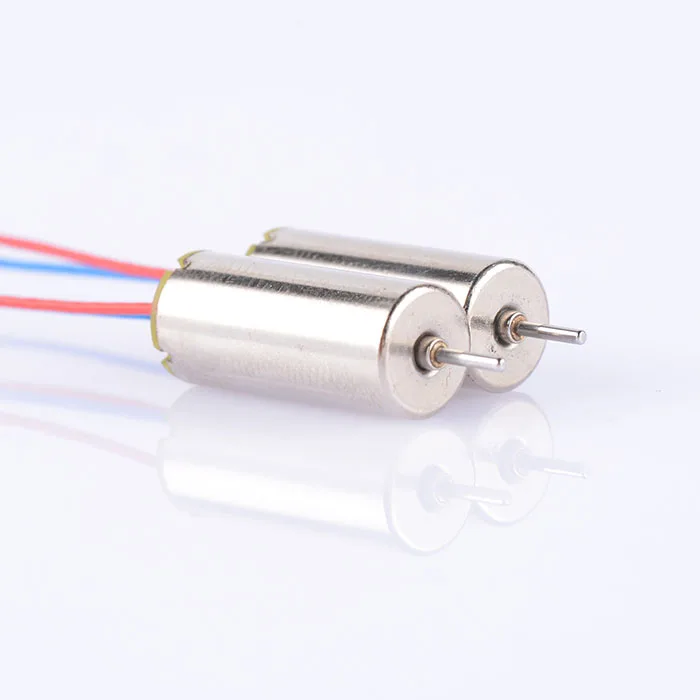

8520 hollow cup drive motor
Diameter: 8.5mm
Body length: 20mmShaft length: 5mm
wirelength: customized
Size Information
Product mechanical parametersProduct mechanical parameters
№ | Item | Specifications | Remark |
1 | Model Number | JMM17005-K8520V37QF50000L150 | |
2 | Rated Voltage | 3.7V DC | |
3 | The use of Voltage range | 2~ 4.2V DC | |

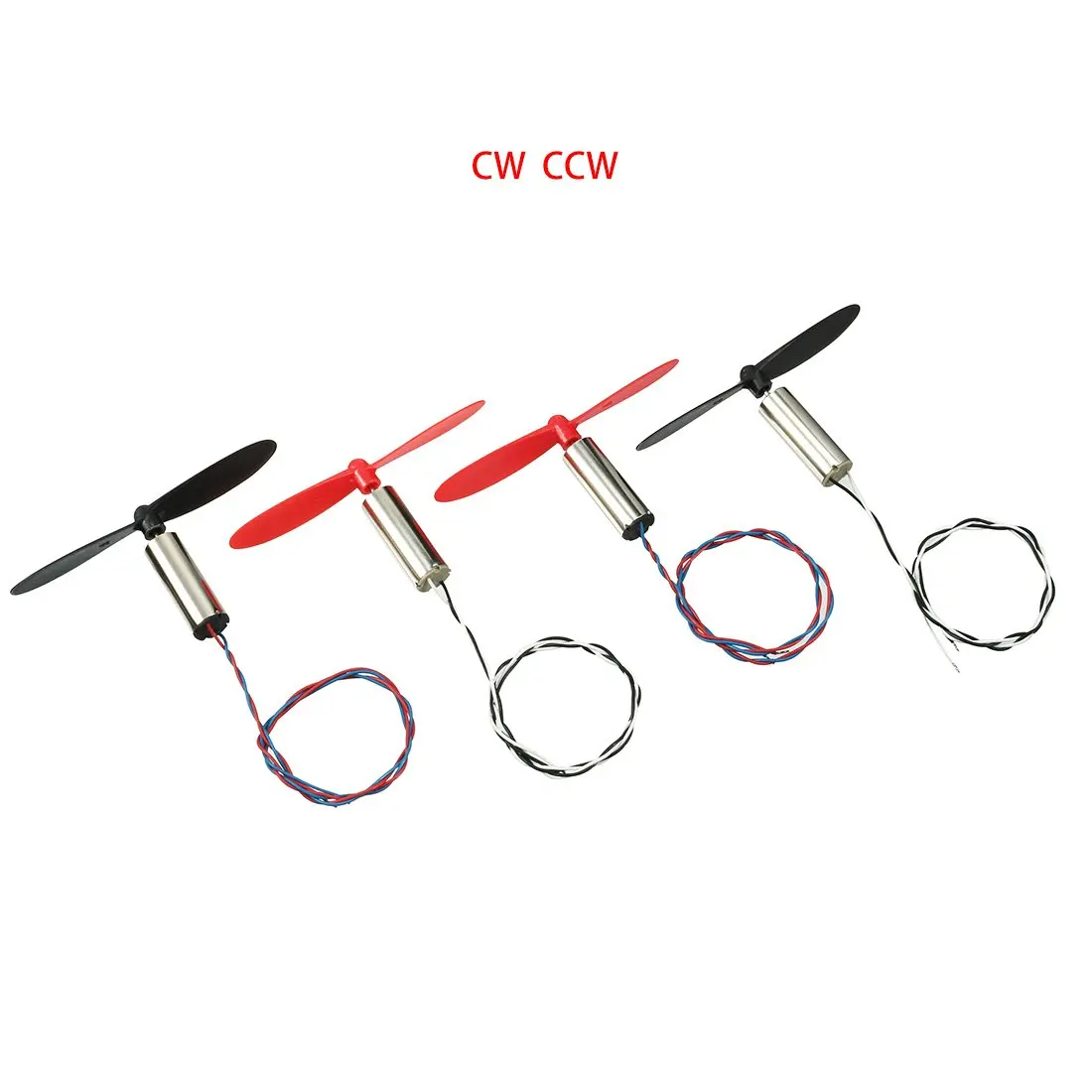

4 | Rotation Direction | CW/CCW | |
5 | Rated Current | 260mA Max | |
6 | Rated speed | 50000 ± 10% rpm | Under the rated voltage motor operates on load |
7 | Stall Current | 5.9A Max | |
8 | Starting Voltage | 0.8V DC | In any one position, voltage slowly rises |
9 | The use of temperature range | -10℃～60℃≤60%RH | |
10 | Terminal Resistance | 0.2 ± 5%Ω | Measure between two terminals |
11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell |
12 | Appearance | The machine no damage and rusting | |
13 | Weight | About 5.4 g | |
14 | Clearance between shafts | 0.10～0.20mm |
Detailed Images
We can customize according to customer's need, but need to provide detailed specification.
Related Products
Packing&Shipping
Shipping:
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
SF:3-5 working days
FedEx:3-7 working days
DHL:3-7 working days
EMS:7-35 working days
UPS:5-10 working days
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton
We also supply customized
Packing:
100-200pcs/foam box.1000-2000pcs/carton
