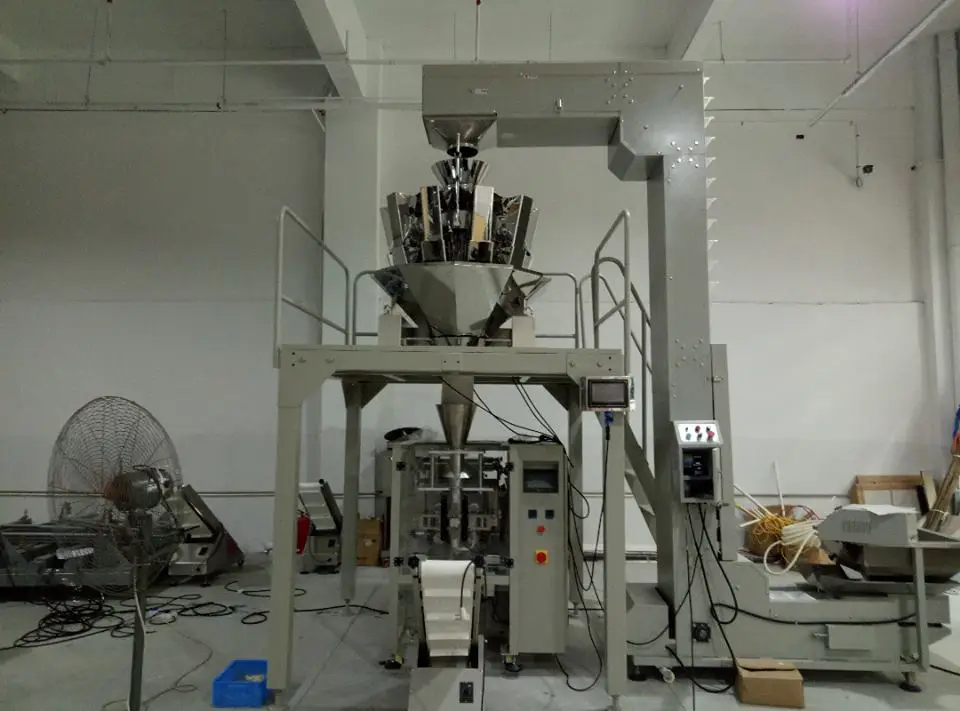

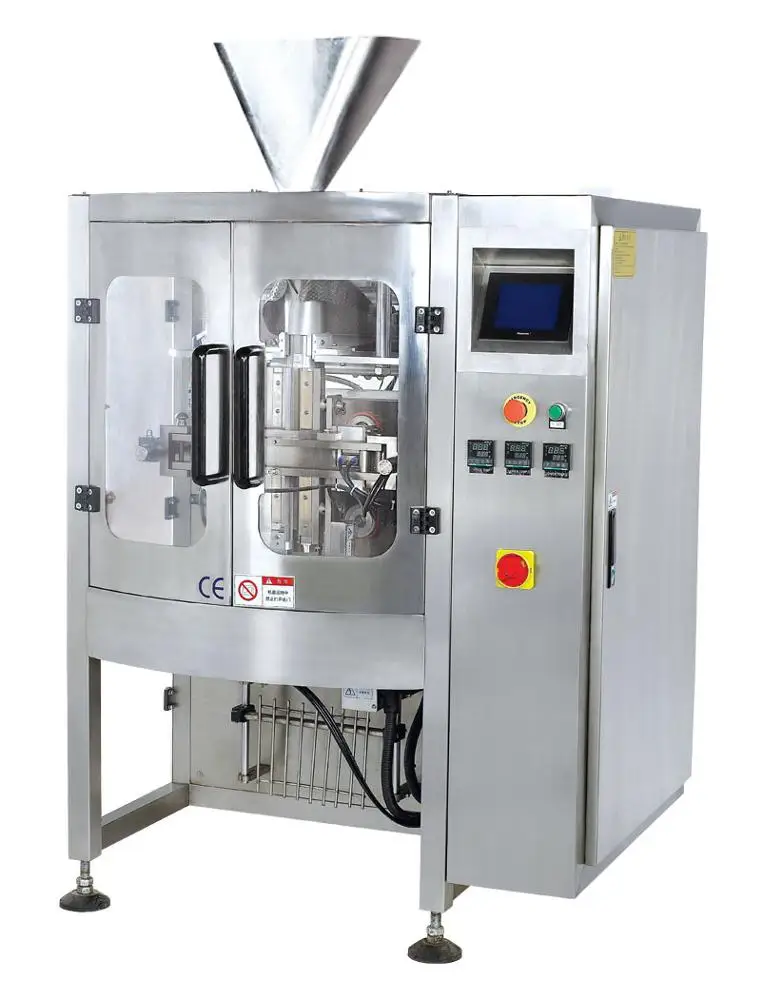

Vertical pluses/ sesame seeds/ millet/ coriander seed packing machine

Product Overview

Description

Vertical pluses, sesame seeds, yellow millet, coriander seed, white millet packing machine



MAIN FEATURE

1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3.  Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

4. Double servo control, high precision orientation, size more nicety.

5. External film releasing mechanism: simpler and easier installation of packing film.

6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .

7. Close down type mechanism , defending powder into inside of machine.













Specification:

Specification of the packing machine
Model	SL-420 model	SL-520 model	SL-720 model
Max.film width	420mm	520mm	720mm
Bag length	80-300mm	80-350mm	100-500mm
Bag width	50-200mm	50-250mm	100-350mm
Measuring range	150-1500ml(Depend on product )	150-2000ml(Depend on product )	500-3500g(Depend on product)
Packaging speed	5-60bags/min	5-50bags/min	5-40bags/min
Power supply	220V 50Hz,2.2KW	220V 50Hz,2.5KW	220V 50Hz,3KW
Machine size	1400*1320*2150mm	1400*1320*2150mm	1780*1350*2050mm
Film roll diameter	320mm	320mm	320mm
packing film sickness	0.04-0.07mm
packing material	OPP/CPP.OPP/CE.MST/PE/PET/PE



Sample packing:

OUR ADVANTAGE



01.  Manufacturer with 12 years experiences of packing machine in China

02.  SUK packing machines have covered more than 50 countries

03.  The imported accessories ensure the quality and life time

04.  Strong sales network, provide the pre-sales and after sales service

05.  Strong manufacturing ability, monthly output is up tp 100 sets



About us



FAQ



Q: Are you factory or trading company?

A: We are factory since 2008, located in Foshan, Guangdong.



Q: Why your price is higher than the other suppliers?

A: Actually the machinery adpot such as PANASONIC, SIEMENS, SCHNEIDER, OMRON as core part, make sure the quality and running stable. Also its easy to replace once broken.



Q: Do you have any installation services?

A: Installation services are available in any time. We will provide the instruction and videos to you, and we provide pre-sales and after sales service, to help and direct you to use the machines well.



Q: How long is the guarantee?

A: One year. All machine part can be replaced for free within one year if broken cause of quality problem, and the buyers should be afford if broken by operate in wrong.
