ALLMAN light weight high lifting speed 220V 380V KCD electric hoist

Product Overview

Description

ALLMAN light weight high lifting speed  220V  380V KCD electric hoist



Product Description:

KCD electric hoist is also known as multi-function hoist , small electric winch , cable winch , cable hoist etc .

The multi-functional KCD electric hoist is compact in design and easy to install; it is economical and has a wide range of applications. The utility model has the advantages of fast braking speed, small volume, light weight, compact structure, convenient use and convenient maintenance.



ALLMAN best selling KCD model electric hoist specification :

Rated Capacity (kg)	500/1000	600/1200	750/1500
Lifting Speed (m/min)	15-26	7-14	7-14
Motor Power (kw )	2.2	2.2	3.0
Motor Insulation	F
Power Supply	220V. 50Hz , 1Phase or  380V , 50Hz , 3Phase
Wire Rope Length	Standard 30m , longer length can be customized
Wire Rope Dia.(mm)	6	6	7
Net. Weight (kg)	35kg	35	38.5
Size (cm*cm*cm)	55*26*43	53*27*28	53*27*28





Application areas of multifunctional KCD electric hoist:

KCD electric hoist can be used in residential buildings, hanging ash bricks, digging wells, freight yard warehouses, shopping malls, restaurants, individual workshops, small factories and mines, can be moved, hoisted, loaded and unloaded at any angle, is currently the most ideal small lifting tool in China. It is also widely used in small and medium-sized houses, high-rise building decoration, hanging floor slabs, drilling wells, warehouse factory hangings and other necessary machinery.



Usage precautions :

KCD Electric hoists are easy to use, but there are some notable aspects when using them:

1. Do not ramp or slant heavy objects during lifting to avoid danger.

2. When KCD electric hoist is lifting , be sure to keep at least 3 turns of wire rope on the rope to prevent the wire rope from being pulled off the rope.

3. Regularly check that the hoist is installed securely.

4. Please do not overload or use the hoist when you are unclear about the weight of the hoisting object.

5. Operators should not operate the hoist while drinking, taking medication and getting sick.

6. It is strictly forbidden to stand under the hoisting weight when the KCD electric hoist is working .

7. When handling the wire rope, please wear thick gloves. Please do not let the wire rope slip through your hands to avoid slipping or puncture.

8. This hoist shall not carry people in any way or as an elevator lifting tool.

9. Please do not modify or weld the parts of the hoist at will.

10. The installation position of the miniature electric hoist must be selected to meet the needs and be easy to operate.

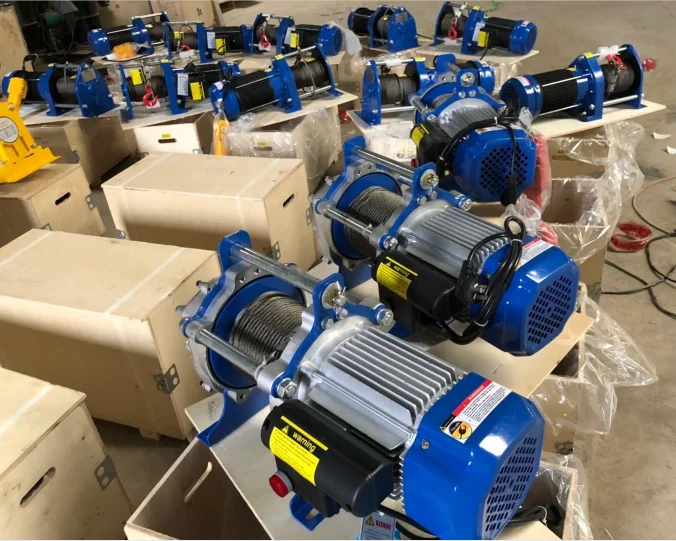

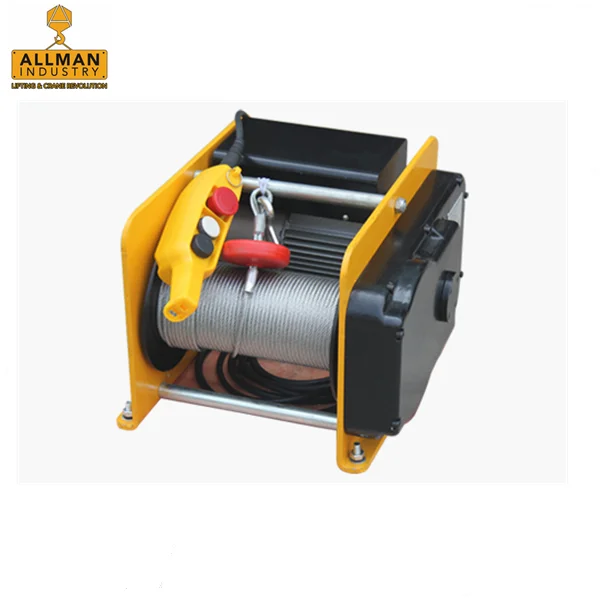

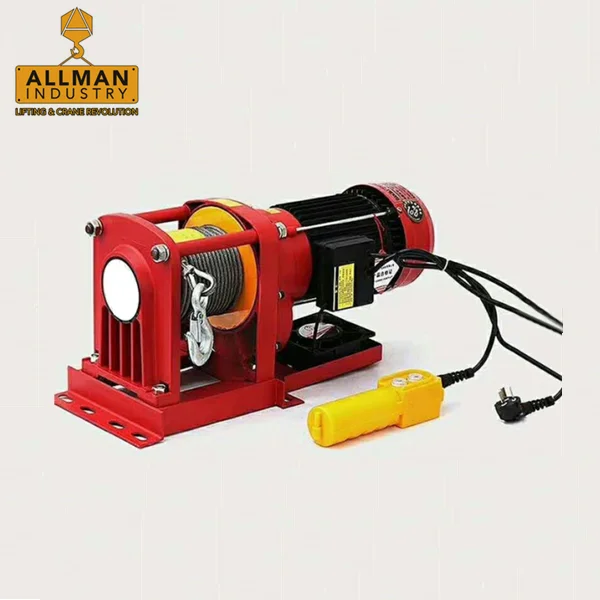

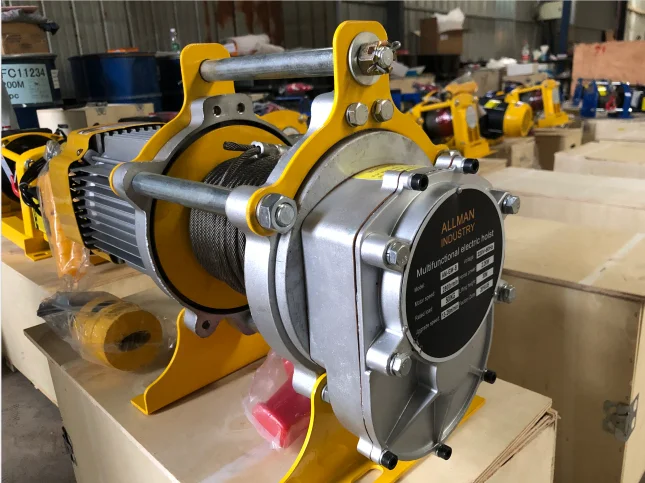

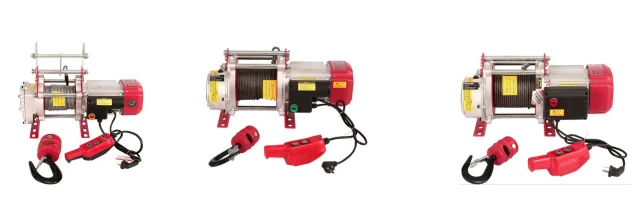

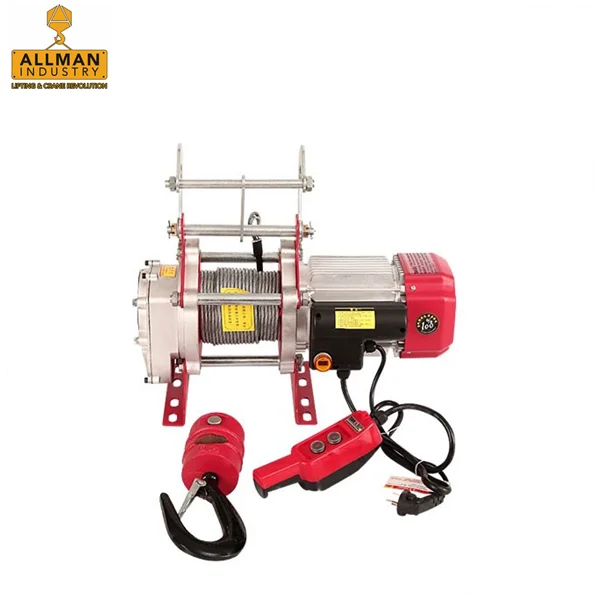

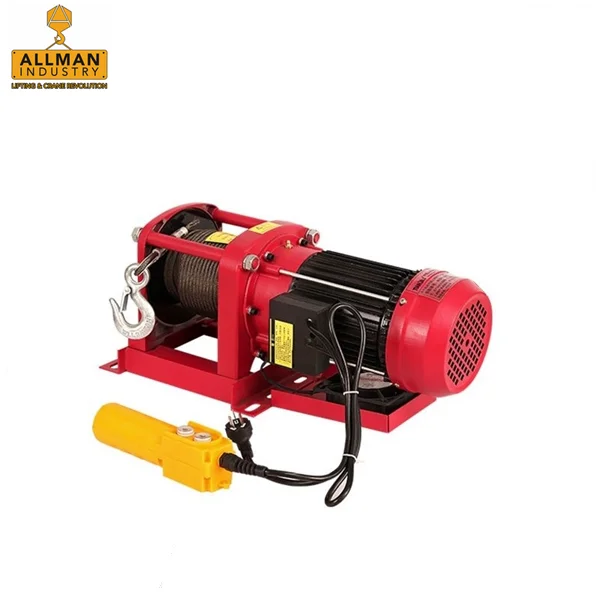

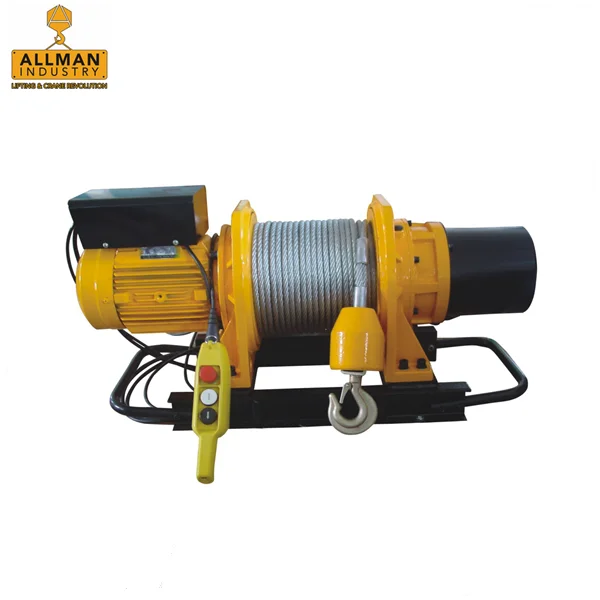

ALLMAN brand KCD electric hoist pictures show :
