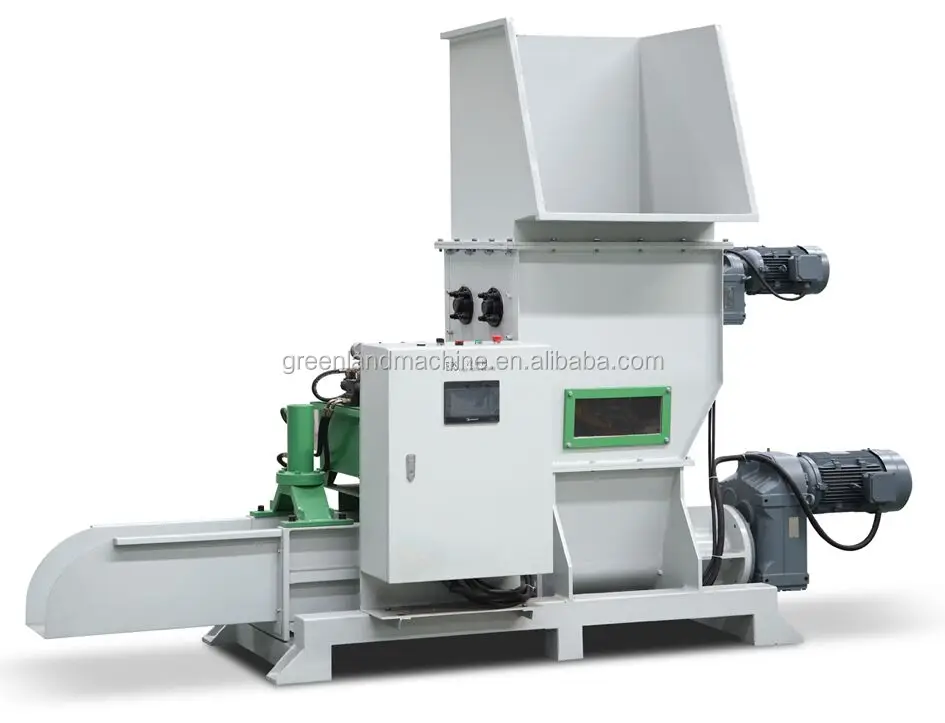

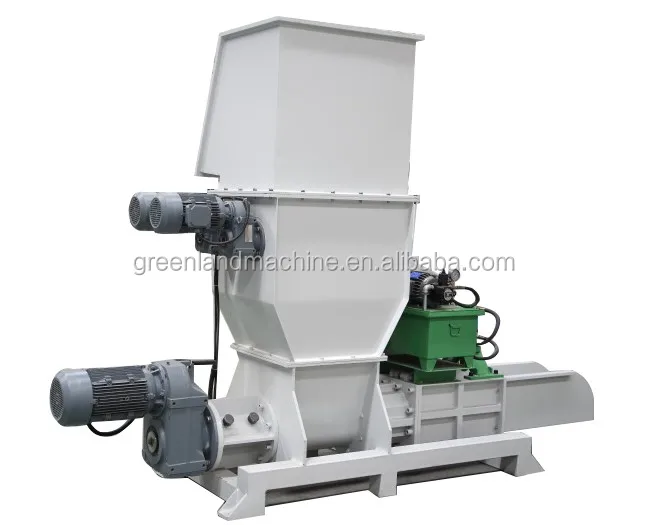

The EPS foam compressor generates a pressure-compressed force to compress foam by the screw spiral rotation,then make the foam scrap into an EPS foam compression blocks. Our Greenland brand foam compressor machines, can reach max up to 50 times compression ratio, greatly reduce the storage and transportation costs of EPS foam, are good choice for EPS foam recycling.
Model
GLCP-50
GLCP-100
GLCP-200
GLCP-300
Capacity(kgh)
50
100
200
300
Screw diameter(mm)
138
290
350
410
Screw rotation speed(rpm)
30
36
36
36
Inlet size(mm)
615*500
1000*600
1000*600
1500*600
Crusher blade quantity(pcs)
10
10+9
10+11+10+11
10+11+10+11
Crushing speed(rpm)
100
120
120
120
Crushing motor(kw)
1.1kw
2.2kw*2pcs
2.2kw*4pcs
2.2kw*4pcs
Main motor(kw)
3
7.5
11
15
Hydraulic pump(kw)
1.5
1.5
2.2
EPS block size(mm)
100*100
250*250
380*380
380*380
Dimension (mm)
1200x1000x1400
3000×1300×2100
4800x1500x2500
4960x4480x4430
Weight(kg)
850
1400
1800
2600
Detailed Images

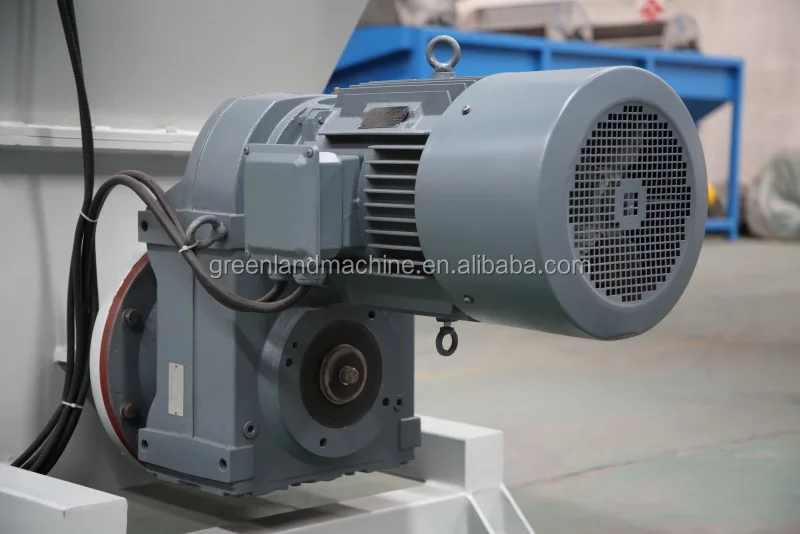

Main motor
Main motor is with high torque gear box .

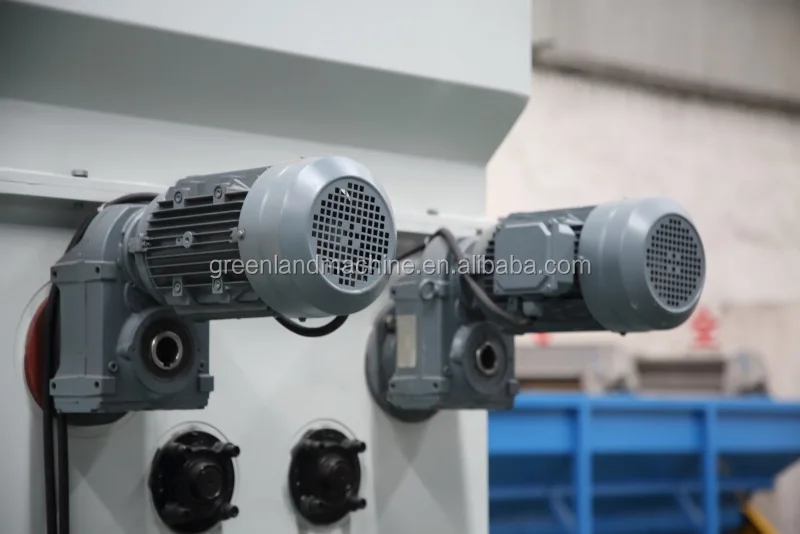

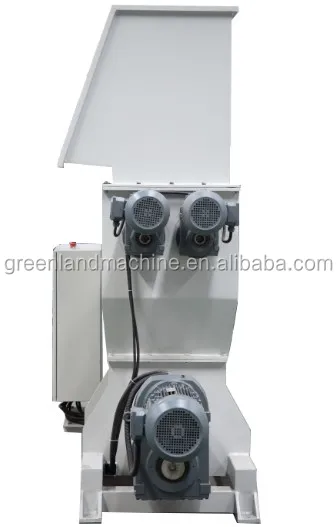

Crushing motor
Adopt 2 shaft crushing or 4 shaft crushing according to capacity and model

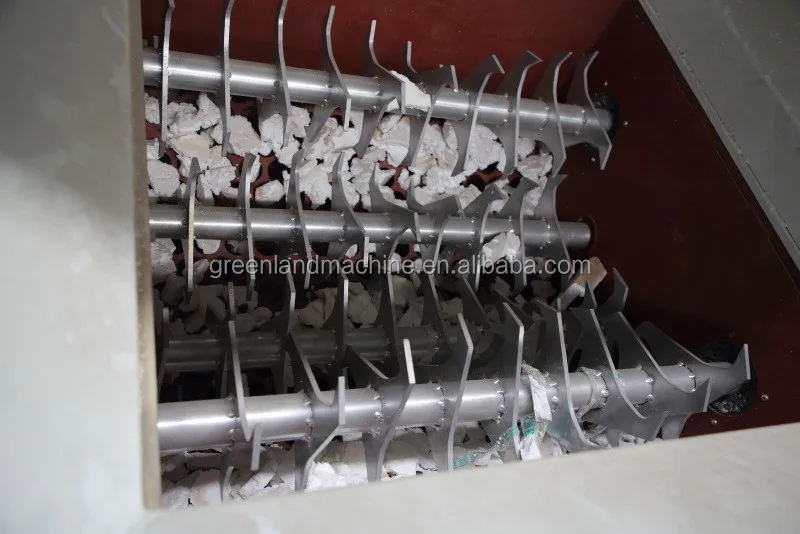

Crushing chamber
Crushing ,then compressing

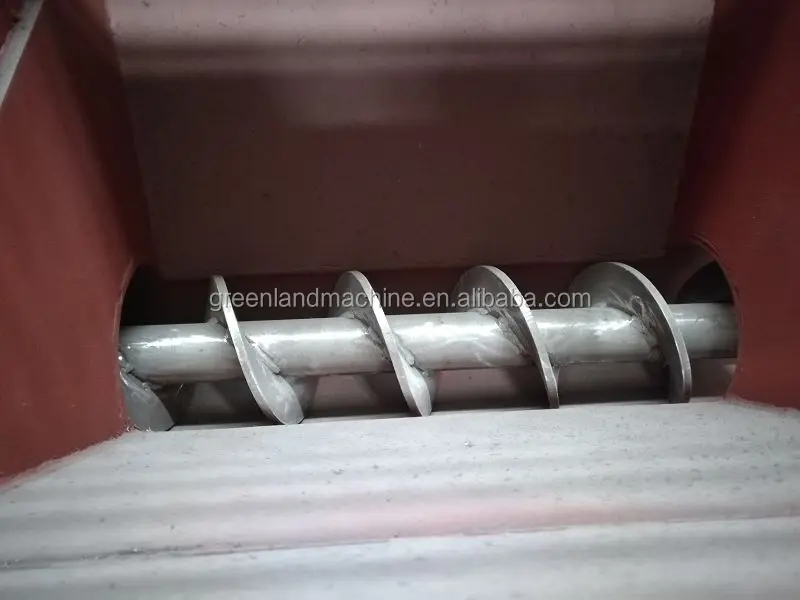

Screw squeezing compressing
Uniqued designed screw compression technology ,max compression ratio reach 50:1

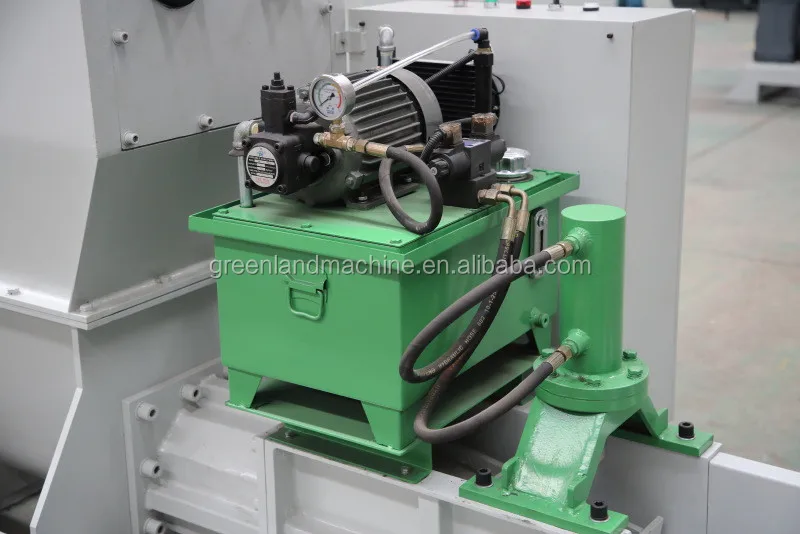

Hydraulic pump pressing
Hydraulic pump pressing
Operator system
Touch screen+PLC controlling system
Related Products
Packing&Shipping
Standard exporting wooden cases packing
After Sales Service
Good after-sales service
make commissioning ,and help installation
Company Introduction
ZHANGJIAGANG GREENLAND MACHINERY CO, LTD is a professional plastic recycling machine and extrusion machine manufacturer. We are dedicated to designing and developing the high technology plastic machinery. We have more than 10 years experiences in the plastic machinery manufacturing. We have full processing equipment,skillful and experienced production process .
We are always keeping improve our products by the feedbacks and communication from our customers which makes our products better and better.
Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!
Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment! .
Technical innovation ,Quality first
Greenland Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
Offer different customers customized solutions of plastic recycling
Greenland Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
One-stop turnkey project concept
Since the customer consider setting up recycling project, we will design the most suitable production line process and installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project. With complete pre-sale and after-sales service
Installation ,training & Good after-sales service
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
FAQ
1.What is your MOQ ?
1set
2.Do you make commissioning before delivery?
yes ,we make commissioning for every machine before delivery ,ensure it works well completely
3.Do give spare parts of the machines ?
Yes ,we offer full set free spare parts for every machine
