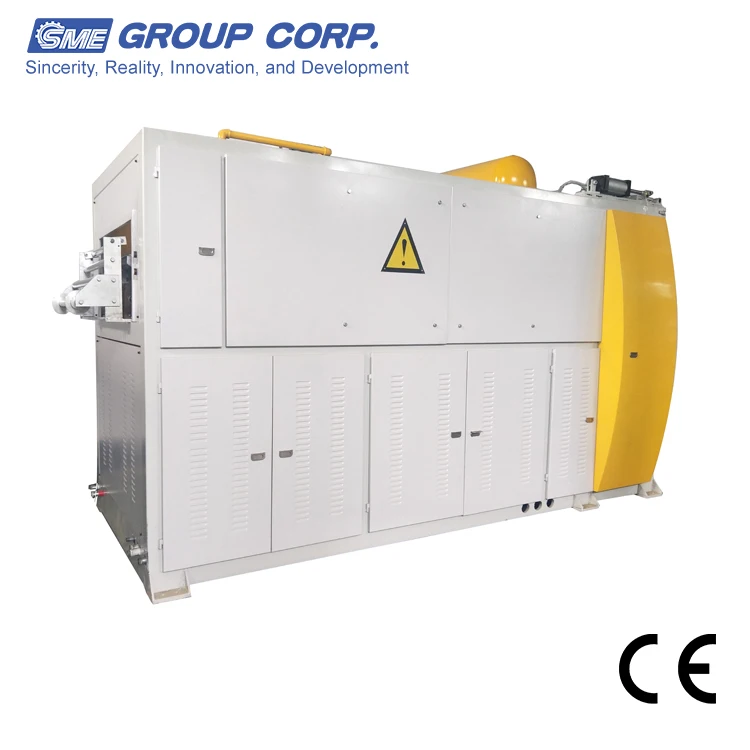

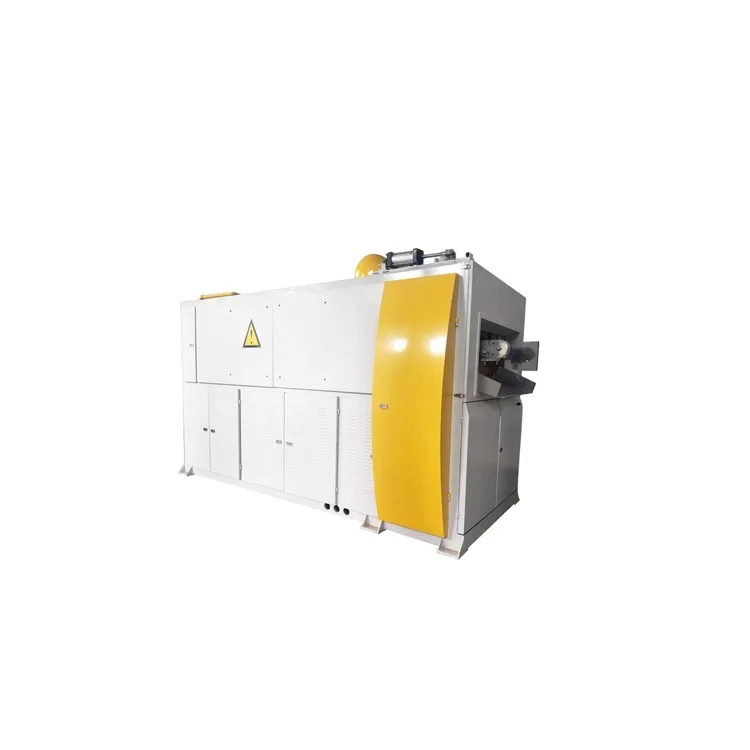

Automatic disposable water drinking /ice cream cups plastic Cup vacuum forming machine
- Category: >>>
- Supplier: Guangzhou Sme Plastic Corp.
Share on (62354184234):
Product Overview
Description
Mould
Usage:
AVF Series Automatic Hydraulic Plastic Cup Thermoforming Machine is widely used to produce disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates, food containers and etc by PP/PS/PET/PVC/PLA plastic sheet rolls.
Features:
AVF Series Automatic Hydraulic Plastic Cup Thermoforming Machine is one of our flagship products. We keep manufacturing these machine models for many years because of warmly welcome from our users.
This machine works full-automatically from sheet roll feeding->heating->molding->formed products-> waste scrap winding. It saves labor cost and increases manufacturer’s profit.
This machine adopts auto sheet roll unwinder, pin-chain sheet feeding controlled by gear motor with inverter, 4-pillar mold guiding, hydraulic pressure drive of bottom mold movement, stretching of plug inside upper mould is controlled by air cylinder and PLC control with touch panel operation.
Main Technical Parameter:
Model | AVF-660 |
Max. Forming Area | 660 x 300 mm |
Running Speed | 15-35 Stroke / min |
Approx. Sheet width required for feeding. | 500 – 660 mm in rolls. |
Mode of cutting arrangement. | In mould automatic |
Sheet thickness Range.
| 0.20 – 2.0 mm |
Used Material | PP, PS, HIPS, PET, PVC,PLA |
Max. Forming depth, i.e. cup height. | 120/180 mm |
Oil Pump Motor Power | 7.5KW |
Max. Sheet roll diameter. | 800 mm |
Temperature Controller & Thermocouple. | PID K-Type |
Type of Mould | Multi cavity 1 - 3 row. |
Approx. Electrical Consumption | 30KW/hr |
Approximate Dimension | L3450×W1500×H2300(mm) |
Approximate Weight | 4000Kg |
1. Payment terms:40% paid for deposit by T/T before production arranged, the balance to be paid before shipment;
2. Delivery time: 25-35 days after receipt of deposit;
3. Guarantee: One year;
We supply you spare parts for 1 year, but the freight will be on buyer’s account;
4. Installation: Our company can send one technician to the buyer’s side for machine installation, test running machine and basic training. If it exceeds one week, the buyer needs to pay US$100 one day for the technician as the salary. The visa and round trip tickets, accommodation will be on the buyer's account;
5. Note: The above machines are designed for power supply Tri-phase, 380V/50HZ. The price of machine part will be 5% higher if we should make special design to suit for the power supply;
6. Validity: 60days.
