Product Overview
Description
WHAT IS THERMOFORMING?
Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable forming temperature,
formed to a specific shape in a mold, and trimmed to create a usable product. The sheet, or “film” when referring to thinner
gauges and certain material types, is heated in an oven to a high-enough temperature that permits it to be stretched into or onto a mold and cooled to a finished shape. Its simplified version is vacuum forming.
THERMOFORMING PACKAGING MACHINE
Thermoforming packaging machine is also as known as roll stock packaging machine, stretch film vacuum packaging machine, or in short : thermoformers.
Horizontal automatic packing machines characterised by package formation within the machine using two film coils (forming/under film, sealing/upper film) normally made of different material.
Depending on the material used, packages can be flexible or rigid. This type of machine is aimed both at food and non food markets.
KANGBEITE PACKAGING is an experienced manufacturer of thermoforming packaging machines since 2006. We have many years experience in the manufacturing of thermoforming packaging machines and deliver more than 200 machines each year all over the world. Every machine ordered by customer is individually designed to meet your unique requirements with regard to package designing, package output and efficient use of resources. Durability, reliability and comprehensive service make our thermoforming packaging machines a resilient link in your production chain.
Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable forming temperature,
formed to a specific shape in a mold, and trimmed to create a usable product. The sheet, or “film” when referring to thinner
gauges and certain material types, is heated in an oven to a high-enough temperature that permits it to be stretched into or onto a mold and cooled to a finished shape. Its simplified version is vacuum forming.
THERMOFORMING PACKAGING MACHINE
Thermoforming packaging machine is also as known as roll stock packaging machine, stretch film vacuum packaging machine, or in short : thermoformers.
Horizontal automatic packing machines characterised by package formation within the machine using two film coils (forming/under film, sealing/upper film) normally made of different material.
Depending on the material used, packages can be flexible or rigid. This type of machine is aimed both at food and non food markets.
KANGBEITE PACKAGING is an experienced manufacturer of thermoforming packaging machines since 2006. We have many years experience in the manufacturing of thermoforming packaging machines and deliver more than 200 machines each year all over the world. Every machine ordered by customer is individually designed to meet your unique requirements with regard to package designing, package output and efficient use of resources. Durability, reliability and comprehensive service make our thermoforming packaging machines a resilient link in your production chain.
The machine is widely used for packaging of meat products, sausages, sandwiches, cheese, vegetables, fruits, aquatic products, medical devices, chemicals, etc.
Pakcaging method: Vacuum packaging in flexible packs; MAP modified atmosphere packaging(nitrogen filling, mixed air filling) in flexible packs; Map modified atmosphere packaging in rigid and semi-rigid packs; VSP vacuum skin packaging in rigid packs
No. | Name | Unit | DRZ-320 | DRZ-420 | DRZ-520 | ||
1 | Sealing Film width | mm | 293 | 393 | 495 | ||
2 | Forming Film width | mm | 322 | 422 | 520 | ||
3 | Vacuum degree | mBar | 0.1 | 0.1 | 0.1 | ||
4 | Power supply | V, Hz | 380v/50hz,3phase | 380v/50hz,3phase | 380v/50hz,3phase | ||
5 | Vacuum capacity | m3/h | 100-300 | 100-300 | 100-300 | ||
6 | Power | KW | 15 | 16 | 18 | ||
7 | Compressed air | Mpa | ≥0.6 | ≥0.6 | ≥0.6 | ||
8 | Overall dimension | mm | 5100*900*1800 | 5300*950*1860 | 6600*1080*1760 | ||
9 | Weight | KG | 1300 | 1600 | 1800 | ||
Thermoforming packaging machine
Thermoforming packaging is a recipe for success
In 2007, KANGBEITE built the first thermoforming packaging machine for our customer.
Today, machines of this type can produce multiple variations of the production output of that first machine, and are able to
produce very individual pack shapes.
While the basic function remains well and enhanced, more functions are developed and very well compatible with the machine:
*Flexible film, vacuum packaging
*Flexible film, modified atmosphere packaging (MAP)
*Rigid film, modified atmosphere packaging
*Skin packaging
*Printing function
*Auto loading function
Thermoforming packaging is a recipe for success
In 2007, KANGBEITE built the first thermoforming packaging machine for our customer.
Today, machines of this type can produce multiple variations of the production output of that first machine, and are able to
produce very individual pack shapes.
While the basic function remains well and enhanced, more functions are developed and very well compatible with the machine:
*Flexible film, vacuum packaging
*Flexible film, modified atmosphere packaging (MAP)
*Rigid film, modified atmosphere packaging
*Skin packaging
*Printing function
*Auto loading function
Features

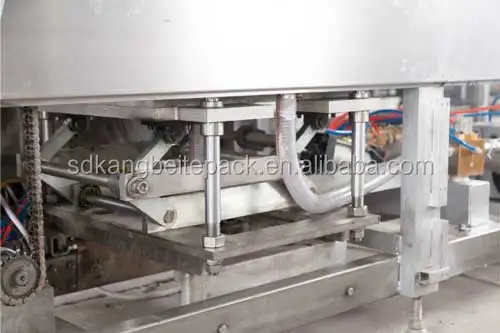

* The forming chamber adopts 4-axis linear bearings vertical stable lifting system. The bearing uses linear bearings produced by German Igus to ensure that the forming will not be misaligned and high precision. The forming chamber adopts 4-way air pumping system, which has fast forming efficiency and good stability.

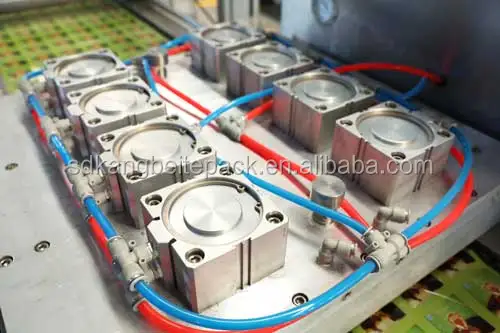

* Vacuum sealing chamber adopts 4-axis linear bearing vertical stable lifting system, German Igus linear bearing. Sealing heating plate owns 8 Airtac cylinders and positioner, which ensures vertical sealing of heating plate, smooth sealing, clear pressure pattern, no skew, perfect sealing effect, high packaging efficiency and no leakage after sterilization.
* Forming chamber, vacuum sealing chamber and cylinder lifting mechanism adopt the principle of triangular lever, with
self-locking function which ensures stable lifting.
* The equipment frame is made of high strength Al-Mg alloy, (6061-T6) extruded by 8 kiloton extruder (other manufacturer 6105 and is extruded by 2 kiloton extruder). The frame has high strength and good stability.
* The support frame is welded by Shanghai Baosteel 304 stainless steel, and processed by double-sided milling machine. It has high accuracy, good stability, no bias and film falling.
* The equipment is equipped with automatic alarm function. Each part is equipped with induction switch, which can automatically alarm and stop. Human machine interface can display and analyze the causes of the failure, so as to facilitate maintenance by engineers.
* The equipment has the function of fault memory reset. When the equipment shuts down and the fault is eliminated, the equipment will automatically memorize the program before the fault and complete the program action before the fault. In the process of using, it can save time, save the stretching film, reduce the cost of using, and improve the efficiency (Company patent).
* Dry and dehumidify system is designed for electrical control system, which effectively ensures the normal operation of the equipment, especially suitable for rainy areas.
9、The machine is equipped by 100% safe protection system。
* Vacuum sealing chamber adopts 4-axis linear bearing vertical stable lifting system, German Igus linear bearing. Sealing heating plate owns 8 Airtac cylinders and positioner, which ensures vertical sealing of heating plate, smooth sealing, clear pressure pattern, no skew, perfect sealing effect, high packaging efficiency and no leakage after sterilization.
* Forming chamber, vacuum sealing chamber and cylinder lifting mechanism adopt the principle of triangular lever, with
self-locking function which ensures stable lifting.
* The equipment frame is made of high strength Al-Mg alloy, (6061-T6) extruded by 8 kiloton extruder (other manufacturer 6105 and is extruded by 2 kiloton extruder). The frame has high strength and good stability.
* The support frame is welded by Shanghai Baosteel 304 stainless steel, and processed by double-sided milling machine. It has high accuracy, good stability, no bias and film falling.
* The equipment is equipped with automatic alarm function. Each part is equipped with induction switch, which can automatically alarm and stop. Human machine interface can display and analyze the causes of the failure, so as to facilitate maintenance by engineers.
* The equipment has the function of fault memory reset. When the equipment shuts down and the fault is eliminated, the equipment will automatically memorize the program before the fault and complete the program action before the fault. In the process of using, it can save time, save the stretching film, reduce the cost of using, and improve the efficiency (Company patent).
* Dry and dehumidify system is designed for electrical control system, which effectively ensures the normal operation of the equipment, especially suitable for rainy areas.
9、The machine is equipped by 100% safe protection system。
Packaging samples
Machine Components
BUSCH Vacuum Pump
Mitsubishi Touch Screen
Mitsubishi PLC
Schneider Circuit Breaker
Siemens Contactor
FOTEK Power Protector
OMRON Safety Swtich
FOTEK Solid State Relay
