2 years quality warranty concox GT06N gps tracking device with engine stop

Product Overview

Description

2 years quality warranty concox GT06N gps tracking device with enigne stop

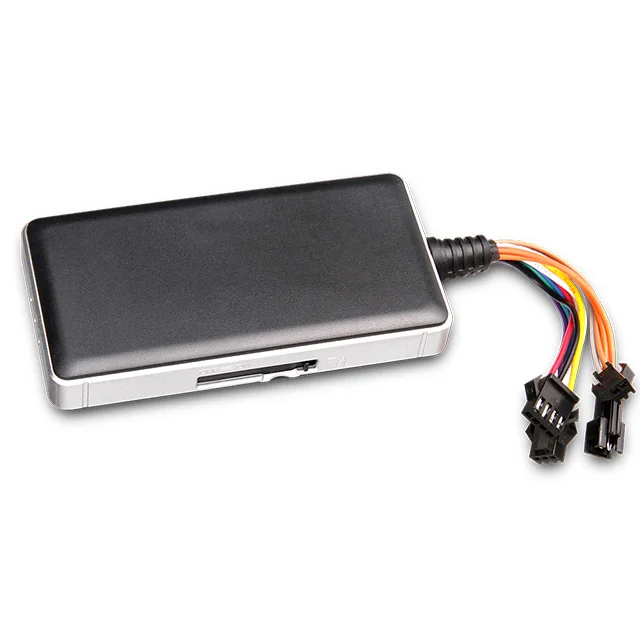

Model: GT06N

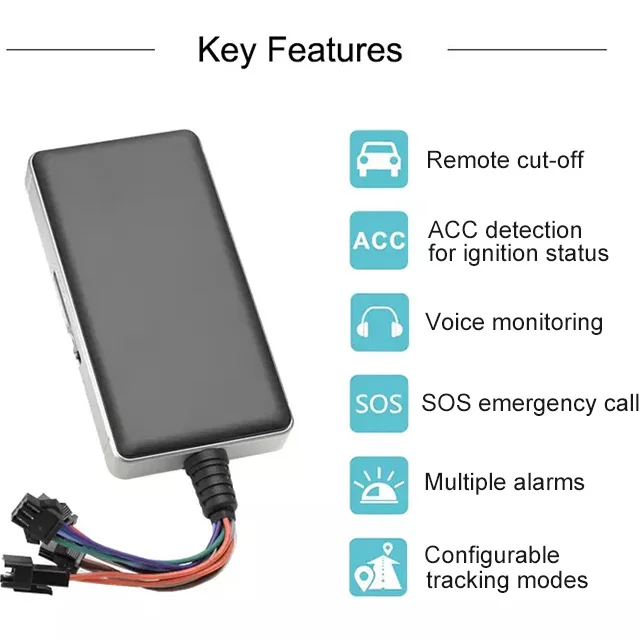

Key Features:
Real time position & tracking
SOS alarm
Geo-fence alarm
Remote Tele-cut off (petrol / electricity) function

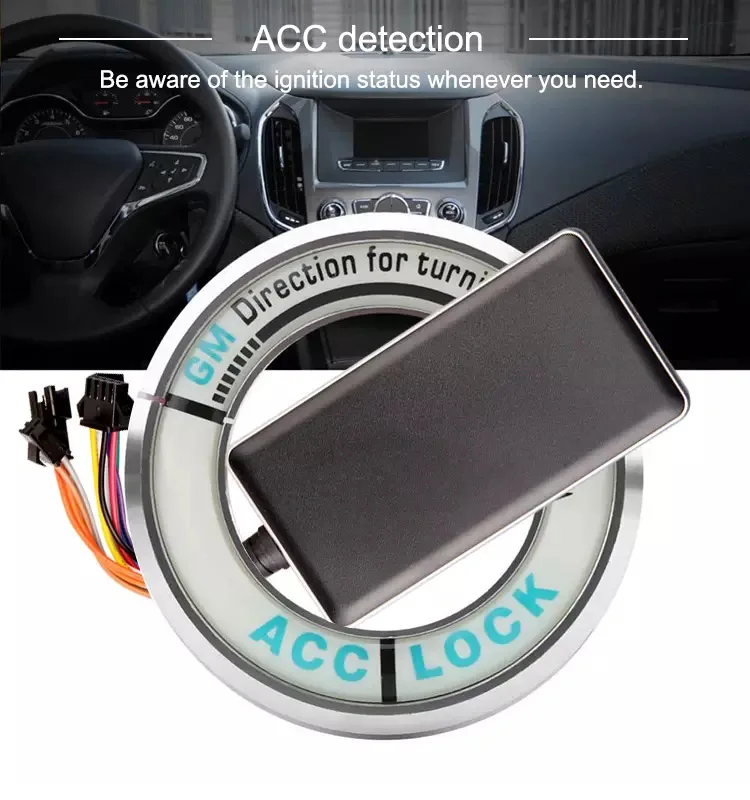

Support ACC detection, real-time reporting car status

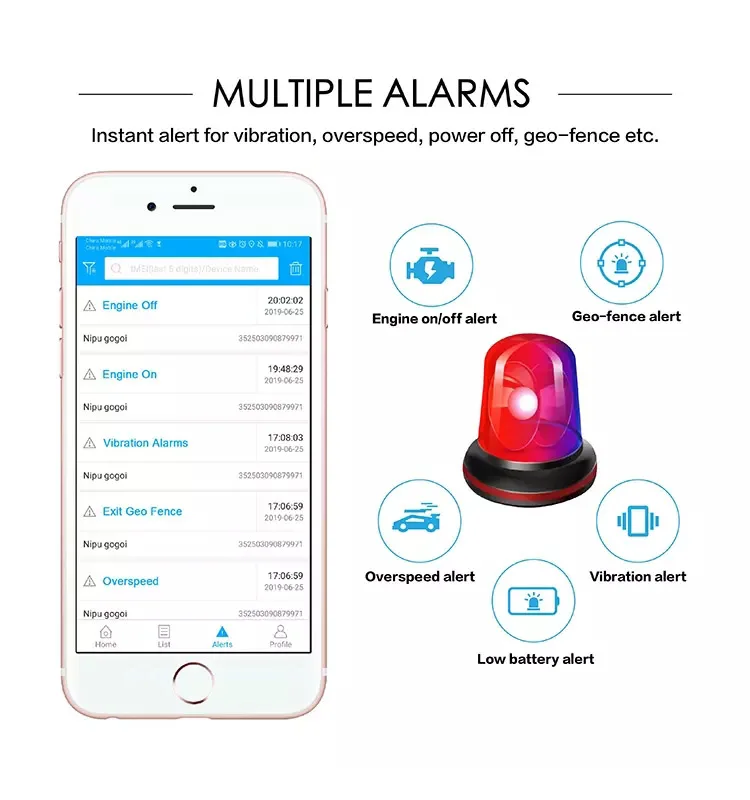

Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm

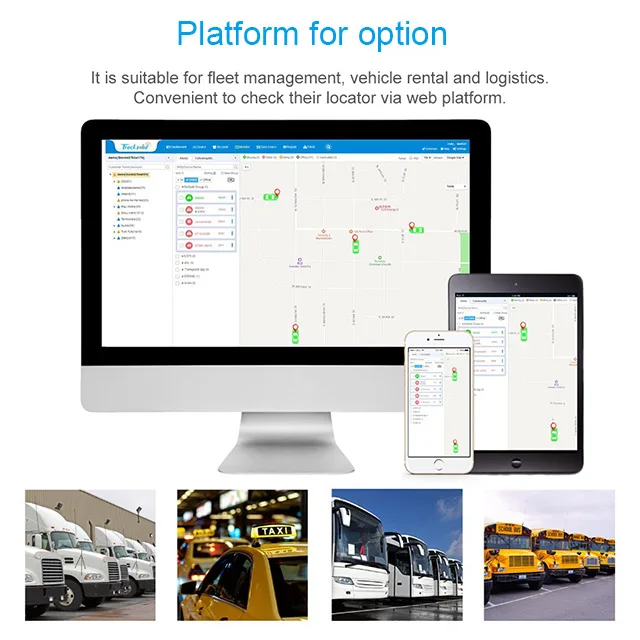

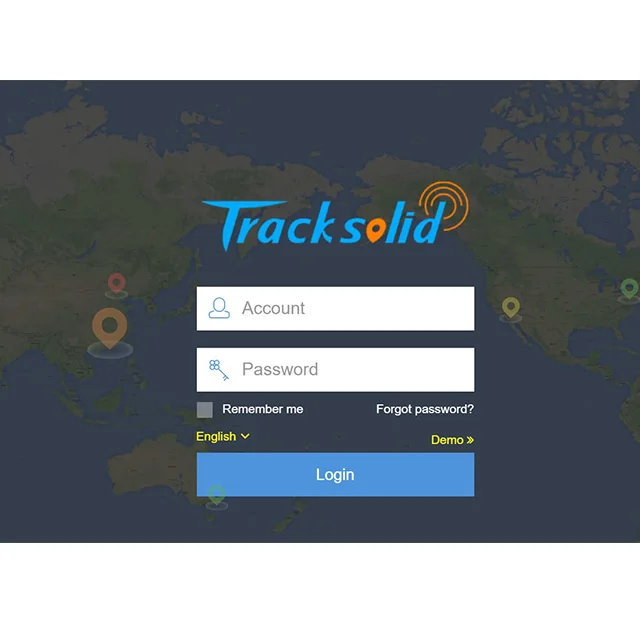

Multi ways to query position: SMS,APP ,Internet
Google map



Main Specifications:



GSM Specification
GSM frequency	850/900/1800/1900 MHz
GPRS	Class 12, TCP/IP
Memory	32+32Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm
Max frequency error	±0.1ppm
GPS Specification
GPS chipset	MTK high sensitivity chip
Frequency	L1,1575.42MHz C/A code
GPS channel	66
Location accuracy	<10 meters
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ≤1sec  Avg. cold start ≤32sec
Others

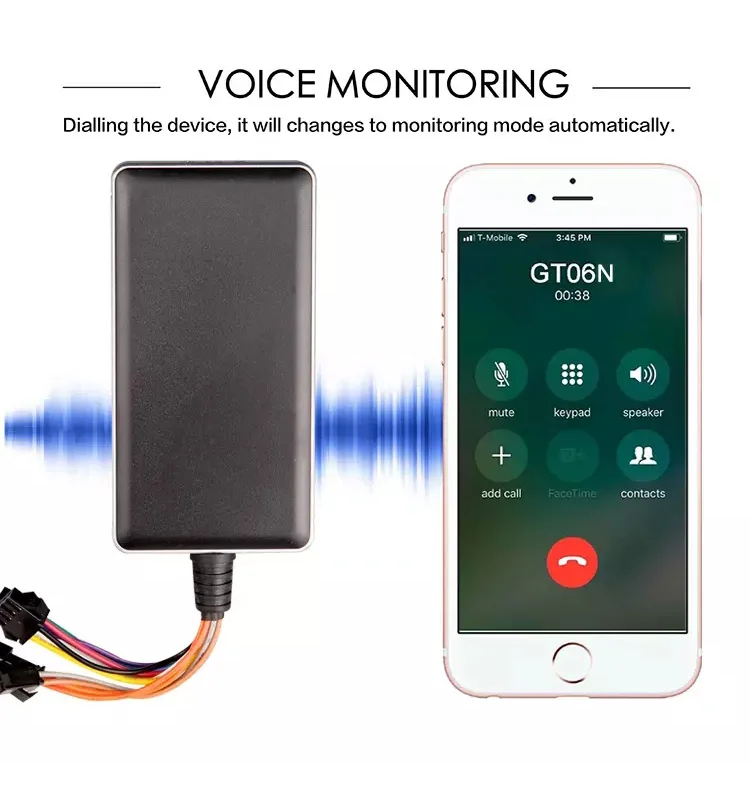

Voice monitoring range	≤5meters
Battery	450mAh/3.7V Li-Polymer battery
Working voltage/current	9-36VDC/45mA(12VDC), 28mA(24VDC)
Standby time	60 hours
Working time	4 hours
Operating temperature	-20℃~ 70℃
Device weight	96g
Device dimension	105.8(L)x54.5(W)x16.4(H)mm
