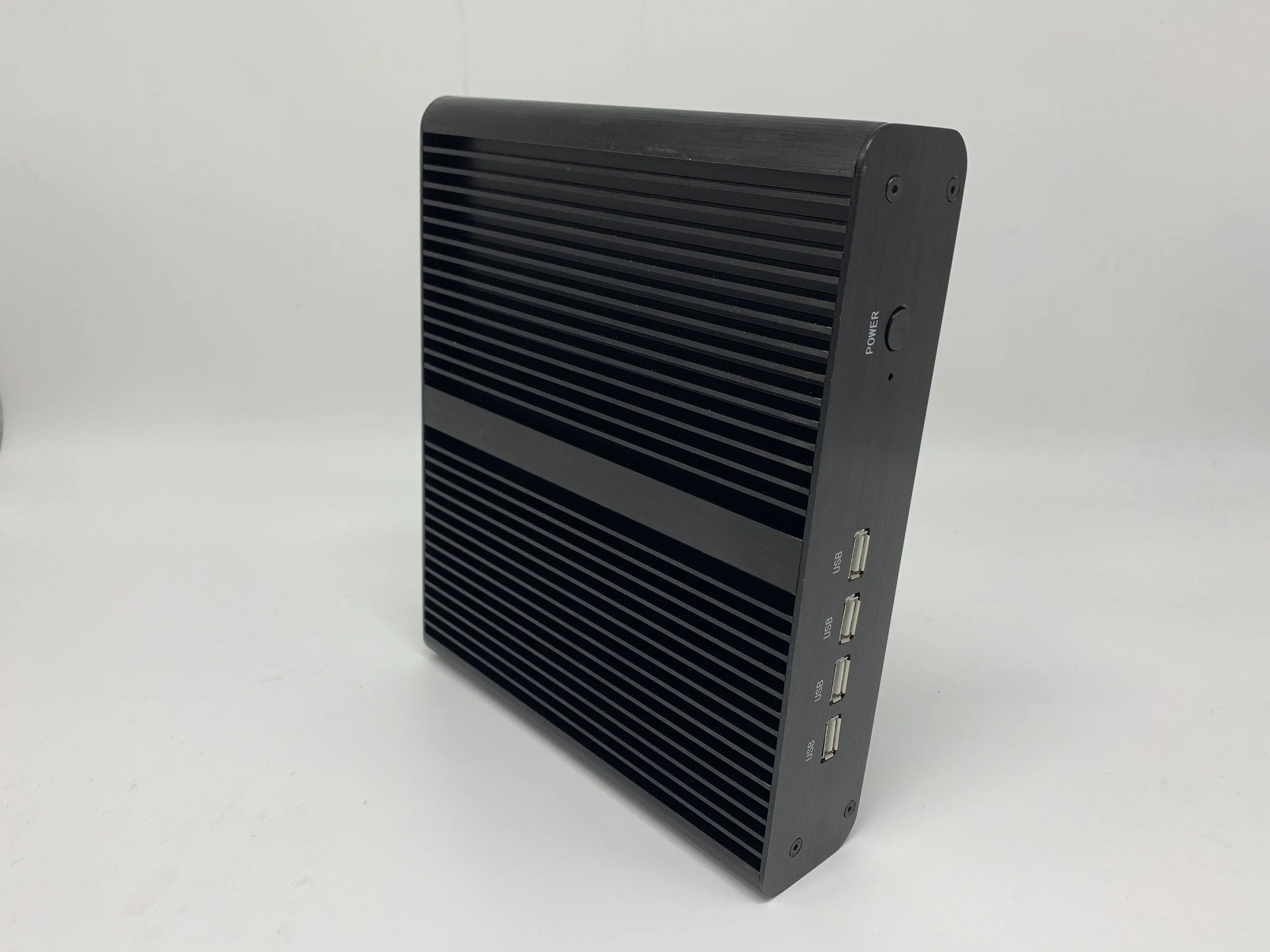

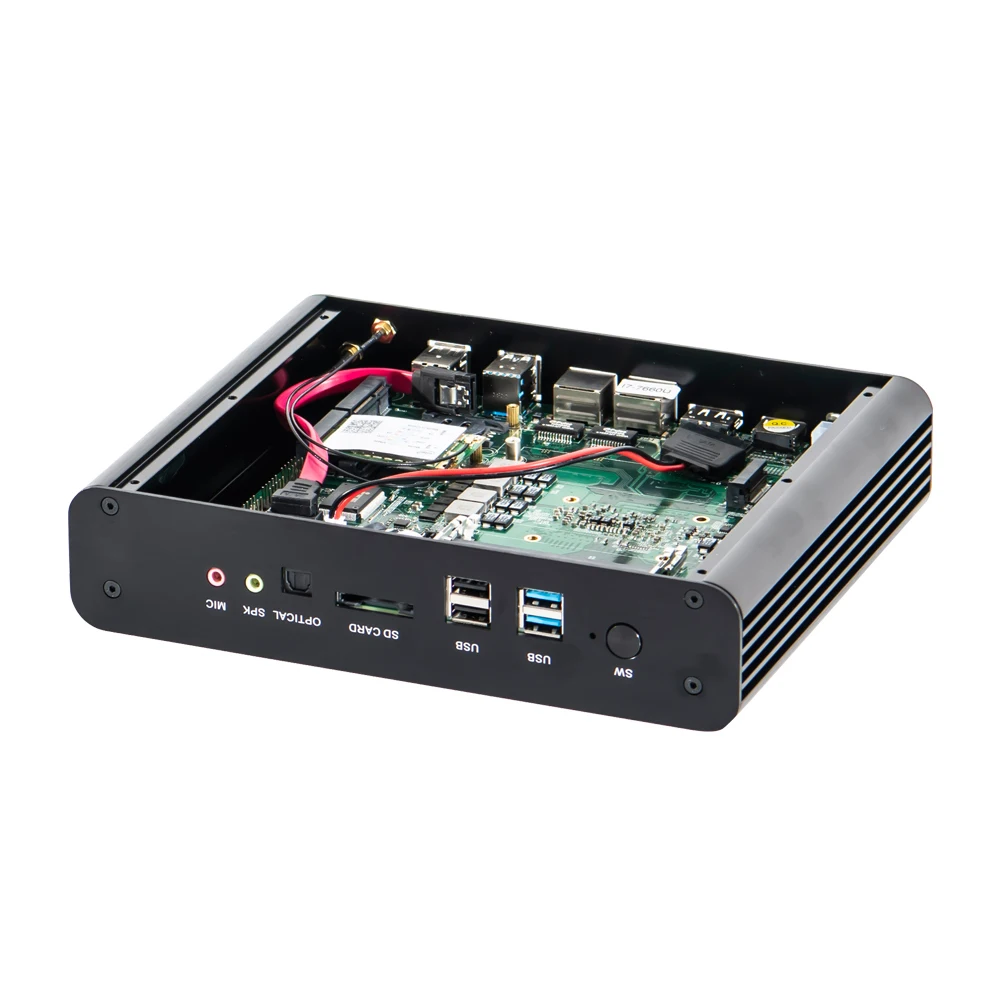

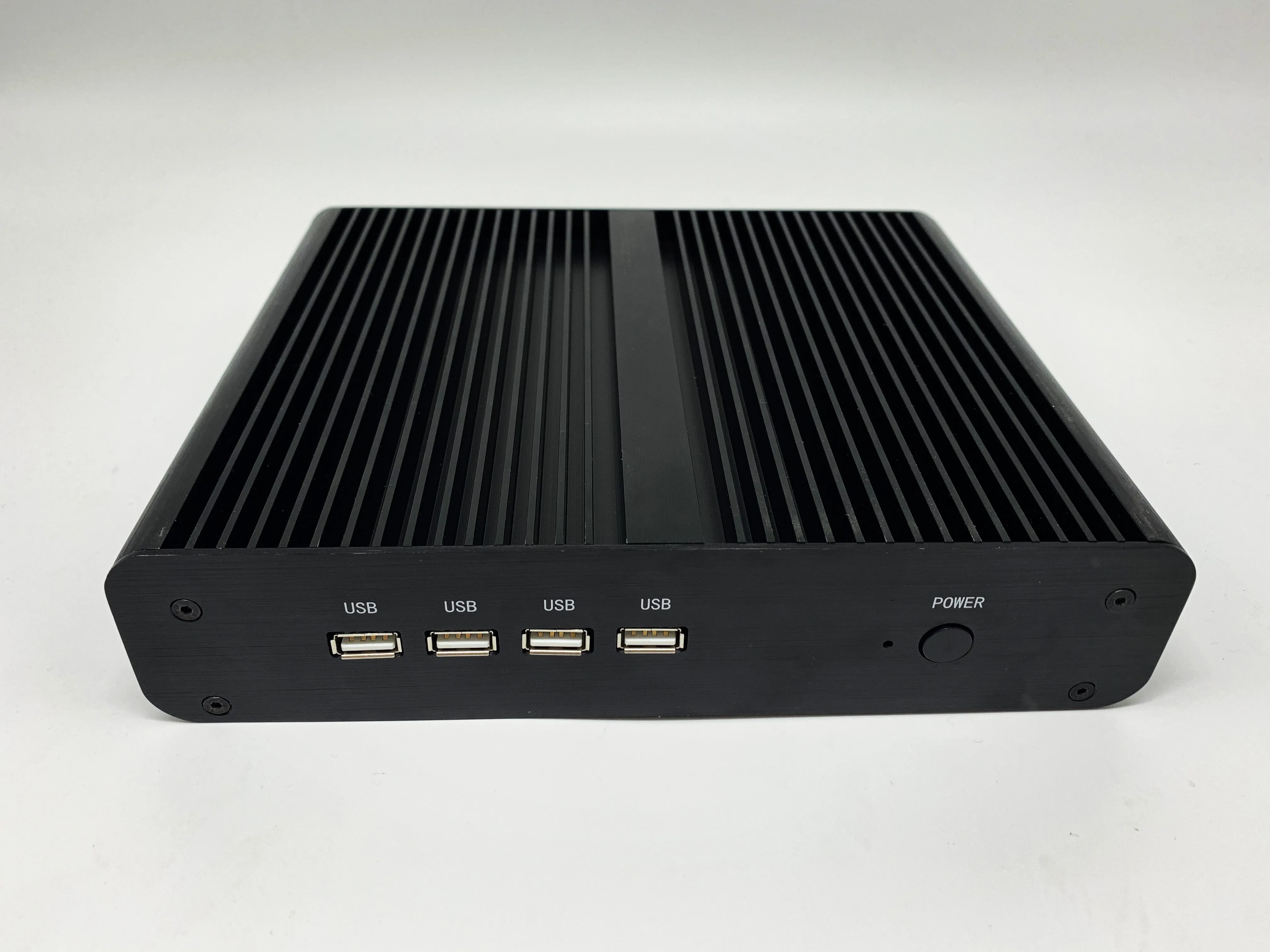

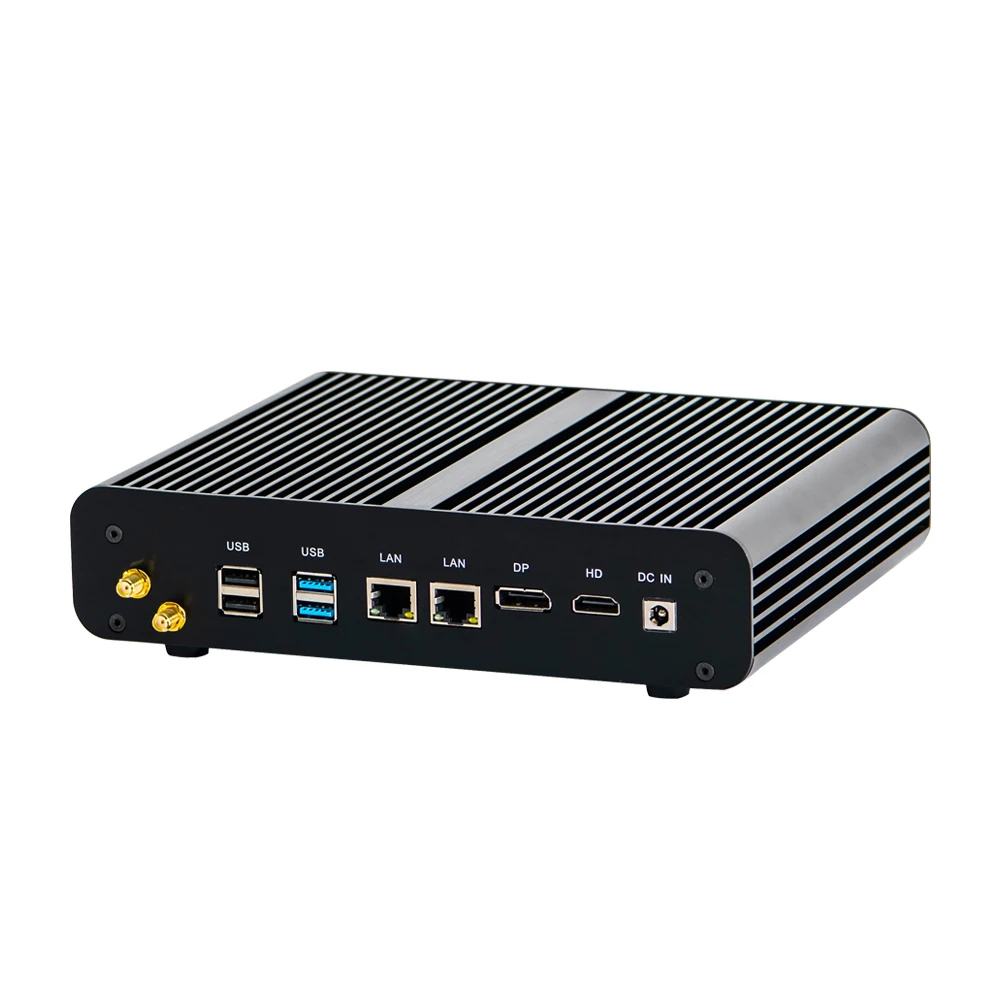

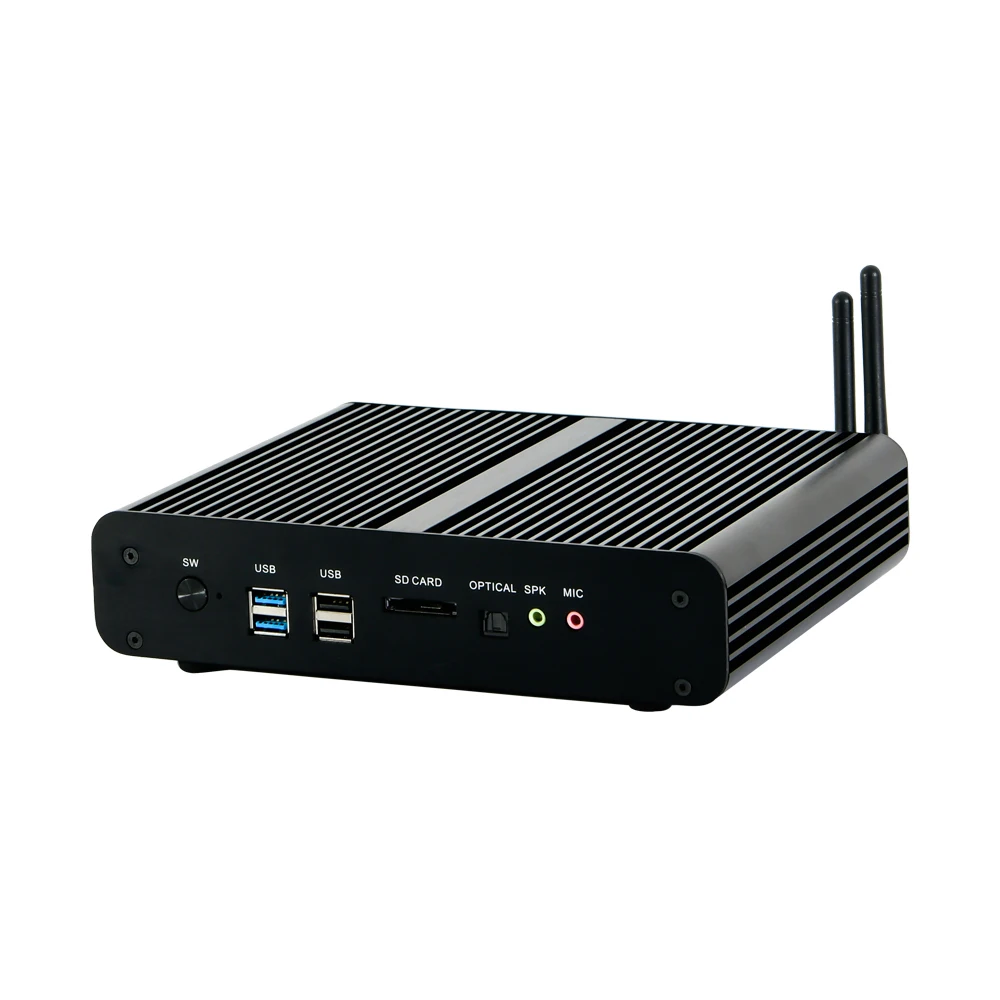

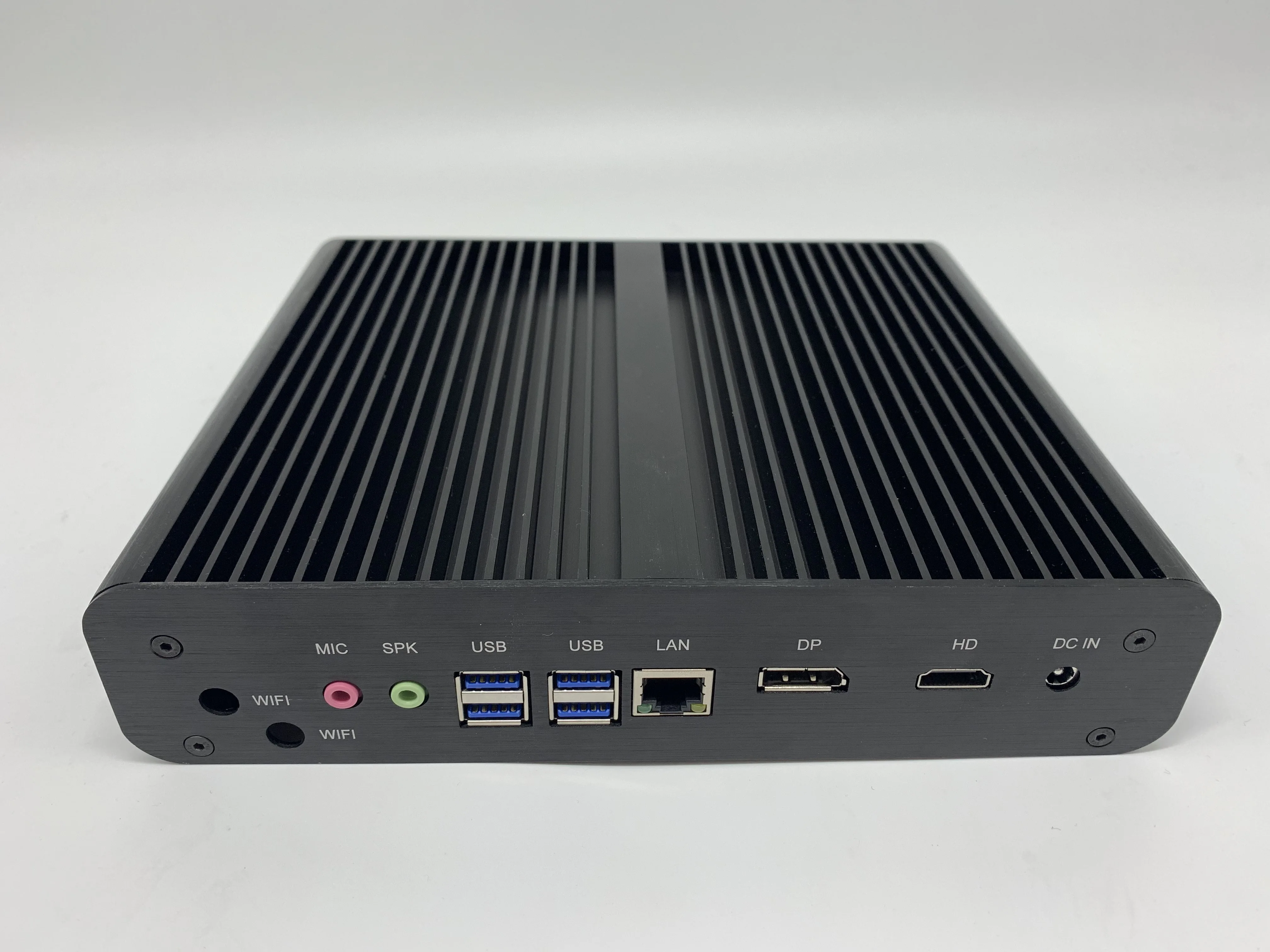

1)-Advanced newest intel processor, assure powerful performance for gaming, office, drawing; 2)- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3; 3)- Noiseless: Fanless system, all aluminum passive heatsink, low consumption, 0.00dB noise; 4)- Multi-Storage: support 1*Msata SSD+1*M.2(22x80) SSD+1*2.5'' SATA HD; 5)- Slim volume: Can stand on desk by free bracket we supply， mount back of monitor by VESA bracket; Buy with confidence! 3 Years long warranty for fanless system!
Key Features
CPU
1. 8th Gen 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphics 620. (probably send i7 8565U 8650U by random) 2. 8th Gen 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620. (Probably send i5 8350U by random) 3. 7th Gen 14nm CPU Intel Core i7 7560U 2 cores 4 threads 2.4GHz up to 3.8GHz 4MB cache TDP 15W Intel Iris Plus Graphics 640. (Probably send i7 7567U by random) 4. 7th Gen 14nm CPU Intel Core i5 7260U 2 cores 4 threads 2.2GHz up to 3.4GHz 4MB cache TDP 15W Intel Iris Plus Graphics 640. (Probably send i5 7267U by random)
RAM
Support 2*DDR4-2133/2400 laptop ram Maximum 32GB RAM
Storage
Support 1pcs mSATA SSD+1pcs M.2(NVMe) SSD+1pcs 2.5 inch laptop HDD/SSD installation together
Graphics
Intel graphics UHD 620,support ultra HD 4K resolution
I/O
Mic; Speaker; 4* USB 3.0 port; 4* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1* VGA; 1* HD; 1* DC12V In;
Operating System
Win 10, Linux Compatible, OpenELEC
Language
Multi Language
Feature
Fanless system design, without noise
USB port
4*USB 3.0+2 or 4*USB 2.0
Wireless
300MB Wifi with 2 Antennas
HD Output
1* HD port, 1* VGA port, support HD+VGA dual display
LAN port
1* Gigabit RJ45 port speed up to 1Gbps
Power and Environment
Input
DC100-240V AC/50-60Hz
Output
DC 12V~3A/5A
Operating Temperature
0/70 Centigrade (32F~140F)
Storage Temperature
-20/+85 Centigrade
Relative Humidity
0%~90% (non-condensing)
Energy-saving
Support Energy-saving technology, Speedstep
64 bit computing
Support 64 bit computing
Virtualization
Support Virtualization technology
Hyper-threading
Support Hyper-Threading
Consumption
15W~28W
Physical Properties
Material
Brushed Aluminum Alloy
Weight
NW:2.0Kg GW:2.5Kg
Package Content
1* Mini PC; 1* power adapter; 2* Antennas
Warranty
30 days free defective replacement and 3 years free repair
FAQ
Q1. Can I get a sample for testing?
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on the mini computer ?
Re: Yes, we can silkscreen logo on computer case, silkscreen logo need extra fee and laser logo is free(just have one color:white) MOQ is 1 unit.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q6. What is the lead time of your products?
Re: 3-7 days for sample, 15 working days for a large quantity.
Q7. Are you manufacture?
Re: yes, we are manufacture and our factory located in guangdong.
Q8. What payment method do you accept?
Re: We accept Paypal, T/T, or Aliexpress, Alibaba etc.
Q9. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS/TNT by default, or send it to you according to your request.
Q10.What's the warranty?
Re: 3 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).dong.
Company Advantage :
1.Product quality : Quality is the best important for co-opertion .Our technical install RAM,SSD,WIFI and operation system to test each PC although barebone system your bought .Then every PCs must get through high quality test for a least 2 hours . 2.Brand configuration : Every pieces of accessories (memory, storage ,wireless card etc) , we used famous brands or chinese brand with top quality . 3.Service : Pricing , Selling , After-sale etc. 4.OEM : We accept OEM Service (such as logo printing , box , packing ) 5.Leading time : We working with DHL Express to ensure the package will be transportated within 10 days . 6.Brand profection :We are a brand company and we will not Cheating customers .
PS: We have over 100 kinds of the mini pc with differents configurations , pls contact me for product catalogue .
