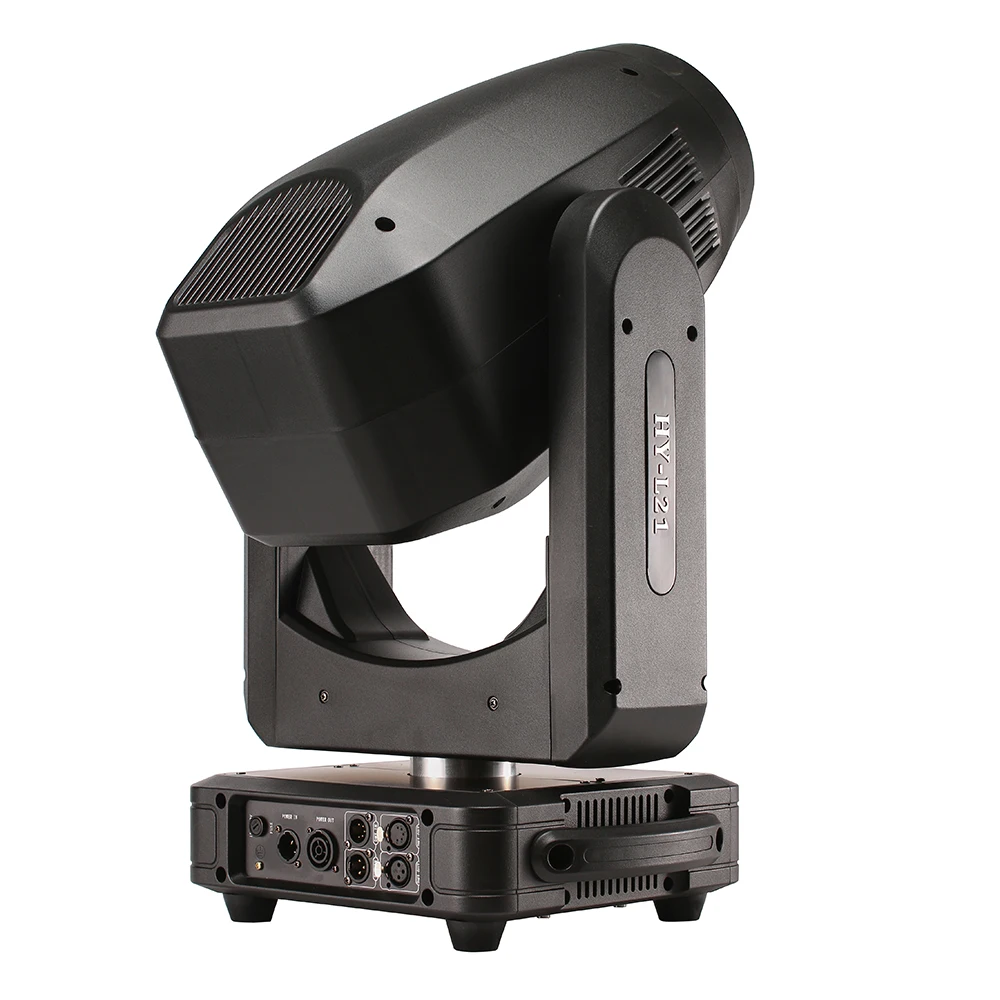

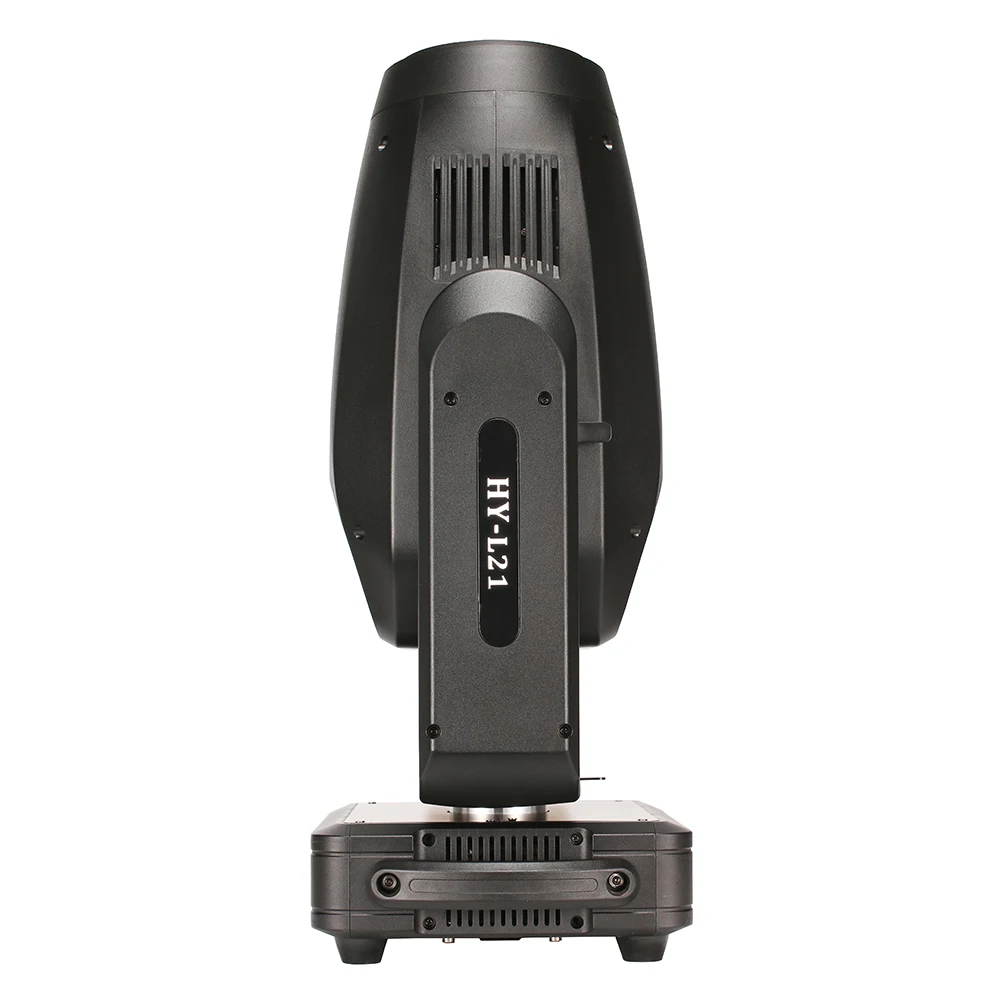

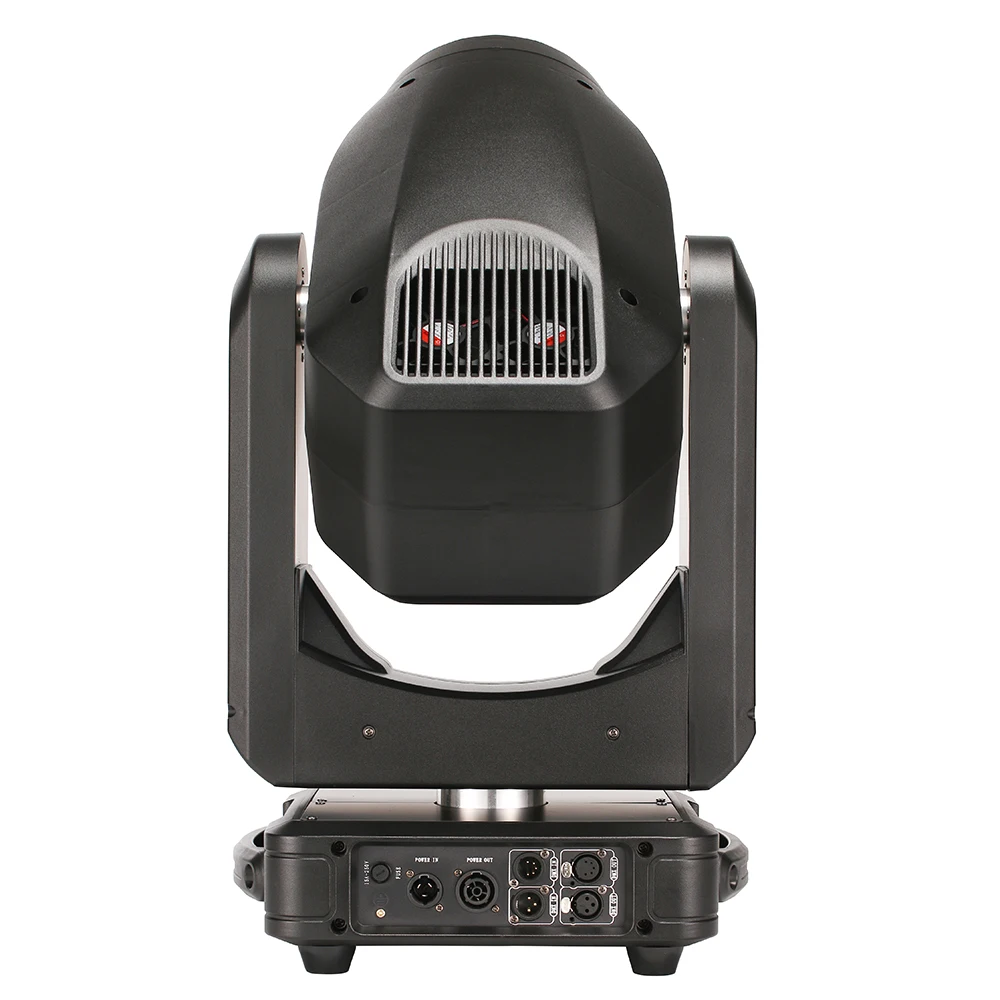

Bright multi functional CMY CTO zoom 460W LED hybrid stage moving head

Product Overview

Description

Bright multi-functional CMY CTO zoom 460W LED hybrid stage moving head

 LIGHT SOURCE
Light source: 460W white LED

CT:6500K
Life: >30,000H
Flicker-free source
POWER SUPPLY
AC100-240V 50/60Hz
Switch power supply
Input power: 550w
MOVEMENT
Pan movement: 540°/630° optional (16 bit)
Tilt movement: 270° (16 bit )
Advanced motion system: auto repositioning, fast, quiet and smooth
COLORS
CMY color mixing
CTO linear
CT: 2700K~6500K
1 Color wheel: 7 dichroic filters +open
GOBOS
1 Rotating gobo wheels:
7 interchangeable + open ,with shaking effect and gobo wheel can be positioned
1 fixed gobo wheel:
9 interchangeable+open,with gobo shaking effect
FEATURES
DMX channels:26/35ch
1 Rotating gobo wheels:
7 interchangeable + open ,with shaking effect and gobo wheel can be positioned
1 fixed gobo wheel:
9 interchangeable+open,with gobo shaking effect
prism:1 bidirectional 5-facet rotating prism , prism can be positioned
Focus:motorized focus , auto focus
5-100% electronic Iris
Shutter: electronic, variable from 1-25Hz or random
Dimming: 0-100% linear dimming
Frost: heavy frost

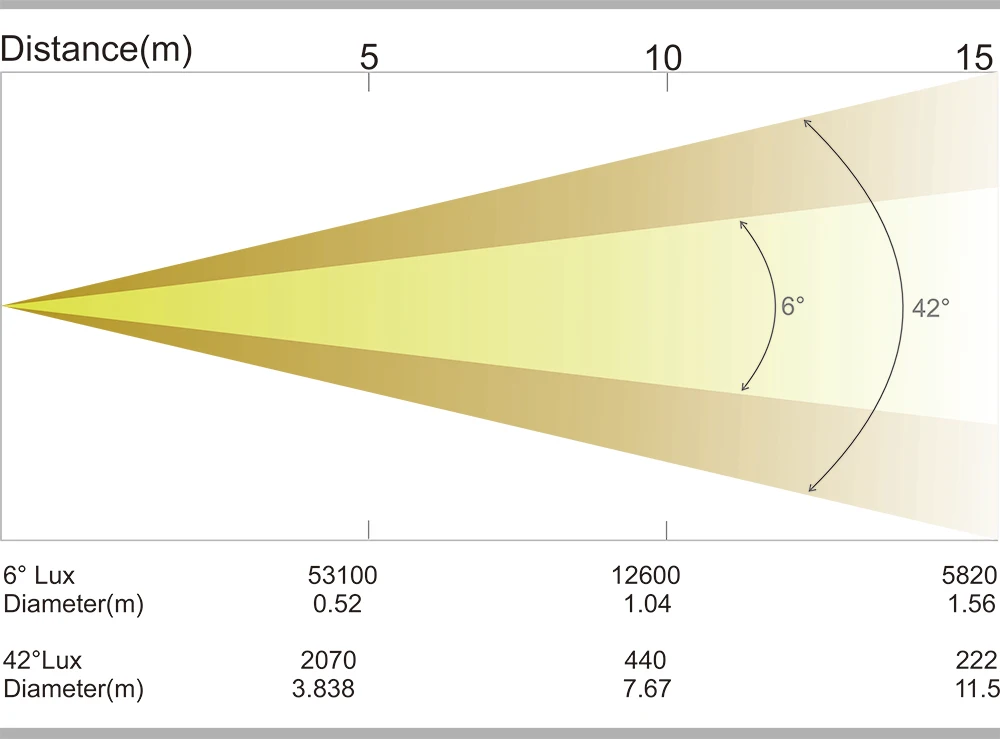

Zoom: 6°- 42°linear zoom
Animation wheel: special dynamic water effect
Protocal:DMX 512,RDM,Artnet

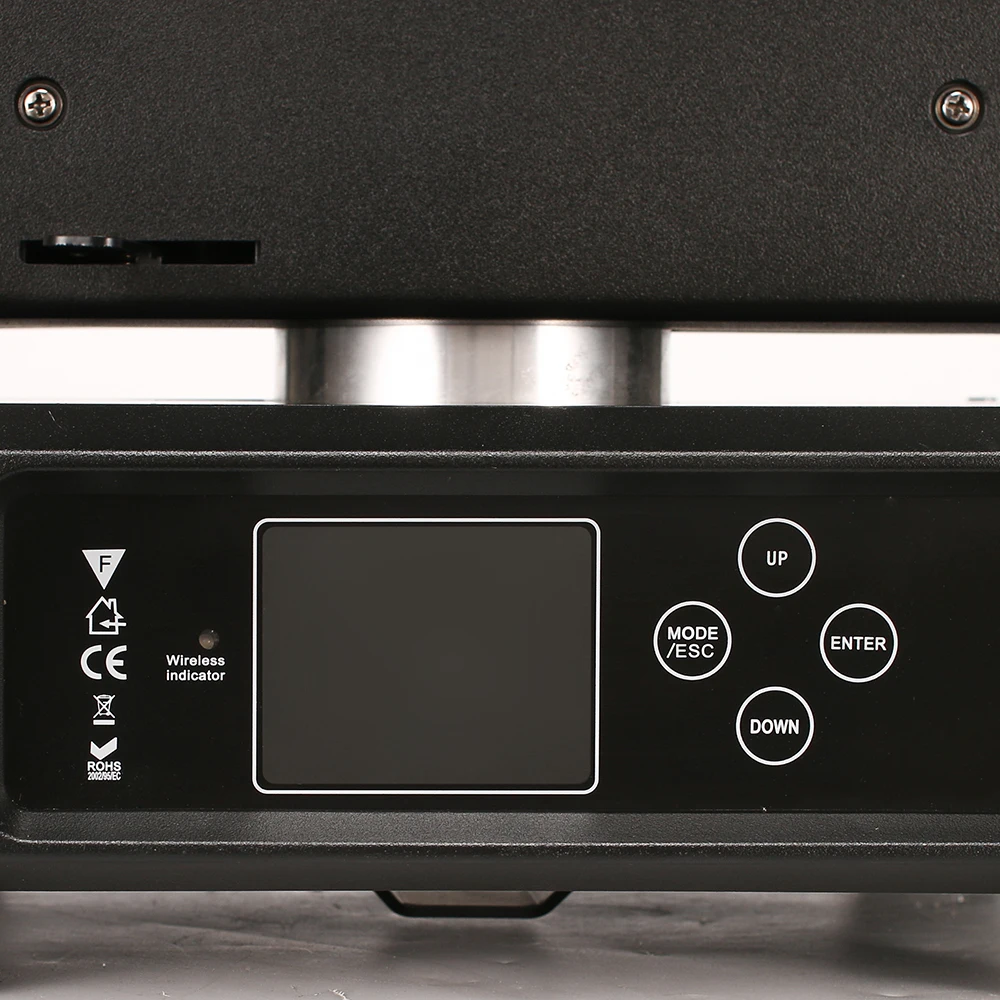

DISPLAY
Battery operated for fast addressing
15 second standby auto lock
Pan/ Tilt disengage (hold MENU and ENTER button)
SOFTWARE
Upgrades: fast and convenient using
Uploader over DMX
Remote reset DMX address, fixture reset,
Sound control by DMX
OTHER SPEC
Input signal isolation
Optional ArtNET control
RDM compatible
COOLING SYSTEM
Advanced liquid cooling system
Self-adjusting variable speed fans
Excess-temperature protection
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
DIMENSIONS AND WEIGHT
Packing Dimension : 380 X460 X840mm
Net Weight: 24KG
