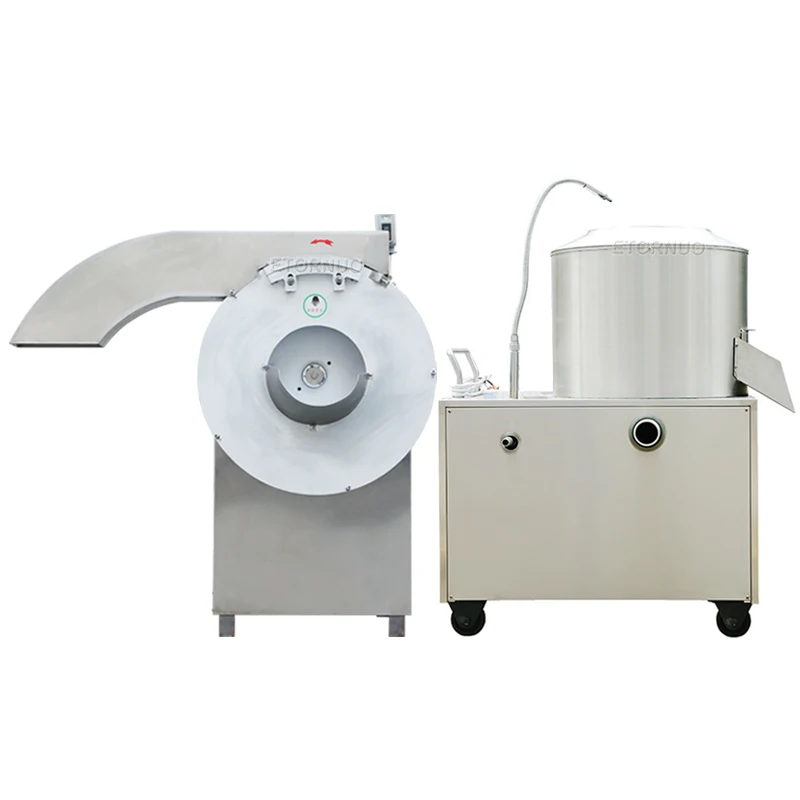

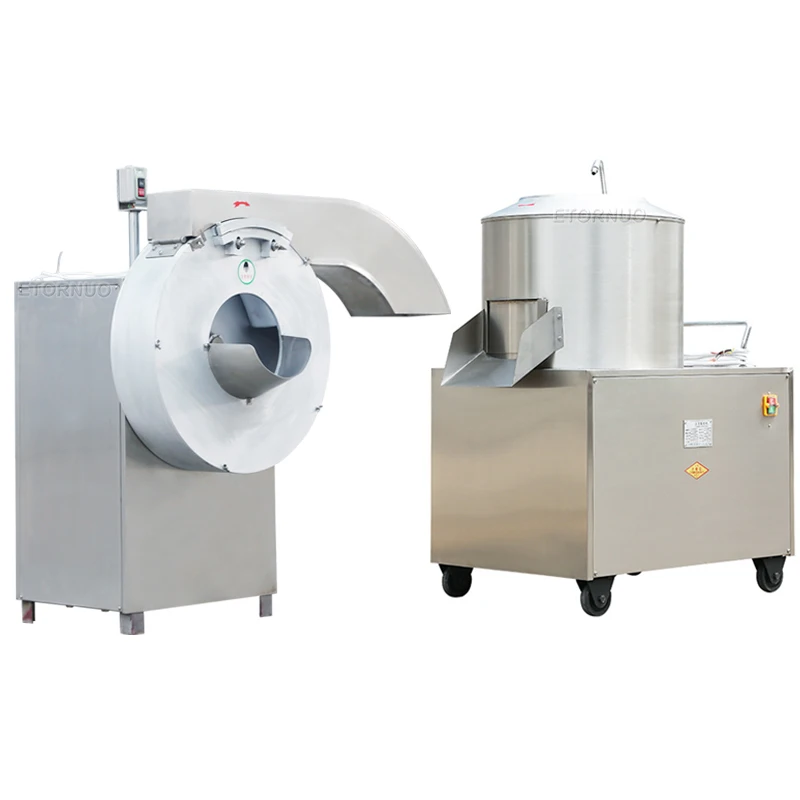

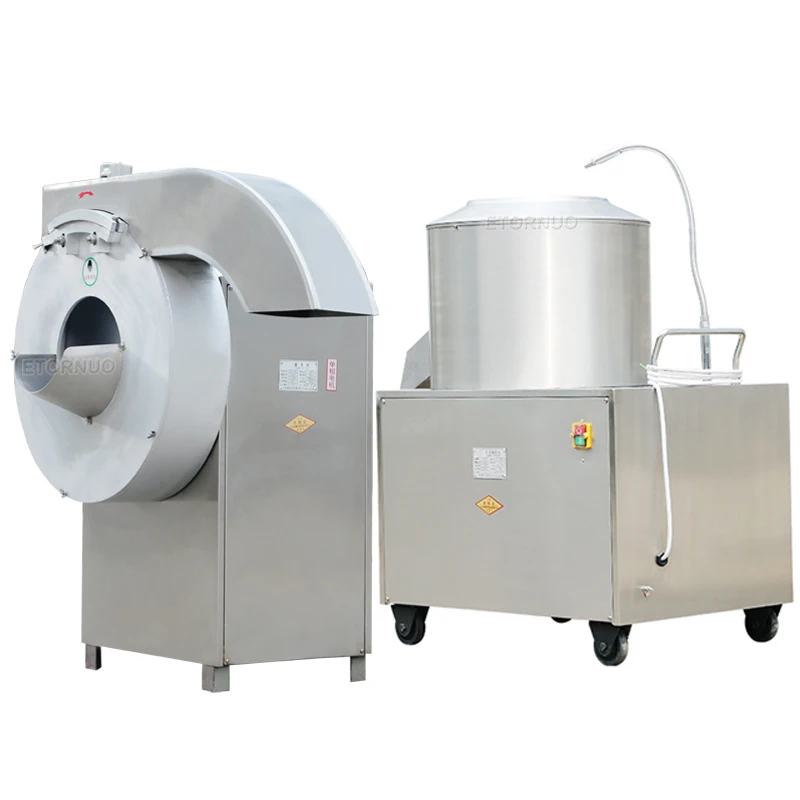

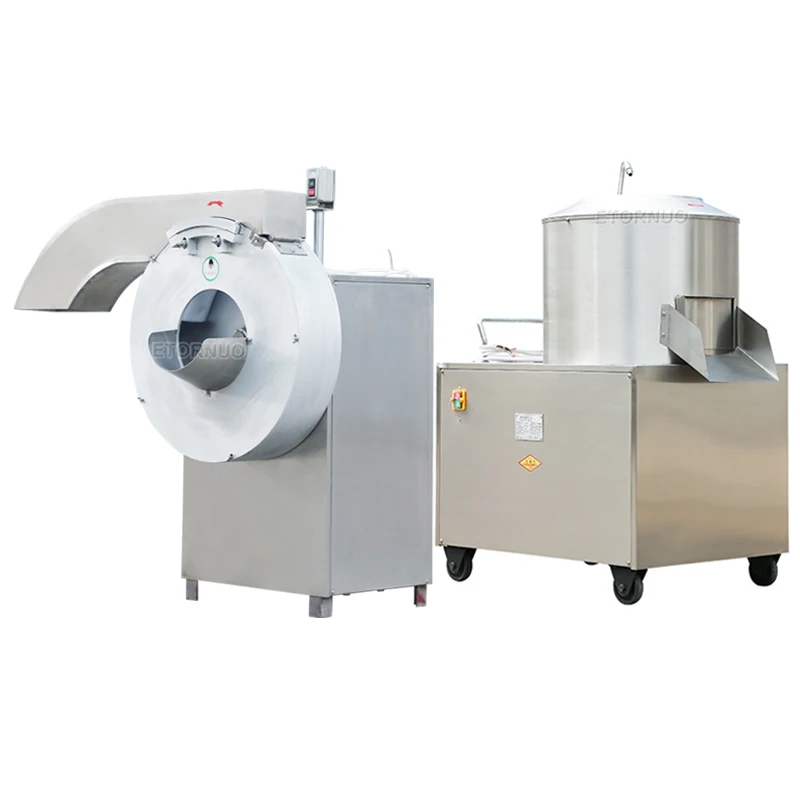

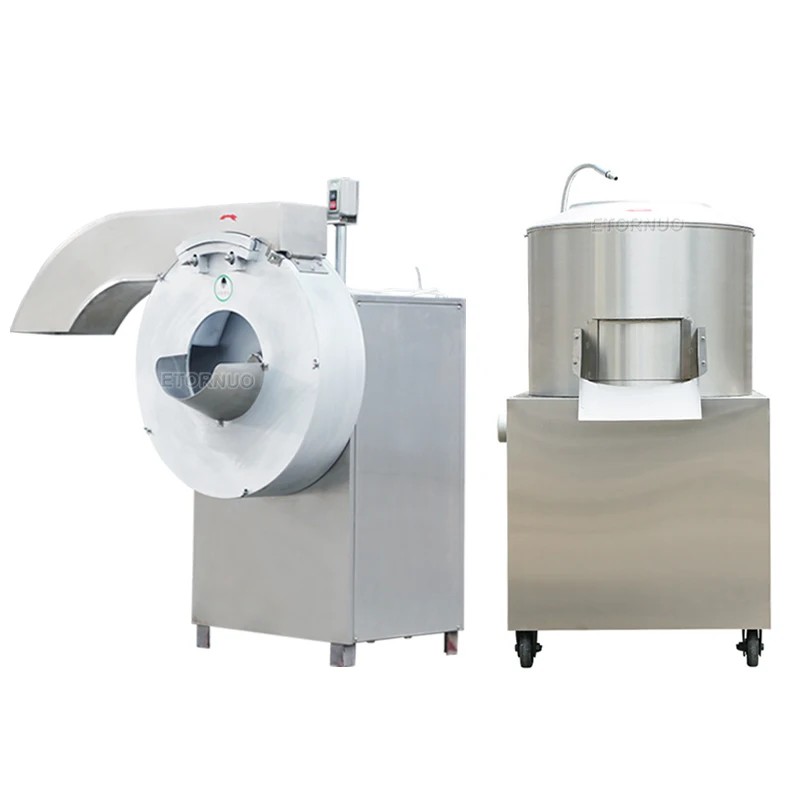

High Capacity 750kg per Hour Automatic Electric Potato Peeling and Chipping Machine

Introduction of Model ETOVR450P Potato Peeling and Chipping Machine

1.Multifunction

The potato peeling and chipping machine is specialized in washing and peeling root vegetables like taro, potato, sweet potato and water chestnut, etc.

2.Vegetables Scope of Application

Taro, potato, sweet potato and water chestnut, etc.

3.Widely Commercial Application

It is suitable for the canteen, restaurant, hotel, dining hall of school, kindergarten, factory, frozen food factory, farm, vegetable processing plant, etc.

4.Advantages

a.The machine body is made of food grade SUS304 stainless steel.

b.It is characterized by easy operation and installation, easy maintenance, low energy consumption, safety and healthy, high efficiency.

c.The famous brand electrical apparatus elements are used for the machine.

d.The voltage can be customized.

e.It has the function of both cleaning and peeling.

f.Peeling by hands is of low efficiency with large loss at 20%-25%. On the contrary, peeling by peeler is of high efficiency at 750kg/h with little loss.

g.It can continuously peel and wash with low breaking rate and high peeling ratio, which can save water than before and without pollution.

h.It adopts the technology of centrifugal rotation and friction peeling.

Structure of Model ETOVR450P Potato Peeling and Chipping Machine

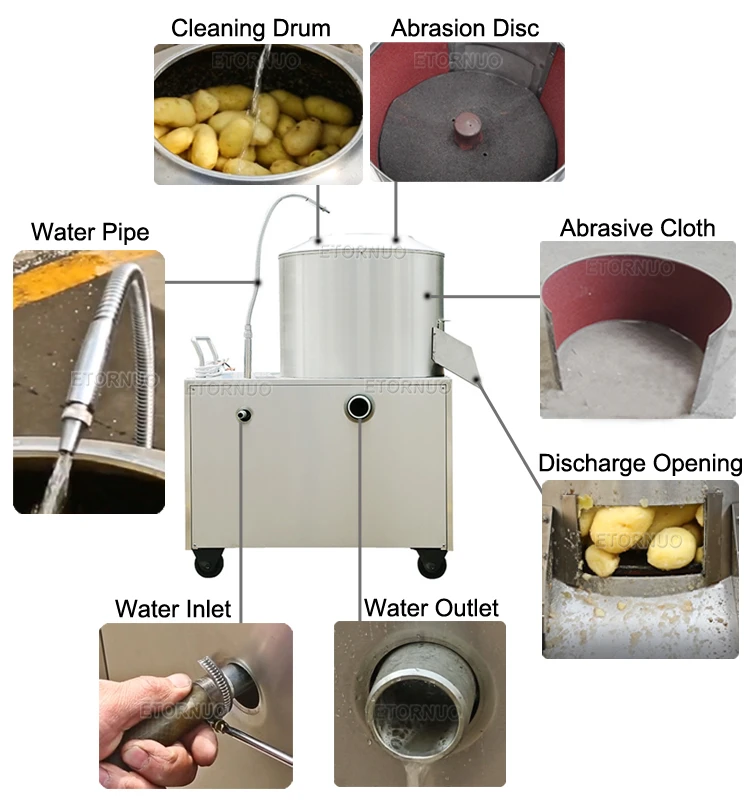

The potato peeling and chipping machine mainly consists of copper wire motor, cleaning drum, abrasion disc, abrasive cloth, water pipe, water inlet, water outlet, switch, discharge opening, etc.

Click Now for Detailed Video and Quotation Sheet

A.Technical Parameters of Abrasive Drum Type Potato Peeling and Chipping Machine

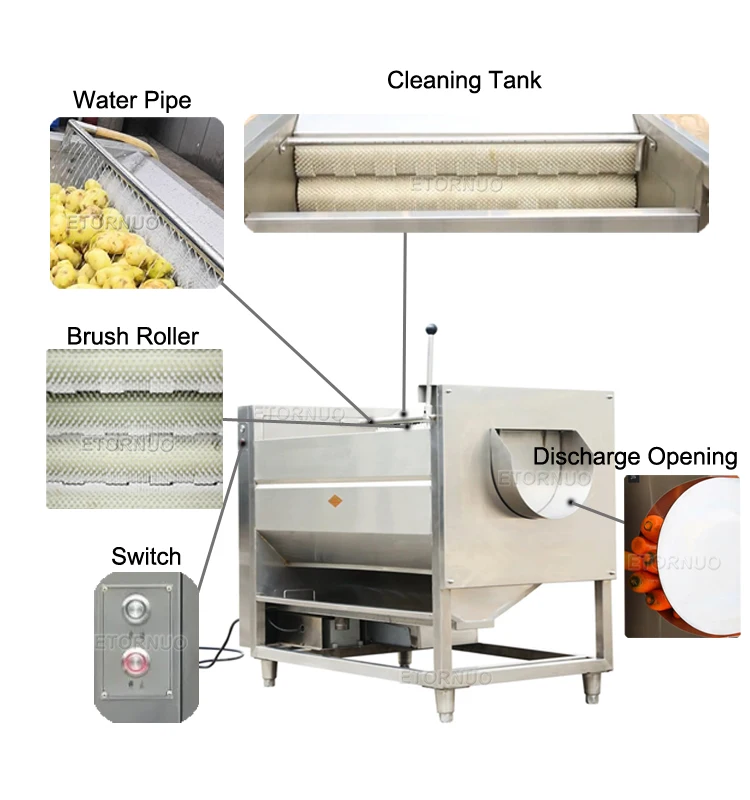

B.Technical Parameters of Brush Roller Type Potato Peeling Machine

C.Technical Parameters of Air Bubble Type Potato Washing Machine

Production Line of Vegetables and Fruits Washing Machine

The vegetables and fruits air bubble washing machine can also work with other equipment like conveyor platform, vegetable cutting machine, hoister, vibration draining and dewatering machine, etc. to consist the complete automatic vegetable production line.

1.Selection Conveyor Platform

It is usd for the primary selection of fruits and vegetables. The whole machine adopts removable design and it is equipped with waste collection device.

2.Vegetables and Fruits Cutting Machine

The machine can cut many kinds of vegetables and fruits into different shapes and sizes.
3.Vegetables and Fruits Hoister

The vegetables and fruits can be conveyed by the hoister to the air bubble washing machine automatically.

4.Vegetables and Fruits Air Bubble Washing Machine

The air bubble generation device is used to generate air bubble. The circulating water pump can be equipped to surf and raise the high pressure water spray for triple cleaning, which can separate the sediment and impurities from the vegetables and fruits effectively.

5.Vibration Draining and Dewatering Machine

It is used for assisting the air bubble washing machine for continuous production. The moisture of the vegetables and fruits after being cleaned is removed by vibration shaker so as to achieve the uniform effect.

1.Air Bubble Cabbage Washing Line

2.Air Bubble Cabbage Washing Line

Packing Materials

The potato peeling and chipping machine is packed with the following two parts:

1.Quality warranty period is two years (except the wearing parts). Equipment must be 100% brand new when leaving factory. Malfunctions which are caused by machine-self and quality will be responsible for supplier.

2.Whole lifetime maintenance free of charges.

3.Free training course at our plant.

4.Free technical support online or by phone communications and emails.

5.Our engineer can be assigned to your country for testing and training as per your requirement.

Q1:What’s the payment terms?

A1:T/T, Trade Assurance, Western Union, MoneyGram, L/C, Cash, etc.

Q2:What kind of materials that the machine can wash and peel?
A2:The machine can wash and peel taro, potato, sweet potato and water chestnut, etc.

Q3:What’s the materials of machine?

A3:The potato peeling and chipping machine is made of 304 stainless steel materials.

Q4:What about the warranty?
A4:Quality warranty period for this machine is two years. Malfunctions which are caused by machine-self and quality will be responsible for supplier. The spare parts will be sent to you free of charge.
