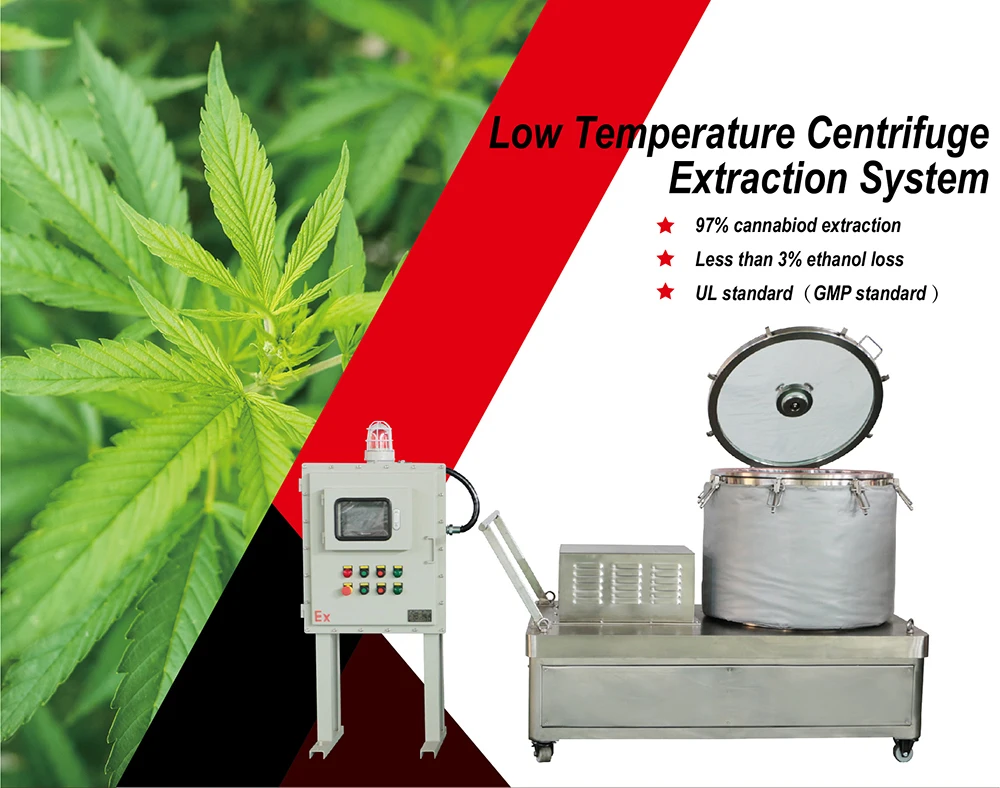

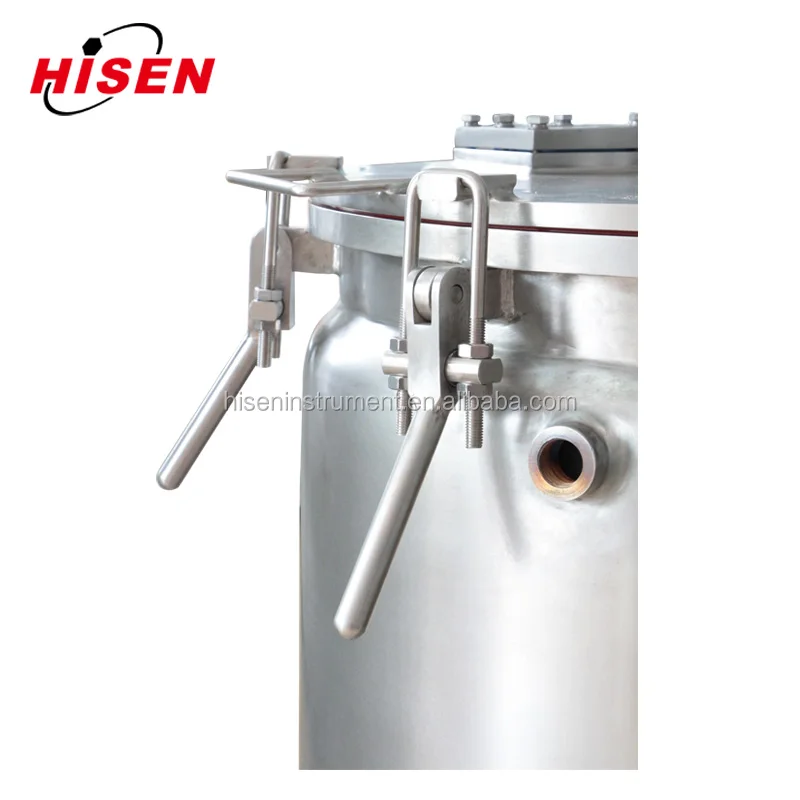

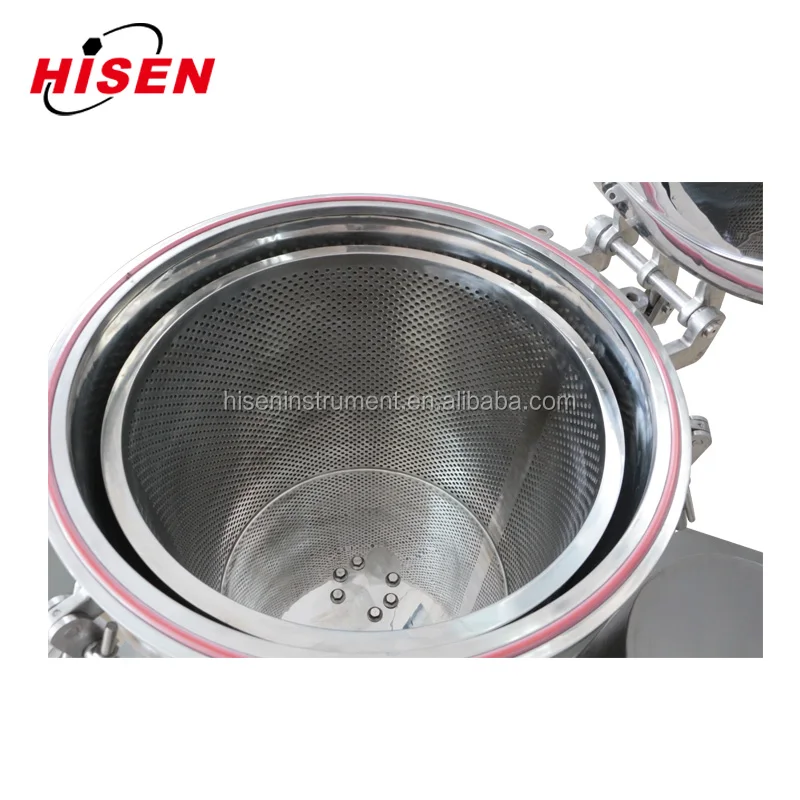

Low temperature industrial production scale liquid separating centrifuge machine

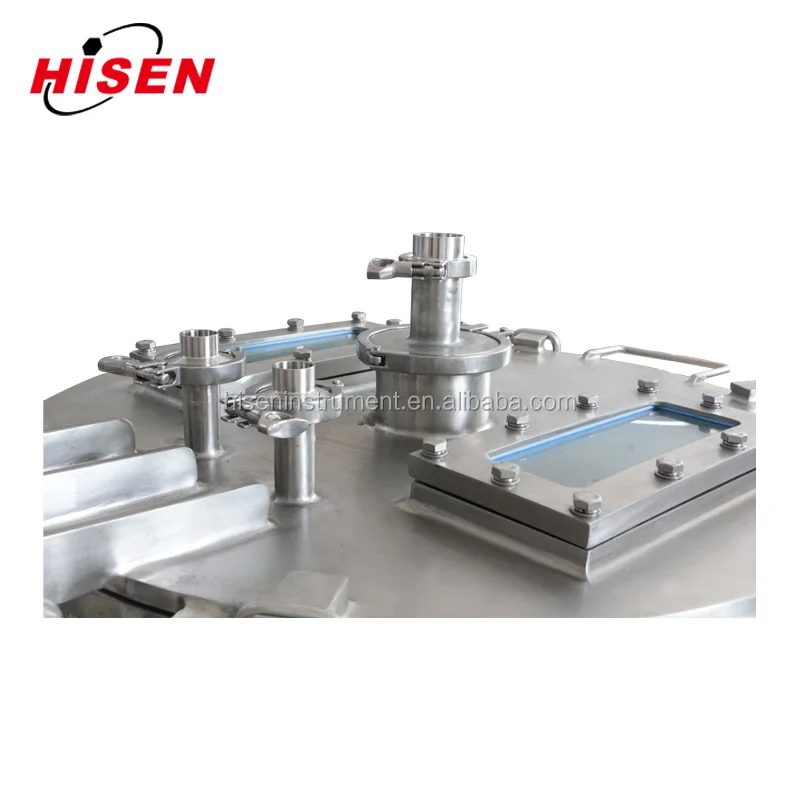

The HCE series centrifuge extraction system integrated ethanol extraction and centrifugal technique togetherr in one machine for fast extraction. The process can be carried out at eitherr room temperature or cryo temperature (for instance~40C). The jacketed vessel ensures a precious temperature control during the extraction process. The bi-directional agitation provides a comprehensive mix of the materials and the alcohol, maximizing the extraction efficiency. And the high speed spin-dry cycles remove approximately 97% of the alcohol.
Technical Data
| Model | Vessel volume (gallon) | Vessel diameter(inch) | Material intake (kg/batch) | Motor power (KW) | Speed (rpm) |
| HCE-30 | 26 | 20 | 15 | 3.7 | 1600 |
| HCE-100 | 80 | 32 | 50 | 7.5 | 1500 |
| HCE-200 | 156 | 47 | 100 | 11 | 1000 |
