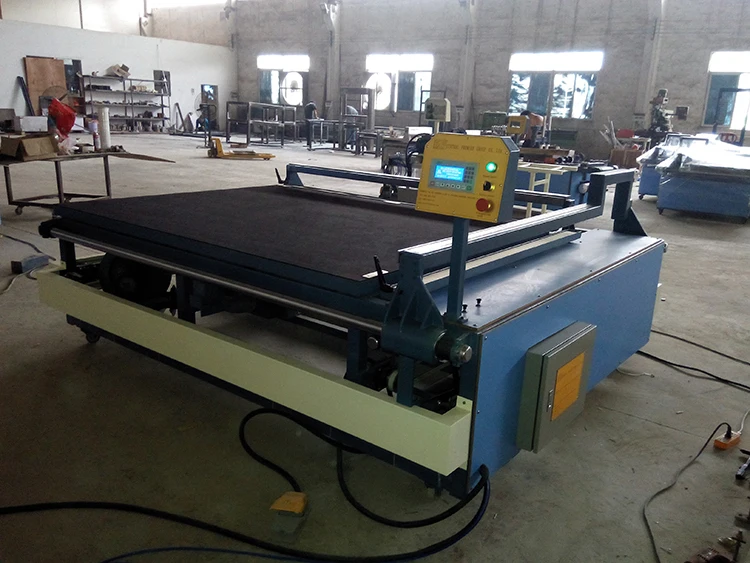

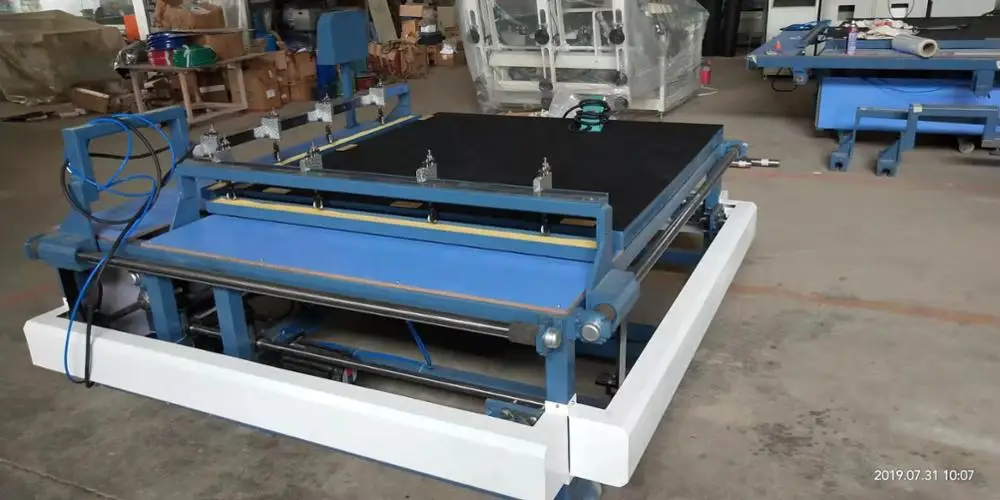

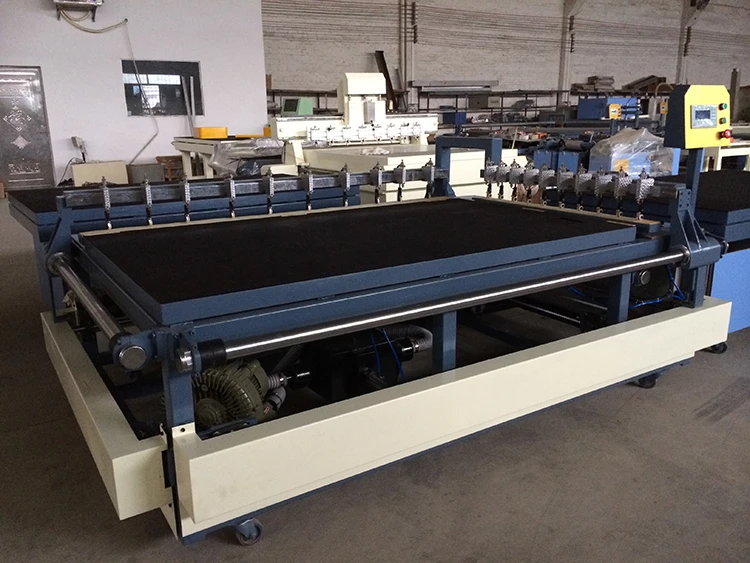

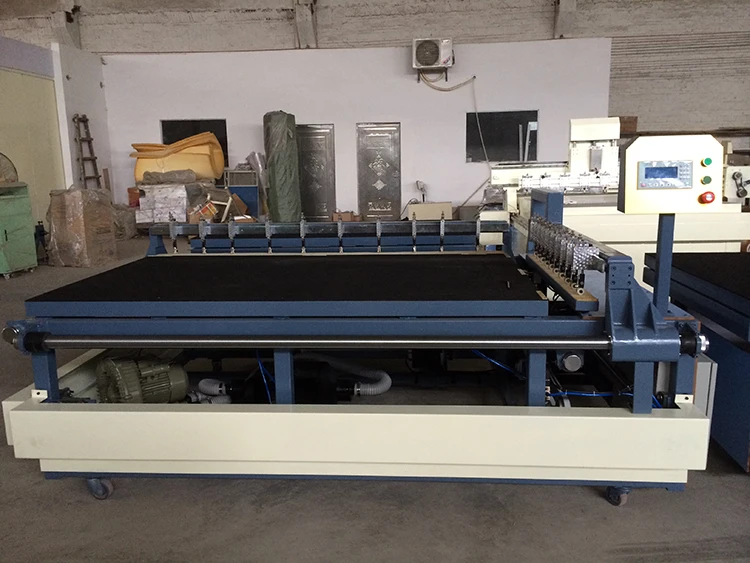

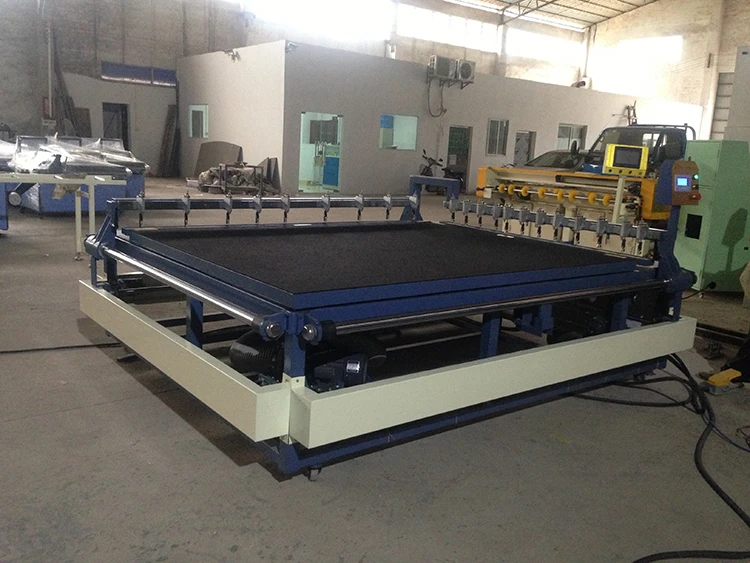

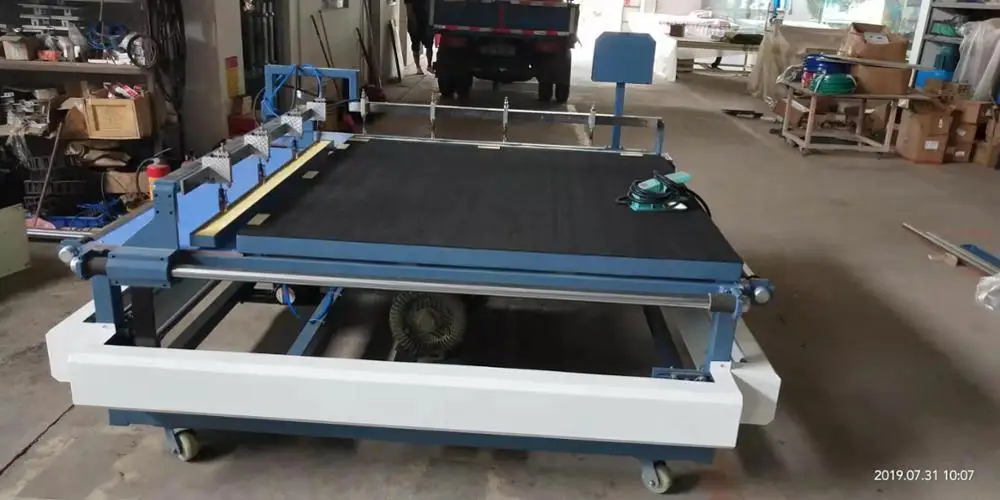

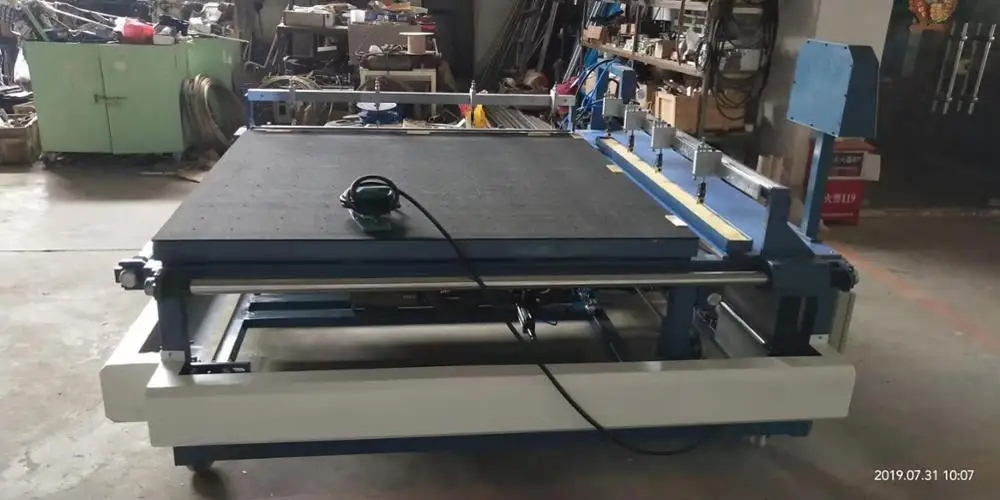

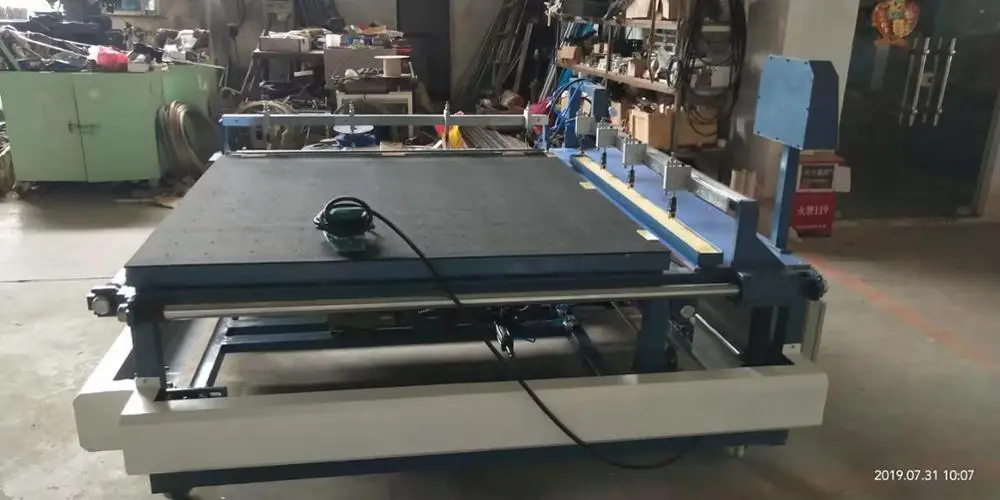

on the basis of manual cutting machine with synchronous
transmission device, automatic operation stop function, the two beams
do not need to be pulled manually, just press the start device on the
control panel, the transmission device drives the double-beam automatic
operation cutting. The utility model makes the operation light, simple
and stable, reduces the labor intensity and improves the production efficiency. Characteristic: 1) Stepping motor, PLC control, speed and stroke can be arbitrarily adjusted. 2) LCD interface display, intuitive and convenient operation. 3) plastic panels are used to overcome the shortcomings
of the cutting machine table which is easily damped and deformed. 4) guideways and bearings are used to ensure the stability and
accuracy of the equipment. 5) Air-bearing device (optional self-breaking device, automatic transmission
device and digital display tool adjusting device) Performance: Cutting parallelism: <0.20mm Diagonal: <0.20mm Cutting thickness: 3-19 mm Shape size: 2150 *2450 *1200mm Table Size: 1300 x 1600mm Cutting Glass Maximum Size: 1400 x 1700mm Cutting Glass Minimum Size: 20 x 20 mm Cutting efficiency: 2-3 pieces per minute (30-60 meters per minute) Operator: 1-2 persons The special specifications of the equipment can be customized according to
the actual needs of customers. Scope of application: Furniture glass, hollow glass, household appliances glass, building curtain wall
glass, handicraft glass, photo frame glass, lamp glass, solar energy glass, etc.
