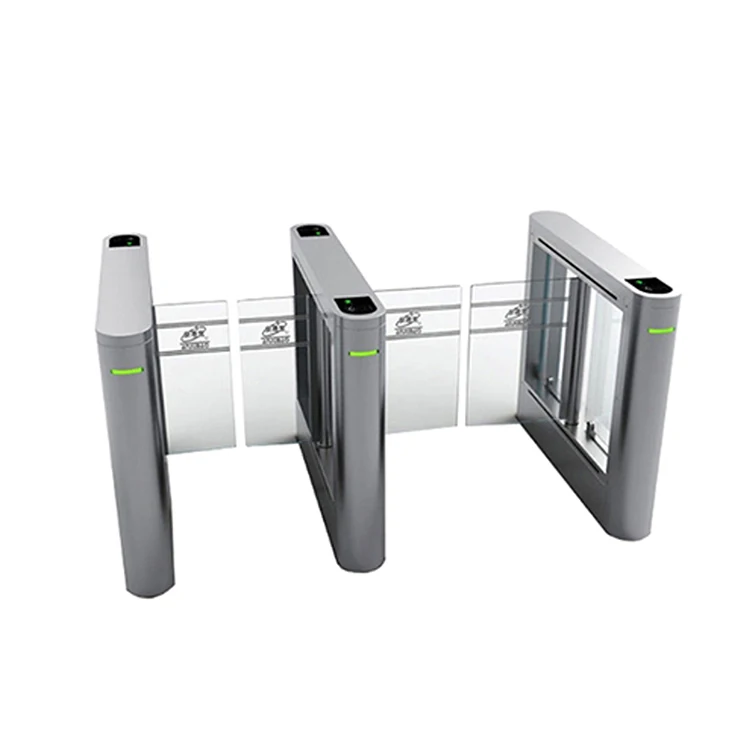

Лидер продаж, качели, турникеты, ворота, датчик, Аварийная дверь для управления посещаемостью
- Category: Turnstile >>>
- Supplier: Shenzhen Tigerwong Technology Co. Ltd.
Share on (62354784698):
Product Overview
Description
Product Description

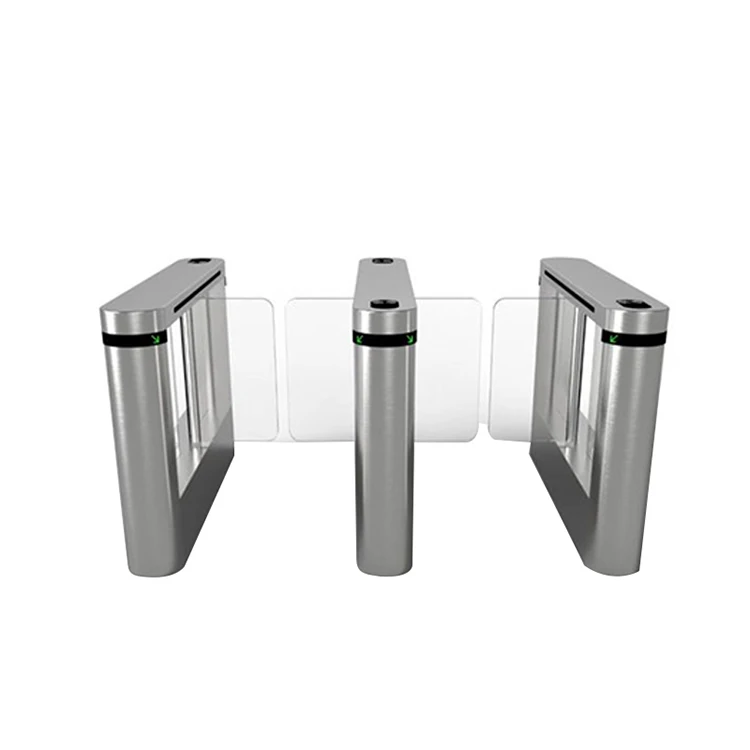

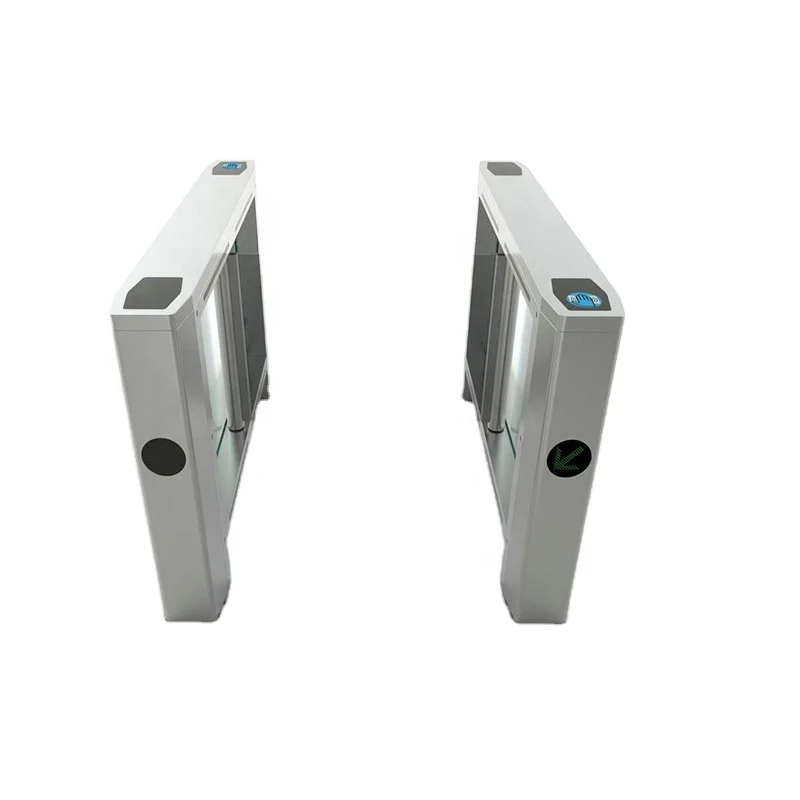

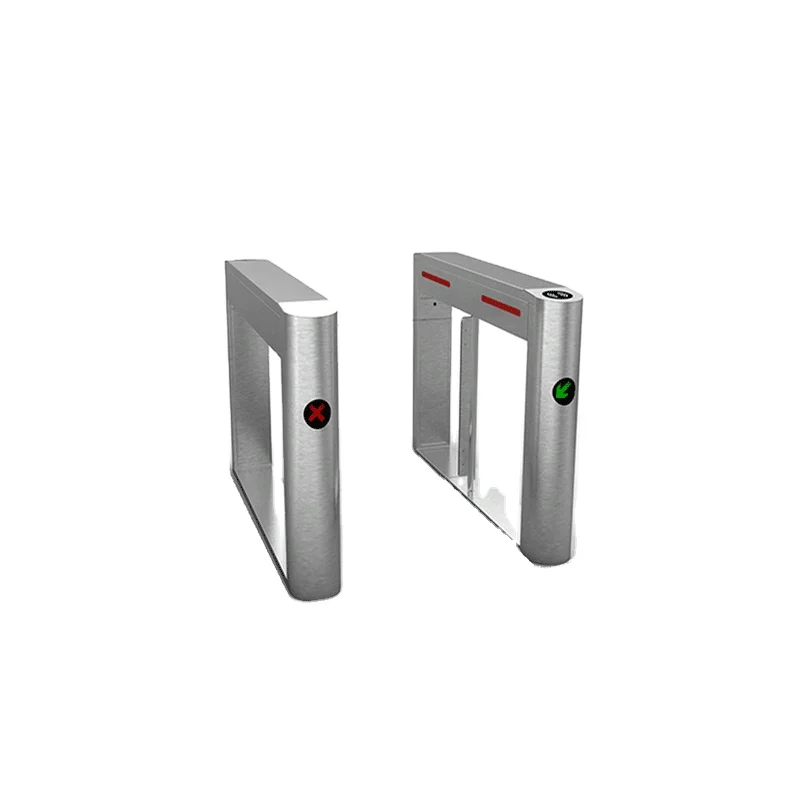

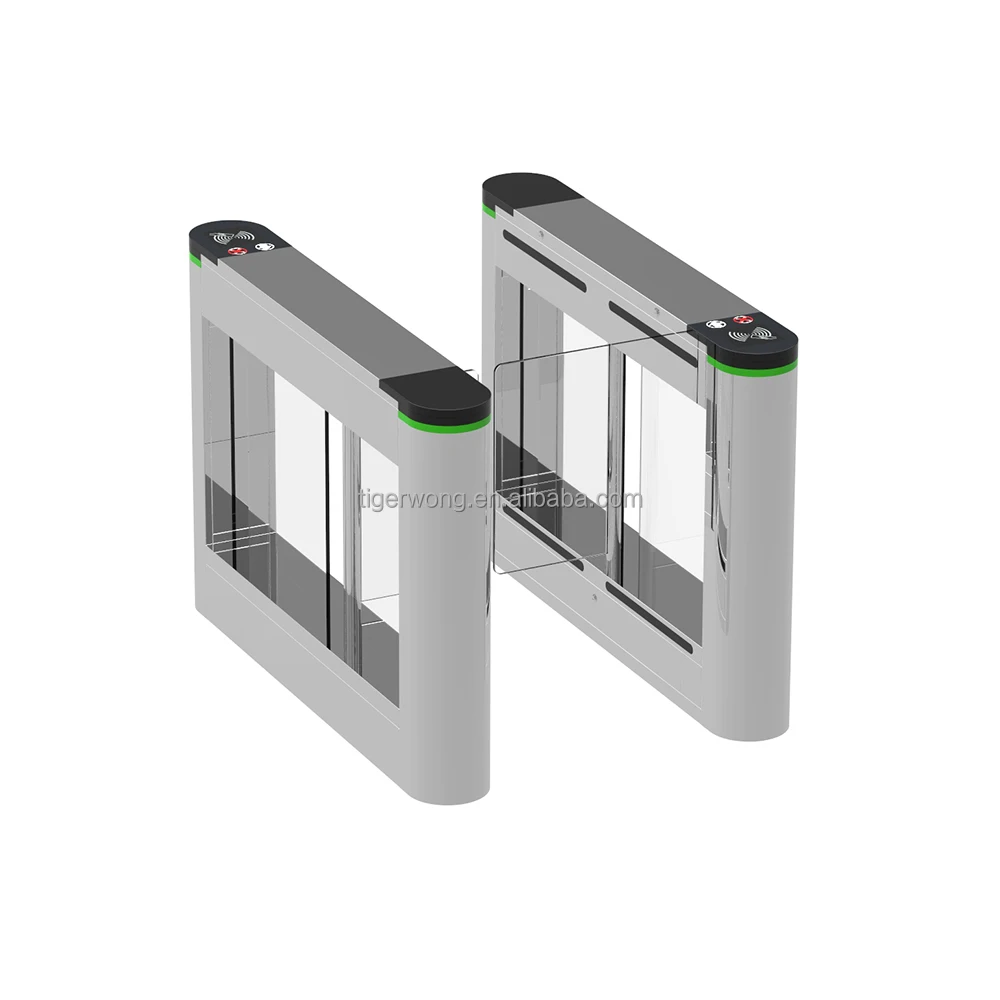

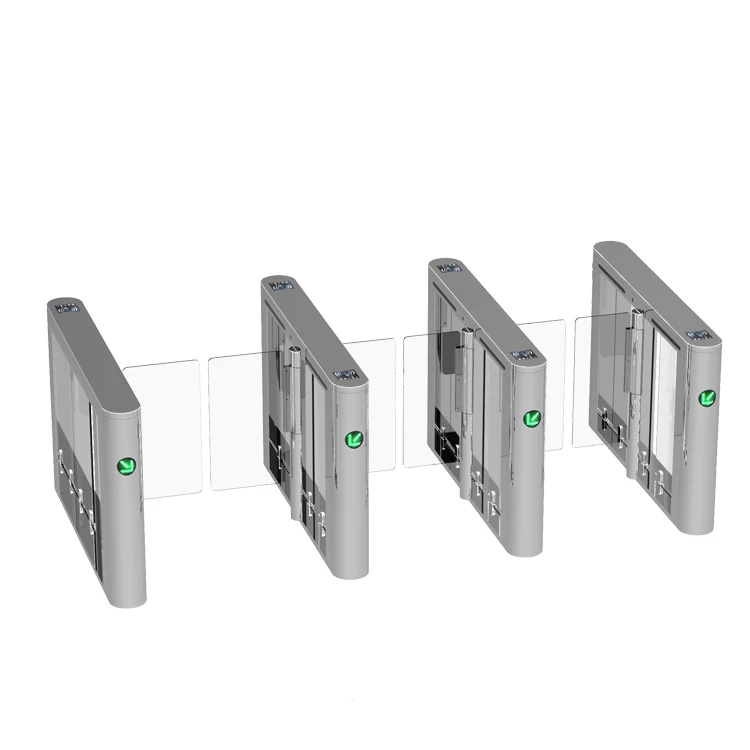

Swing Turnstile integrated with mechanism, electric and micro-controller and various kinds of identification technologies,compatible with IC, ID, bar code, fingerprint reader and so on to provide intelligent control and management to flow control.Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.
Function:
Extensible functions:
1. The working mode can be set through the button on the main panel.
2. Anti-collision,the object will automatically and slowly return to the original position after collision,to prevent the motor from being damaged by external force collision.
3. Doors can be synchronized.
4. Automatic reset.Right turn is automatically cancelled if it is not passed within the scheduled time.(1-60 s adjustable), the default time is 10 s.
5. Compatible access control system, consumption system, ESD system, electronic ticketing system, etc.
6. One-way control or two-way control.
7. Two pairs of anti-collision infrared sensor,two pairs of alarm infrared sensor.
8. Each cabinet have one LED direction indicator.
9. The unit can be controlled and managed by remote control.
2. Anti-collision,the object will automatically and slowly return to the original position after collision,to prevent the motor from being damaged by external force collision.
3. Doors can be synchronized.
4. Automatic reset.Right turn is automatically cancelled if it is not passed within the scheduled time.(1-60 s adjustable), the default time is 10 s.
5. Compatible access control system, consumption system, ESD system, electronic ticketing system, etc.
6. One-way control or two-way control.
7. Two pairs of anti-collision infrared sensor,two pairs of alarm infrared sensor.
8. Each cabinet have one LED direction indicator.
9. The unit can be controlled and managed by remote control.
Extensible functions:
1. LED counter display
2.Cabinet and swing arms can be lengthened.
3.Two or more pairs of extensible anti-collision infrared sensor,customization.
4.Voice prompts
3.Two or more pairs of extensible anti-collision infrared sensor,customization.
4.Voice prompts

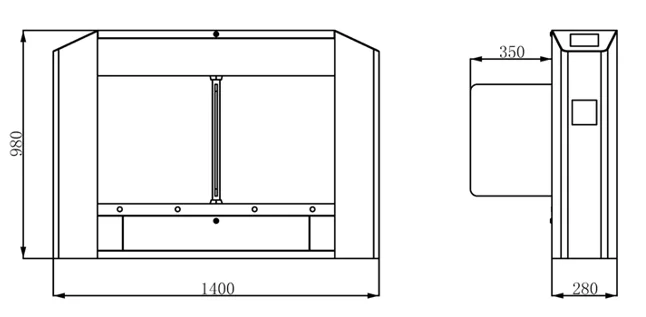

Dimensional drawing:
Product Paramenters
Model | TGW-TT004 |
Cabinet Material | 304 Stainless Steel |
Dimensions | Cabinet:1400*200*980mm |
Motor Type | Single motor |
Weight | 80KG |
Passage Width | 600-900mm |
Arm Length | 300-450mm |
Dry Contact | 12V |
Material Thickness | 1.5mm |
Card-reading Window | Two |
Direction | Bi-directional |
Service Life | 5million times |
Operating Temperature | -25℃ ~ +60℃ |
Related Humidity | ≥90%RH |
Communication Interface | TCP/IP |
Power Supply | AC 220V/110V ±10% 50/60MHZ (optional) |
Opening Speed: | 30-45persons per minute |
Closing Speed: | 25-35 persons per minute |

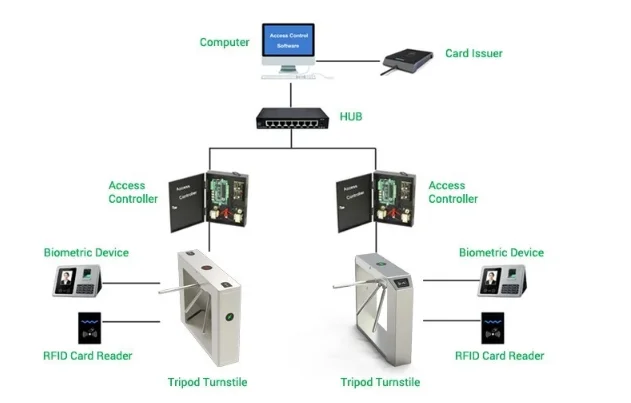

How does the Tripod Turnstile works ?

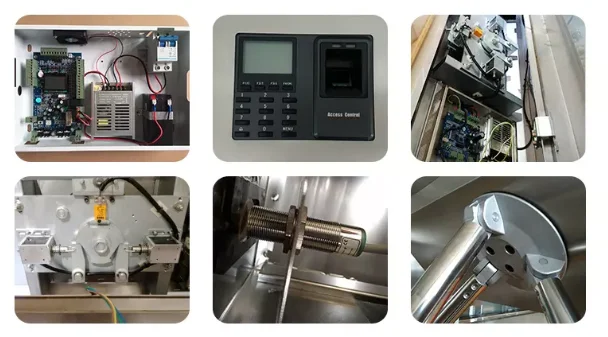

structural composition:
Application:
1. Can be compatible with IC /ID card, bar code card, fingerprint and face recognition access control method.
2. Used for staff, provide civilized, orderly access methods; effectively manage the access of staff.
1. Can be compatible with IC /ID card, bar code card, fingerprint and face recognition access control method.
2. Used for staff, provide civilized, orderly access methods; effectively manage the access of staff.
3. Can be widely used in Outdoor public place,Scenic area,Factory,Residential area for access management.
