Машина для прошивки краев матраса с четырьмя головками

Product Overview

Description

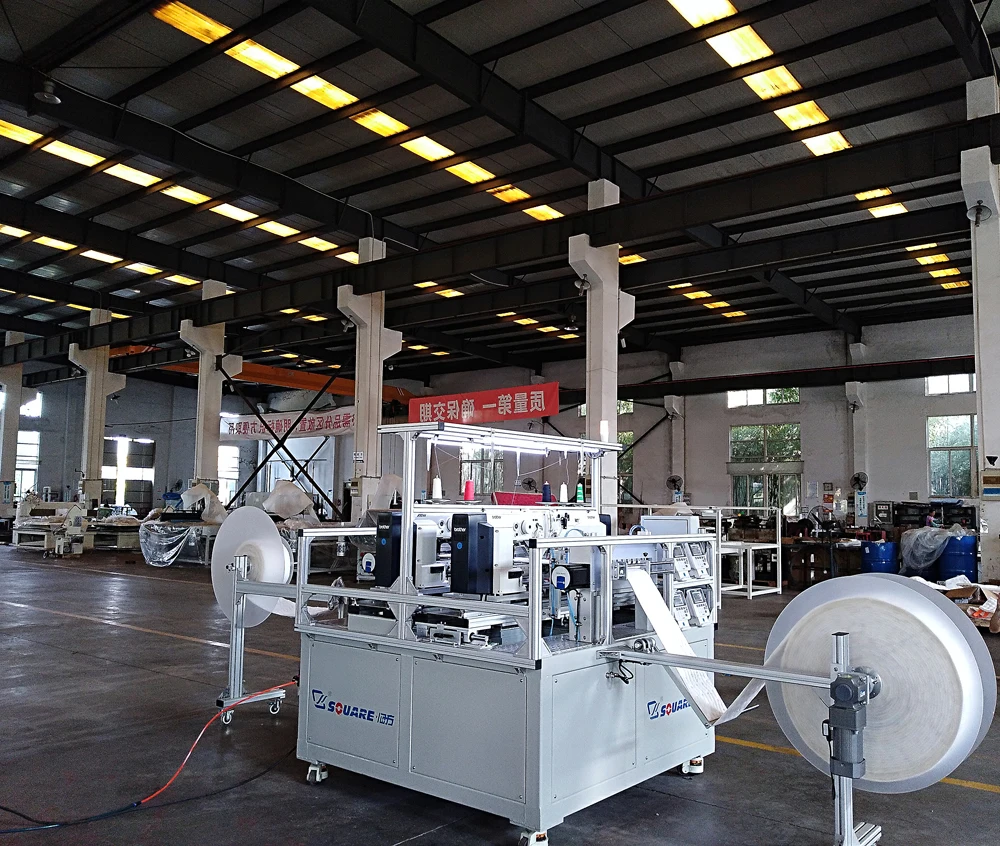

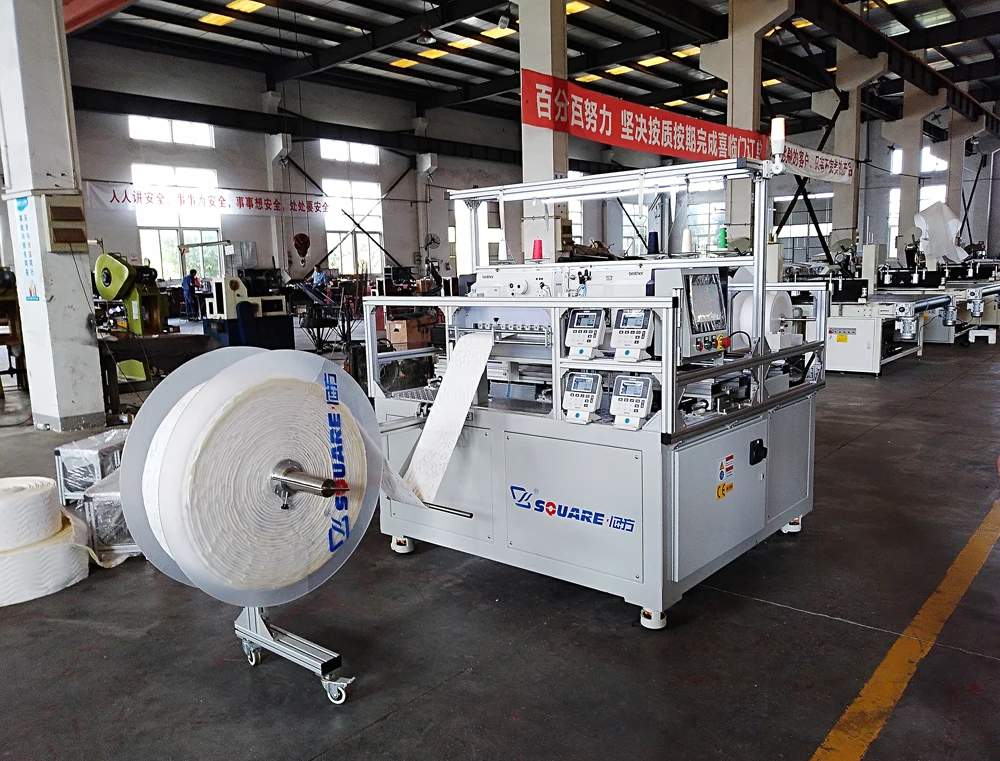

Four heads tack and Jump Mattress border side stitching machine



Model DS four heads tack and jump mattress border side stitching machine is suitable for pattern tacking on the mattress borders. The pattern designs, the sizes, and number of stitches can be set according to the demands within the range. Using different patterns to decorate the mattress borders can make the mattress to be with more fashionable.

.

 machine features:

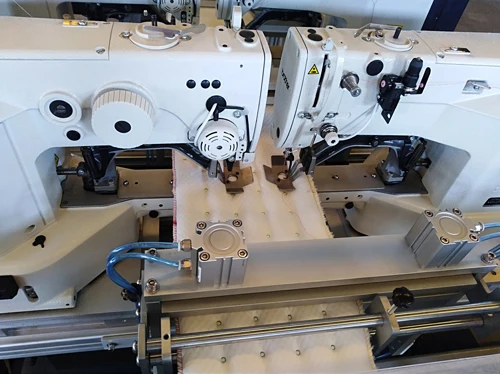

1.       4 brother machine heads, durable

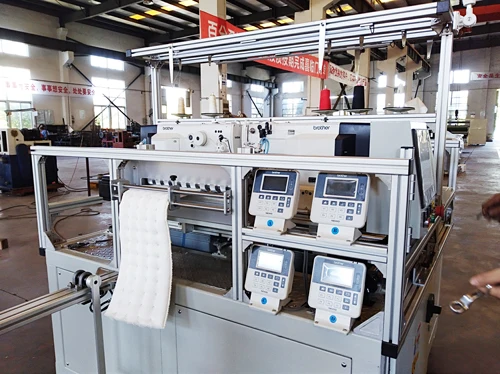

2.       PLC control, touch screen.

3.       Pattern edit & pattern selection function

4.       Thread breakage detection and fabric run out sensor

5.       Automatic rolling device and feeding device

6.       Front & rear puller mechanism

7.       High-end thread stand and LED light

8.       Electronic bobbin winder

9.       First well-know internation brand electronics



The 4 sets of machine heads can work together at the same time or work separately for much higher production efficiency





 Main parameter:

Sewing speed	200 rpm
Sewing thickness	<=30 mm
Sewing width	100-400 mm
Stitch length	0-5 mm
yield	1-5 m/min
power	3000w
voltage	220V, 50/60 Hz
Dimension	3300 (L)X1700(W)X1900(H) mm (without feeding frame)
