HDB 180HU HDMI USB AUDIO MIC Remote switch Extender 180m
- Category: >>>
- Supplier: Shenzhen Langcen Technology Co. Ltd.
Share on (62355189982):
Product Overview
Description
Product Description

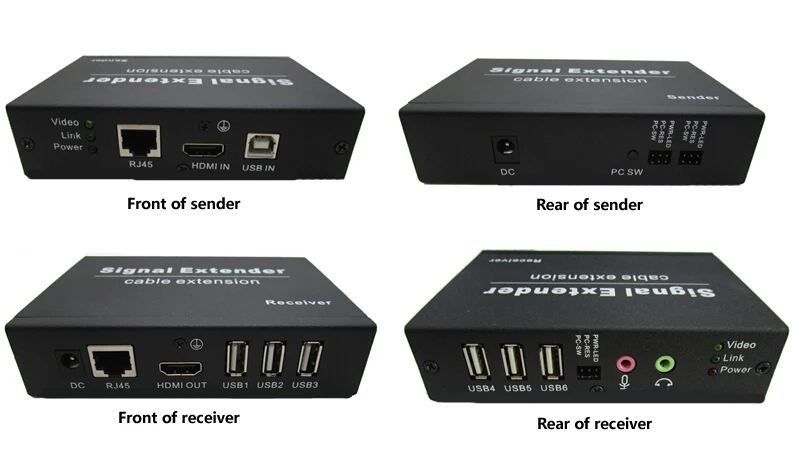

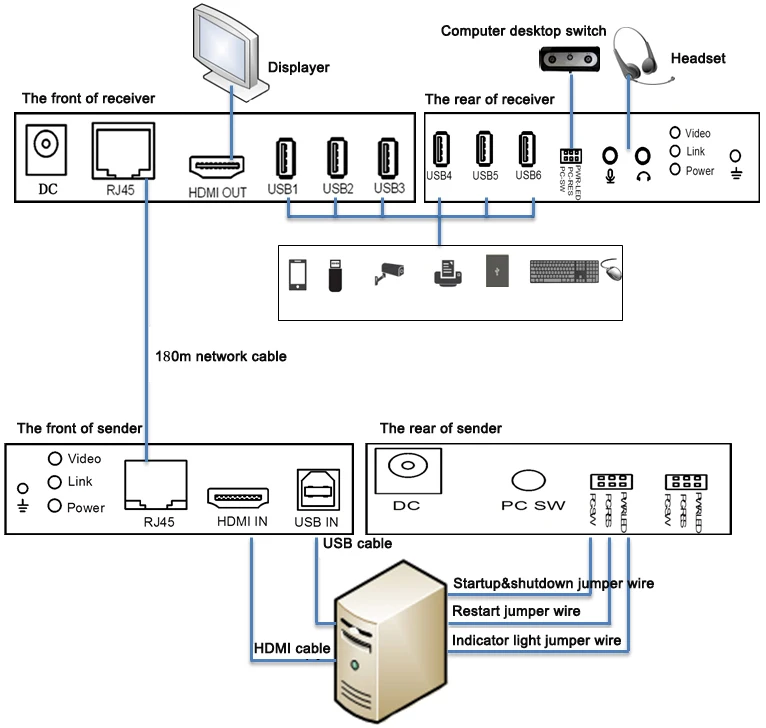

The product is composed of sender(marked with sender)and receiver(marked with receiver),can extend the HDMI video signal, Stereo audio, Mic, USB, remote switch, infrared to the far end through one single network cable.The maximum distance can reach 180m. it adopt high-bandwidth lossless technology for digital signal transmission, user can remote on off and control the computer, copy data, online games, online chat , listen to music, and do other entertainment activities.Also can put the host together in a safe place , convenient for maintenance and management, ensure the safety of the equipment and reduce noisy and fever.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.
1.Adopt HDBase-T technique,full digital, uncompressed, no delay transmission
2.Transmission rate can reach10Gbps
3.Support 1080P
4.Support HDMI1.4, 3D
5.Well compatibility,support all kinds brand of displayer and video card.
6.Support USB2.0 protocol
7.Support stereo audio and mic
8.Support remote on/off,restart PC, with led indicator light
9.6 USB port, can connect USB keyboard&mouse,HD camera,mobile HDD,mobile charge and copy data,large current design, not dropped, more convenient for use
10.Built-in strong anti-interference circuit design,with reliable and steady performance
Function | Input | Sender:1ch(HDMI,USB,Startup & Shutdown,restart,indicator light) |
Output | Receiver:1 ch(HDMI,AUDIO,MIC,Startup & Shutdown,restart,indicator light),6 USB port | |
Transmission distance | 0-180m | |
Video interface and performance | Sender video interface | HDMI |
Receiver video interface | HDMI | |
HDMI protocol | HDMI1.4 | |
Video color format support | 24bit/deep30bit/deep36bit | |
Audio format support | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD | |
Video resolution | 800X600@60HZ;1024X768@60HZ; 1280X720@60H;1280X800@60HZ; 1280X1024@60HZ;1360X768@60HZ; 1440X900@60HZ;1600X1200@60HZ; 1680X1050@60HZ;1920X1080@60HZ | |
Input/output TMDS signal | 0.5-1.5Vp-p(TTL) | |
Input/output DDC signal | 5Vp-p(TTL) | |
Audio interface and performance | Interface type | Sender USB input,receiver 3.5mm Stereo audio socket |
Bandwidth | 10HZ~20KHZ | |
USB interface | Interface type | Sender B type female port |
Receiver A type female port | ||
Protocol | Support USB2.0 | |
Transmission interface | RJ45 | Cat5E/Cat6 |
Power supply | Adaptable voltage | Input:AC100V-240V~50/60HZ Output:DC9V/2A |
Power consumption | Sender:6W Receiver:9W | |
Operating environment | Working Temperature | -15℃-55℃ |
Storage temperature | -40-80℃ | |
Humidity | 0-95% (No condensation) |
FAQ
Are you a manufacturer?
Yes. We have own technical team and production line,Our company have over 200 kinds of product for your choice.
Can I get a sample?
Yes.Our MOQ is 1PC.We are pleasure to offer you samples.
How about the payment terms?
We've accpet T/T,paypal,western union,Credit card.
Where's your company?
6th Floor East,Building A2, ZhongTai Information Technology Industrial Park,Shiyan Street,Baoan District,Shenzhen, PRC
We are sincely welcome you visit us.
