Haidier Professional 16,32,64 Trays Rotary Convection Oven
- Category: >>>
- Supplier: Shijiazhuang Haidier Machinery Export Co. Ltd.
Share on (62355295241):
Product Overview
Description
Products Description

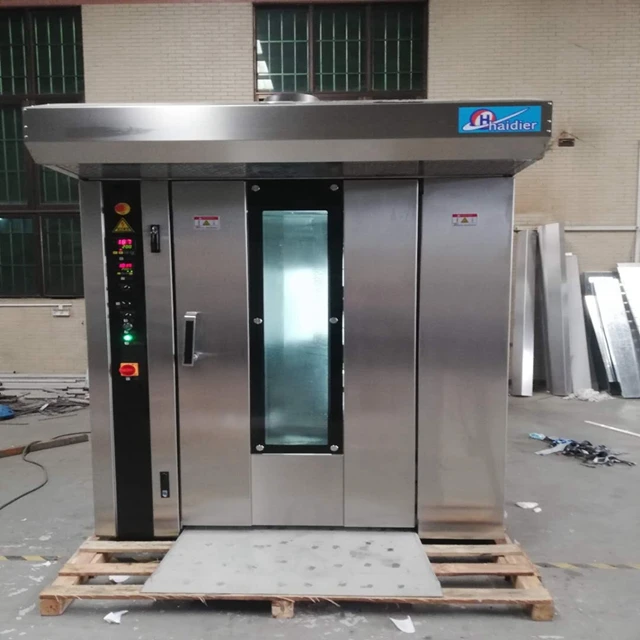

Haidier High Quality Bakery Equipment Rotary Oven For Hot Sale
After the company produced the first rotary furnace in 1989, after several times of improvement and painstaking research, it finally made greater breakthroughs in this technology.Now a new generation of all-powerful gentle wind rotating oven.
Gentle wind is based on the principle of all kinds of baked goods first baking bottom fire, through two cross air outlets and multiple deflectors, at a low speed and large air volume to the bottom of each layer of baking tray, so that the baking bread or cake volume is more expanded.Reduce moisture loss and improve baking quality.
Specification

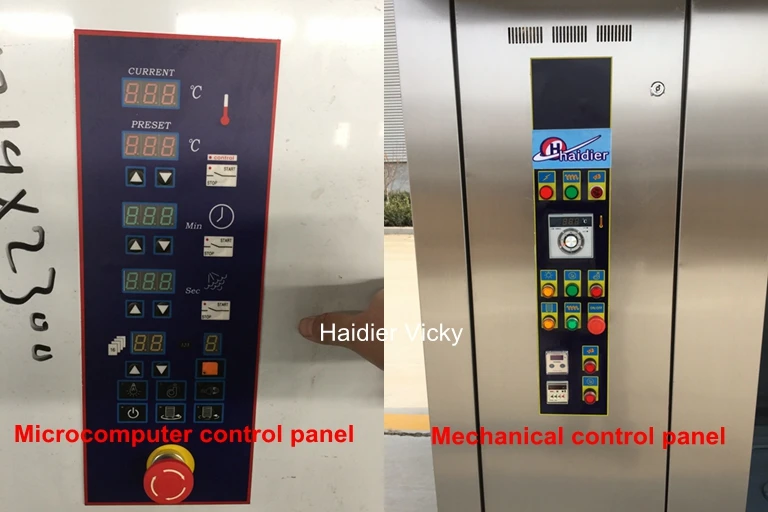

The control panel:
No matter the control panel of machine or microcomputer, TAISHENG is used. Although it is a domestic brand, it is the first domestic brand with the first market share in 30 years, which ensures stable quality and good reputation.This brand control panel is used in many Japanese layer furnaces and converters

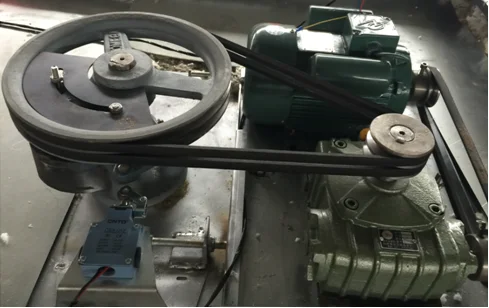

1. Motor is the first brand in Shanghai haiguang (introduced from Germany rhibo electric)
2. Bearing NSK is imported from JapanModel | Tray Size (mm) and tray No. | Power(KW) | Power(KW) | Weight(KG) | Baking space (m2) | Overal Dim.( mm ) |
Electric Oven | Diesel/Gas Oven | |||||
HDR-4616 | 400*600/16 | 32 | 1.5 | 1050 | 4.5 | 1720*1880*2150 |
HDR-5616 | 600×500/16 | 36 | 1.5 | 1200 | 5.4 | 1780*1810*2150 |
650×450/16 | ||||||
HDR-4632 | 400*600/32 | 45 | 1.8 | 1650 | 8.5 | 1950*2100*2250 |
800*600/16 | ||||||
HDR-5732 | 762×465/32 | 65 | 2.2 | 2000 | 12.6 | 1950*2100*2250 |
720×460/32 | ||||||
HDR-4664 | 400*600/64 | 76 | 3.8 | 2650 | 15 | 2130*3100*2350 |
800*600/32 | ||||||
HDR-5832 | 400×950/32 | 75 | 3.0 | 2600 | 15.4 | 2300*2230*2350 |
400*900/32 | ||||||
500×800/32 | ||||||
1000×800/16 |
1. The machine adopts stainless steel 201 imported from Korea Posco, and the actual thickness is 1.2mm.
2. Electronic components are Imported from French Schneider or German SIEMENS.
3. The burner is Imported from Italian RIELLO or Baltur.The seamless 304 heating pipe is imported from Italy, it can ensure thermal efficiency and reduce energy consumption.
5.The machine was selected high-density insulation materials, which can save energy and keep warm.
6.The features are heating uniformity, the high degree of automation, no chromatic difference and produce the finished product quality.
7. The machine use the technologies of advanced CNC machine stamping and laser cutting manufacturing and high efficiency heat and corrosion resistant special stainless steel heat exchanger, the working principle the machine is heat transfer by hot air circulation, therefore no heat conduction oil and no high pressure will not occur any danger, as well as the machine has guaranteed more than 10 years of service life.
8. The machine is controlled by IC microcomputer and the circuit is sealed inside, meanwhile it is equipped with safety siren and explosion proof system. Therefore it is good safety, durable and low failure rate.
9.It is equipped with steam humidification system, it can meet the requirements of baking humidification.
2. Electronic components are Imported from French Schneider or German SIEMENS.
3. The burner is Imported from Italian RIELLO or Baltur.The seamless 304 heating pipe is imported from Italy, it can ensure thermal efficiency and reduce energy consumption.
5.The machine was selected high-density insulation materials, which can save energy and keep warm.
6.The features are heating uniformity, the high degree of automation, no chromatic difference and produce the finished product quality.
7. The machine use the technologies of advanced CNC machine stamping and laser cutting manufacturing and high efficiency heat and corrosion resistant special stainless steel heat exchanger, the working principle the machine is heat transfer by hot air circulation, therefore no heat conduction oil and no high pressure will not occur any danger, as well as the machine has guaranteed more than 10 years of service life.
8. The machine is controlled by IC microcomputer and the circuit is sealed inside, meanwhile it is equipped with safety siren and explosion proof system. Therefore it is good safety, durable and low failure rate.
9.It is equipped with steam humidification system, it can meet the requirements of baking humidification.
10. It has CE certification.
11. Customers can customize other sizes of converter
12.We can supply diesel, gas and electric rotary oven.
12.We can supply diesel, gas and electric rotary oven.

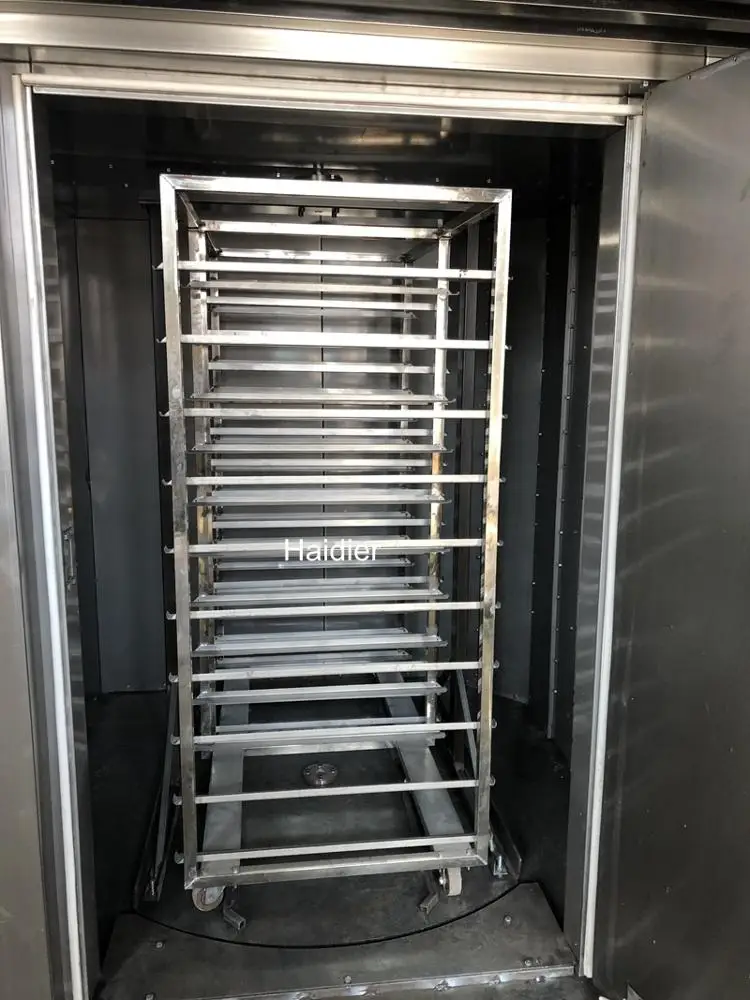

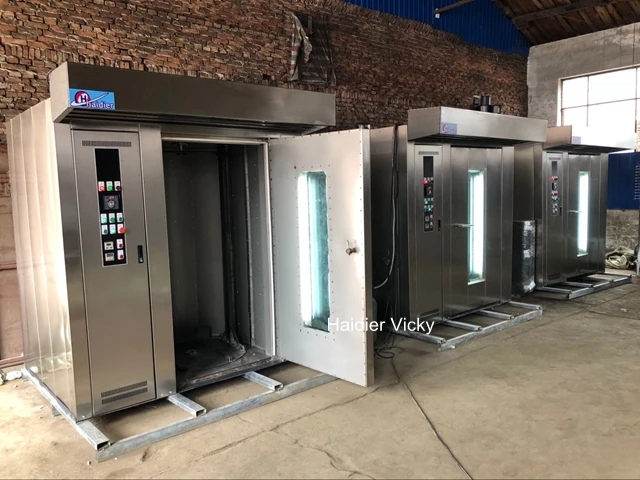

Details Images

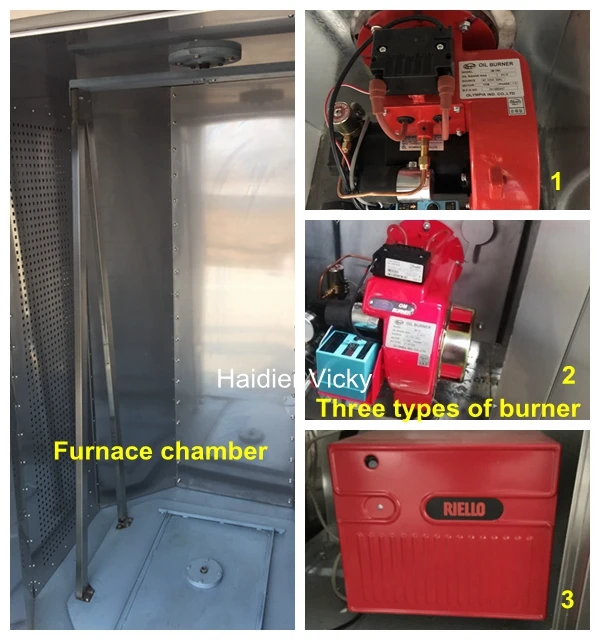

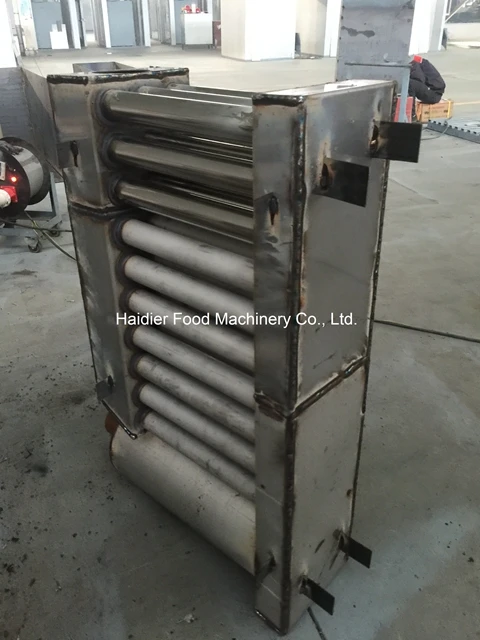

The combustion chamber:
1. The bottom of the combustion chamber is 310S imported from the United States and 3mm thick2. The bottom of the combustion chamber is 319 imported from the United States and 4mm thick
3. The heat exchanger in the upper part of the combustion chamber is 304
so,
1.The temperature resistance of 319 is 980 ° c, and that of 316 is about 800 ° c
2.310S high temperature oxidation resistance and high creep strength, the highest temperature of 1200 ℃, most used in industrial
heating furnace.Is the best heating material.
2.310S high temperature oxidation resistance and high creep strength, the highest temperature of 1200 ℃, most used in industrial
heating furnace.Is the best heating material.

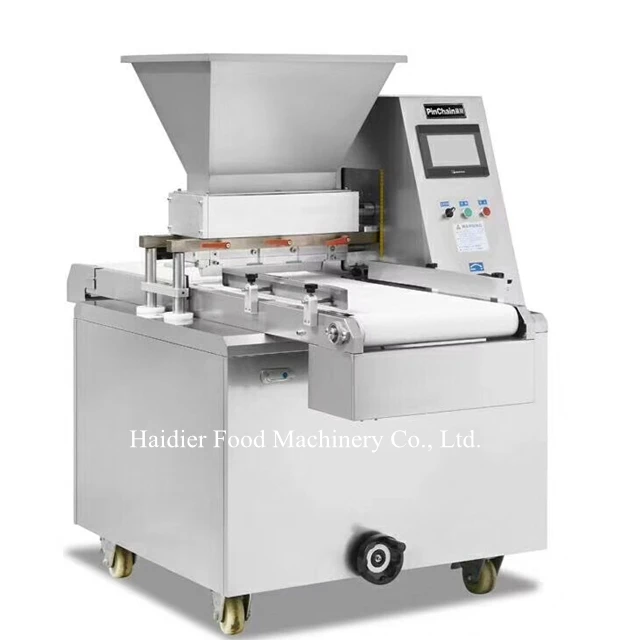

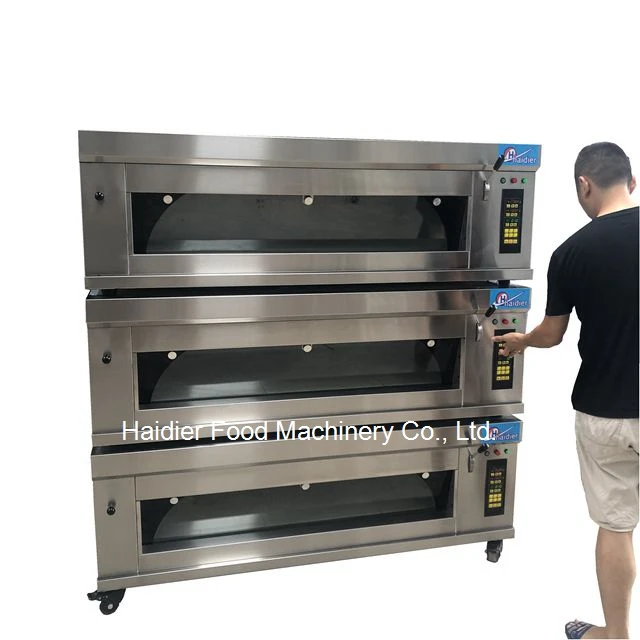

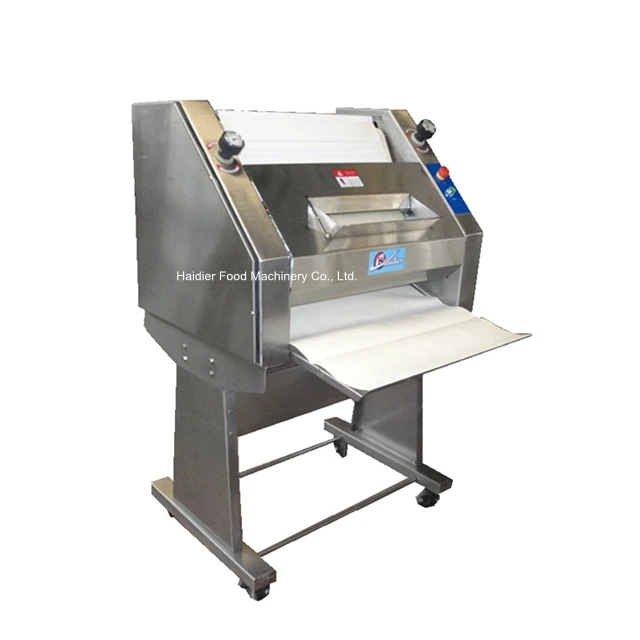

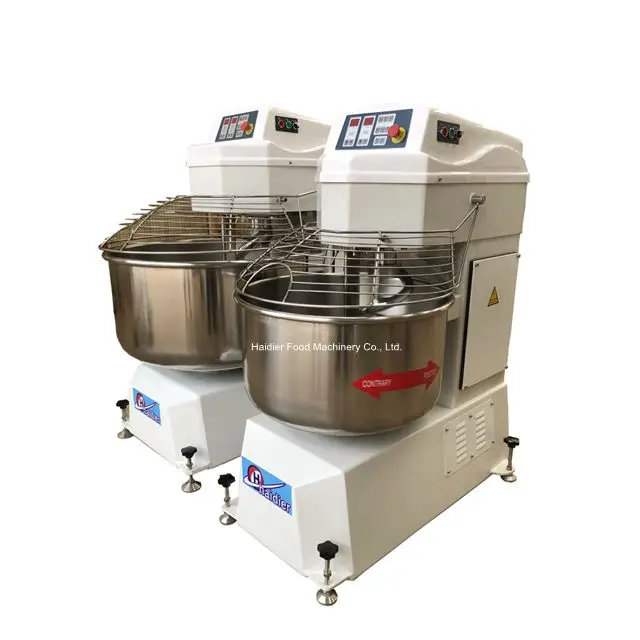

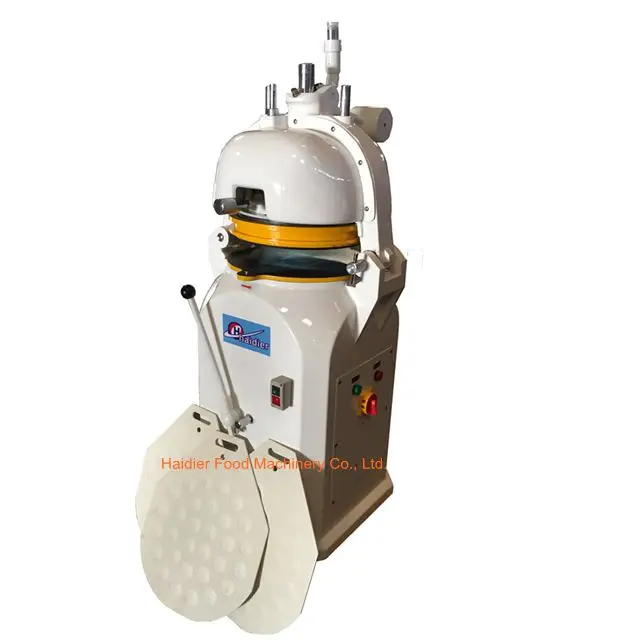

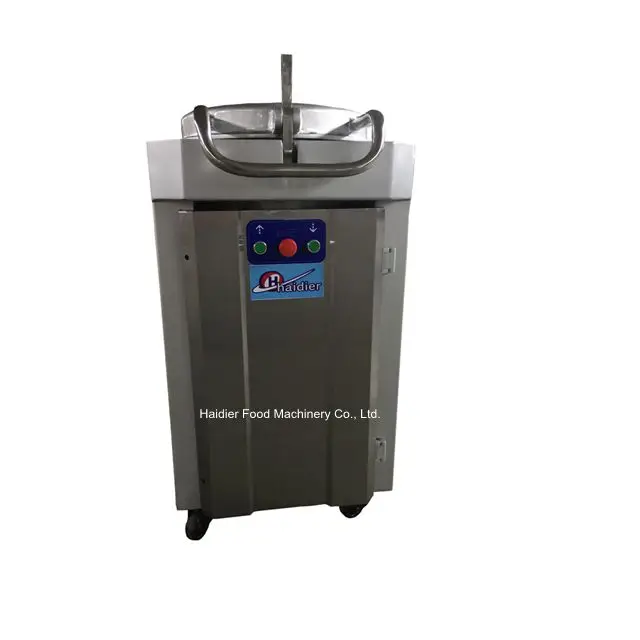

Recommend Products
For more details please click on the picture

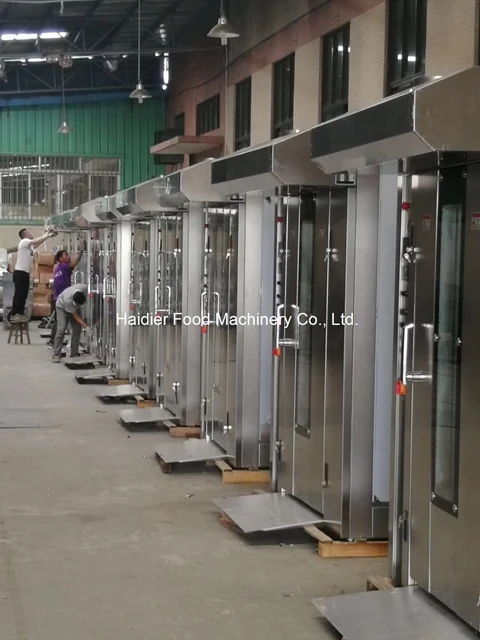

Company Profile

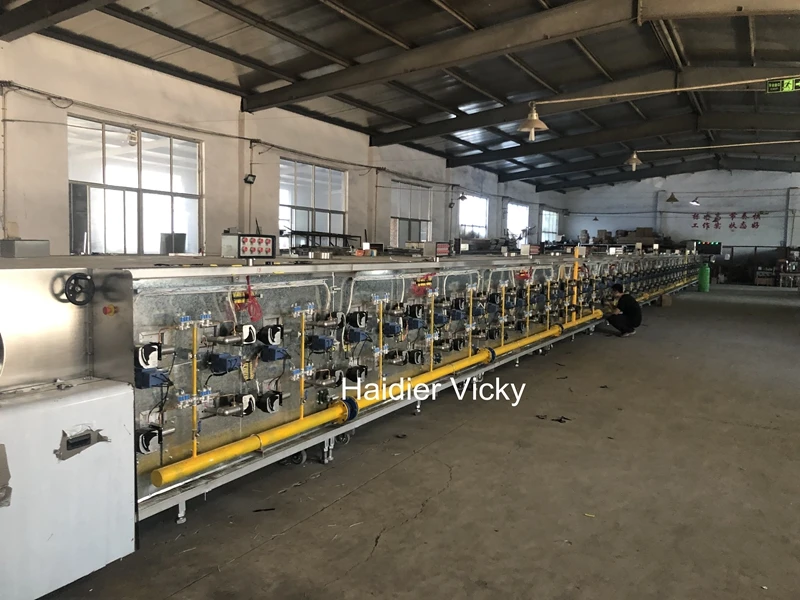

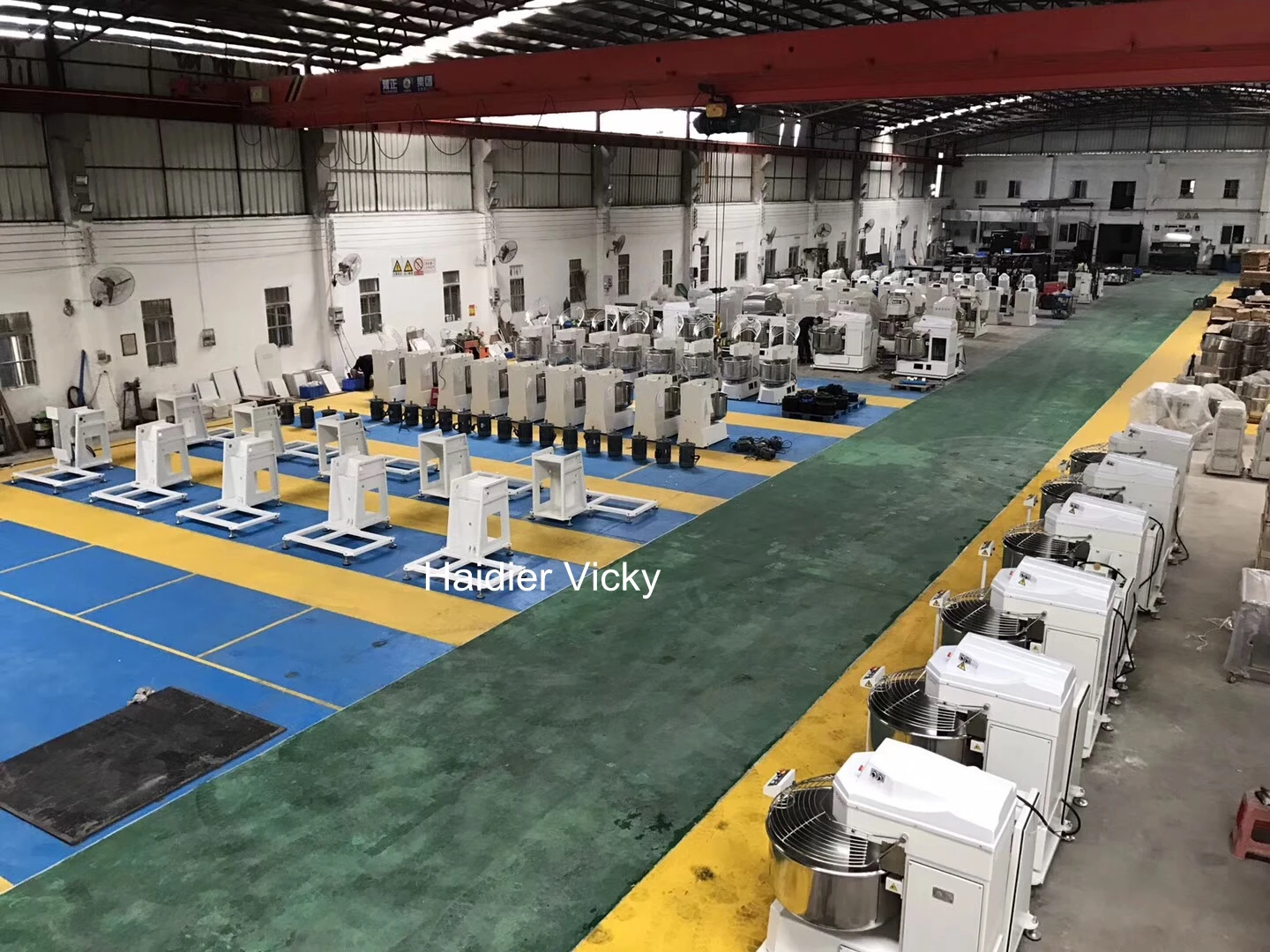

Haidier Food Machinery Co., Ltd. Established in 1990 is one of the biggest enterprises on food machinery in China, also a large company specialized in researching, manufacturing and marketing of bread bakery equipments.
Our factory owns a lot of senior engineers and skilled workers that engaged in all types of work. Our machines include all forms of food baking machines, such as Rotary Rack Oven, Deck Oven, Convection Oven, Gas Baking Oven, Diesel Oven, Spiral Mixer,Proofer, Moulder, Baking Rack, Tray and so on. In addition, we also produce correlative machines according to your design.

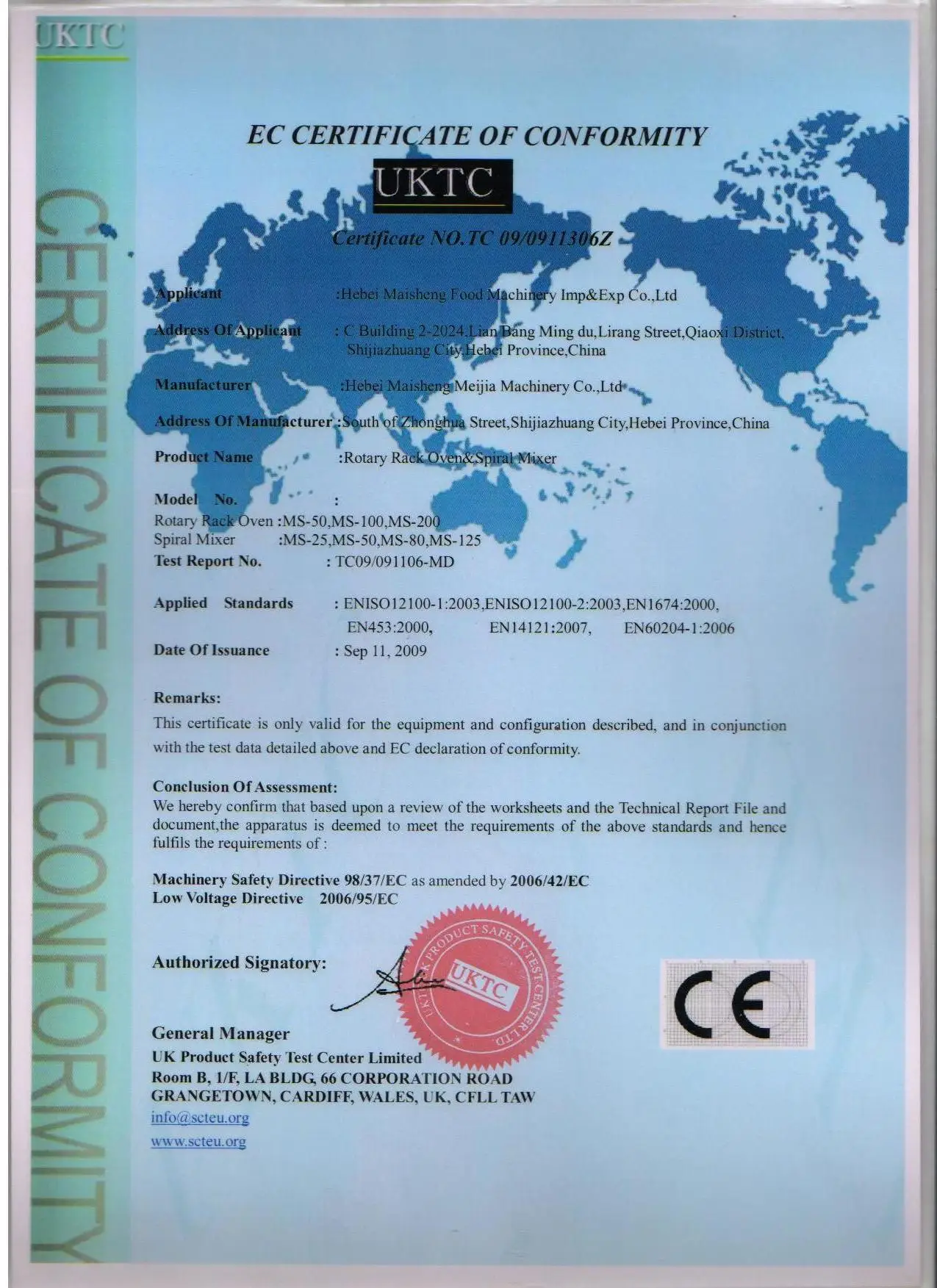

The company pays much attention to quality control and primary management We have passed ISO9001 quality system certification and CE certification. Our products are now sold all around North China, also exported to Africa, Southeast Asia, South America, Europe...... all over the world with its reasonable price and reliable properties.
Our principle is "First Quality, First Service and Greatest Efficiency ".
Our factory owns a lot of senior engineers and skilled workers that engaged in all types of work. Our machines include all forms of food baking machines, such as Rotary Rack Oven, Deck Oven, Convection Oven, Gas Baking Oven, Diesel Oven, Spiral Mixer,Proofer, Moulder, Baking Rack, Tray and so on. In addition, we also produce correlative machines according to your design.
The company pays much attention to quality control and primary management We have passed ISO9001 quality system certification and CE certification. Our products are now sold all around North China, also exported to Africa, Southeast Asia, South America, Europe...... all over the world with its reasonable price and reliable properties.
Our principle is "First Quality, First Service and Greatest Efficiency ".

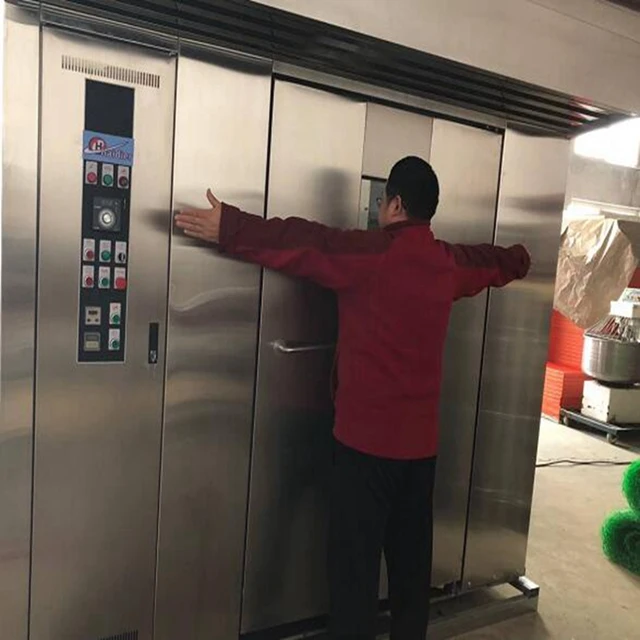

Customer Photos

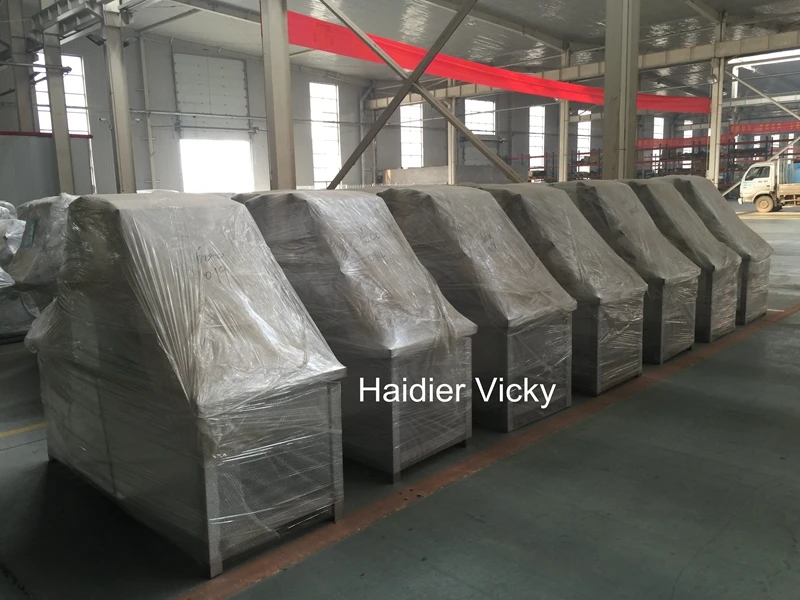

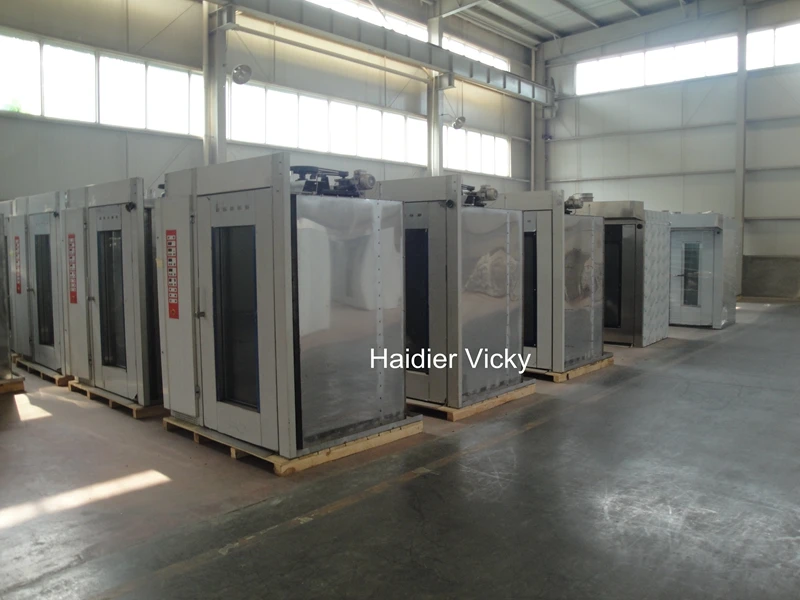

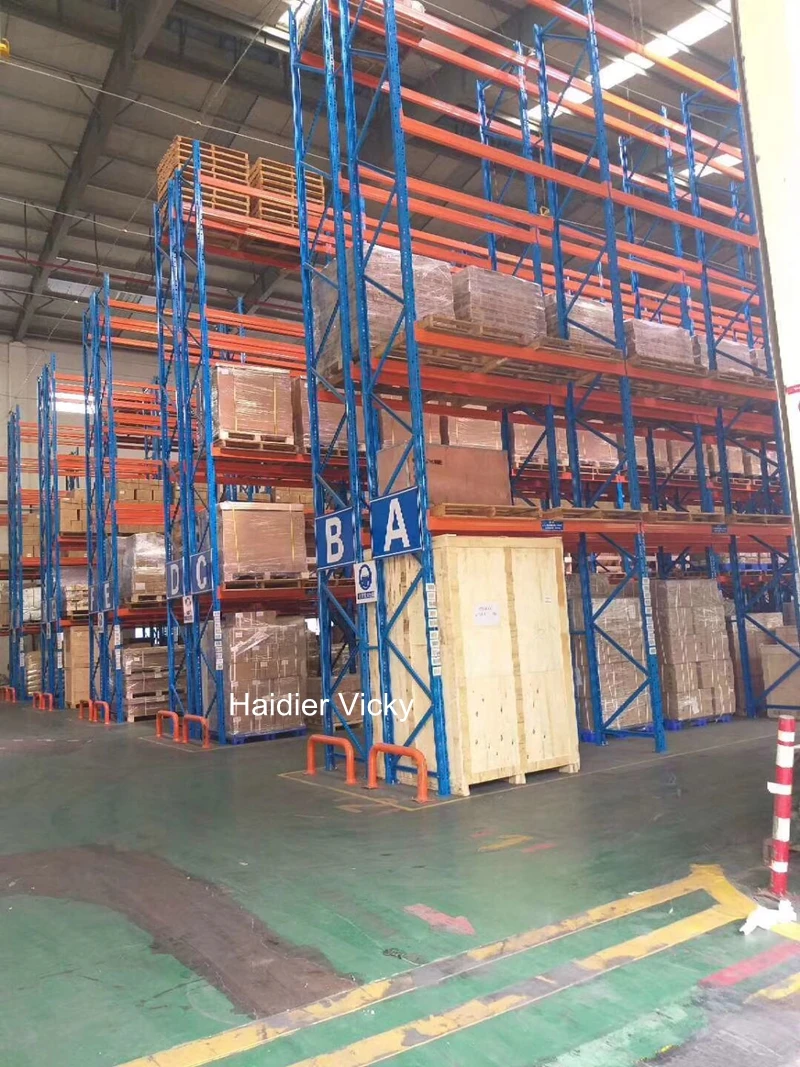

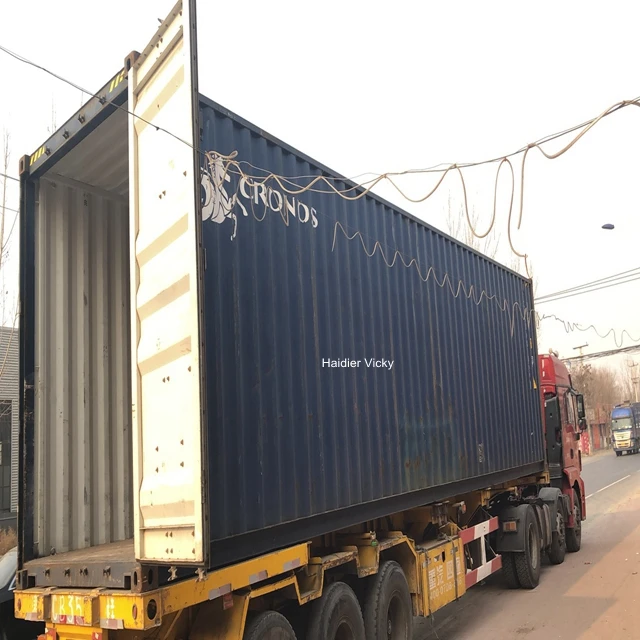

Packing and Shipping

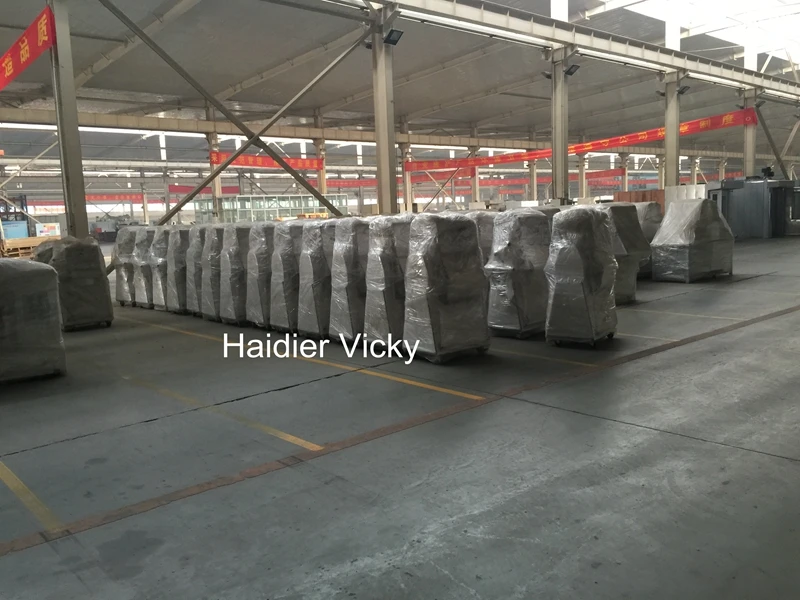

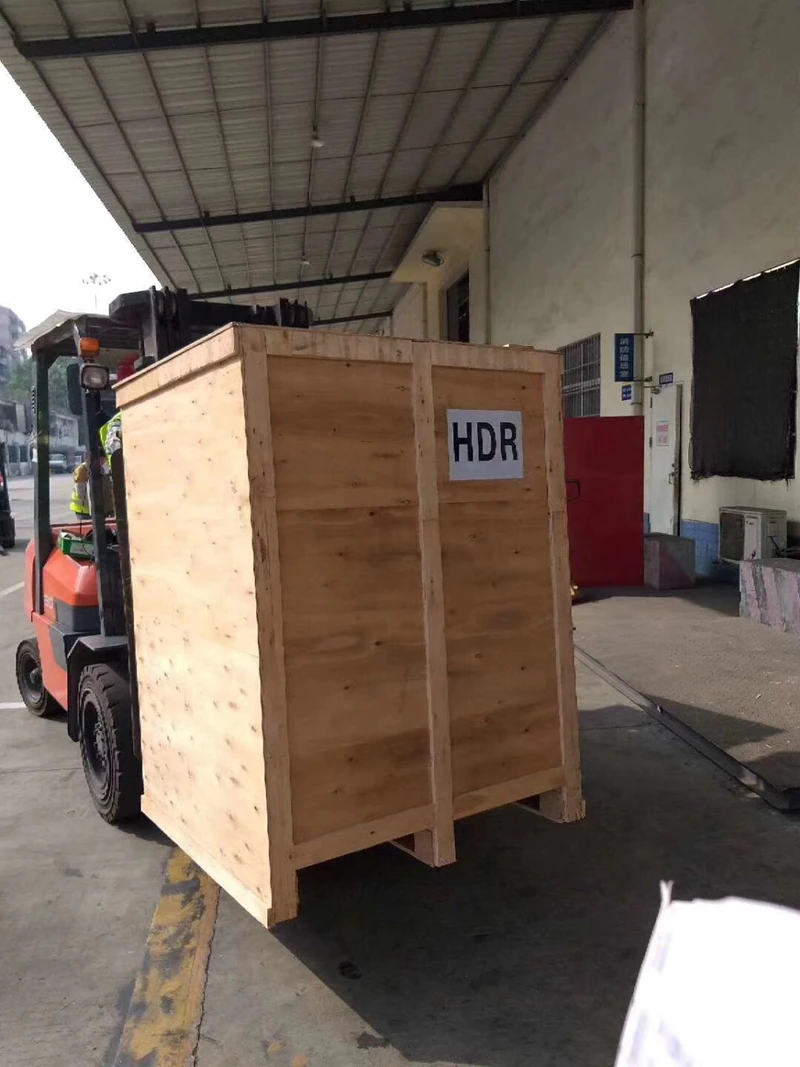

1.Our regular packing is: mechanical surface coated with preservative solution (to protect stainless steel), and then the plastic cushion packing machine (prevent bump), and plastic film packaging (to prevent ventilation), and wooden packaging (easy to transport), and then in the wood outside the box hit the bandage (reinforcement overall).
