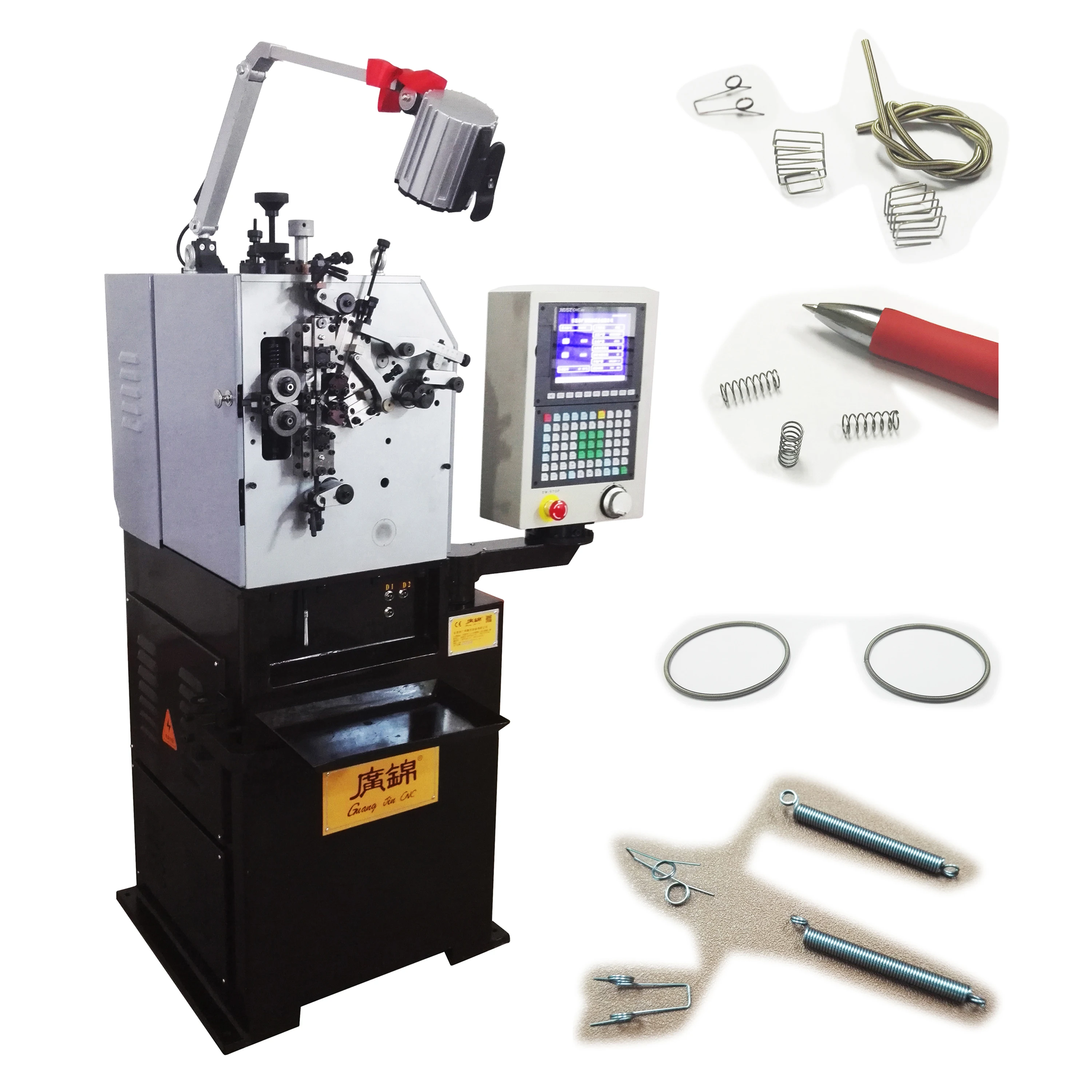

Precise 2 axis spring coiling machine 2 x 1KW conical compression spring and tower spring making
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (62355307474):
Product Overview
Description
Product Description
High precision 2 Axis 0.08--1 mm spring coiling and compression spring making machine
Model: GJ-8
Application :
1. Oil seal spring, oil ring
2. Micro precise springs
3. Tiny springs as 0.10mm wire diameter.

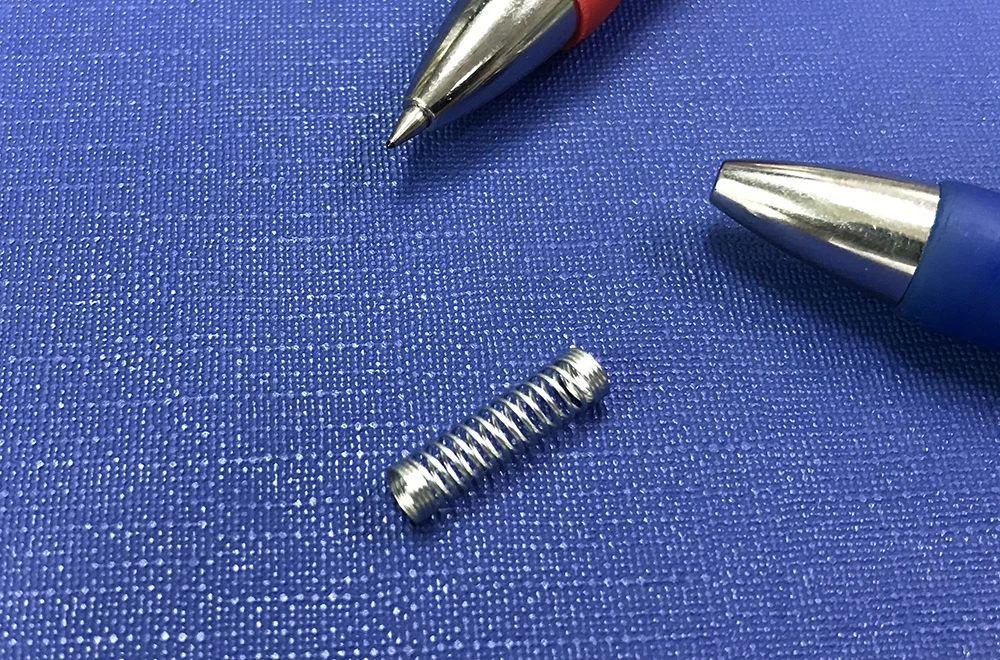

4. Electrical switch / wall switch springs

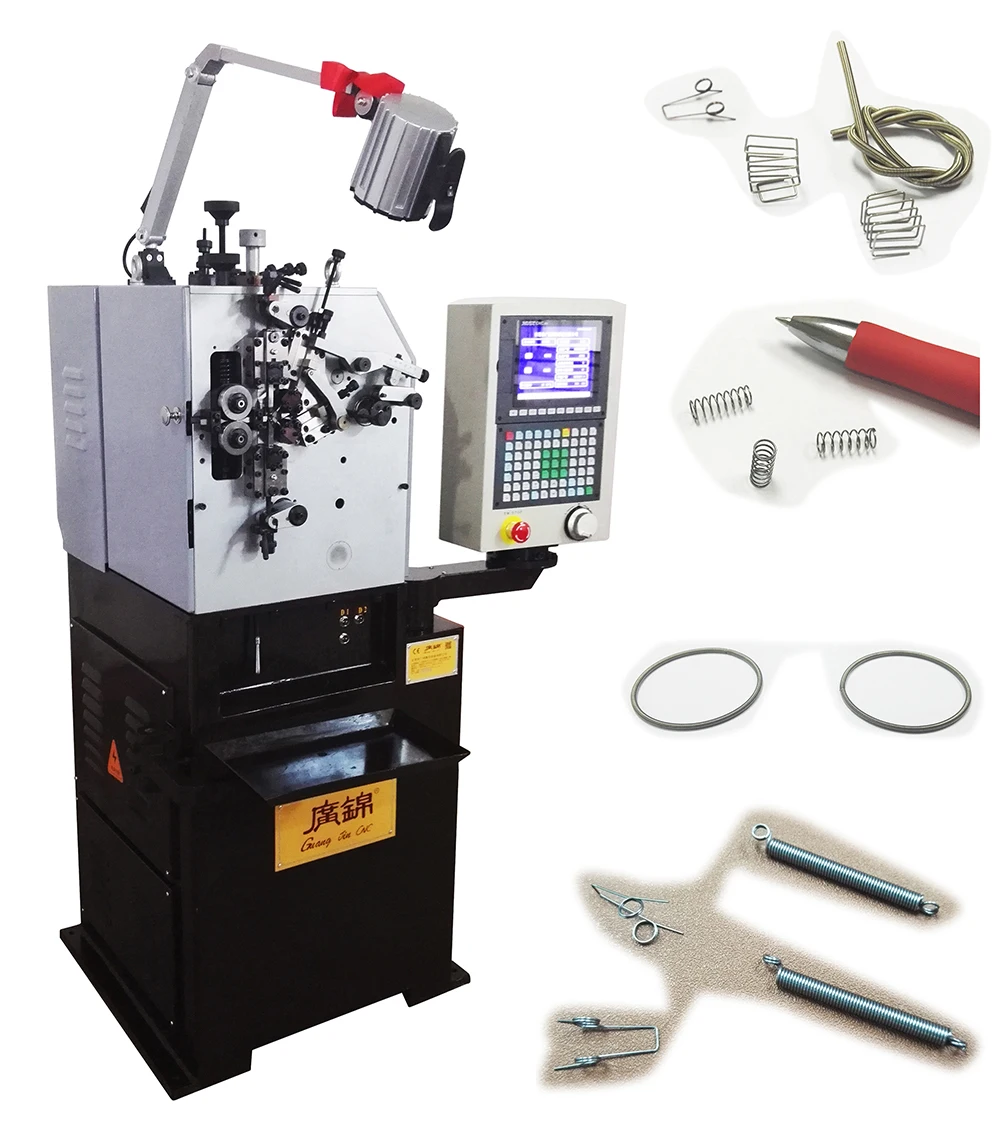

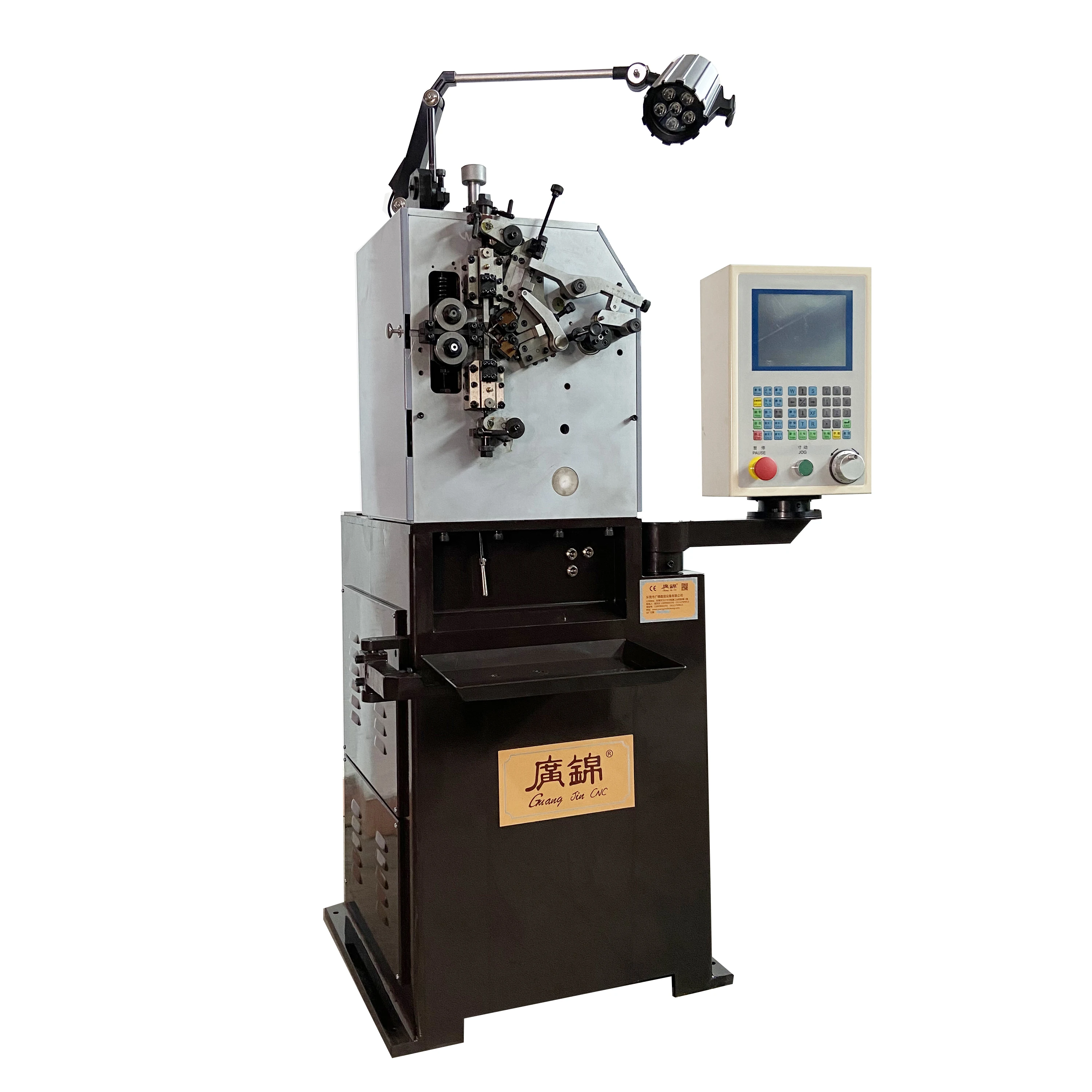

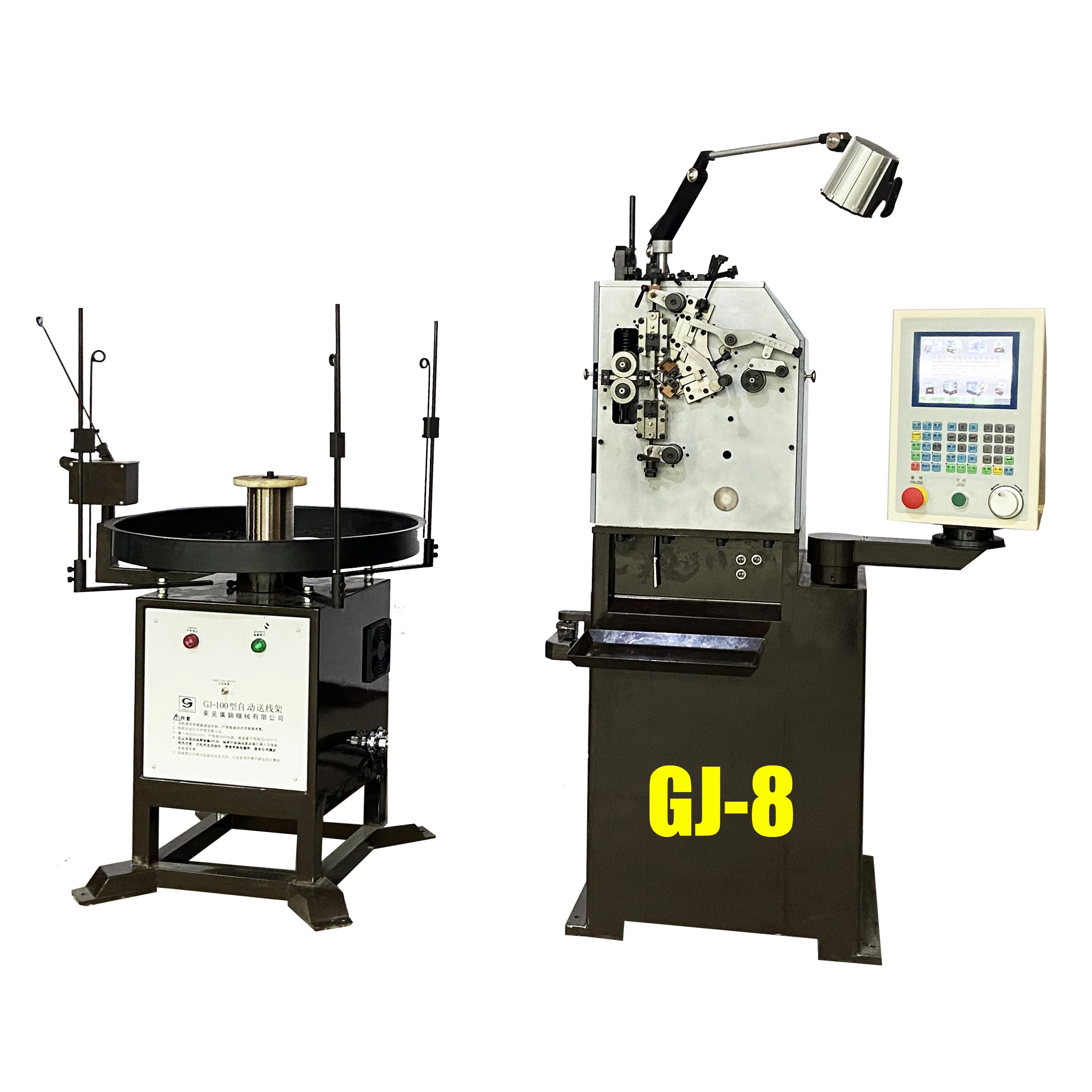

Machine pictures
Details
Technical Parameters
| Product Description | 0.08-1.mm Micro High Precision Compression Spring Coiling Machine |
| Model | GJ-8 |
| Wire Size | Φ 0.08- 1 mm |
| Axis | 2 axis ( 2 Servo Motors ) |
| Producible Max Spring'S Outside Diameter | 20mm |
| Wire Feeding | 0.1mm / 1000.00mm |
| Producing Speed | 720 pcs per minute |
| Cam Setting Value | ±0.1°~ ±359.9° |
| Cam Rotation Speed | 0~75 RPM |

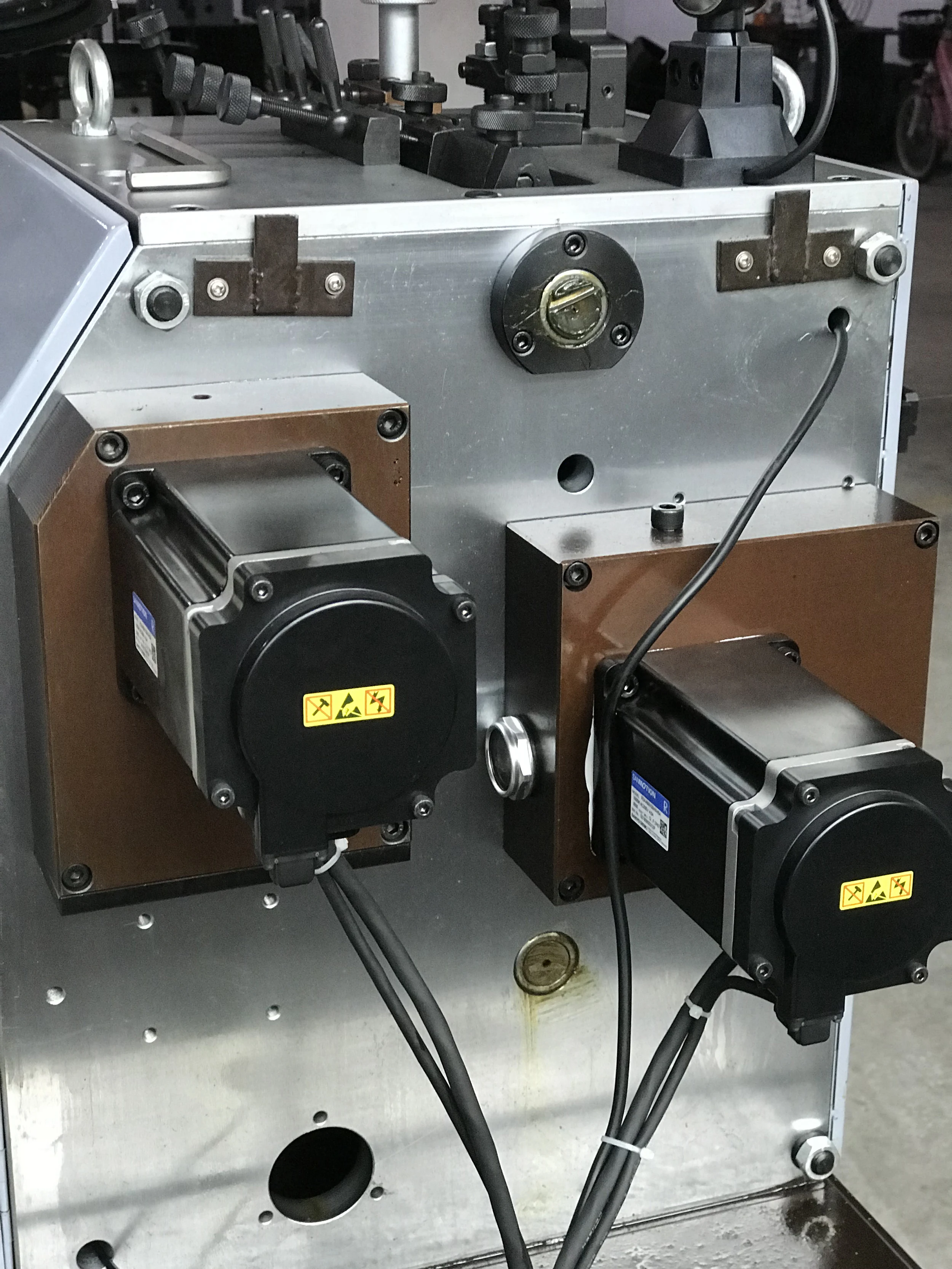

Wire Feed Servo Motor Cam servo motor | 1kw 1kw |
| Power / Input | AC, 3phase, 380v±10%, 50HZ |
| Machine Size | 660*880*1400 (H) mm |
| Machine Weight | 450kg |
Company Information
.Exhibition 2020-09 Guangzhou
Client Witness:
Contacts:
Dongguan GuangJin CNC Equipment Co., Ltd.
( Factory: Spring Coiling and Wire Forming Machine )
Sales: Baker Liu / WA: +8613433629565
Add: Dongguan City, South China, 523052.
Our machines making:
1. Vary type springs, Converyor Blet, Constant Force,
2. Customized wire forming products. C-Washer
3. Fishing snap, fish clasp, Flat spiral, Garter,
4. O-Ring, Oil seal, Wire Pin
5. Slant spring, Rake teeth.
6. Trigger sprayer spring.
