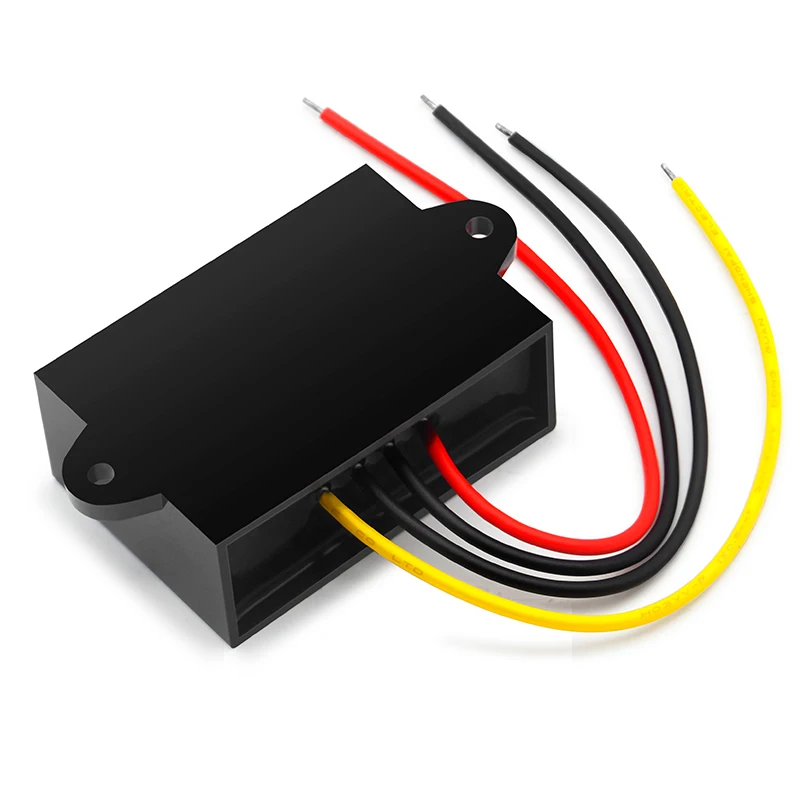

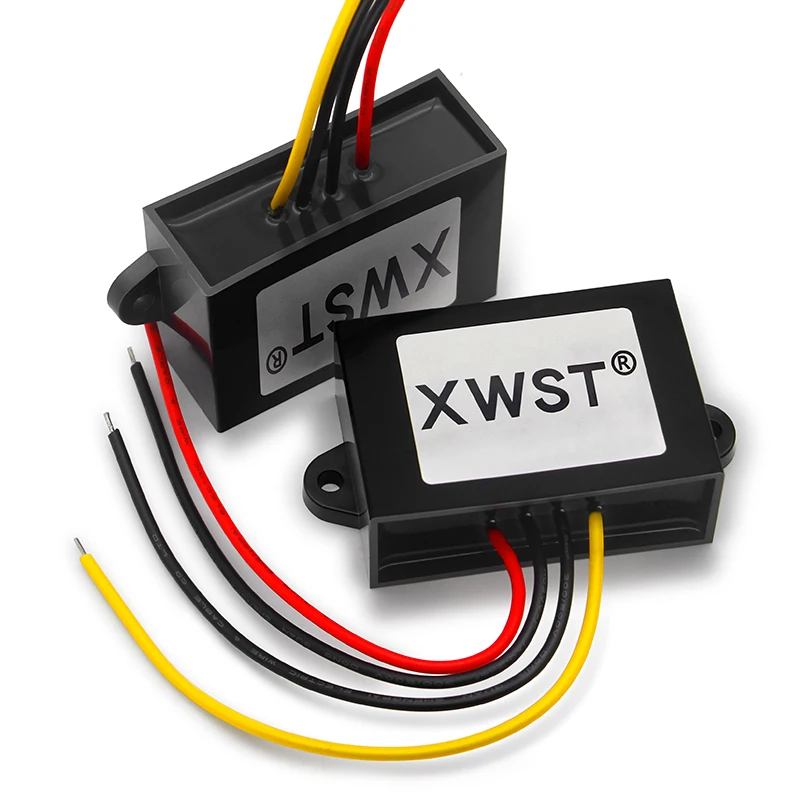

Waterproof Step Up Boost Dc dc Converter 12v to 48v 1A 1.5A Power Inverter CE RoHs IP67 for Electric Bike
- Category: >>>
- Supplier: Huizhou Xinwei Technology Co. Ltd.
Share on (62355353079):
Product Overview
Description
Company Profile
Features：
1. 100% full power & stable current output.
2. 100% Imported components.
3. 100% waterproof & anti-shock protection, Ultra compact size, light weight.
4. Industry grade Golf Cart Voltage Reducer efficiency up to 96%.
5. Certificates: CE/RoHS.
6. Waterproof level: IP68.
7. Aluminum shell, epoxy potting, Cooling by free air convection.
8. Protections: Over-current, Over-voltage, Over-temperature.
9. Over-load and Short-circuit, Auto-recovery when device is back to normal operating.
10. Non-Isolated Module.
11. 1 year warranty, lifetime up to 100,000 hours.
12. Constant Voltage Design.
2. 100% Imported components.
3. 100% waterproof & anti-shock protection, Ultra compact size, light weight.
4. Industry grade Golf Cart Voltage Reducer efficiency up to 96%.
5. Certificates: CE/RoHS.
6. Waterproof level: IP68.
7. Aluminum shell, epoxy potting, Cooling by free air convection.
8. Protections: Over-current, Over-voltage, Over-temperature.
9. Over-load and Short-circuit, Auto-recovery when device is back to normal operating.
10. Non-Isolated Module.
11. 1 year warranty, lifetime up to 100,000 hours.
12. Constant Voltage Design.
Specification
Product Name | DC to DC Boost Converter | ||||
Model No. | XW-12-48-48W~72W | ||||
Module Properties | Non-isolated Module | ||||

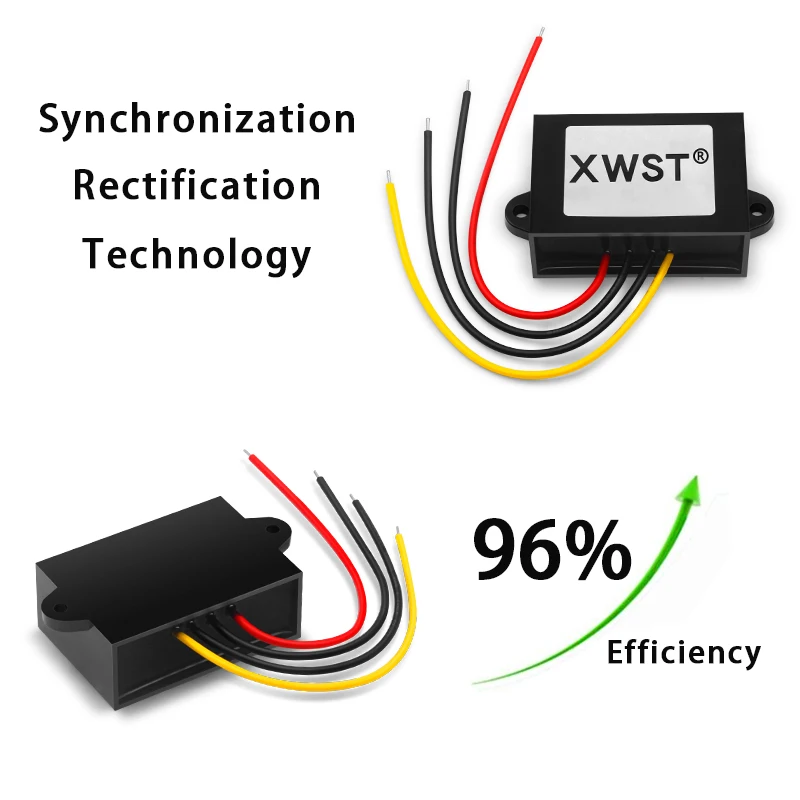

Rectification | Synchronous Rectification | ||||
Input Voltage | DC 12V | ||||
Input Voltage Range | DC 10-18V | ||||
Output Voltage | DC 48V | ||||
Output Current | 1A / 1.5A | ||||
Output Power | 48W / 72W | ||||
Conversion Efficiency | >93% | ||||
Cable Length | 13-14cm | ||||
Ripple (Full load test) | 40mV | ||||
No-load current | 3.5mA | ||||
Working Temperature | -40~80℃ ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) | ||||

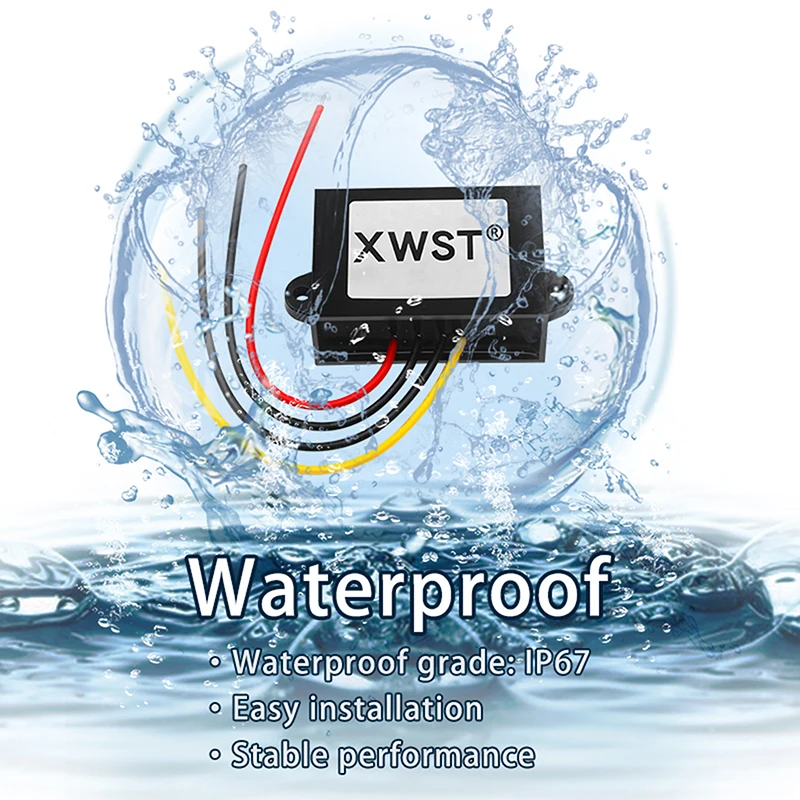

Waterproof Rating | IP67 | ||||
Protection | Over-current /Over-voltage/Over-heat/Short-circuit Waterproof, Anti-shock , Anti-dust protection | ||||
Application | Mobile phone, Car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,Water pumps, Industrial equipment ect | ||||
Shell Material | ABS Plastic | ||||

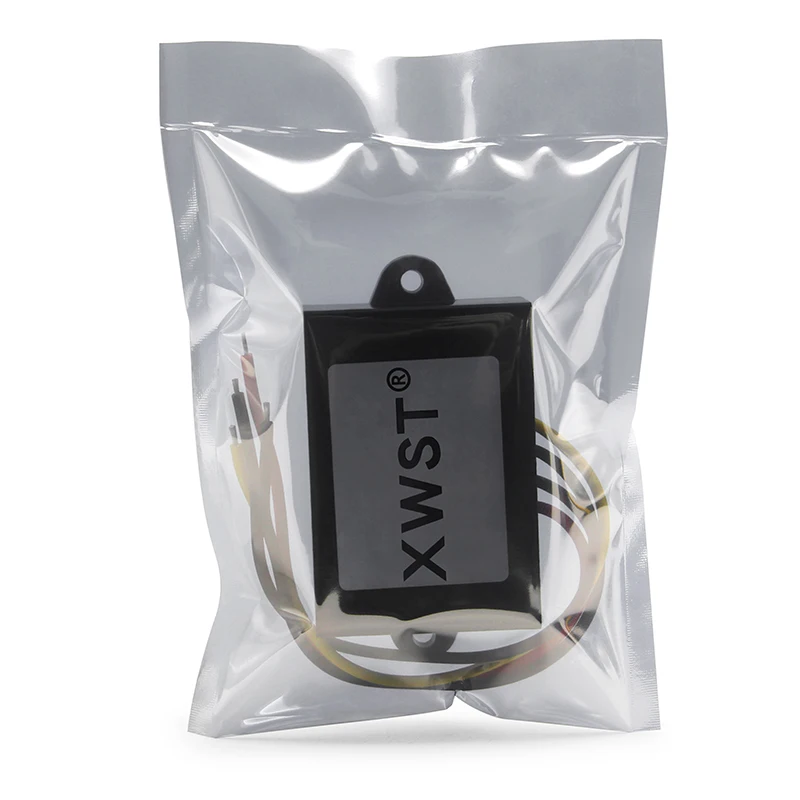

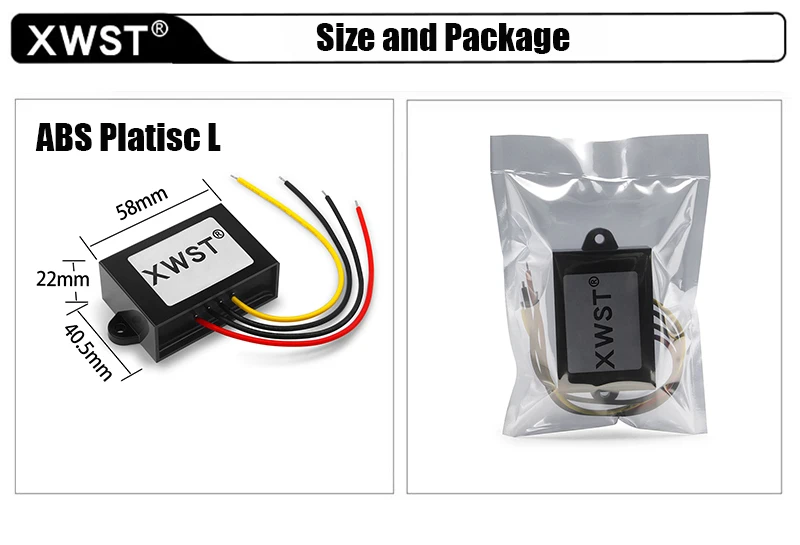

Size /Packing | 58*40.5*22mm, 97g Anti-static Bag | ||||
Warranty | 12 months | ||||
Product Description
Certifications
Packing & Delivery
FAQ
1. Are you a manufacturer?
Answer: Yes! HuiZhou Xinwei Technology Co., Ltd is a professional leading manufacturer engaged in the research, development, production, sale and service of DC-DC, AC-DC switching power, we have developing team with above 12 years experience can offer personalized power solutions. If you have a chance, you can visit us anytime. Our factory address is 9th Floor, Building 7, Yinong Technology Rural Revitalization Technology Industry Demonstration Park, No. 3 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou City, Guangdong Province.
2. What is your MOQ? Delivery time? Shipping Cost?
Answer: XWST normal MOQ is only 1pcs.
The delivery time and shipping cost depends on the quantity of goods, the shipping method and the country. Once the order's details are confirmed. we will calculate the cost correspondingly.
Answer: Yes! HuiZhou Xinwei Technology Co., Ltd is a professional leading manufacturer engaged in the research, development, production, sale and service of DC-DC, AC-DC switching power, we have developing team with above 12 years experience can offer personalized power solutions. If you have a chance, you can visit us anytime. Our factory address is 9th Floor, Building 7, Yinong Technology Rural Revitalization Technology Industry Demonstration Park, No. 3 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou City, Guangdong Province.
2. What is your MOQ? Delivery time? Shipping Cost?
Answer: XWST normal MOQ is only 1pcs.
The delivery time and shipping cost depends on the quantity of goods, the shipping method and the country. Once the order's details are confirmed. we will calculate the cost correspondingly.
3. Can I get samples?
Answer: Yes. We can offer samples for checking. We usually send samples by FedEx, DHL, UPS & TNT etc. If you have carrier account, it will be pleased to ship with your account.
4. Is it acceptable to print my logo on the product?
Answer: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
5. How to place an order?
Answer: Please send PO to XWST and we will send back a PI accordingly. You will sign the PI back, wire the payment and send T/T copy for our reference. Then the products will be in preparation. After getting the payment, the items will be sent out ASAP.
Answer: Yes. We can offer samples for checking. We usually send samples by FedEx, DHL, UPS & TNT etc. If you have carrier account, it will be pleased to ship with your account.
4. Is it acceptable to print my logo on the product?
Answer: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
5. How to place an order?
Answer: Please send PO to XWST and we will send back a PI accordingly. You will sign the PI back, wire the payment and send T/T copy for our reference. Then the products will be in preparation. After getting the payment, the items will be sent out ASAP.
6. How can you make sure your quality? What's your warranty service?
Answer: Quality is the life of XWST. We only use the best quality (original) components to ensure the standard of our products is the highest. All products we sold out are produced by skilled workers and 100% inspected strictly by QC department before leaving XWST's factory. XWST provide 12 months warranty (not including shipping cost). For normal use, any raw materials or the production process by the quality problems cased by the date of purchase within 12 months, we provide free repair service.
For improper use, such as improper installation/input voltage/modify the product or any other broken by man-made, the warranty will fail even if in the warranty period.
Answer: Quality is the life of XWST. We only use the best quality (original) components to ensure the standard of our products is the highest. All products we sold out are produced by skilled workers and 100% inspected strictly by QC department before leaving XWST's factory. XWST provide 12 months warranty (not including shipping cost). For normal use, any raw materials or the production process by the quality problems cased by the date of purchase within 12 months, we provide free repair service.
For improper use, such as improper installation/input voltage/modify the product or any other broken by man-made, the warranty will fail even if in the warranty period.
