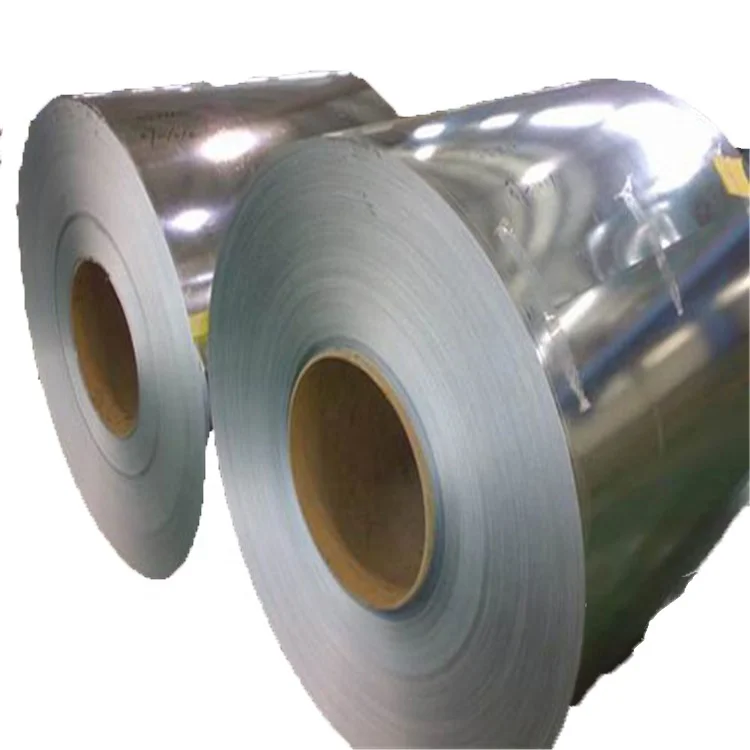

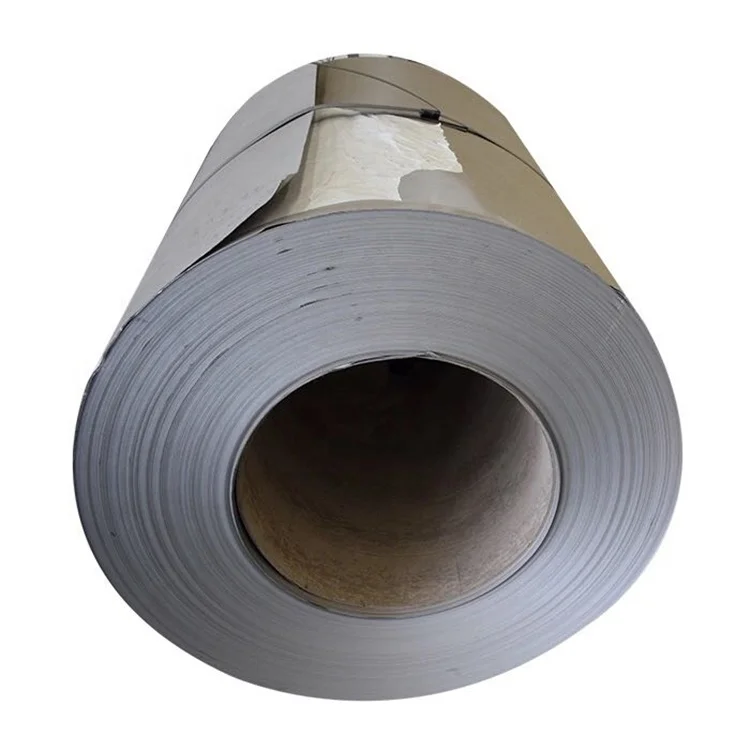

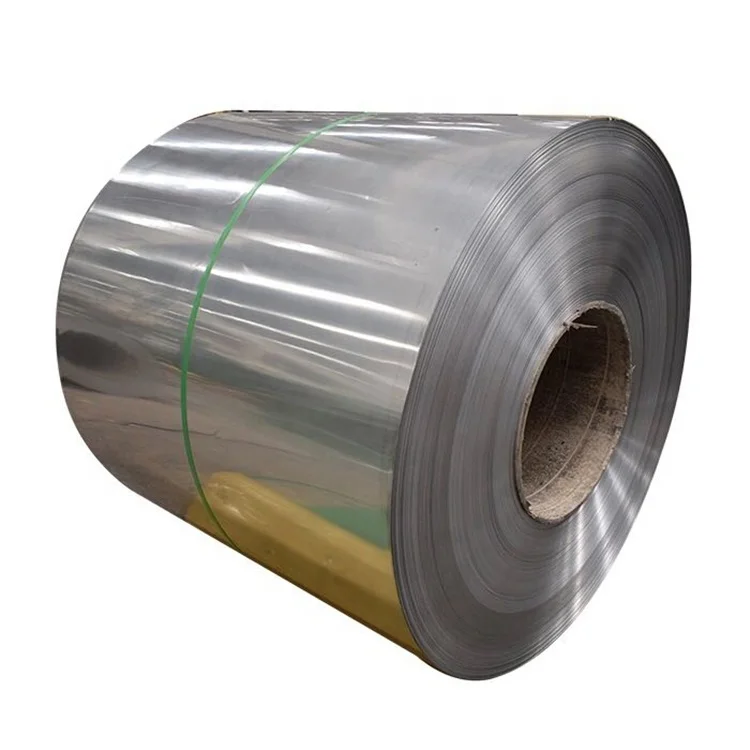

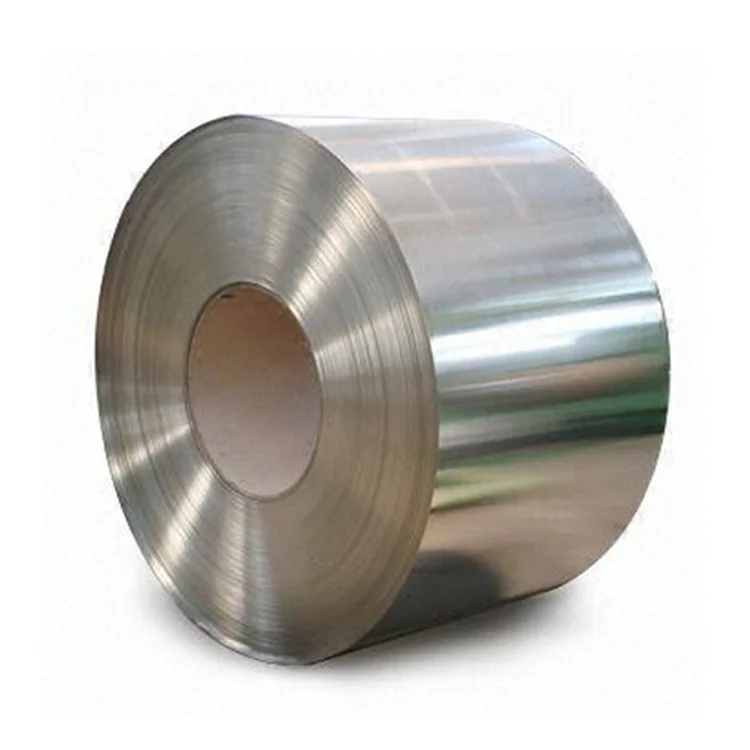

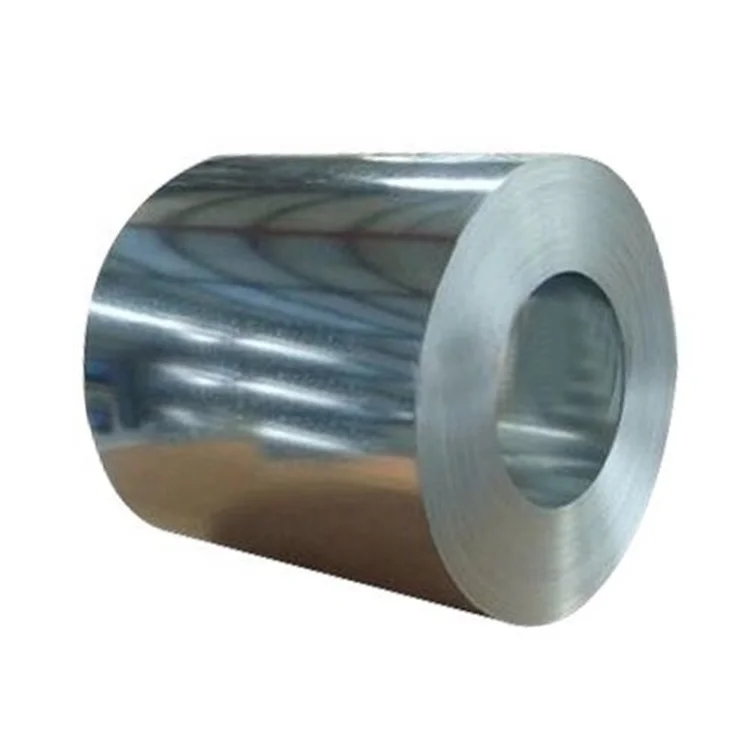

ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry
ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry

ASTM B443 Cold Rolled Inconel 625 Nickel Based Alloy Coil for Paper industry

Share on (62355422845):


Price:RUB 2,295.31

Quantity:


Product Overview

Description

_01



Cold Rolled NO.1 Surface Inconel 625 Nickel Based Alloy Coil for Paper industry

Type Analysis

Element

Min

Max

Carbon

--

0.10

Nickel

Bal.

Chromium

20.0

23.0

Iron

--

5.00

Silicon

--

0.50

Manganese

--

0.50

Sulfur

--

0.015

Phosphorus

--

0.015

Molybdenum

8.00

10.0

Titanium

--

0.40

Cobalt

--

1.00

Columbium + Tantalum

3.15

4.15

Aluminum

--

0.40

Description

Alloy 625 is a nonmagnetic , corrosion - and oxidation-resistant, nickel-based alloy. Its outstanding strength and toughness in the temperature range cryogenic to 2000°F (1093°C) are derived primarily from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. The alloy has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions. Some typical applications for alloy 625 have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners and spray bars, chemical plant hardware, and special seawater applications.

Corrosion Resistance

Alloy 625 has withstood many corrosive environments. In alkaline, salt water, fresh water, neutral salts, and in the air, almost no attack occurs. The nickel and chromium provide resistance to oxidizing environments. Nickel and molybdenum provide for resistance to nonoxidizing atmospheres. Pitting and crevice corrosion are prevented by molybdenum. Niobium stabilizes the alloy against sensitization during welding. Chloride stress-corrosion cracking resistance is excellent. The alloy resists scaling and oxidation at high temperatures.

Physical Properties

Physical Property

°C

Metric Units

°F

British Units

Density

22

8.44 g/cubic cm

72

0.305 lb/cubic in.

Electrical
Resistivity

23
100
200
300
400
500
600

1.26 microhm-m
1.27
1.28
1.29
1.30
1.31
1.32

74
212
392
572
752
932
1112

49.6 microhm-in.
50.0
50.4
50.8
51.2
51.6
52.0

Mean Coefficient
of Thermal
Expansion

20-204
20-316
20-427
20-538
20-649
20-760
20-871
20-982

13.1 x 10(-6)m/m-°C
13.5
13.9
14.4
15.1
15.7
16.6
17.3

68-400
68-600
68-800
68-1000
68-1200
68-1400
68-1600
68-1800

7.3 microinches/in.-°F
7.5
7.7
8.0
8.4
8.7
9.2
9.6

Thermal
Conductivity

23
100
200
300
400
500
600

9.8 W/M-°C
11.4
13.4
15.5
17.6
19.6
21.3

74
212
392
572
752
932
1112

68 Btu-in./ft².-hr.-°F
79
93
108
122
136
148

Specific
Heat

0
100
200
300
400
500
600

429 J/kg-°C
446
463
480
496
513
560

32
212
392
572
752
932
1112

0.102 Btu/lb-°F
0.107
0.111
0.115
0.118
0.123
0.134



Mechanical Properties

Average Impact Strength, Plate *

Aging Temperature,
F (C)

Aging Time, hrs.

Average Charpy V-Notch
Impact Strength,

ft. lbs.

J

Annealed**

--

81

110

1200 (649)

1000
4000
8000
16000

11
8
5
4

15
11
7
5

1400 (760)

1000
4000
8000
16000

5
4
5
4

7
5
7
5

1600 (871)

1000
4000
8000
16000

12
11
15
14

16
15
20
19

*Average of four tests on 1/2-in. (12.7mm) plate from a single heat.
**1875F (1024C), rapid cooled.

Average Hardness and Tensile Data, Room Temperature

Condition

Form

Ultimate
Tensile
Strength,
ksi (MPa)

Yield
Strength
at 0.2%
offset,ksi (MPa)

Elongation
in 2"
percent

Hardness,
Rockwell

Annealed at
1925°F (1052°C),
rapid cooled

Sheet
0.014-0.063"
thick

132.0 (910)

67.9 (468)

47

B94

Annealed at
1925°F (1052°C),
rapid cooled

Sheet,*
0.0.78-0.155"
thick

131.5 (907)

67.4 (465)

45

B97

Annealed at
1925°F (1052°C),
rapid cooled

Plate,***
1/4"
1/2"
3/4"
1.00"
1-1/2"
1-3/4"


132.0 (910)
130.0 (896)
132.3 (912)
127.2 (877)
127.3 (878)
128.0 (883)


65.5 (452)
67.0 (462)
80.0 (552)
75.3 (519)
73.7 (508)
66.0 (455)


46
44
44
42
43
44


B94
B98
B98
B97
B97
C20



Average Tensile Data, Room Temperature*

Form

Aging Temperature,
F (C)

Aging Tme, hrs.

Ultimate
Tensile
Strength,
Ksi (MPa)

Yield
Strength
at 0.2%
offset,
Ksi (MPa)

Elongation
in 2 in.,
(50.8 mm),
percent

Plate,
1/2 in. (12.7 mm)
thick

Annealed**

--

127.7 (880)

66.2 (456)

46

1200 (649)

1000
4000
8000
16000

165.0 (1138)
163.6 (1128)
164.2 (1132)
165.4 (1140)

122.3 (843)
117.9 (813)
117.8 (812)
118.5 (817)

28
24
18
12

1400 (760)

1000
4000
8000
16000

142.9 (985)
145.5 (1003)
142.6 (983)
140.4 (968)

95.5 (658)
104.1 (718)
97.4 (672)
96.1 (663)

17
12
13
12

1600 (871)

1000
4000
8000
16000

130.0 (896)
130.0 (896)
127.0 (876)
128.4 (885)

68.3 (471)
66.4 (458)
63.7 (439)
63.4 (437)

30
29
26
32







0102Packing & Shipping

Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .

Q2: Can I have free sample before making orders?

A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.

Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .

Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .

Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
