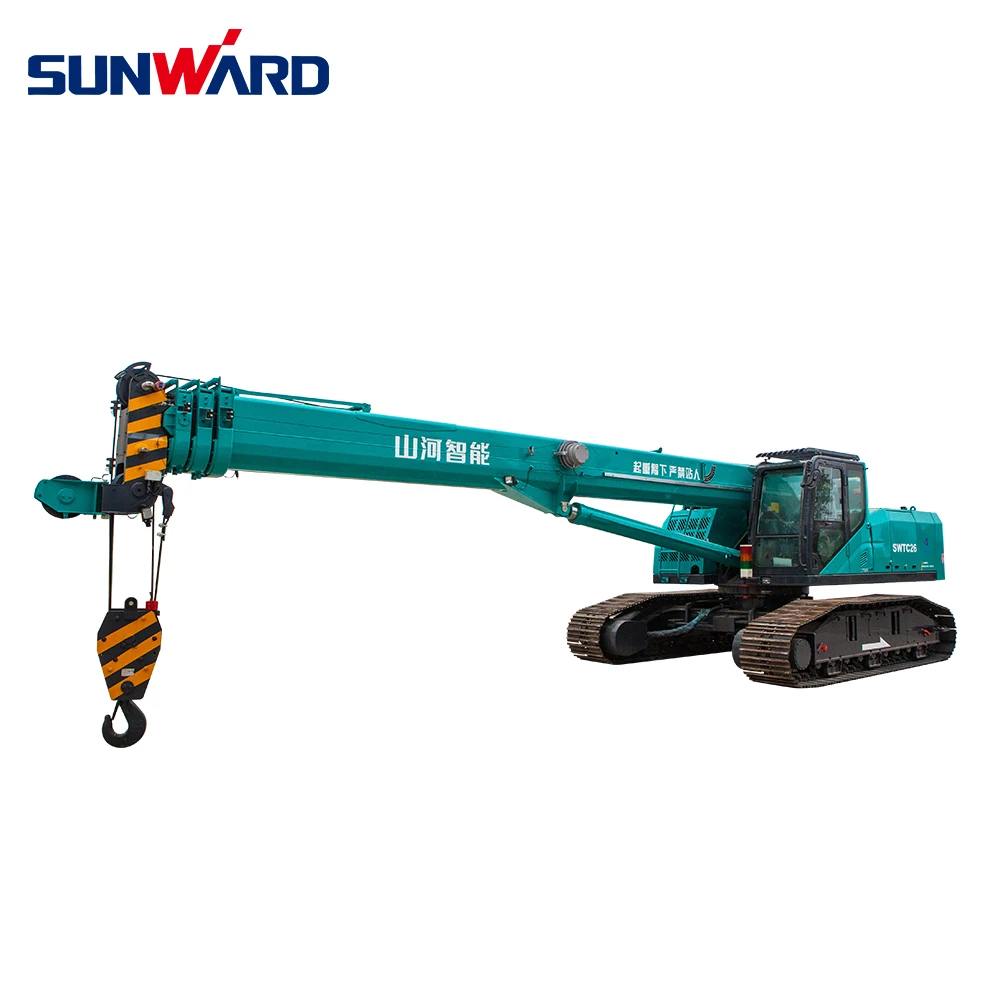

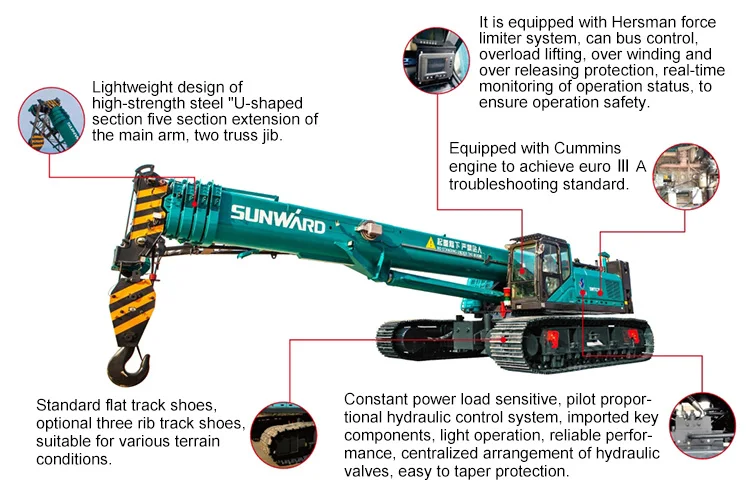

SUNWARD SWTC26 crane 700 ton FFC Crimp Flex Connector

Name: SUNWARD SWTC26 crane 700 ton FFC Crimp Flex Connector
SKU: 62355508987
Availability: InStock

Price:

Quantity:

Why choose SUNWARD

1. We are a Chinese company specializing in construction machinery for more than 20 years;

2. A total of about 10,000 customers have selected SUNWARD products;

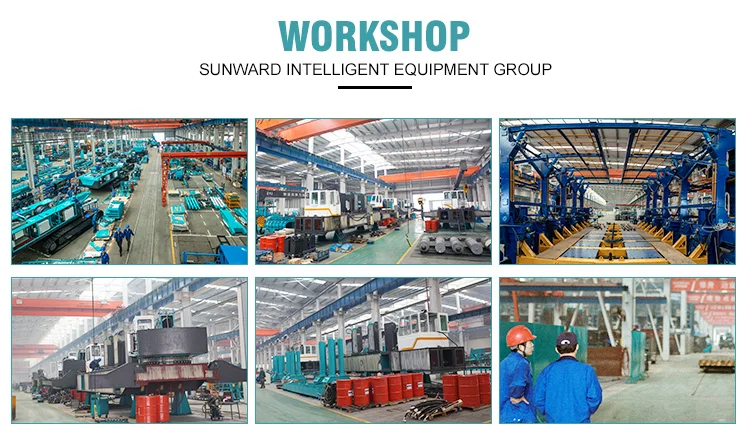

3. We have our own R&D design team and large mechanical manufacturing factory with more than 5,000 employees to serve each customer;

4. We have 200 sales and service representatives located abroad to provide localization solutions for foreign customers;

Choose SUNWARD, an international trading partner that is more suitable for you.

Welcome partners to contact us to achieve business and provide customers with better SUNWARD products.

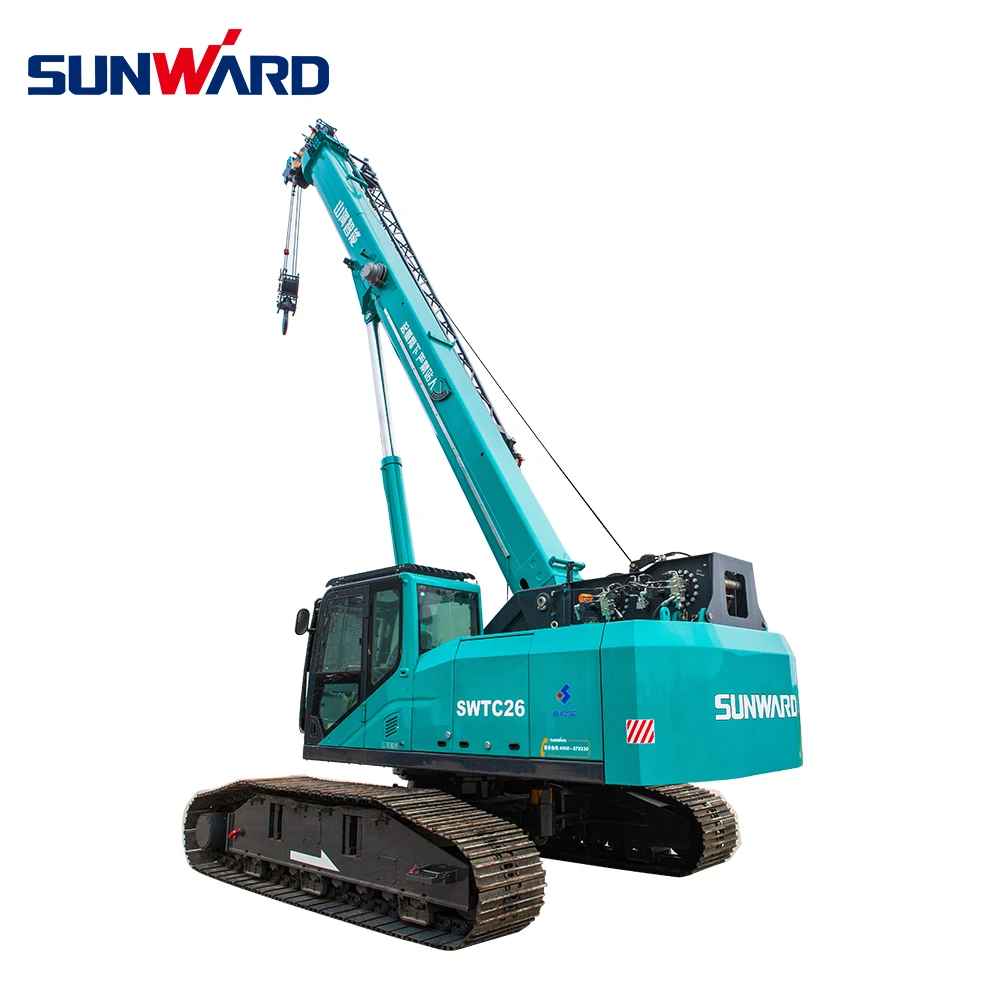

Type	SWTC26
Size	Size(L×W×H)		mm	12870×2900×3190
	A	Track base	mm	3945
	B	Crawler length	mm	4610
	C	Ground clearance of platform	mm	1185
	D	Tail swing radius	mm	3675
	E	Chassis width	mm	2900 / 3950
	F	Track width	mm	700
	G	Min.ground clearance	mm	460
	J	Track height	mm	990
	K	The top of the operating room is off the ground	mm	3190
Parameters	Max.lifting load		t	26
	Max.torque of basic boom		t.m	98
	Max.lifting force of fullextending boom		t.m	45
	Length of basic boom		m	10.6
	Longest arm length		m	33.1
	Max.lifting height of the basic arm		m	10.5
	Max.lifting height of the longest arm		m	33
Work Parameters	Boom rising / descending time		s	48 / 46
	Boom extending / retracting time		s	60 / 55
	Slewing speed		rpm	2.2
	Max.line speed		m/min	125
	Traveling speed		km/h	2.5
	Micro-traveling speed		km/h	1.25
Total weight			t	34.6
Max.gradeability			%	40
Ground pressure			MPa	0.062
Engine	Brand			Cummins
	Model			QSB6.7-C190
	Operation type			water cooled, intercooler, turbol
	Displacement		L	6.7
	Power / Speed		kW/rpm	142/2200
Full tank capacity			L	450
