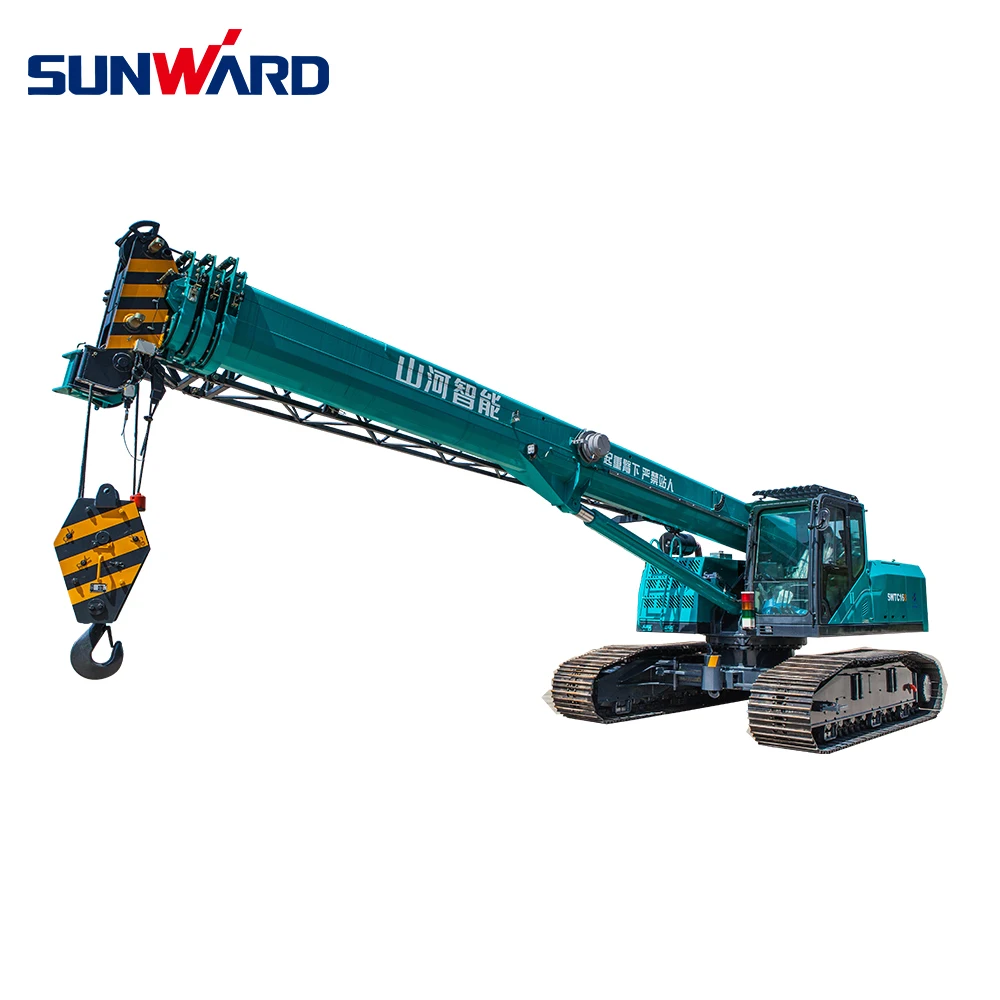

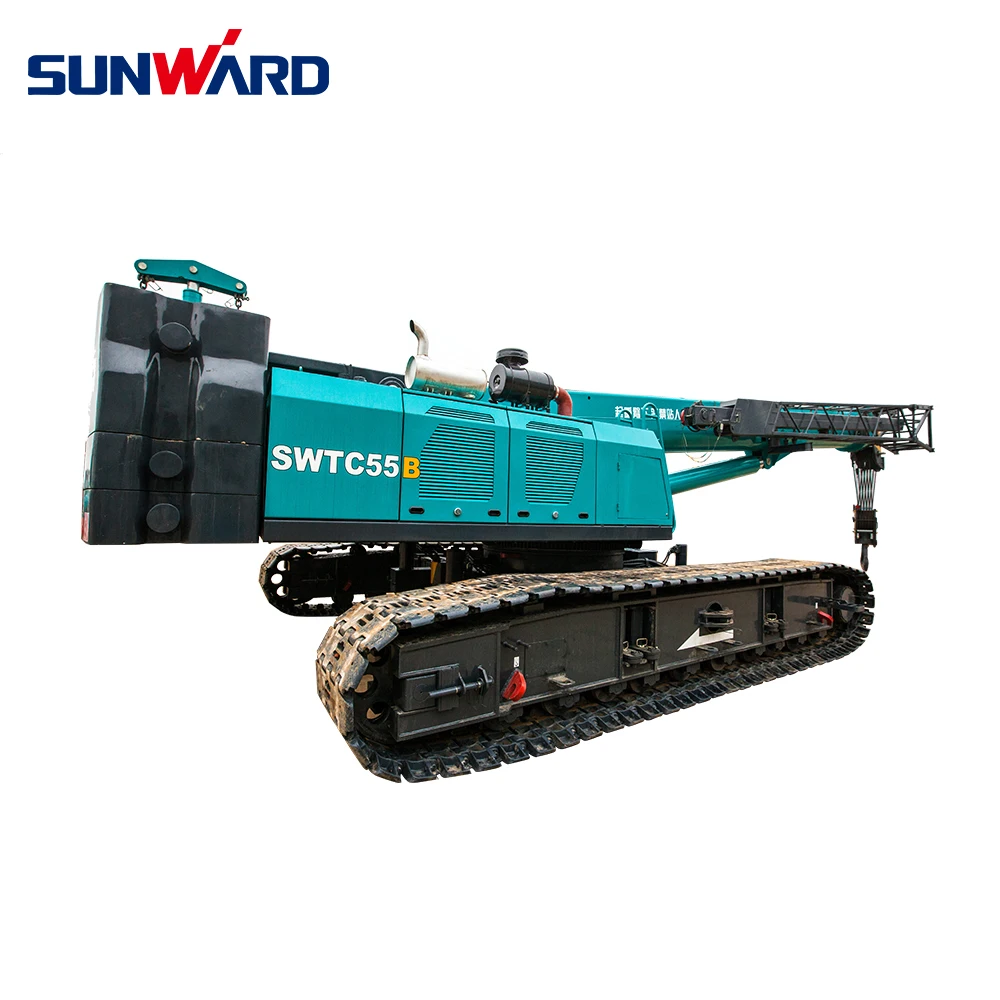

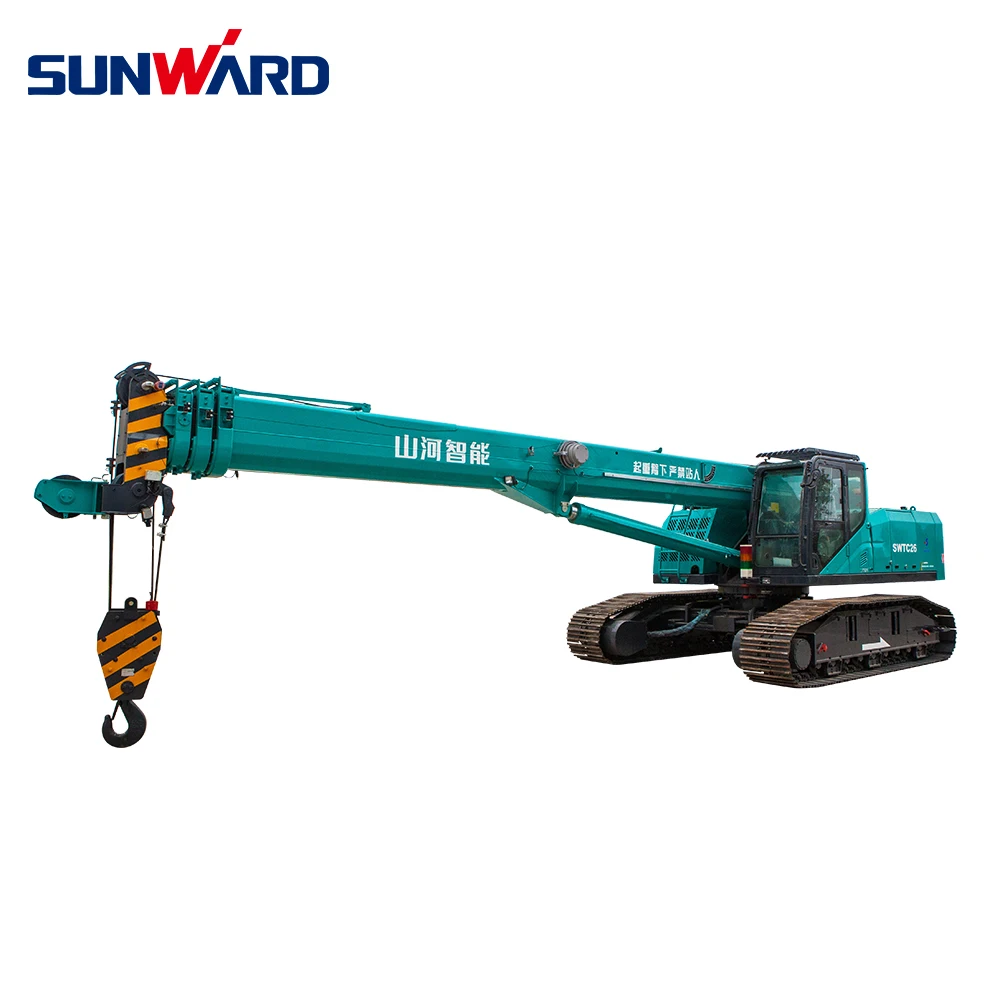

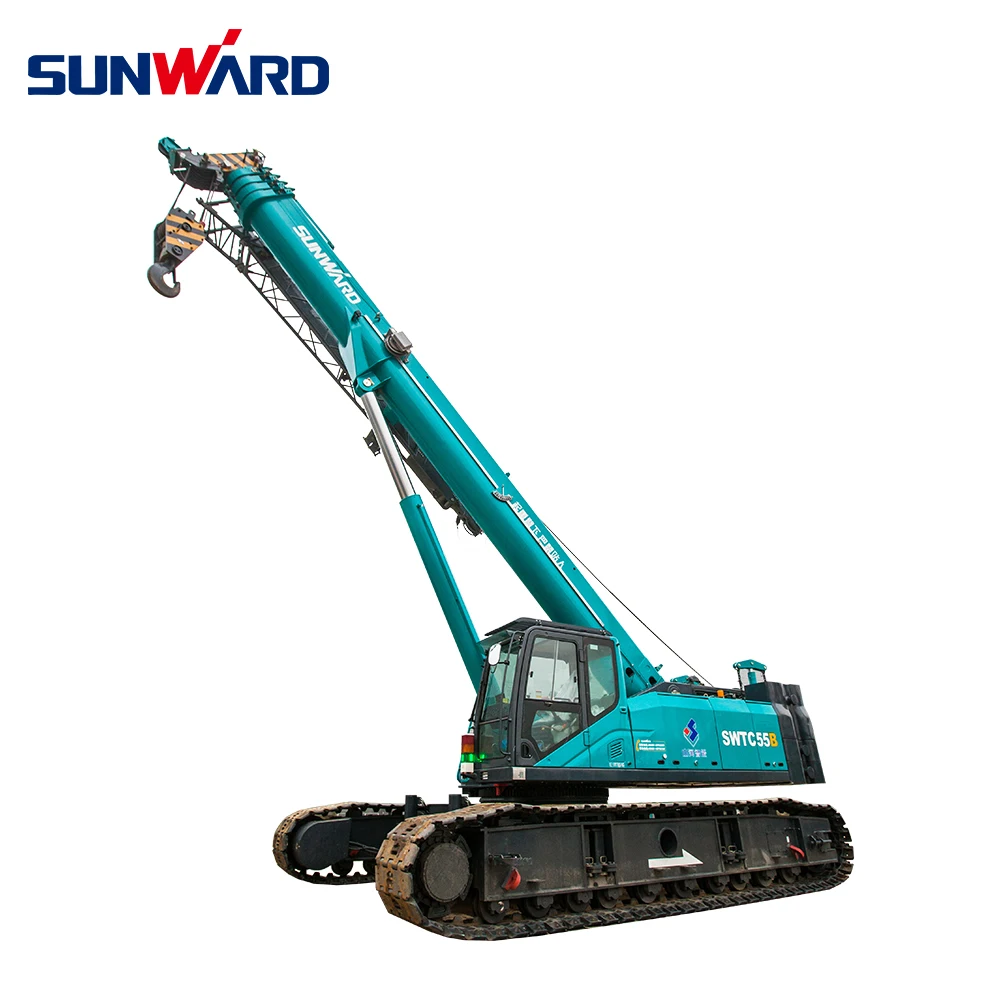

SUNWARD SWTC55B crane 50 ton crawler Factory Direct Price

Name: SUNWARD SWTC55B crane 50 ton crawler Factory Direct Price
SKU: 62355518587
Availability: InStock

Price:

Quantity:

Why choose SUNWARD

1. We are a Chinese company specializing in construction machinery for more than 20 years;

2. A total of about 10,000 customers have selected SUNWARD products;

3. We have our own R&D design team and large mechanical manufacturing factory with more than 5,000 employees to serve each customer;

4. We have 200 sales and service representatives located abroad to provide localization solutions for foreign customers;

Choose SUNWARD, an international trading partner that is more suitable for you.

Welcome partners to contact us to achieve business and provide customers with better SUNWARD products.

Type				SWTC55B
Size	Size(L×W×H)		mm	13960×3300×3280
	A	Track base	mm	5300
	B	Crawler length	mm	6200
	C	Ground clearance of platform	mm	1230
	D	Tail swing radius	mm	4535
	E	Chassis width	mm	3300 / 4960
	F	Track width	mm	760
	G	Min.ground clearance	mm	400
	J	Track height	mm	980
	K	The top of the operating room is off the ground	mm	3280
Parameters	Max.lifting load		t	55
	Max.torque of basic boom		t.m	193
	Max.lifting force of fullextending boom		t.m	73.2
	Length of basic boom		m	11.5
	Longest arm length		m	43.5
	Max.lifting height of the basic arm		m	11.6
	Max.lifting height of the longest arm		m	43.8
Work Parameters	Boom rising / descending time		s	70 / 55
	Boom extending / retracting time		s	106 / 100
	Slewing speed		rpm	1.3
	Max.line speed		m/min	130
	Traveling speed		km/h	2.1
	Micro-traveling speed		km/h	1.4
Total weight			t	58
Max.gradeability			%	40
Ground pressure			MPa	0.089
Engine	Brand			Cummins
	Model			QSB6.7-C215
	Operation type			turbol, air-air intercooler
	Displacement		L	6.7
	Power / Speed		kW/rpm	158/2000
Full tank capacity			L	430
