300mbps 192.168.8.1 mt7620n chipset openwrt wireless router wifi modem
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronic Co. Ltd.
Share on (62355624464):
Product Overview
Description
300mbps 192.168.8.1 mt7620n chipset openwrt wireless router wifi modem
Product Description

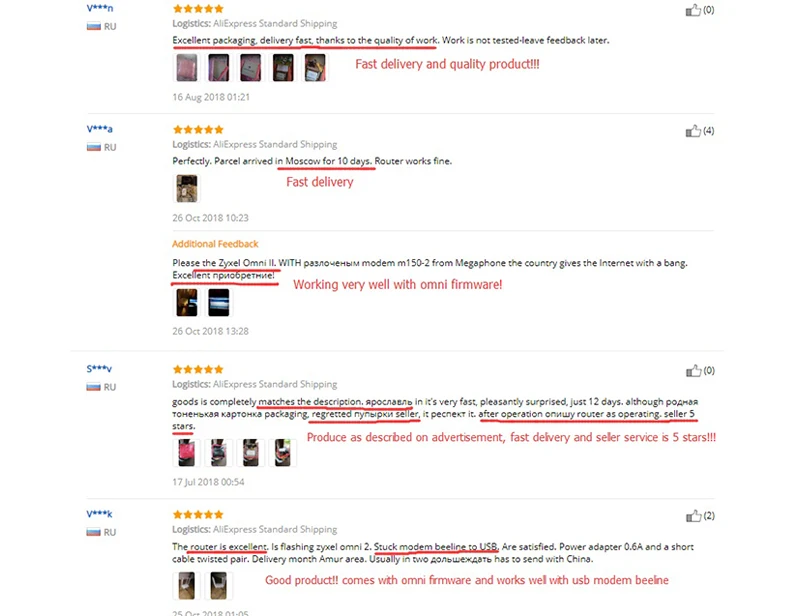

Customer Feedback
Specification
Hardware | |||
Main CPU | MT7620N/580MHZ | ||
RAM | SDRAM 64MB (Max SDRAM 64MB) | ||
FLASH | SPI 8MB (Max8MB) | ||
Protocol | IEEE802.11n/802.11g/802.11b/802.3/802.3u | ||
WiFi Rate | Max 300Mbps | ||
Work Frequency | 2.4GHZ | ||
RT Power | 11N: 15dBm±2dBm 11G: 15dBm±2dBm 11B: 18dBm±2dBm | ||
Reception Sensitivity | 11N: -68dBm 11G: -70dBm 11B: -82dBm | ||

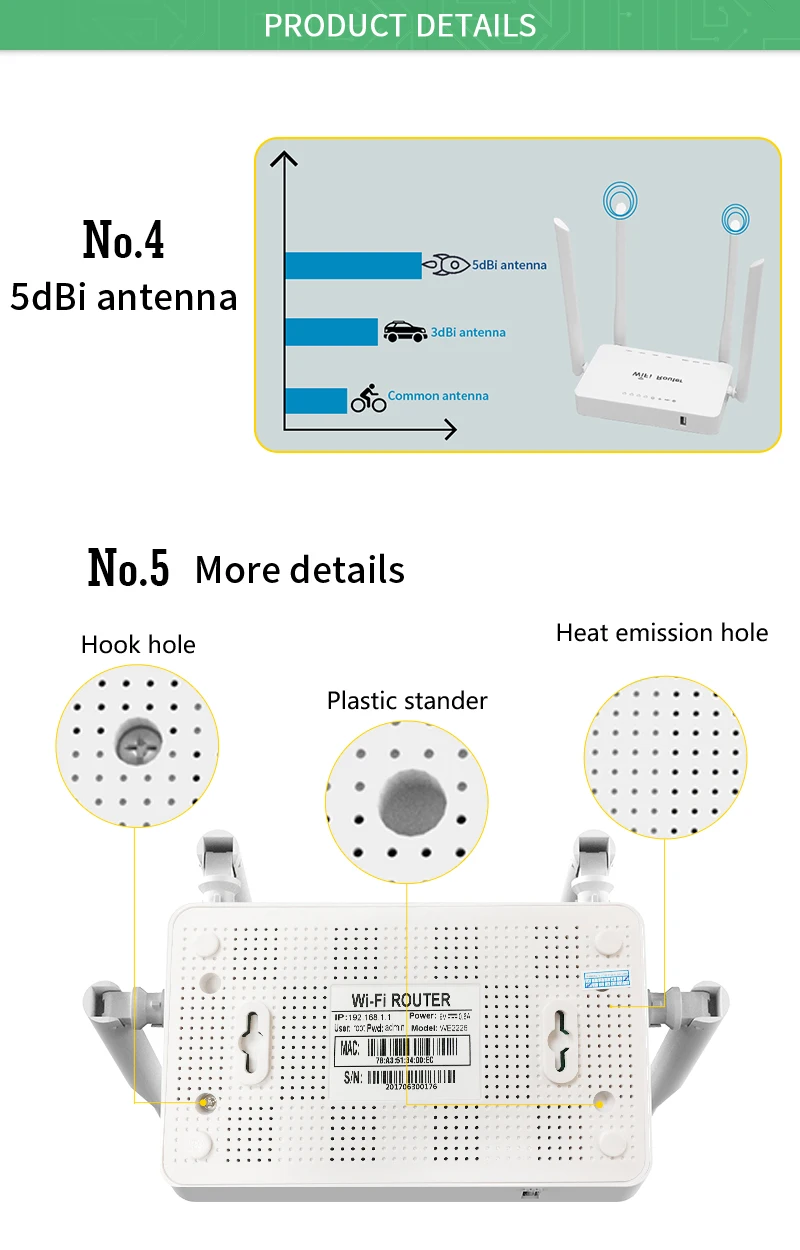

Antenna | 4 external antennas | ||

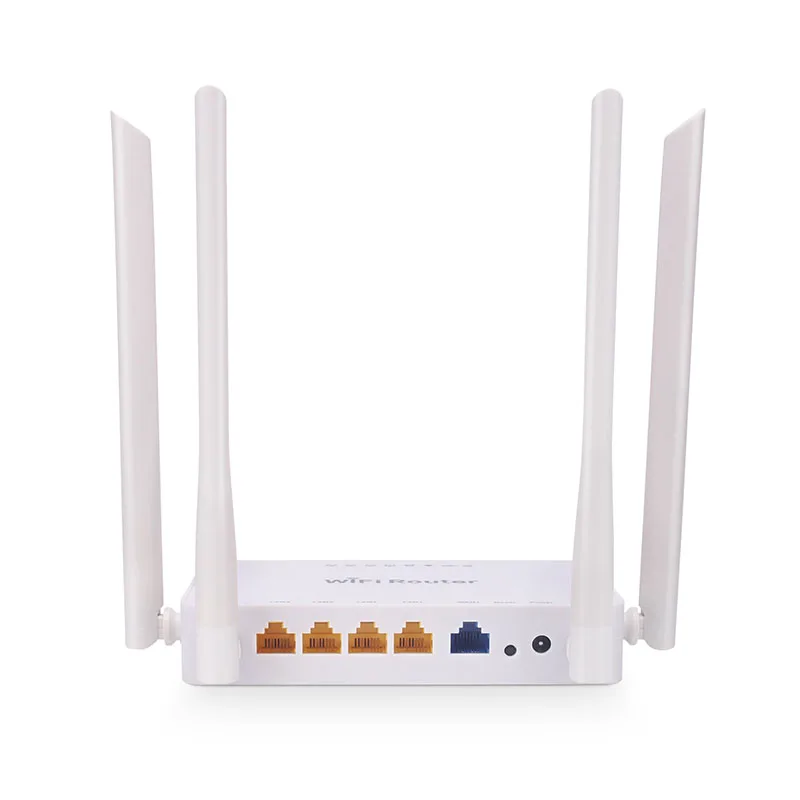

Interface | 1*10/100M Auto-MDI/MDIX WAN port, | ||
LED | power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4 | ||
Button | Reset | ||
Max consumption | < 5W | ||

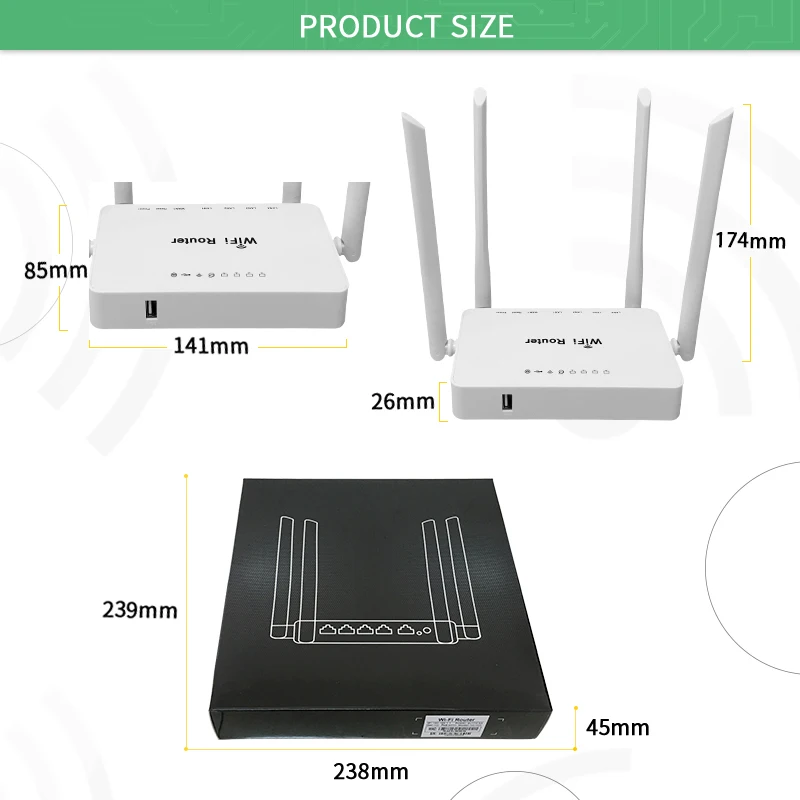

Dimension (L*W*H) | 260*245*46mm | ||
Software | |||
WAN Type | PPPoE,Dynamic IP, Static IP | ||
Work Mode | AP; Router; | ||
DHCP | Server, Client, DHCP Client List, Address Reservation | ||
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | ||
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding | ||
DDNS | Support | ||
WEB Style Change | Support | ||
Band Ctrl | Support | ||
Static Router | Support | ||
System Log | Support | ||
Other Function | Mac clone | ||
Others | |||
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing | ||
Adapter | 9V 0.6 A | ||

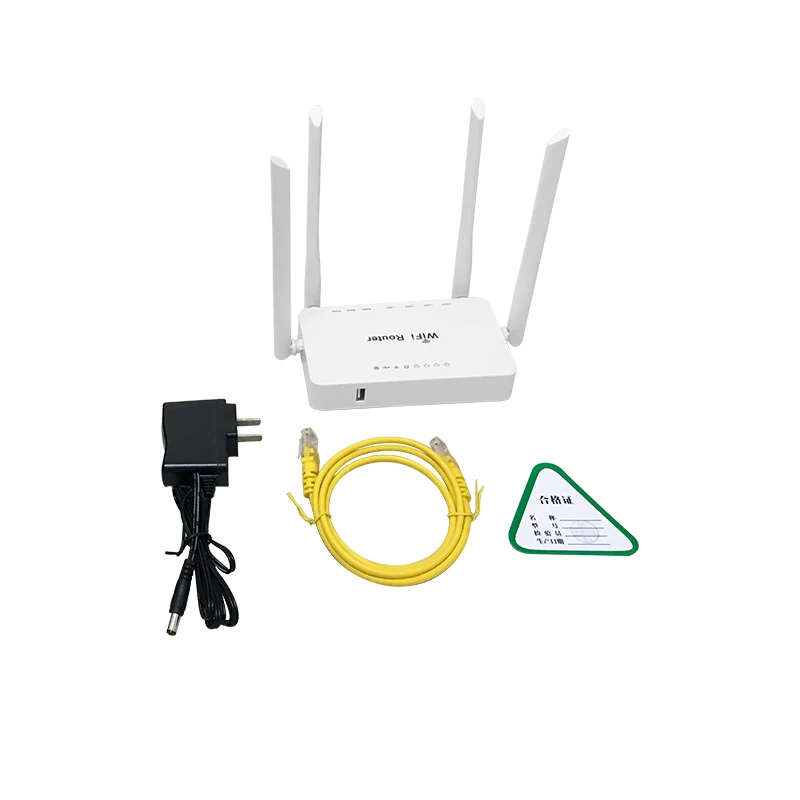

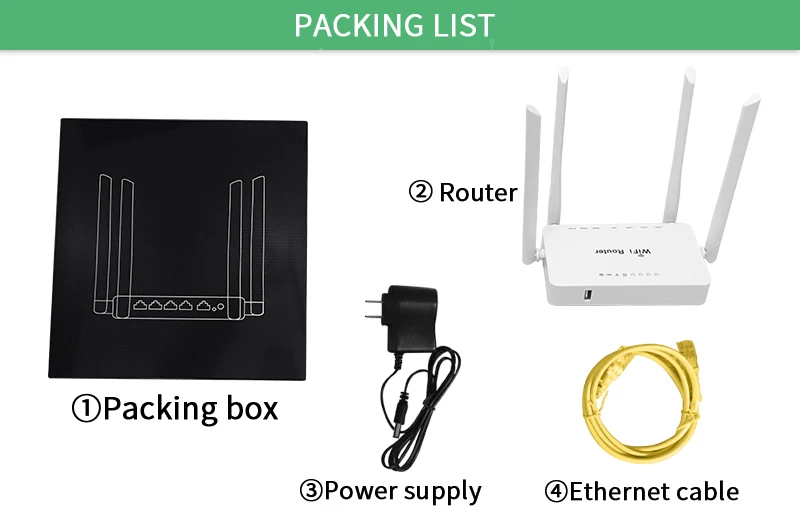

Packaging & Shipping
Company Information
FAQ
1.Do you accept PCBA orders only?
A1:Yes, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
2.Do you provide firmware support?
A2:Yes, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
3.What is the MOQ(Minimum Order Quanlity)?
A3:If buy our existing products,then MOQ is 100 units.If need customize the products,then MOQ is 1000 units.
4.What's the lead time?
A4:For existing products,usually within one week after payment.For customized products,usually 25-30 days.
5.How to pay?
A5:We accept the payment by PayPal,T/T,Western Union and Alipay.
Other questions, pls send us inquiry for further discussion, thank you!
