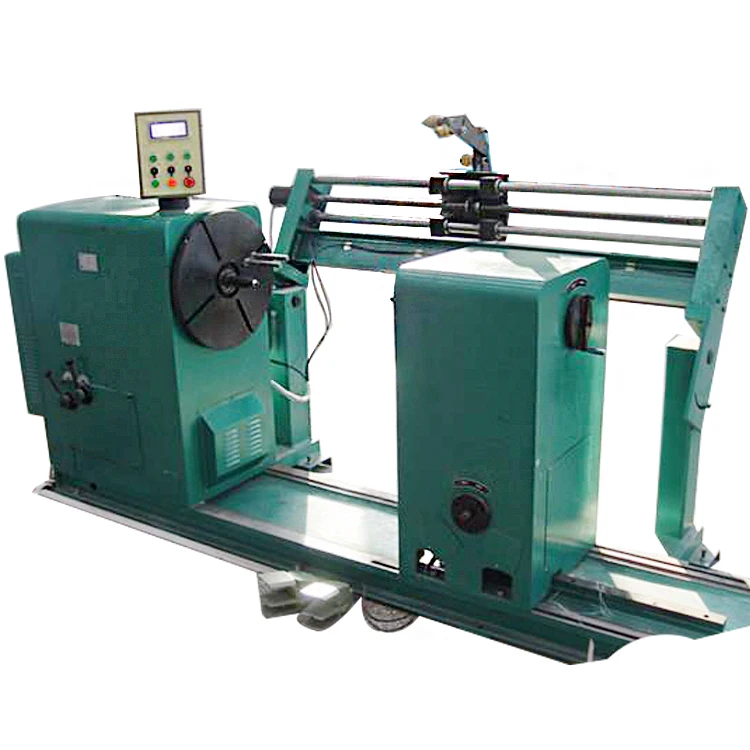

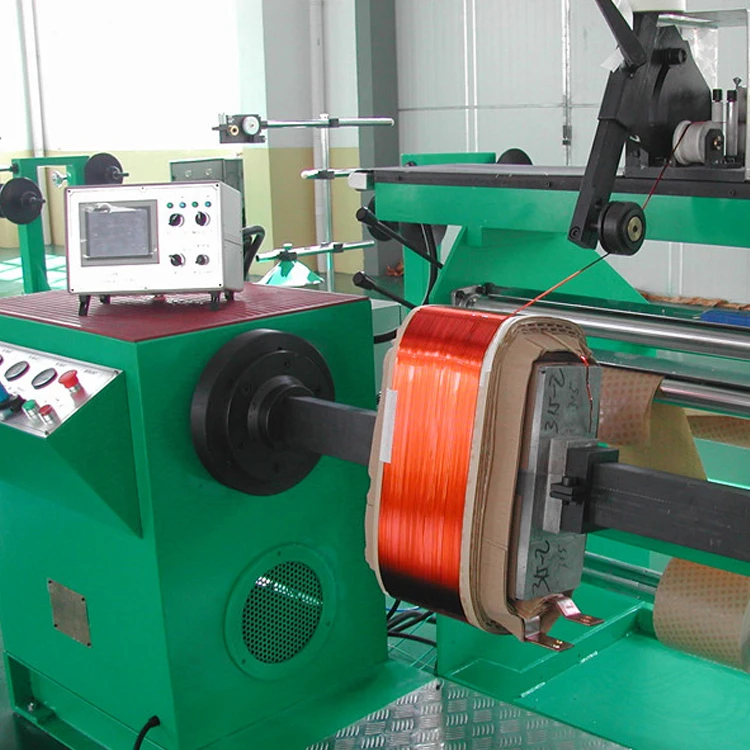

automatic electric motor copper winding machine

Product Overview

Description

winding machine is suitable for winding of foil coil in transformer and electrical industry.



2.Technical specification and parameters

2.1  Coil processing range

axial length            180~600mm

 axial length (Contain lead)330~750mm

outer diameter  (not Contain lead)    Φ600

outer diameter  ( Contain lead)        MaxΦ700

coil type           round,rectangle



2.2  Coil material

    material copper,aluminum

   width               180~600mm

   thickness(total thickness)

   copper:0.35~2mm

    aluminum:0.6~3mm

     roll inner Dia            Φ500

    roll outer Dia            MaxΦ1000

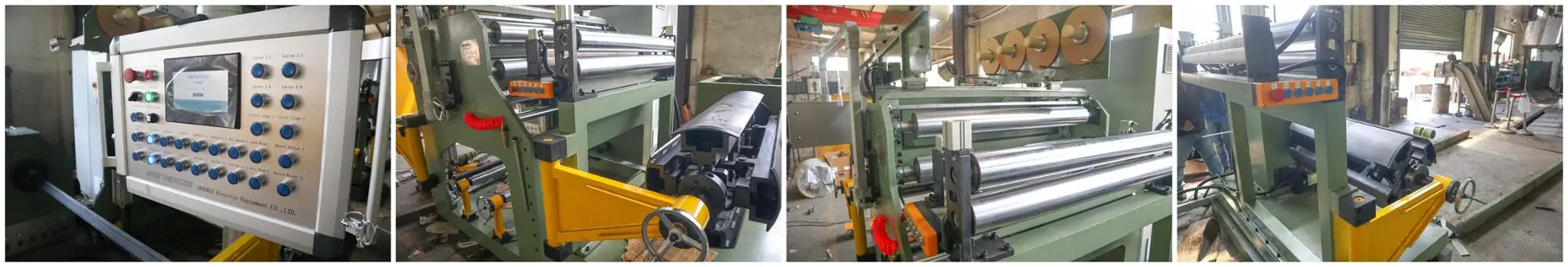

3.Detailed photos

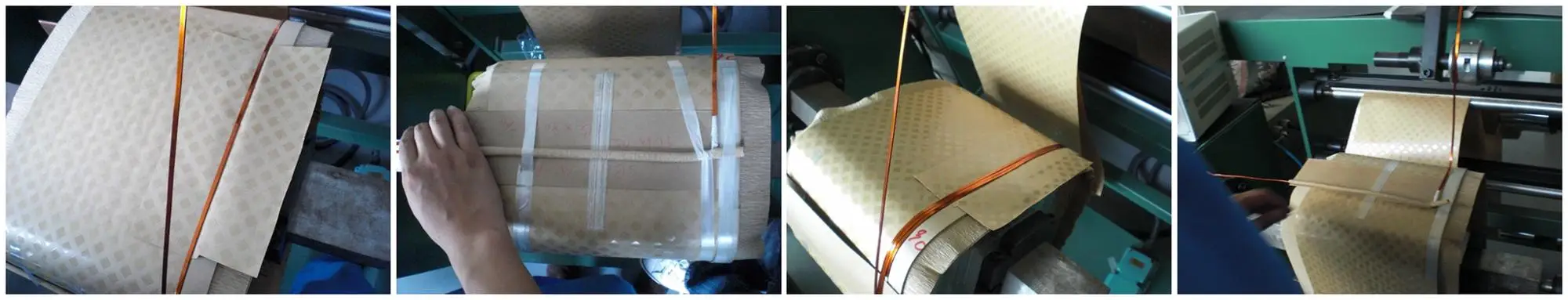

4.Coil production
