Type : DOB led rechargeable bulb pcba- Dimension MCPCB 40mm - 45mm
- PCB Thickness 1.0mm
· Smd 2835 LED
· Input Voltage AC175V - 265V
- Beam characteristic 120º
- Power Factor > 0.85
· Color temperatures 6500K
· CRI>80
· Perfect for existing or new lamps
· LED module efficiency of up to 110 lm/W
· Excellent color consistency of 5 SDCM
· Long life-time: 50,000 hours
· Wide operating thermal range
· Instant full light
PROTOTYPES 1. This led Bulb light module has a small size can match a variety of lamp housing . 2. Whole led light module use smd 2835 leds ,High quality leds guarantee long life . 3. We have a competitive price for 2835 leds . 4. We can according your requirements to customized PCB board and Shell kit.
Power
PCB size
Voltage
Current
CCT
CRI
Efficacy
LED QTY
5W
40mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
6PCS
7W
50mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
8PCS
9W
45mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
10PCS
12W
45mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
14PCS
15W
50mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
18PCS
18W
54.2mm
AC175V-265V
115mA
6500K
80
110-120Lm/W
22PCS

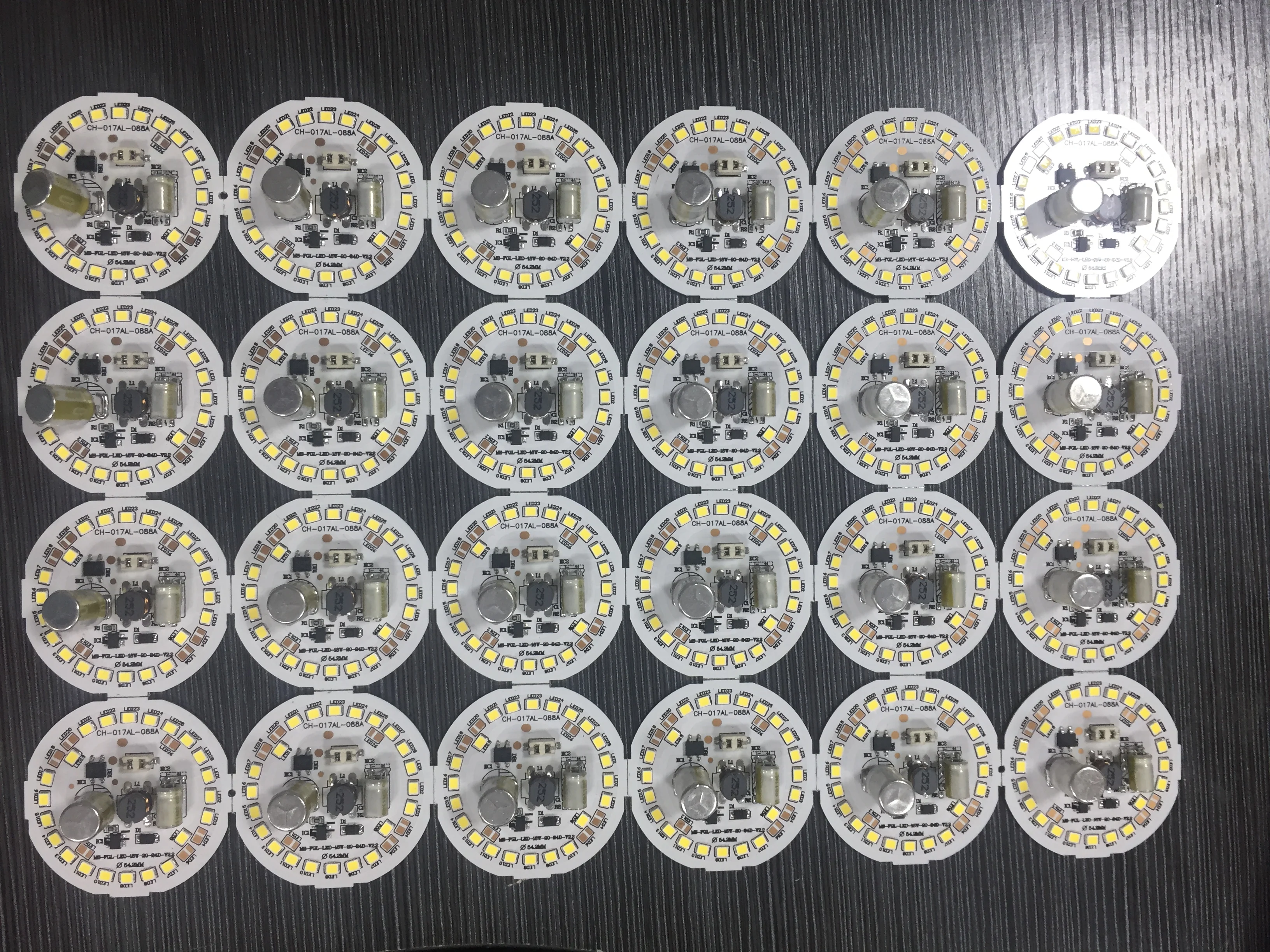

Product Display

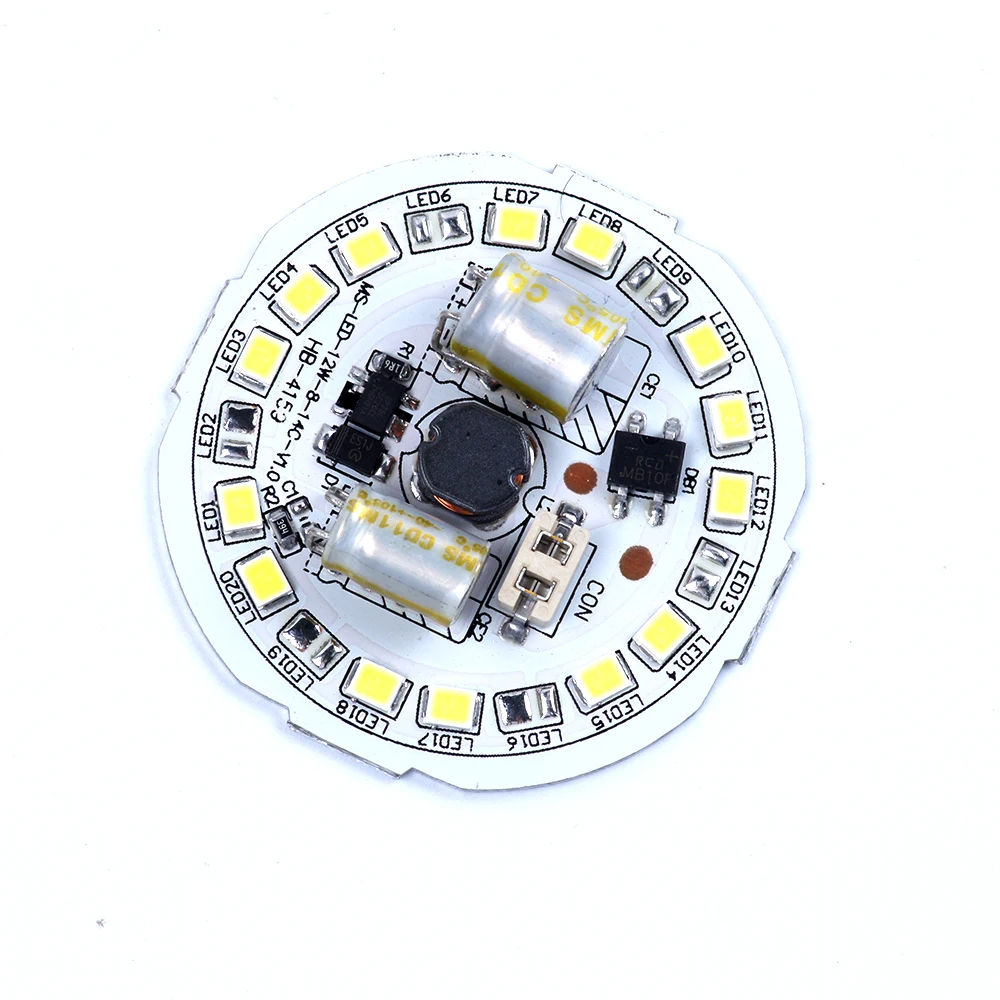

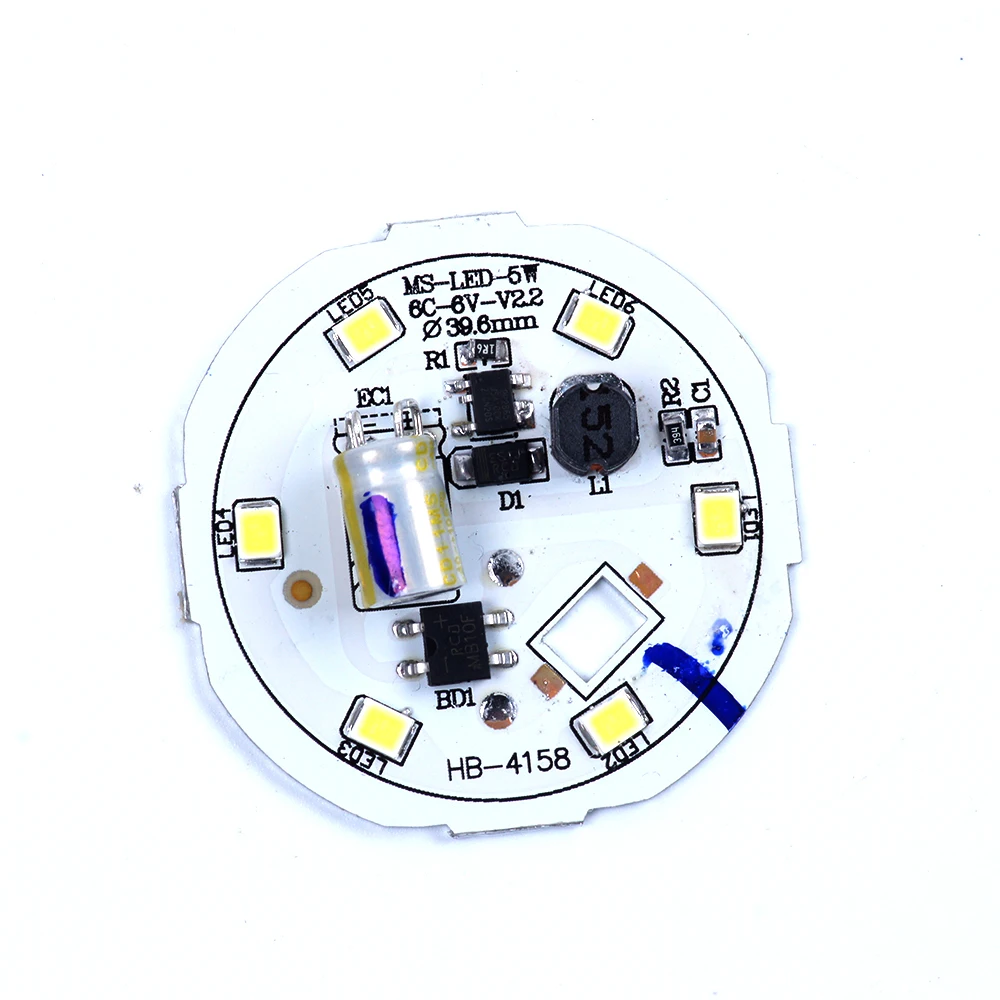

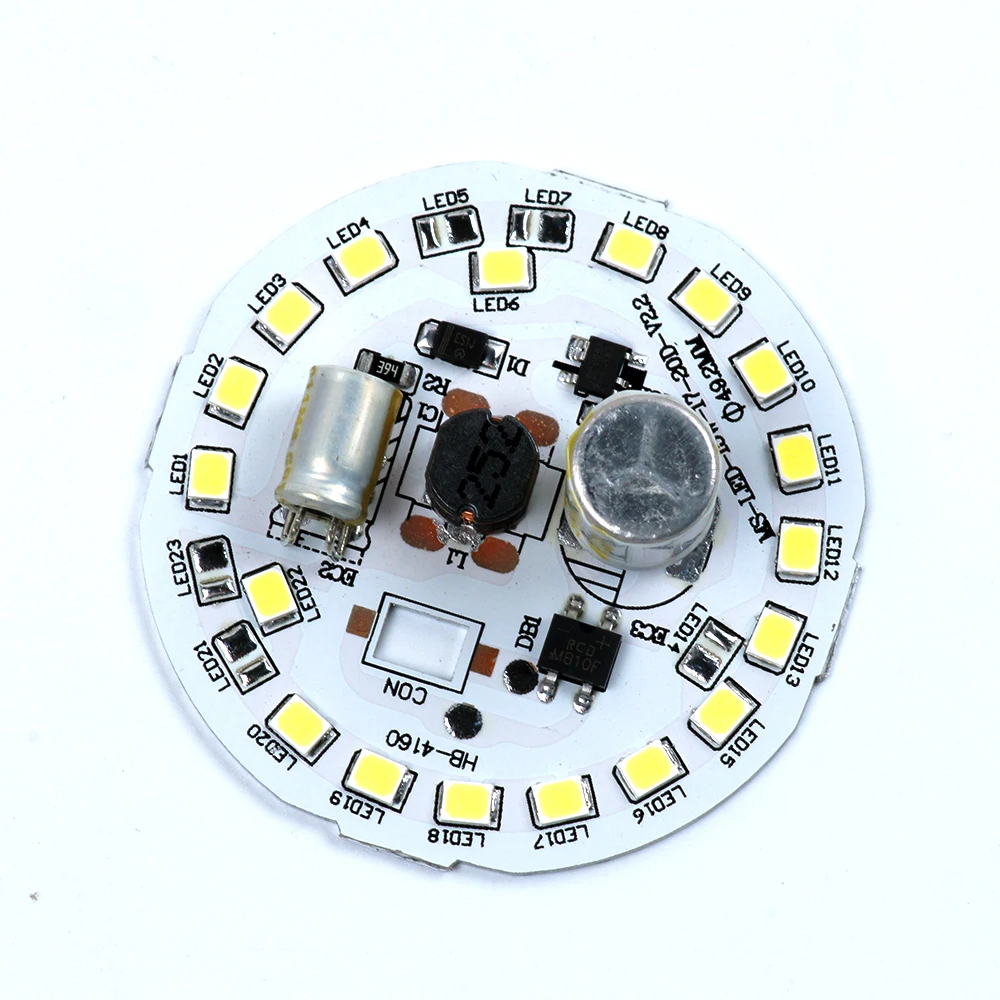

40mm 5W
45mm 7W
45mm 9W
45mm 12W
50mm 15W
54.2mm 18W
All the PCB can be customized in materials, size, shape and so on.
PROTOTYPES,
WE OFFER,
No MOQ
Shipment in 2 weeks
Customized design
Rebate on high VOLUME ORDERS
Lead time: Pcb production time =Sample:3-4days mass production:7-8 working days Pcb assembly time= sample:1-2days mass production:3-4days Remark :mass production exact delievry time depends on the quantity.
Can I Have Details of this Product? Yes, Common Data are in the Following Table.
