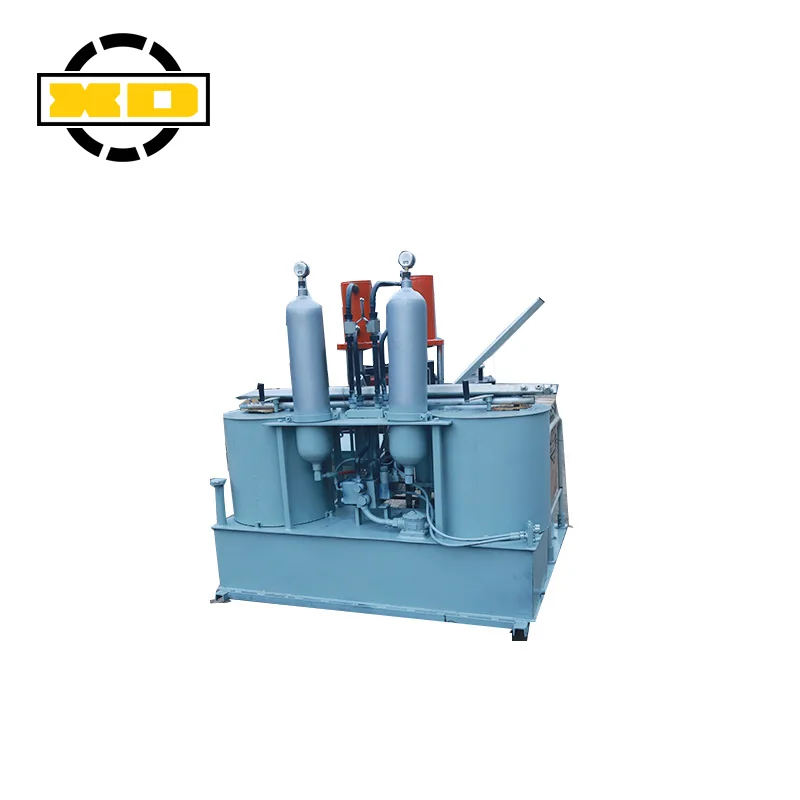

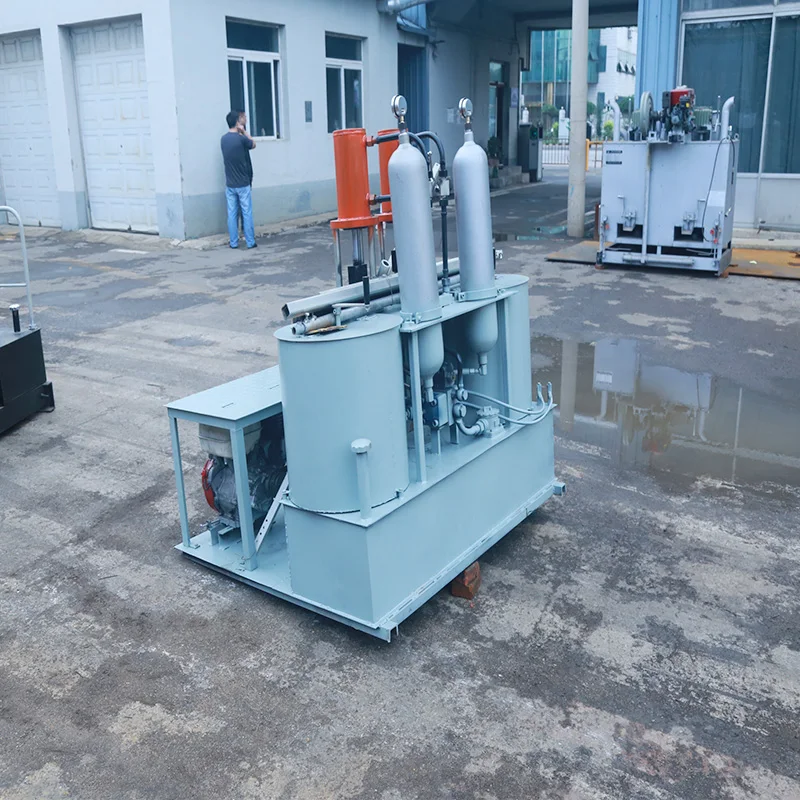

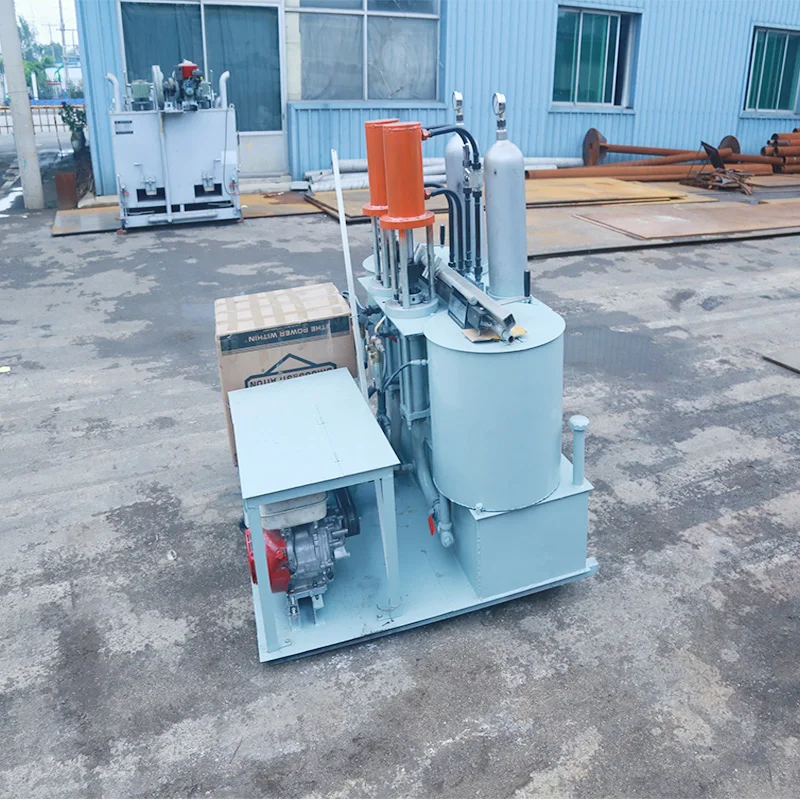

New Technology /XIANDAI/ Brand Highway Curve Vehicle Mounted Cold Spraying Road Marking Machine
- Category: Road Marking Machines >>>
- Supplier: Shenyang Modern Traffic Facility Co. Ltd.
Share on (62355816736):
Product Overview
Description
Product Description
| Application | Vehicle mounted cold spray road marking machine is professional equipment for road marking , used for Highway,Urban area .Airport ,Parking lot etc. To mark Solid Line ,Dotted Line ,Curve,Guide arrow ,text and Graphics |

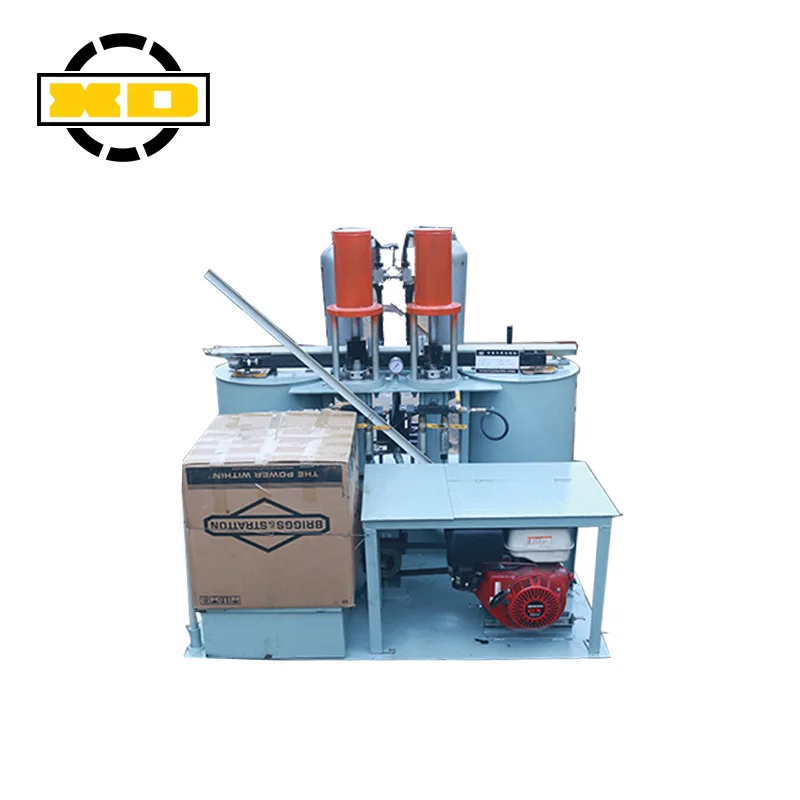

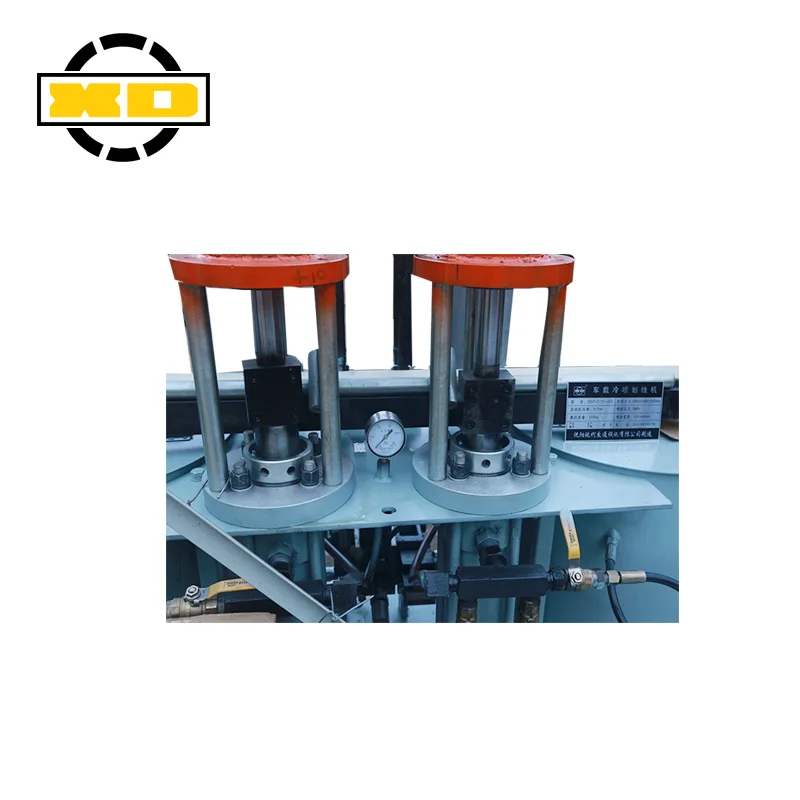

| Structural Features | 1.It's consists of Mechanical digital device ,electrical system ,principal machine ,Spray gun and rear sight . 2.Powered by a Japanese engine,the plunger pump is driven by a hydraulic cylinder to suction paint to generate high pressure. Two guns can work at the same time and double solid lines are completed at one time. 3.The machine has three types: single cylinder, double cylinder and power taking by automobile engine.The white or yellow paint can be replaced at any time during working when you use double cylinder machine . The taking power by automobile engine marking machine advantage is high power and better linear effect |
| Main Technical parameters | |
| Dimension | 1665*1298*1600mm |
| Engine power | 9.5kw |
| Plunger Pump Rate pressure | 16Mpa |
| Hydraulic Cylinder Working pressure | Chamber A 4.5Mpa Chamber B 5.5Mpa |
| Painting Width | 100-400mm(Adjustable) |
| Painting Thickness | 0.2-0.4mm |
| Marking Speed | 5km/h |
| Weight | 650kg |
