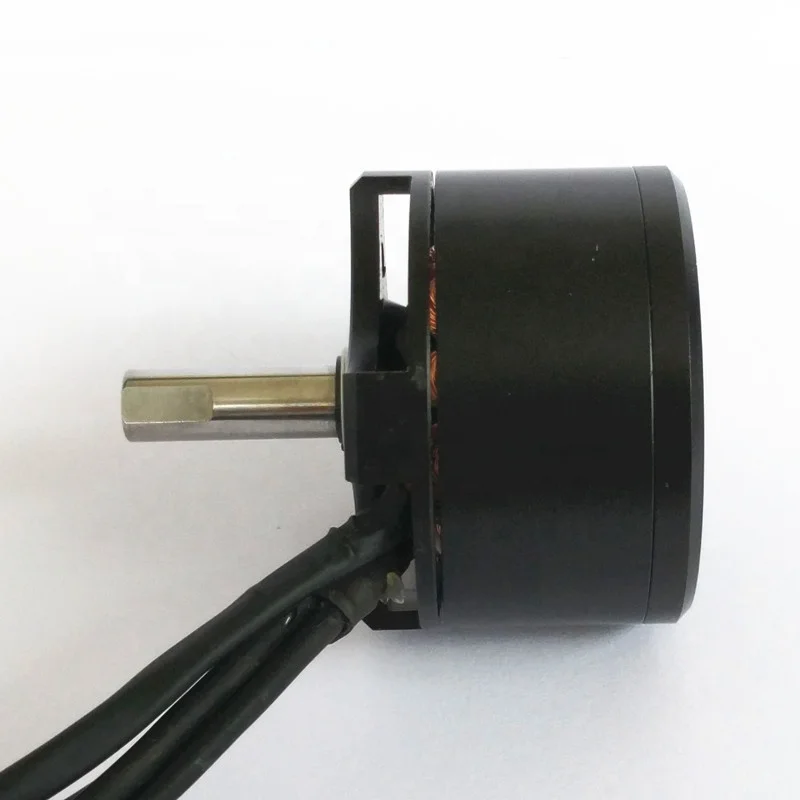

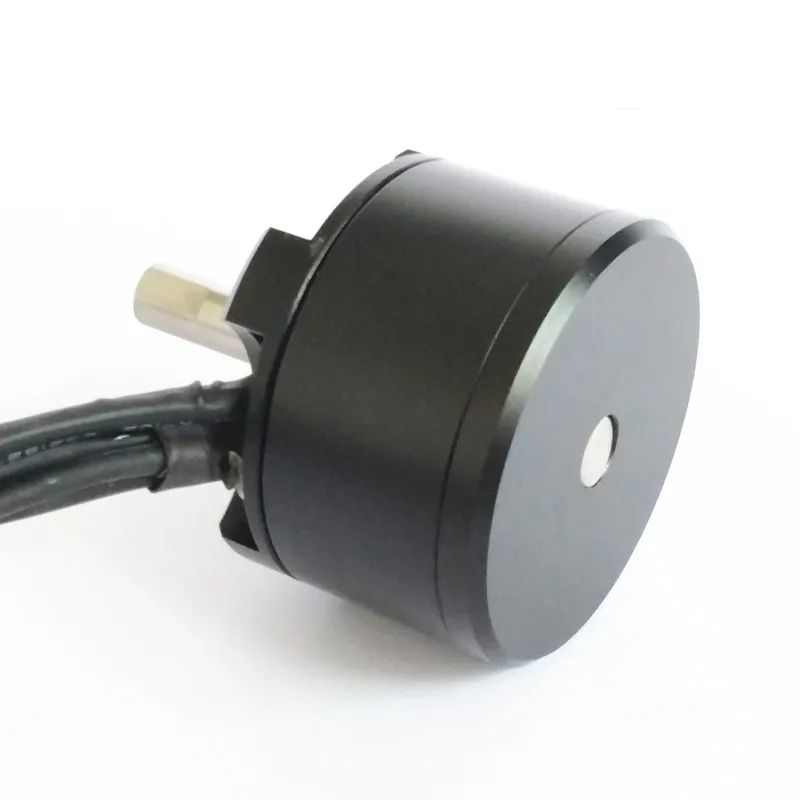

front hub brushless dc motor 36v 500w
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (62355855030):
Product Overview
Description

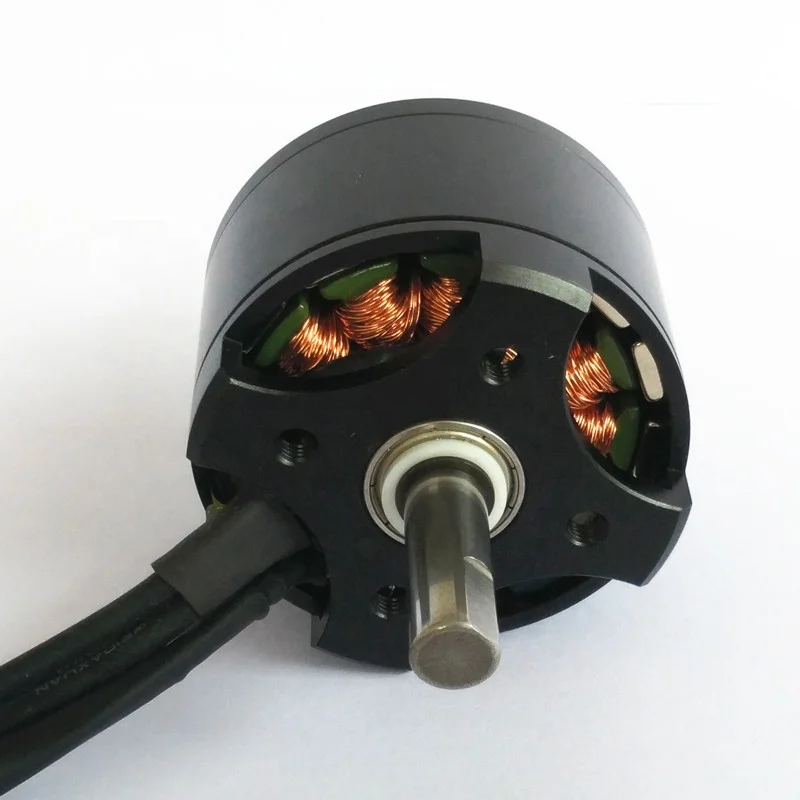

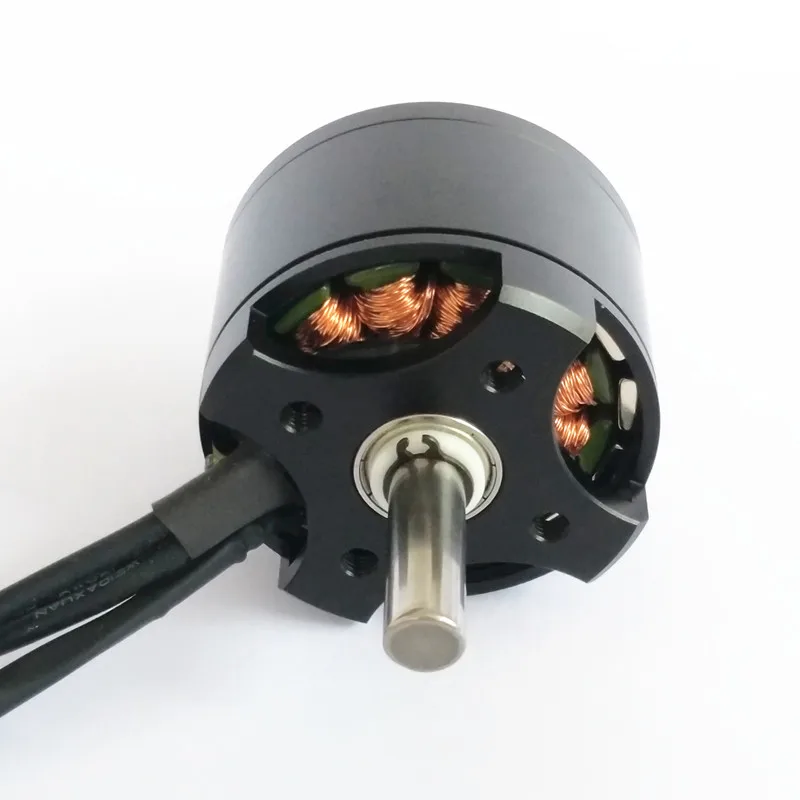

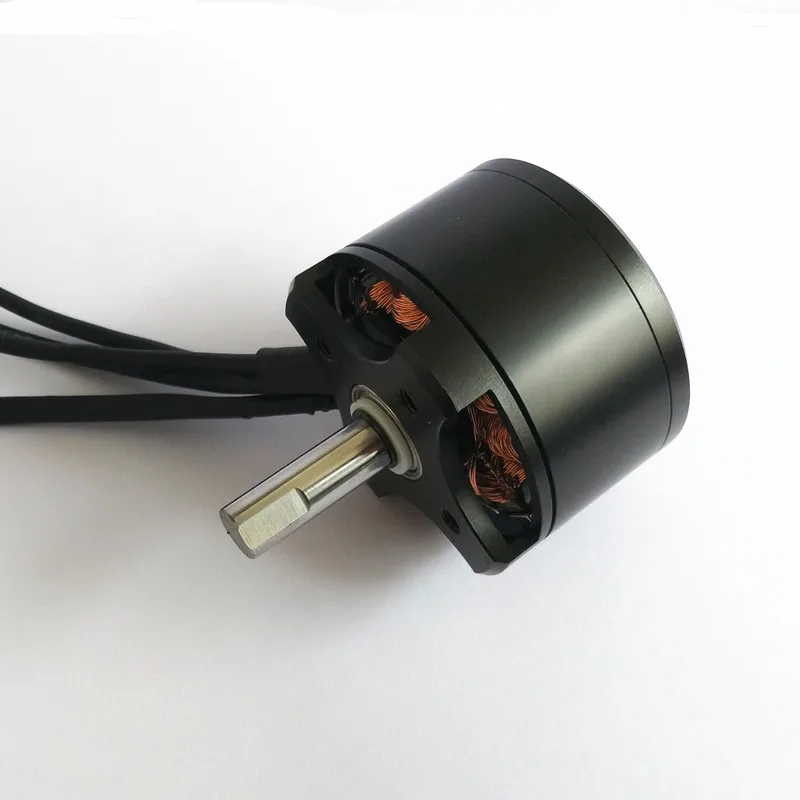

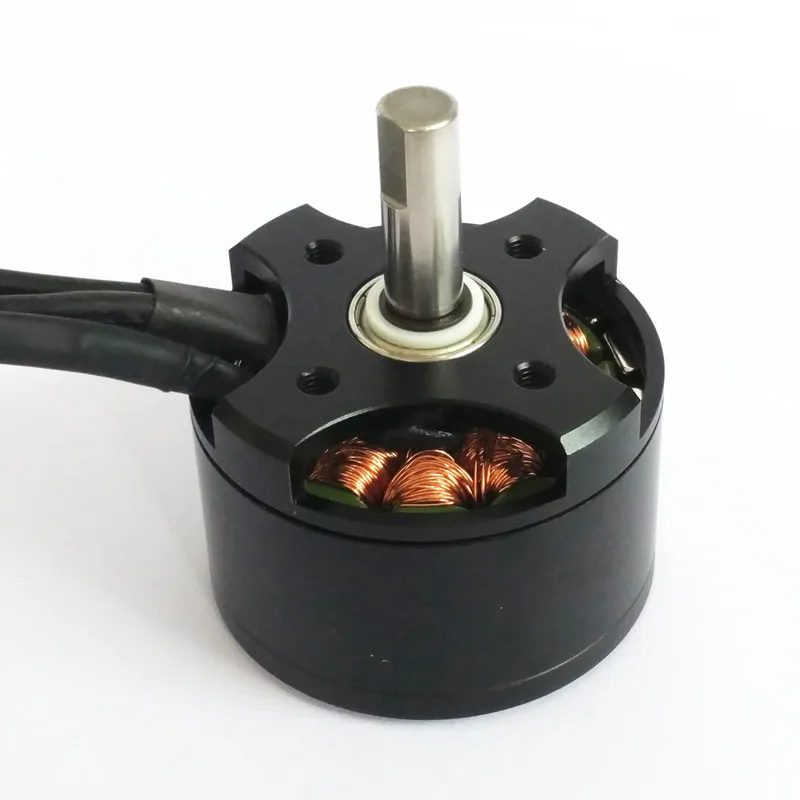

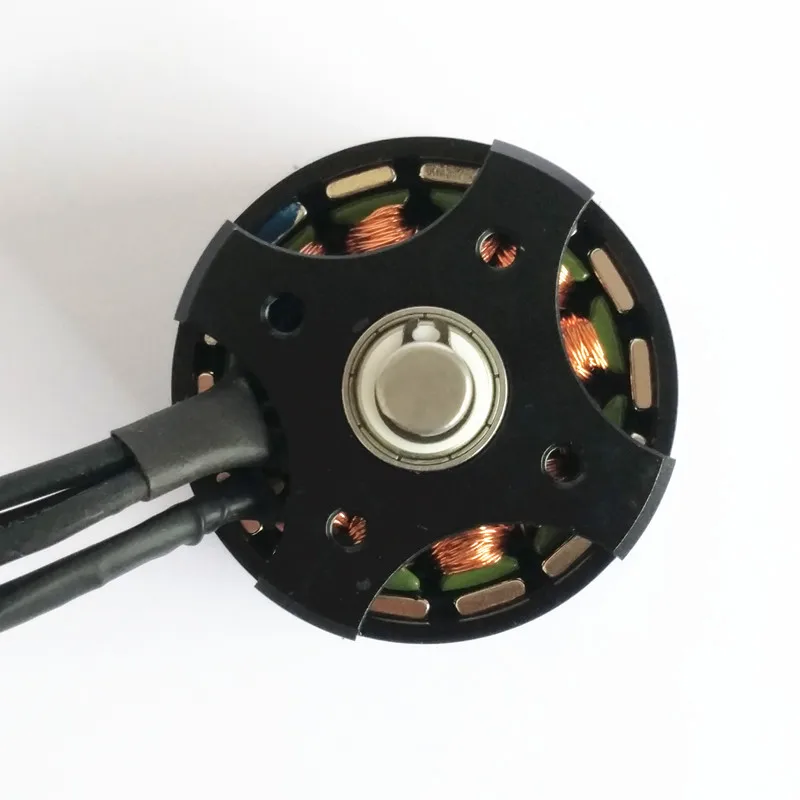

front hub brushless dc motor 36v 500w
Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.
| Model No | RTS5035 |
| KV(RPM/V) | 190KV |
| No Load Current at 7.2V (A) | 0.8A |
| Working Voltage Range (V) | 36-42V (Here data sheet tested for 36V) |
| Max Power (W) | 500 |
| Peak Current (A) | 15A |
| Max Efficiency (%) | 90% |
| Working Temperature Range (C/F) | 130℃ |
| Motor Diameter*Length (mm) | D50*L35 |
| Net Weight (g) | 350g |
| Connector Type | 3.5mm golden plug |
| Wire Length (mm) | 270mm |
| Hall Sensor Wire Length (mm) | 440mm |
| Hall Sensor Connector | JST 6pins |
| Output Shaft (mm) | D8mm*L25mm |

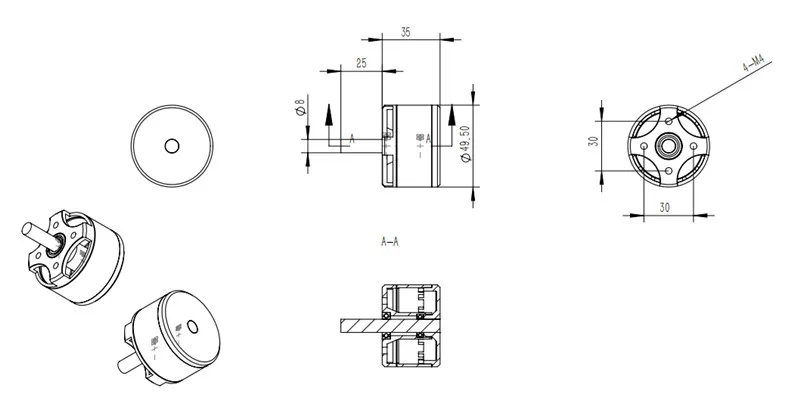

Product Drawing
