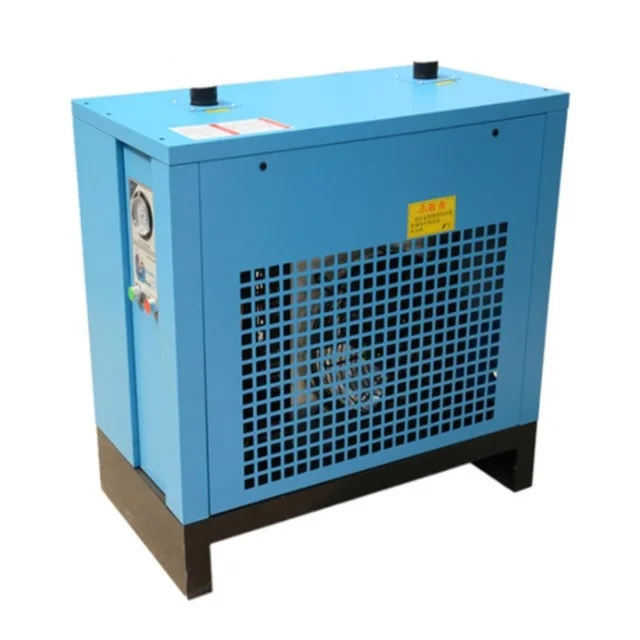

34m3/min China Air Cooled Refrigerated Air Dryer for Screw Air Compressors

Product Overview

Description

34m3/min China Air Cooled Refrigerated Air Dryer for Screw Air Compressors







Features

High temperature air-cooling air compressor refrigerated air dryer

The machine has been carefully designed to leave a 10% margin on the design basis to ensure a stable dew point at the equipment exit.

The use of international famous brand refrigeration compressors, stable operation, low noise, low energy consumption, and reliable;

The main refrigeration accessories are selected from the Danfoss brand;

The main material of the air flowing through is stainless steel, and the rest is sprayed to avoid secondary pollution of compressed air;

External high-efficiency gas-water separation to avoid secondary evaporation of water and more complete discharge;

Optional linkage interface and dew point detection function;

With a variety of fault alarms and processing functions;

The electronic drainage system is not easy to block, ensuring the best drainage effect of the unit;

 The integrated design is compact and reasonable, easy to operate and maintain, and easy to install.



Technical Parameters

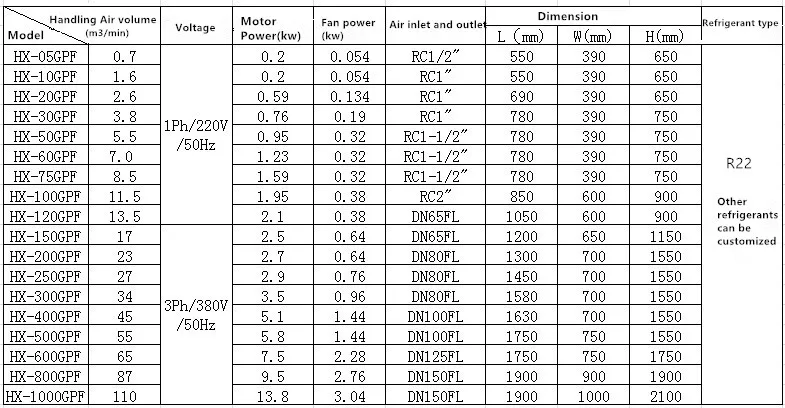

Handling air volume	See the specification sheet for details.
Designed pressure	1.0MPa
Rated working pressure	0.7MPa
Working Pressure range	0.4~0.95MPa(customizable)
System pressure drop	≤0.018MPa
Rated intake air temperature	≤80℃
Ambient temperature	≤40℃
Intake oil content	≤5ppm
Exhaust pressure dew point	2~10℃
Heat exchanger assembly	Type	Stainless steel plate
	Main material	AISI316L/304L
	Structure	Multiple processes (including pre-cooling and regenerative)
Oil & air separator	Type	Cyclone separation
Condenser	Type	Finned
	Main material	Copper, aluminum
	Cooling	Air Cooling
Pre-cooler	Type	Finned
	Main material	High efficiency copper tube, aluminum foil
	Cooling	Air Cooling
Voltage	See the specification sheet for details.
Dimension	See the specification sheet for details.
Conditions of Use	The place good ventilate with no dust or oil
Install	Indoor installation, Ground leveling, no foundation required
