2019 double speed bakery mixer 120kg dough machine spiral kneader
- Category: >>>
- Supplier: Shijiazhuang Bake Machine Tech Co. Ltd.
Share on (62355946229):
Product Overview
Description
Product Description

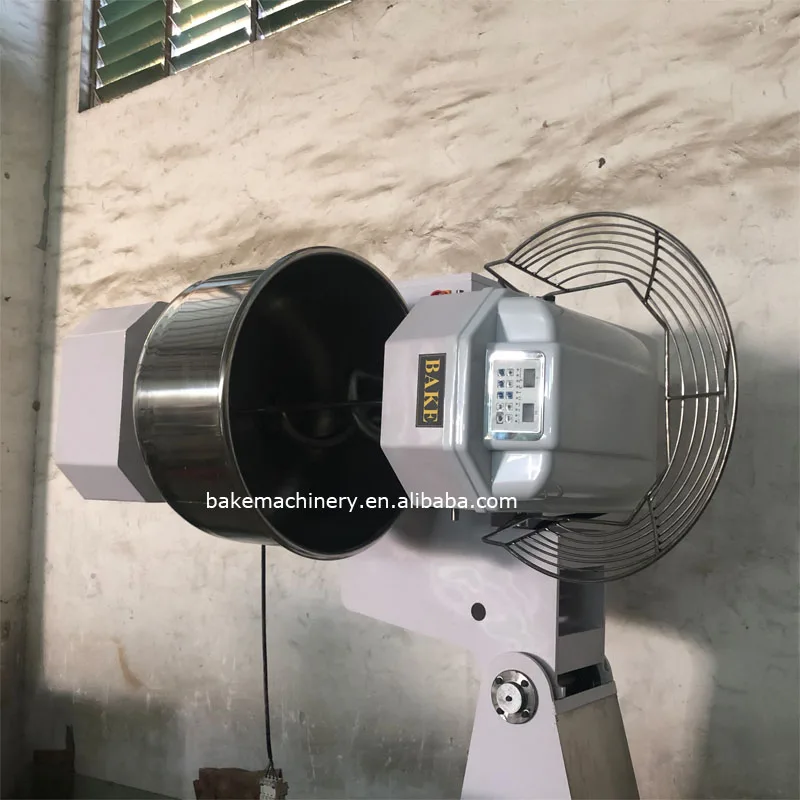

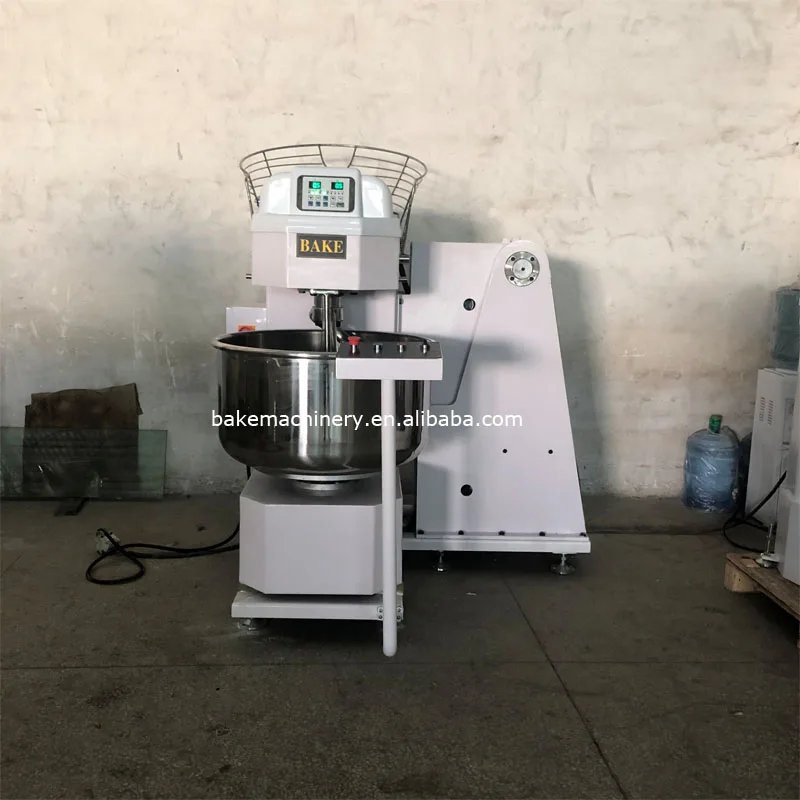

Self-tipping spiral mixer
The self-tipping spiral mixers consist of a fixed bowl mixer and a hydraulic elevator system which can tip the dough onto table-top or on dough divider' hoppers.
Once the stainless steel grill which protects the bowl has been raised, the machine can be tipped up to the designed unloading height. The bowl jog command facilitates unloading of the dough.
A simple mechanical device with electrical control allows the choice of which side to discharge avoiding the use of cumbersome levers as optional.
Model | Max dough capacity | Max flour capacity | Bowl capacity | Power | Speed(rpm) | N.W. | Dimension |
BK-SMT80 | 80kg | 50kg | 130L | 9KW | 125/250 | 1120KG | 1300*1490*1580mm |
BK-SMT120 | 120kg | 75kg | 200L | 11KW | 110/220 | 1285KG | 1380*1530*1600mm |
BK-SMT160 | 160kg | 100kg | 250L | 12KW | 120/240 | 1390KG | 1390*1560*1650mm |
BK-SMT200 | 200kg | 125kg | 320L | 15KW | 98/196 | 1600KG | 1500*1650*1660mm |
Detailed Images
Standard Features
1. Lifting system operated by hydraulic cylinder.

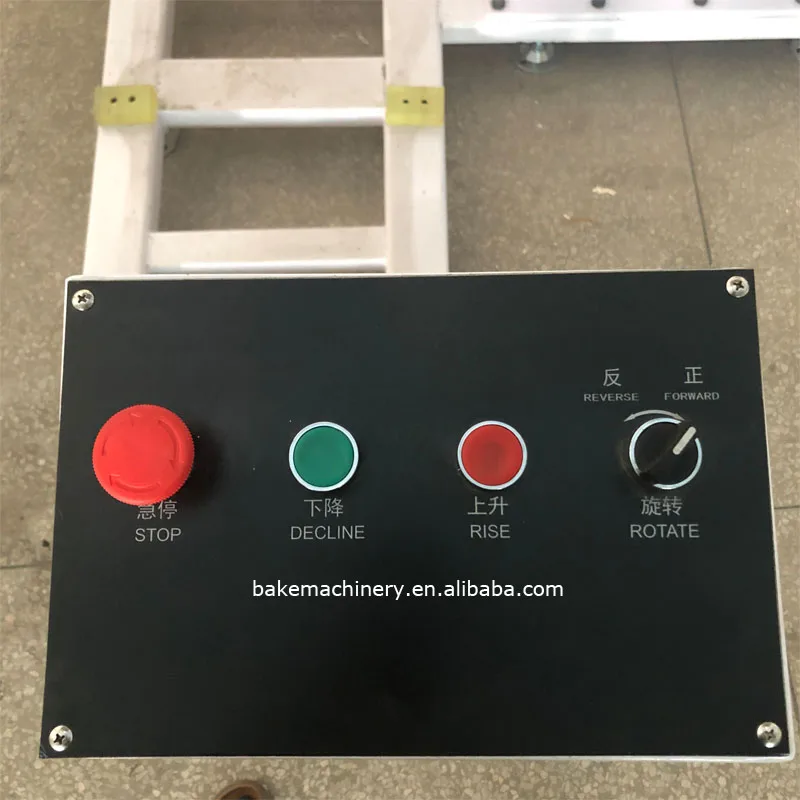

2. Safety valve to stop the machine in case of failure. The lifting device with cylinder and a special valve to stop immediately the bowl descent in case of trouble, grant full respect of safety rules. I ndependent controls with up/down push-buttons with accident prevention device.
3. Push - button for bowl rotation during dumping to ease the exit of dough.
Certificate
Packing&Shipping
Packing details
Firstly, coat the machine surface with preservative solution (to protect stainless steel).
Secondly, map onto pudding fender (to prevent bump).
Thirdly, wrap the machine in plastic film (to prevent ventilation).
Fourthly, put the machine in wooden case/wooden frame (transport easily).
At last, tie bandage outside of the wooden case (reinforcement overall).
Secondly, map onto pudding fender (to prevent bump).
Thirdly, wrap the machine in plastic film (to prevent ventilation).
Fourthly, put the machine in wooden case/wooden frame (transport easily).
At last, tie bandage outside of the wooden case (reinforcement overall).
Company Introduction
Our Services & Strength
BAKE Machinery Co,.Ltd estalished in1990,is one of the biggest enterprises on food machinery in China,also a large company professionally specialized in researching,manufacturing and marketing of bread bakery equipments.BAKE owns a lot of senior engineers and skilled workers that engaged in all types of works.Our machines include all forms of food bakery machines,such as rotary rack oven,deck oven,convection oven,gas baking oven,diesel bread oven,tunnel oven,spiral mixer,planetary mixer,proofer,dough divider,dough pressing machine,toast moulder,French baguette moulder,croissant moulding machine,dough sheeter,toast slicer,hamburger slicer,water chiller,baking rack,tray and so on.In addition,we also produce correlative machines according to your design.BAKE gives the best endevor to quality and wins every customer's trust and support for our strict quality control ,primary management ,professional spirit and principle.In2004,BAKE was certifacated ISO9001:2000 and CE certification.BAKE has already set up whole sales net in China and exported products to lots of countries in the world. Because of best quality,favorable price and perfect after sale service,we get good credit and reputation from the clients.By making use of our expertise and business knowledge,we believe we will be able to offer more efficient products,better service and support.Our warranty service:first,we can install the the bakery equipments for you in your bakery.Second,the warranty service is all life of the machines,and the first 14 months is free.
FAQ
Q1:What is your terms of payment?
A:T/T 30% as deposit,and 70% before delivery.
Q2:What is your terms of delivery?
A:EXW,FOB,CFR,CIF,DDU,DDP.
Q3:How about your delivery time?
A:Generally,it will take 5 to 20 days after receiving your advance payment.
Q2:What is your terms of delivery?
A:EXW,FOB,CFR,CIF,DDU,DDP.
Q3:How about your delivery time?
A:Generally,it will take 5 to 20 days after receiving your advance payment.
