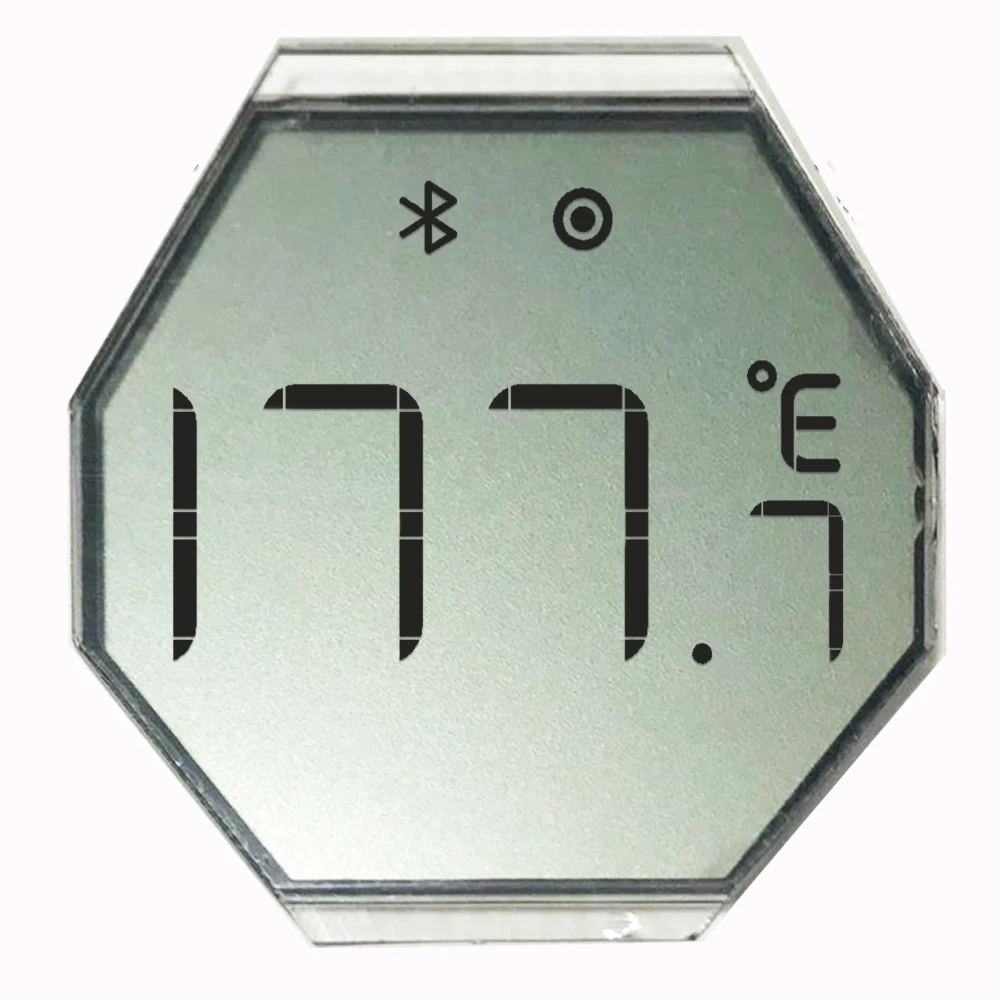

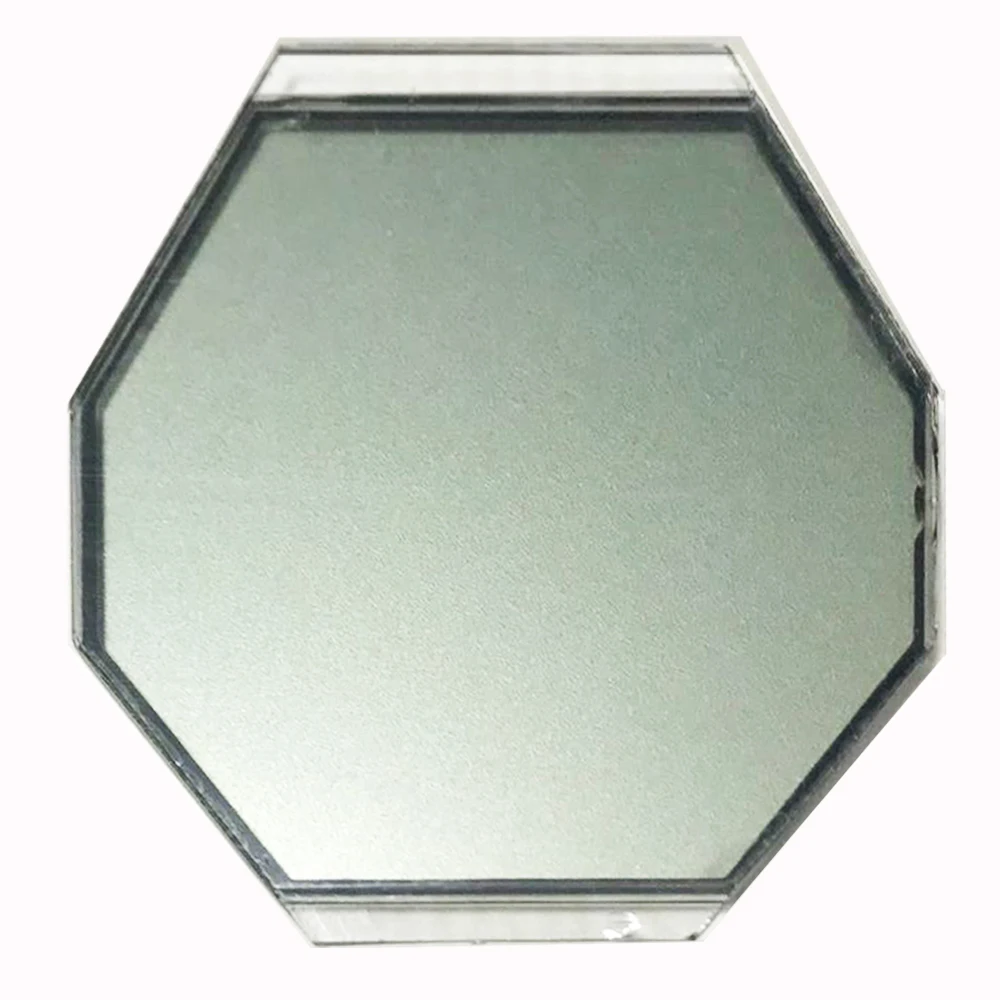

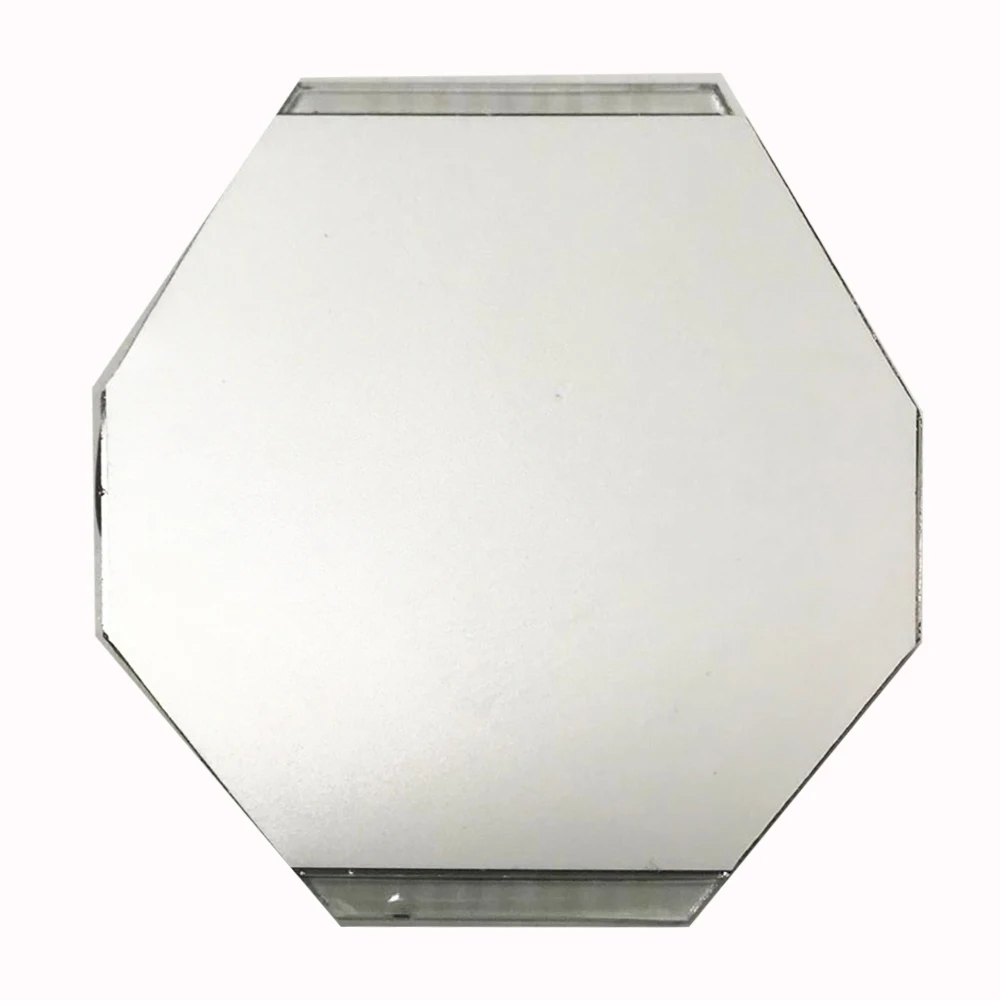

Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector
Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector
Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector
Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector
Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector

Round Octagonal HTN Segment LCD Display Positive LCD With ZEBRA Connector

Share on (62356015703):


Price:$0.55 - $0.65

Quantity:


Product Overview

Description


Product Description

.jpg

lcd display.jpg

digit lcd.jpg




1.Product name :                                   ENH-SS912089-01

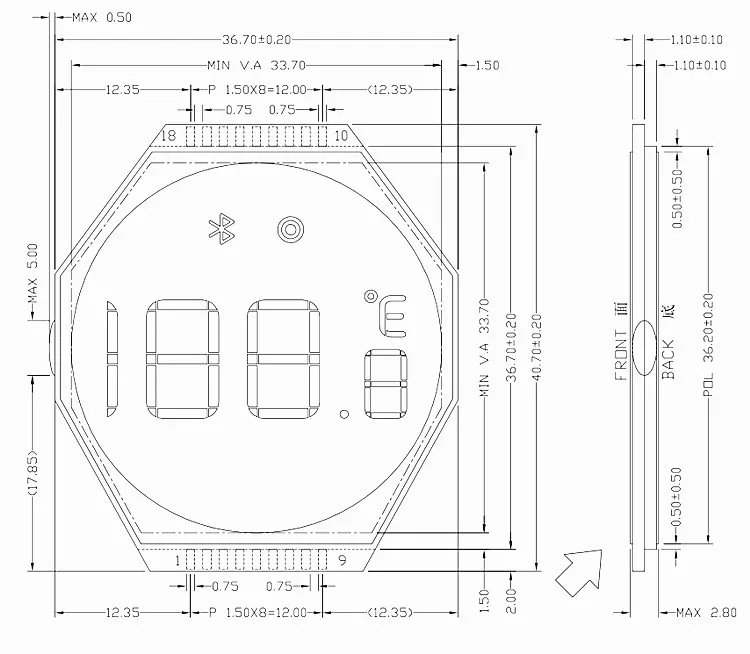

2.Module Size:36.70x40.70mm
3.PIN Number:N/C
3.Viewing Area :33.70x33.70mm
5.Resolution:Segment LCD
6.Display Type :HTN/Reflective/Positive
7.Viewing Angle:6 O'clock
8.Drive Method :1/4 Duty,  1/3 Bias
9.Working Temp :0℃ TO +50℃
10.Storage Temp :-10℃ TO +60℃
11.Connector:ZEBRA
12.Drive IC : N/C
13.Backlight :N/C




                                                  SIMILAR PRODUCTS YOU MAY LIKE



     103.jpg         103.jpg

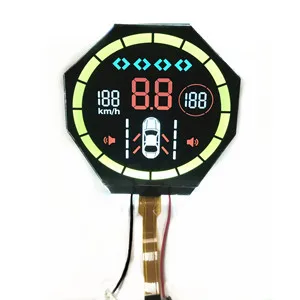

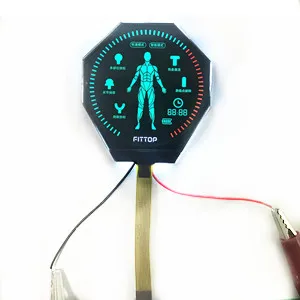

                              ENH-DG1280128-23                                                           ENH-SS916020-01


CUSTOM PROCESS

(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)

1.Firstly,discuss and confirm all of the details.

2.Payment for tooling process.

3.Formal drawing will be sent within 5 days and confirmed by your side.

4.15-20 days for tooling process.

5.Samples(5-20 pcs)will be sent to you to test and confirmed.

6.Place order for mass production after samples are confirmed.
