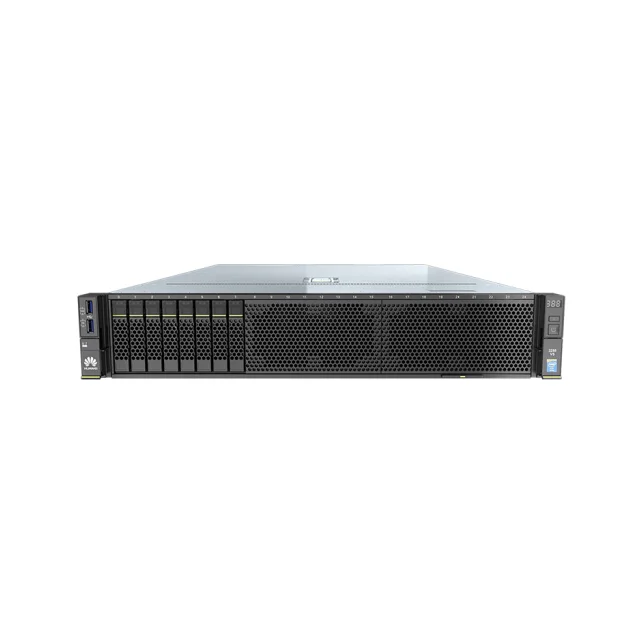

High Performance HUAWEI FusionServer Pro 2288H V5 4110CPU , 16GB Ram , 1TB HDD 2U Rack Server

Item

2288H V5

Form factor

2U rack server

Processors

Intel® Xeon® Scalable Processors

Chipset platform

Intel® C622

Memory

24 DDR4 DIMM slots, up to 2,666 MT/s

Internal storage

Supports the following hard drive configuration options:
4, 8, 12, 24, or 28 NVMe SSDs
31 x 2.5-inch SAS/SATA hard drives
Flash storage:
2 M.2 SSDs

RAID support

RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Configured with a supercapacitor for cache power-off protection
Supports RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration

Network ports

LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, or 1/2 x 56G FDR IB ports

PCIe expansion

Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.

Heterogeneous accelerator cards

2 dual-slot FHFL GPU or FPGA heterogeneous accelerator cards For details, visit http://support.huawei.com/onlinetoolsweb/ftca/indexEn?serise=2

Fan modules

4 hot-swappable counter-rotating fan modules with support for N+1 redundancy

Power supply units

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (Note 1):
550 W,900W,1000W,1200 W,1500 W

Host Operating System

FusionSphere 6.3

Installation suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.)
