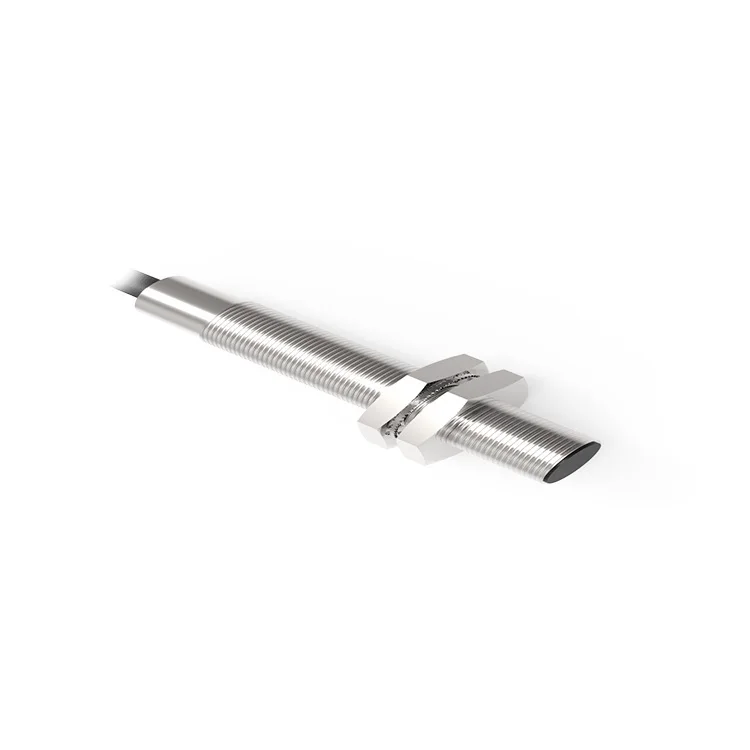

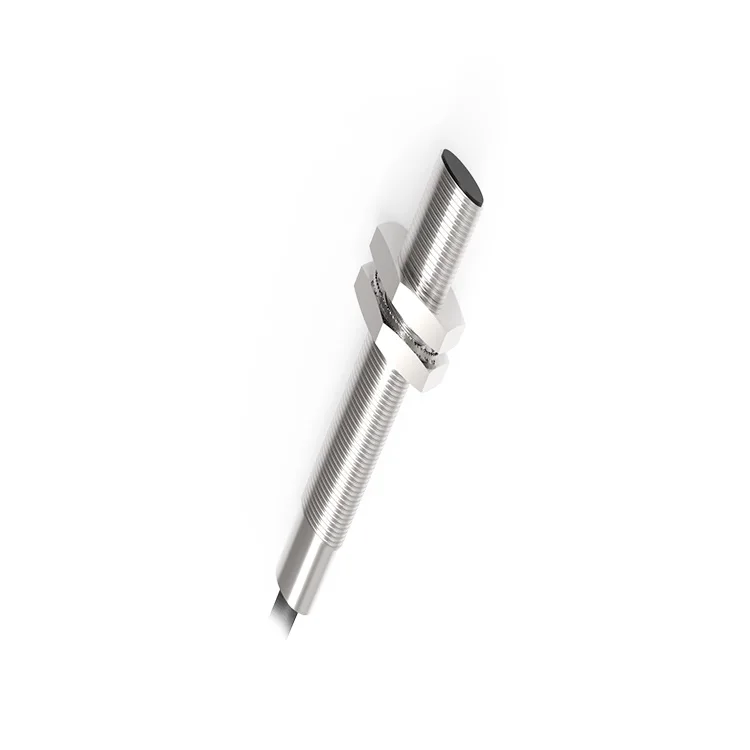

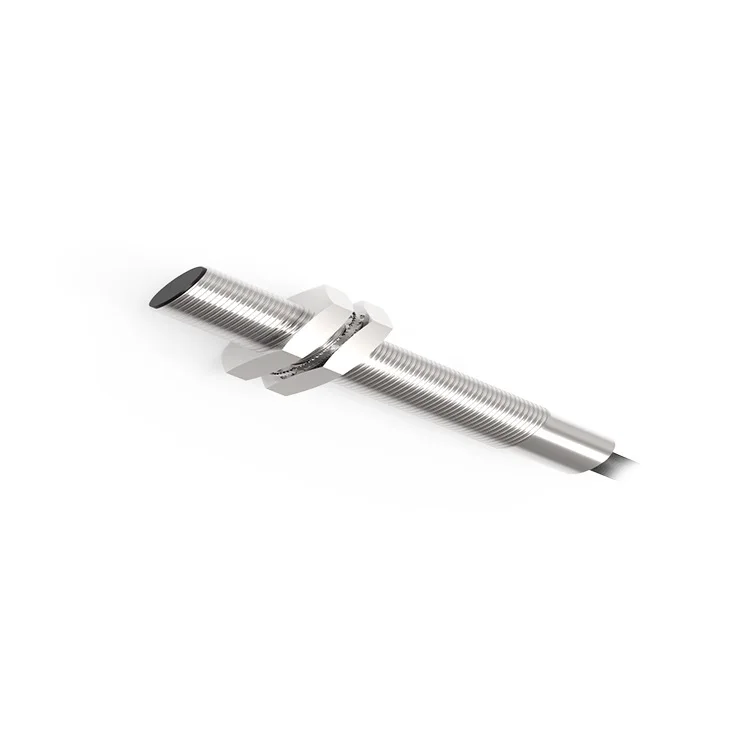

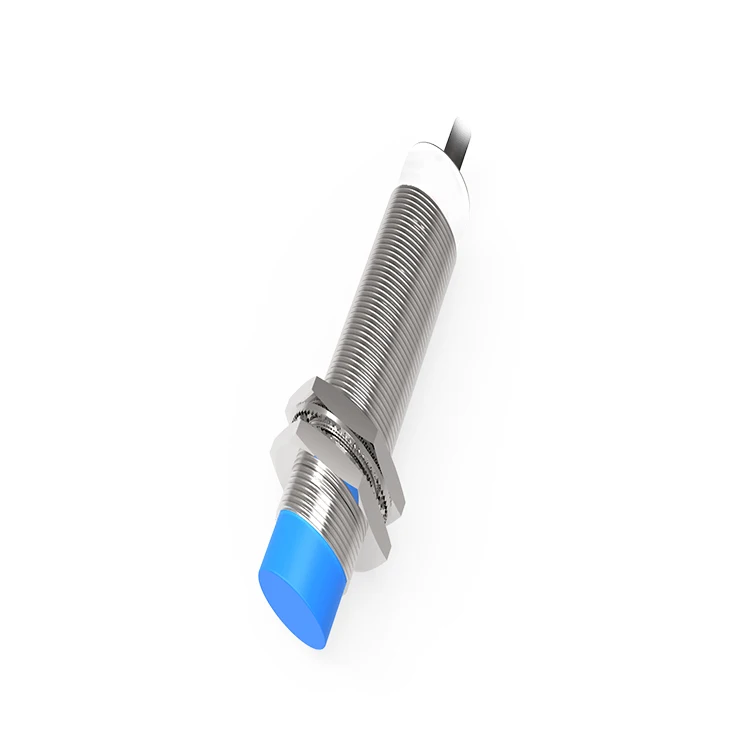

PNP Inductive Snsor Metal Detection Type Proximity Switch
- Category: >>>
- Supplier: Yizhong Electric (Shanghai) Co. Ltd.Yizhong Ltd.
Share on (62356121135):
Product Overview
Description
Recommend Products
Inductive sensor
Metal probe type proximity switch
Components | an oscillator, a trigger circuit, and an output circuit |
Working temperature | -25 ~ + 70 ~C |
Working frequency | ≤2000Hz |
Detection distance | within a certain range, in millimeters |
Protection Level | IP66/IP67 |
Shell material | Copper plated nickel, plastic, stainless steel, die casting alloy |
Installation mode | M: Embedded type, N: non-embedding type, LM: extended distance embedding type, LN: extended distance non-embedding type |
Working voltage | A:AC20-250V C:DC15-30V D:DC10-30V E:DC10-60V F:DC4.5-10.5V S:DC5V B:DC8.2V T:AC24-240V/DC12-240V |
Output mode | A: AC2 B: AC3 P: PNP N: NPN L: DC2 I: AC / DC 2 M: Analog K: NPN / PNP Convertible DW: Monostasis SW: Bistability |
Shell shape | T:Smooth cylindrical L:Curved R:Annular F:Square Y: Threaded cylindrical U:Grooved |
Sensor type | B: Inductive Standard C: Capacitive Sensor P: Magnetic Reed Sensor M: Analog Sensor N: Explosion-proof Sensor H: Hall Sensor K: Metal Induction Surface Sensor S: Ultrasound Sensor T: High Temperature Proximity Sensor 0: All Metal Detection Sensor D: High Speed Gear Switch |
Induction distance | 0.8:0.8mm 01:1mm 02:2mm 04:4mm 05:5mm 08:8mm 15:15mm............ | ||||||
Specification and size Only cylindrical (diameter) | 4:4mm 5:5mm 6.5:6.5mm 8:8mm 12:12mm 18:18mm 20:20mm 30:30mm 34:34mm 40:40mm Other shapes BE:8*7.4*24 BG10*6*27 KA:17*17*28 | ||||||
Connection Mode and Wire Length | Outgoing type:2M, 3M, 5M, 10M Joint type:V12:M12 connector (4 pins) V8:M8 connector (3 pins) V3:M8 clip-in connector (3 pins) V4:M12 clip-in connector (4 pins) V5:M12 Aviation Plug (3 pins) V6:M12 Aviation Plug (4 pins) V7: M8 connector with wire (pigtail) V9: M12 connector with wire (pigtail) T: Terminal | ||||||
Special functions | GW: High temperature / 38 (Shell length 38 mm) | ||||||
Output status | A: Normally open (N.O.) B: Normally closed (N.C.) C: Normally open (N.O.) + Normally closed (N.C.) S: Normally Open/Normally Closed Convertible I: Current Output Type 4-20mA V: Voltage Output 0-10V Y: Double open (N.O. +N.C.) Z: Double normal closure (N.C. +N.C.) J: Relay Output (Normally Open + Normally Closed) <VIEW MORE> | ||||||
Several wiring diagrams of sensors are shown below.
Working Principle
A sketch of inductance proximity switch
This kind of switch makes use of the eddy current inside the object when the conductive object approaches the proximity switch which can produce electromagnetic field. For ease of explanation, we can consider the proximity switch as consisting of three parts: an oscillator, a trigger circuit and an output circuit.
Recommendation of related products
Uses Of Products
Our products are widely used in aerospace, navigation, railways, communications, elevators, mines, machine tools, military, thermoelectric, building materials, transportation, plastics, light industry, footwear, steel, oil field, chemical, textile, food, printing, measurement and other industrial machinery and automation production lines, work limits, positioning detection, Automatic counting, speed measurement, automatic protection, signal transmission, isolation.The following figure is illustrated by an example.
Installation Mode of Sensor
1. Embedded Installation
For the sensors installed safely, the induction from the side is prevented by adding a metal ring to the ferrite core. But this shortens the sensing distance.
2. Non-embedded Installation
The coil of the sensor is wound around the ferrite core and emits magnetic field to the direction and side used. The magnetic field emitted by the side determines that the sensor can not be embedded in the metal, so it can also make the sensor work.
For the sensors installed safely, the induction from the side is prevented by adding a metal ring to the ferrite core. But this shortens the sensing distance.
2. Non-embedded Installation
The coil of the sensor is wound around the ferrite core and emits magnetic field to the direction and side used. The magnetic field emitted by the side determines that the sensor can not be embedded in the metal, so it can also make the sensor work.
Installation Method of Multiple Switches
When two or more sensors of the same type are installed relatively or parallel, the installation distance is too close, which may affect the frequency and cause frequency interference. The minimum distance between the sensor and the sensor is listed in the figure below. It must be installed according to this principle when using. (If the installation environment is limited less than the use of the first spacing installation, we can customize different frequency sensors in our company to avoid mutual interference)
